WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

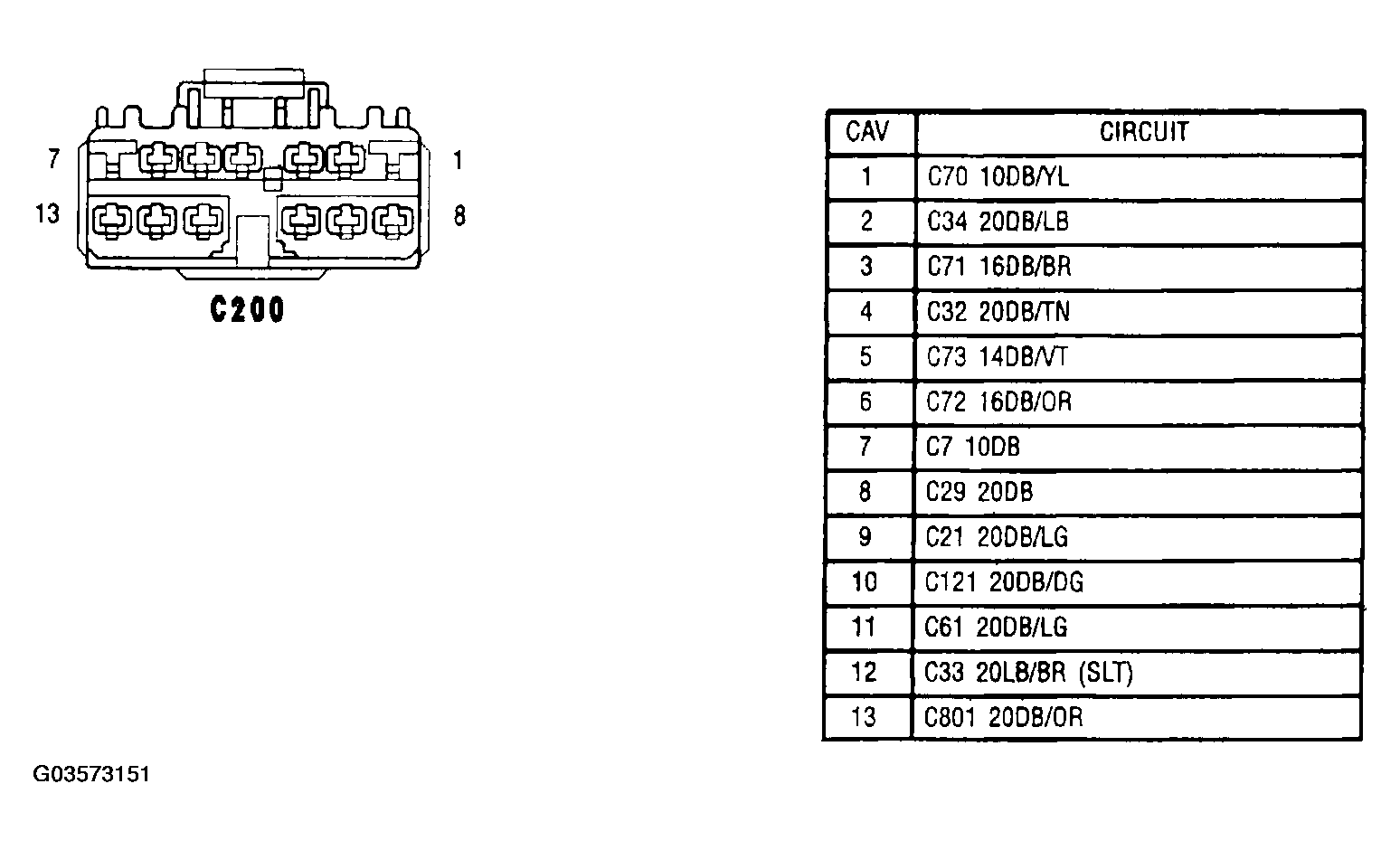

Fig 1: HVAC Side Inline Connector End View (C200)
Courtesy of DAIMLERCHRYSLER CORP.

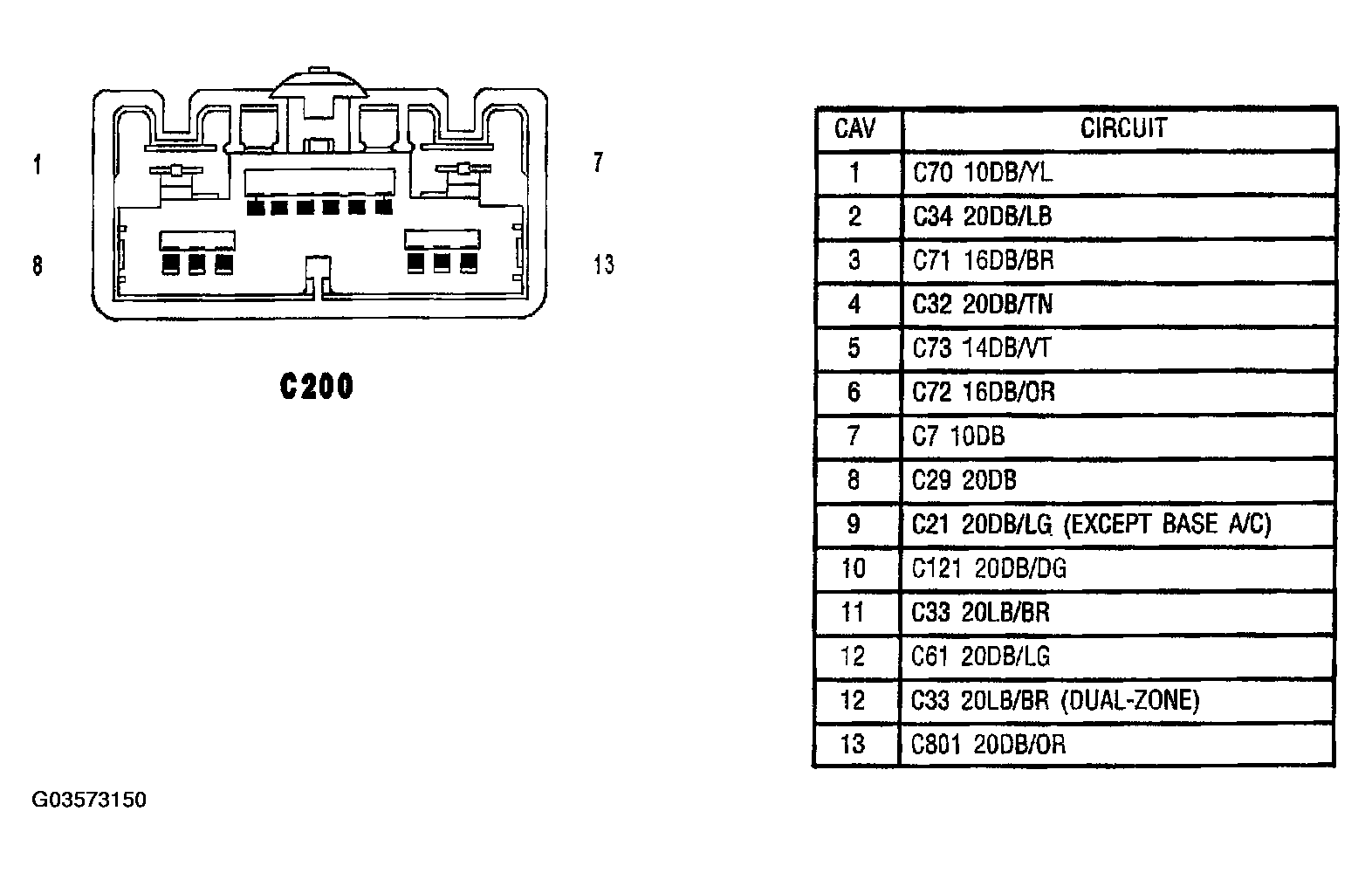

Fig 1: Instrument Panel Side Inline Connector End View (C200)
