Integrated Power Module C5 Connector End View

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

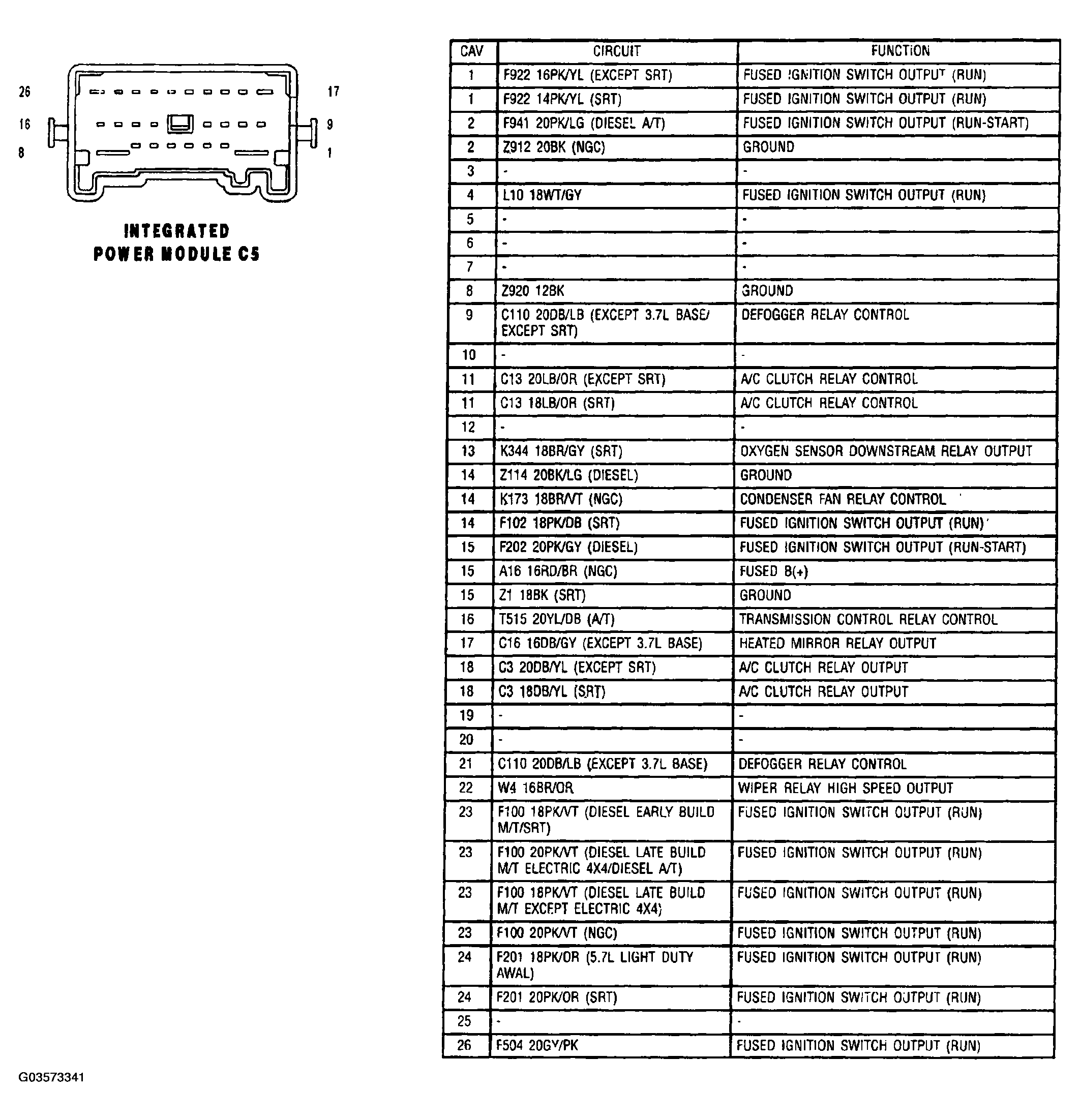

Fig 1: Integrated Power Module Connector End View (C5)

Courtesy of DAIMLERCHRYSLER CORP.
