Structural Adhesive Locations: Specifications: Index

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
FLOOR PAN AND SEAT MOUNTING FRONT CROSSMEMBER	19
FRONT FENDER	20
FLOOR PAN	21
INNER WHEELHOUSE TO INNER BOX SIDE PANEL	22
INNER BOX SIDE PANEL TO OUTER BOX SIDE PANEL	23
INNER WHEELHOUSE, CROSSMEMBERS AND CROSSMEMBER END SUPPORT BRACKET TO INNER BOX SIDE PANEL	24
INNER BOX SIDE PANEL TO OUTER BOX SIDE PANEL	25
INNER DOOR PANEL TO OUTER DOOR PANEL - FRONT DOOR (QUAD CAB)	26
INNER DOOR PANEL TO OUTER DOOR PANEL - FRONT DOOR (STANDARD CAB)	27
INNER DOOR PANEL TO OUTER DOOR PANEL - REAR DOOR (QUAD CAB)	28
SILL RAIL - STD CAB	29
SILL RAIL - QUAD CAB	30

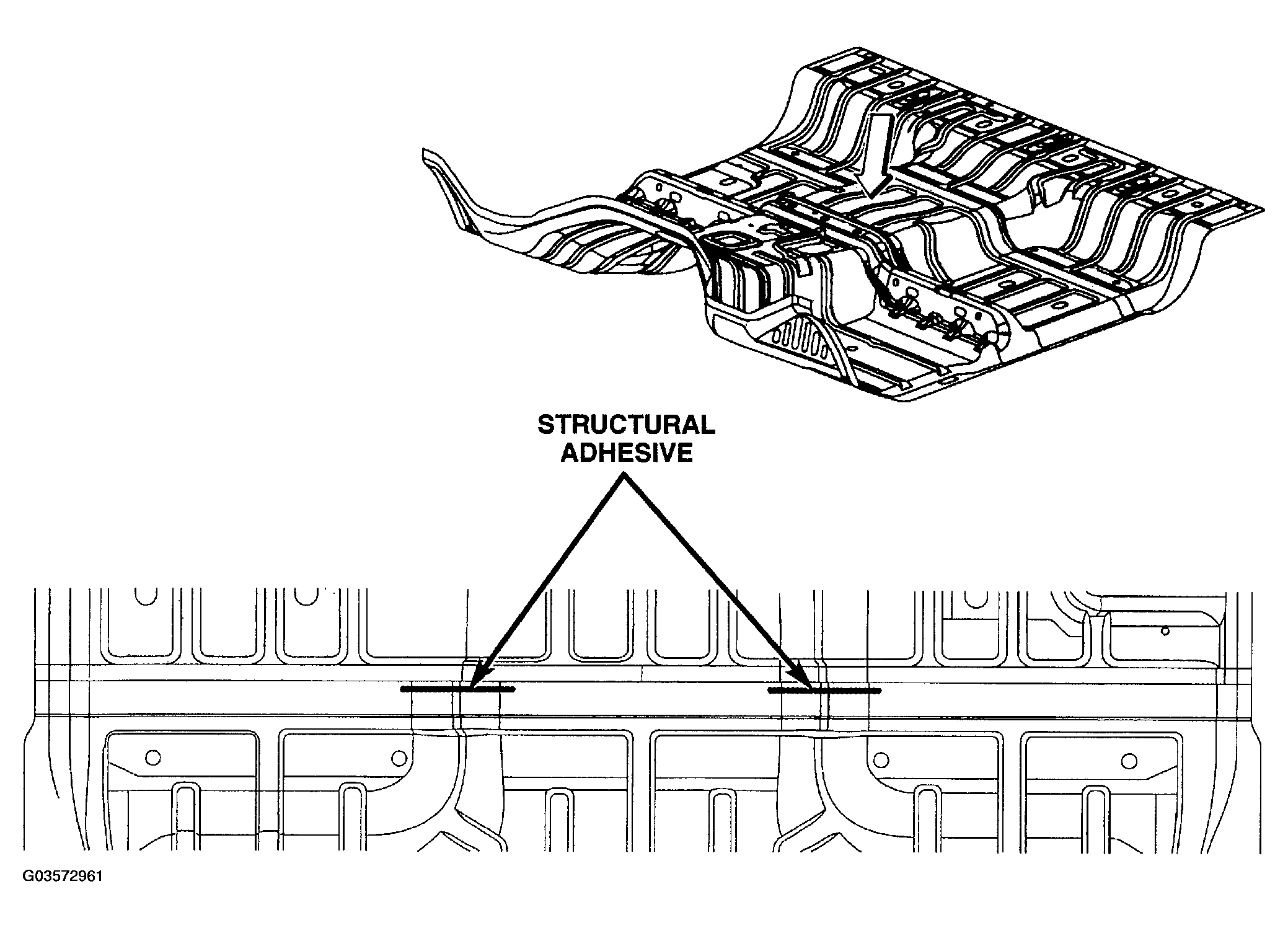

Fig 1: Identifying Structural Adhesive Locations Of Floor Pan

G03572961

Courtesy of DAIMLERCHRYSLER CORP.

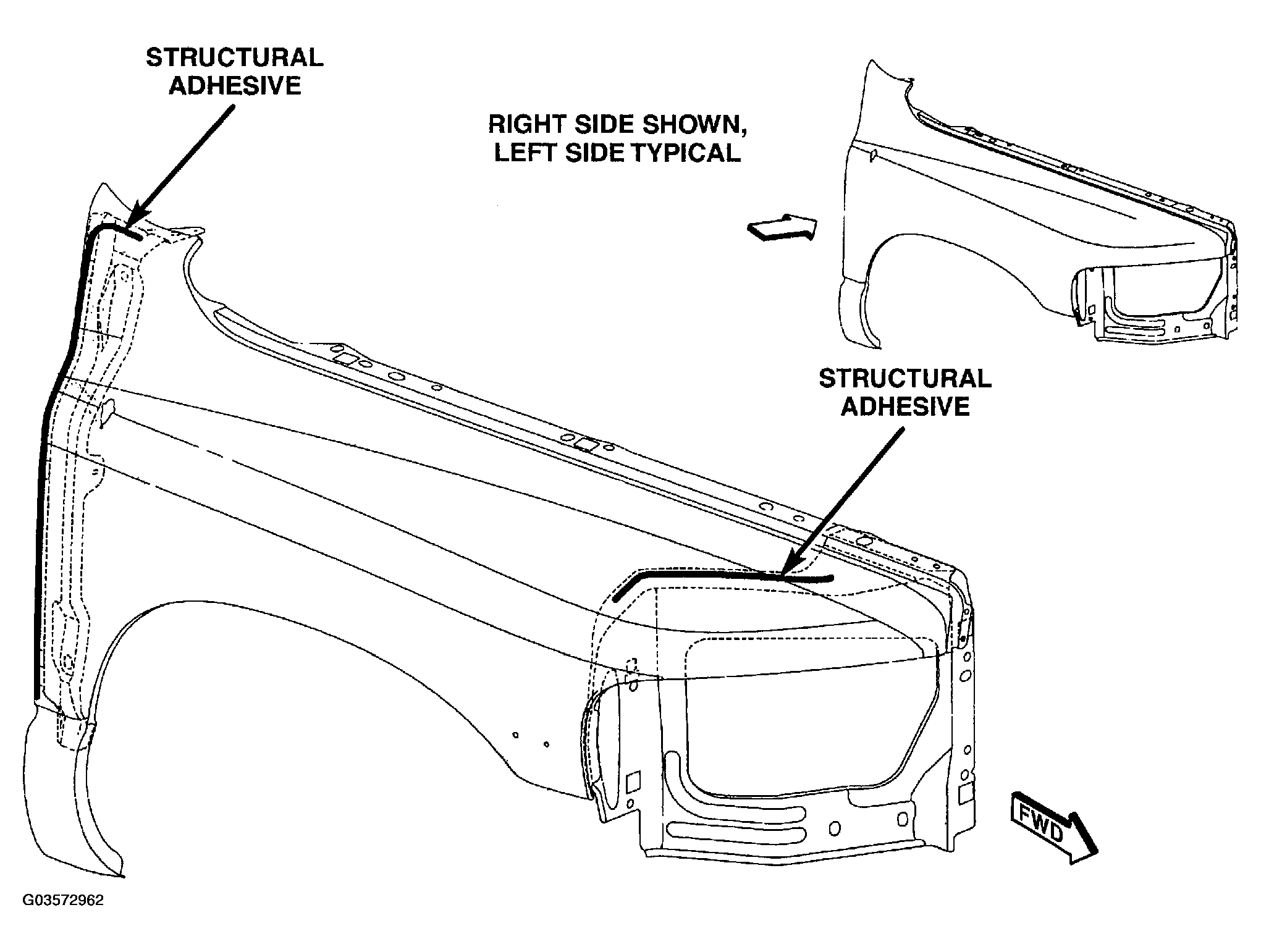

Fig 2: Identifying Structural Adhesive Locations Of Front Fender

G03572962

Courtesy of DAIMLERCHRYSLER CORP.

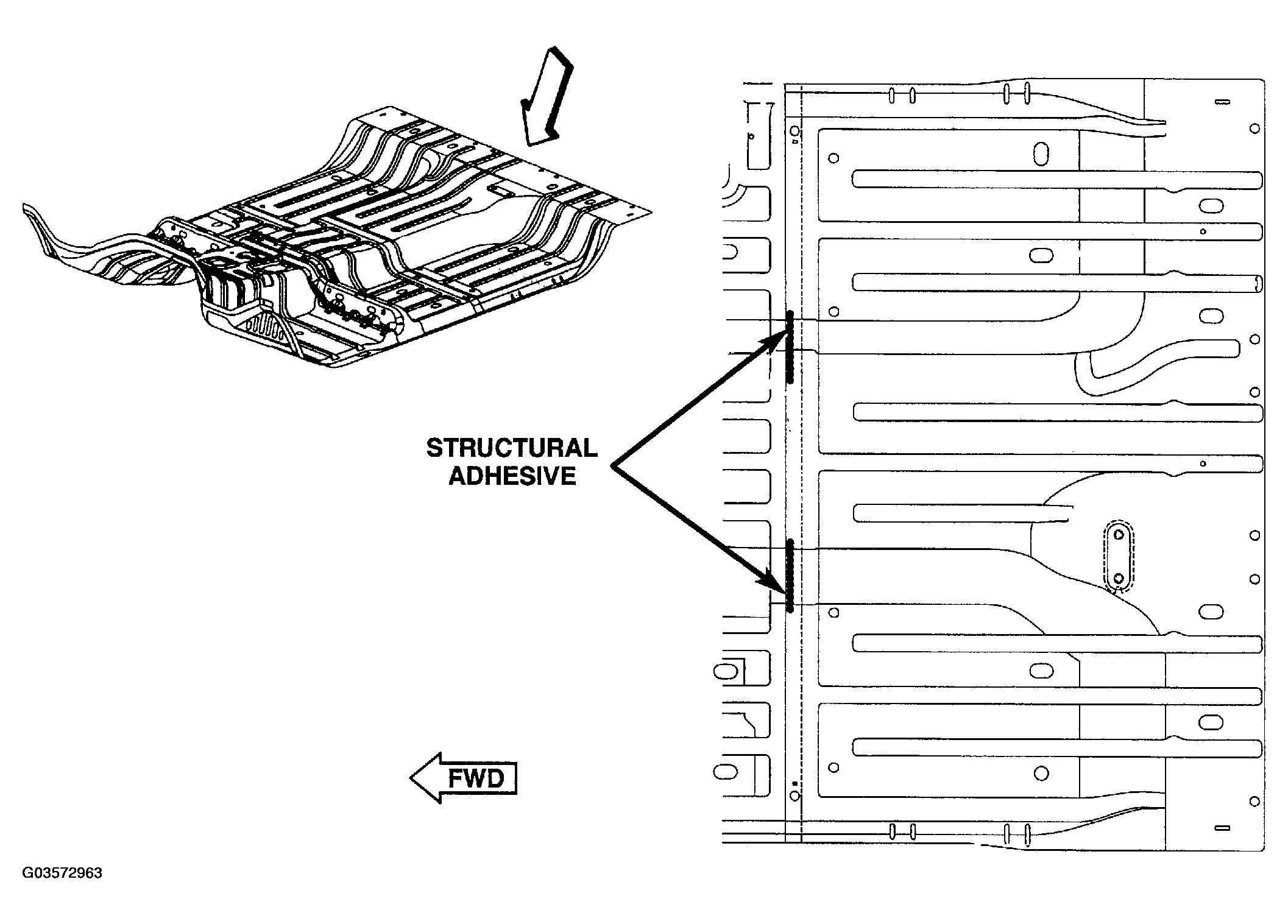

Fig 3: Identifying Structural Adhesive Locations Of Floor Pan

G03572963

Courtesy of DAIMLERCHRYSLER CORP.

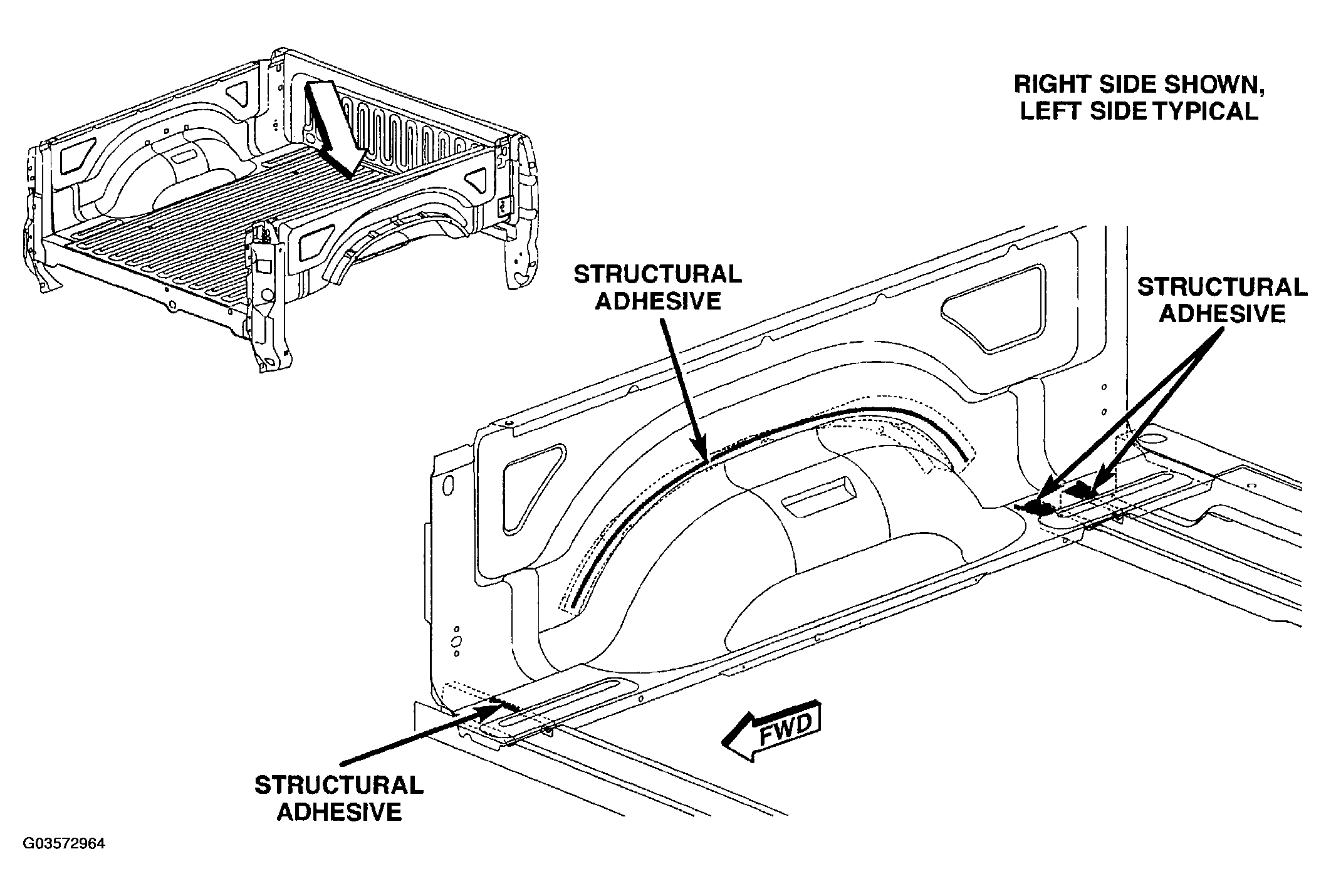

Fig 4: Identifying Structural Adhesive Locations Of Inner Wheel House

G03572964

Courtesy of DAIMLERCHRYSLER CORP.

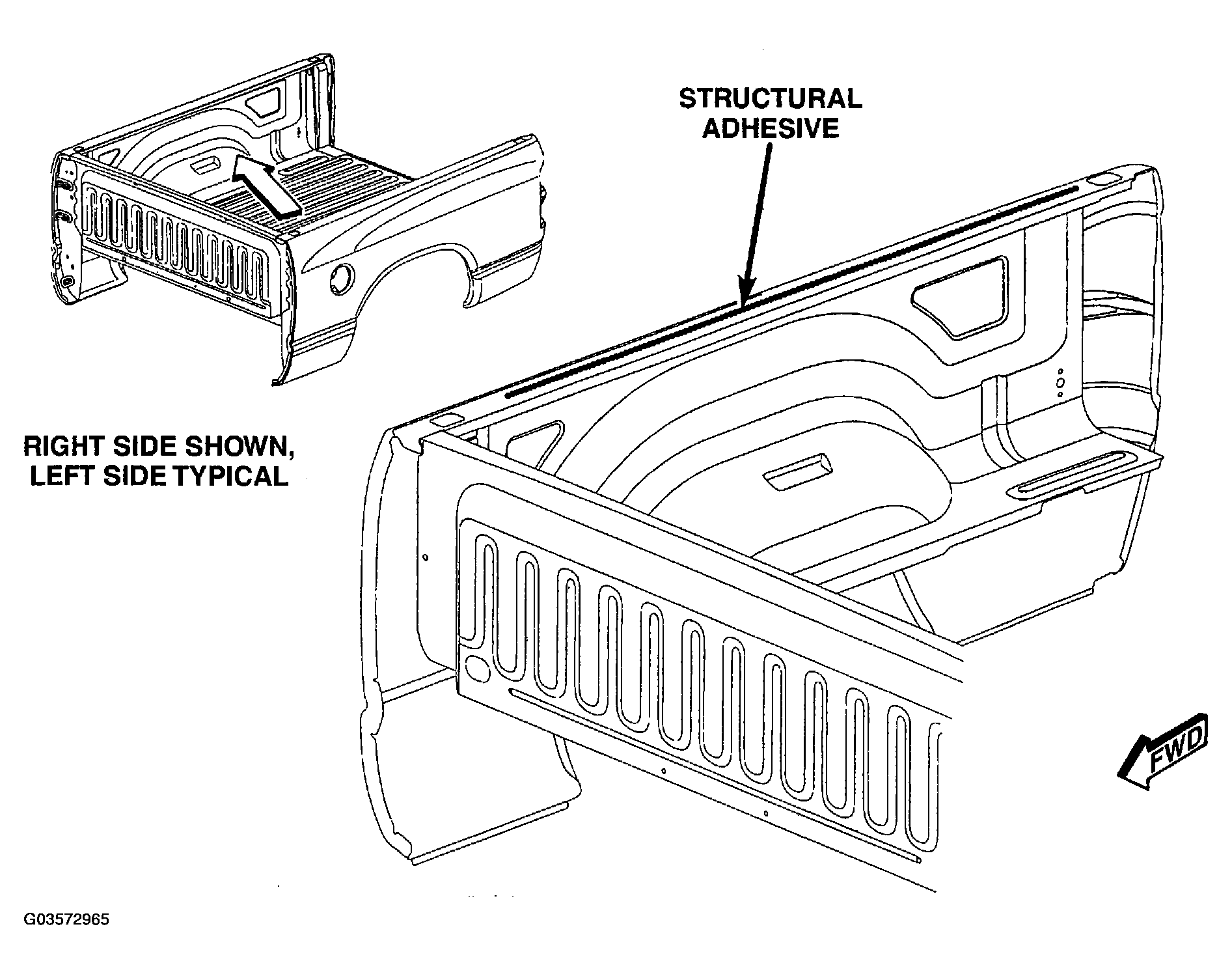

Fig 5: Identifying Structural Adhesive Locations Of Inner Box Side Panel

G03572965

Courtesy of DAIMLERCHRYSLER CORP.

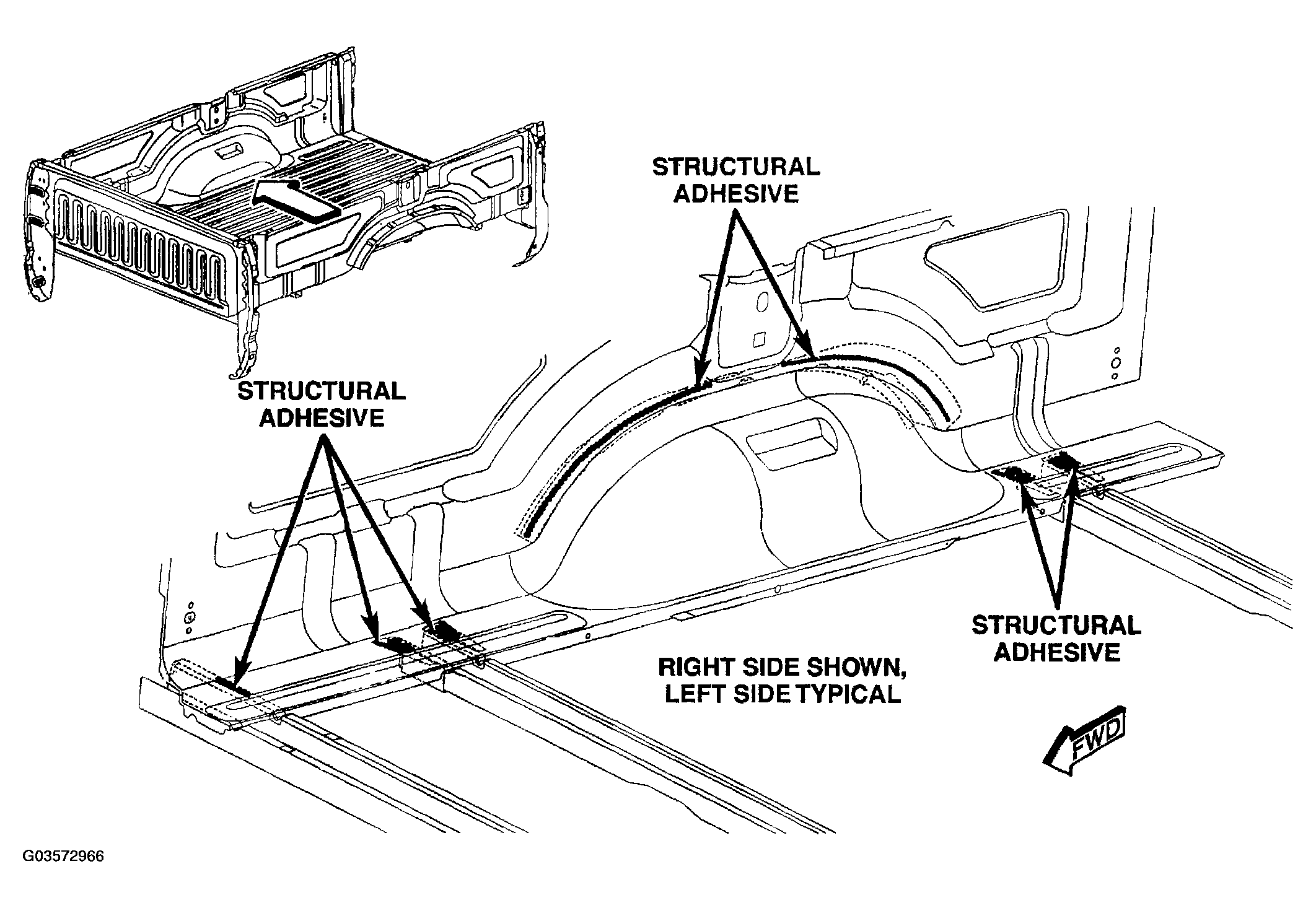

Fig 6: Identifying Structural Adhesive Locations Of Inner Wheel House

G03572966

Courtesy of DAIMLERCHRYSLER CORP.

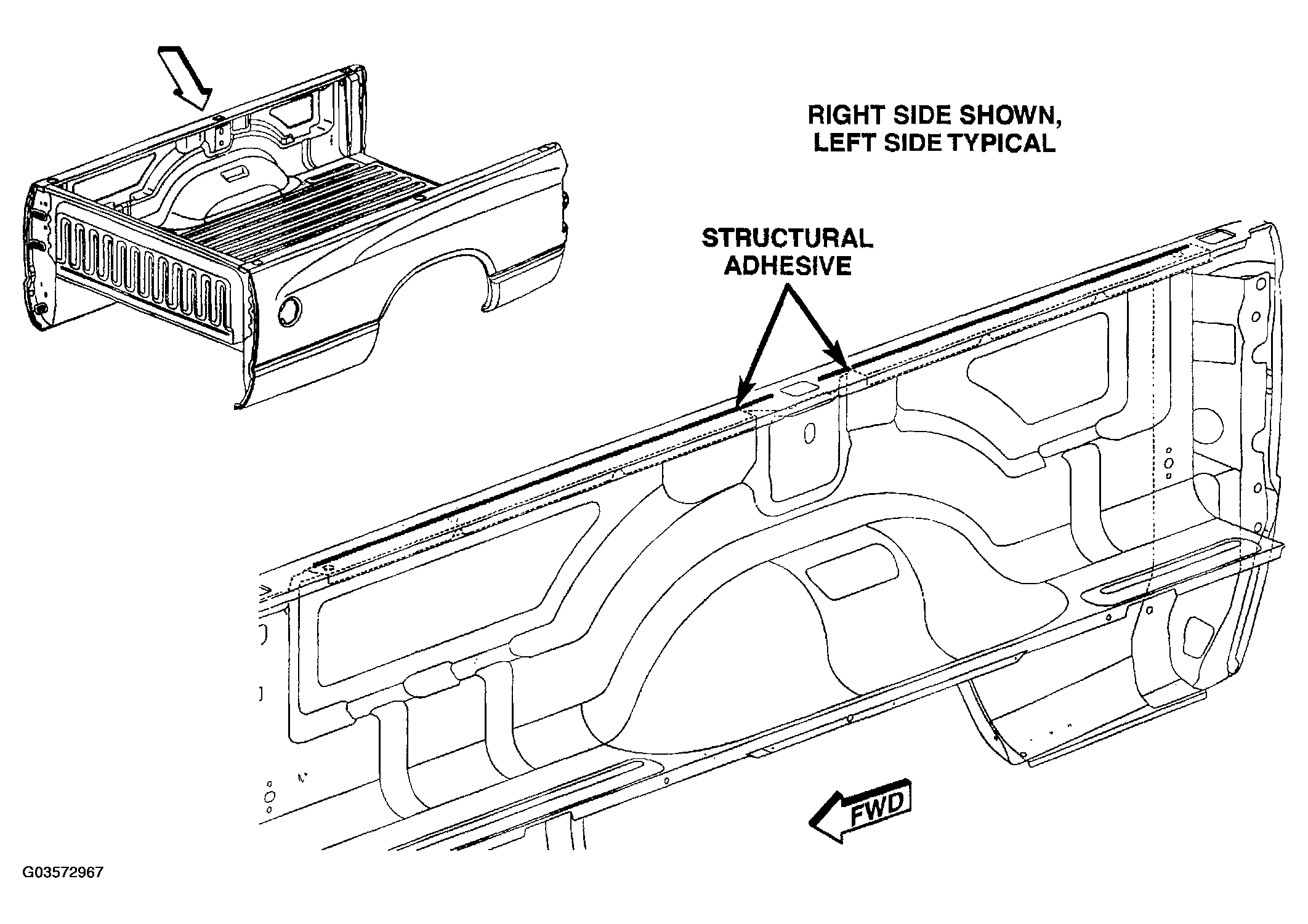

Fig 7: Identifying Structural Adhesive Locations Of Inner Box Side Panel

G03572967

Courtesy of DAIMLERCHRYSLER CORP.

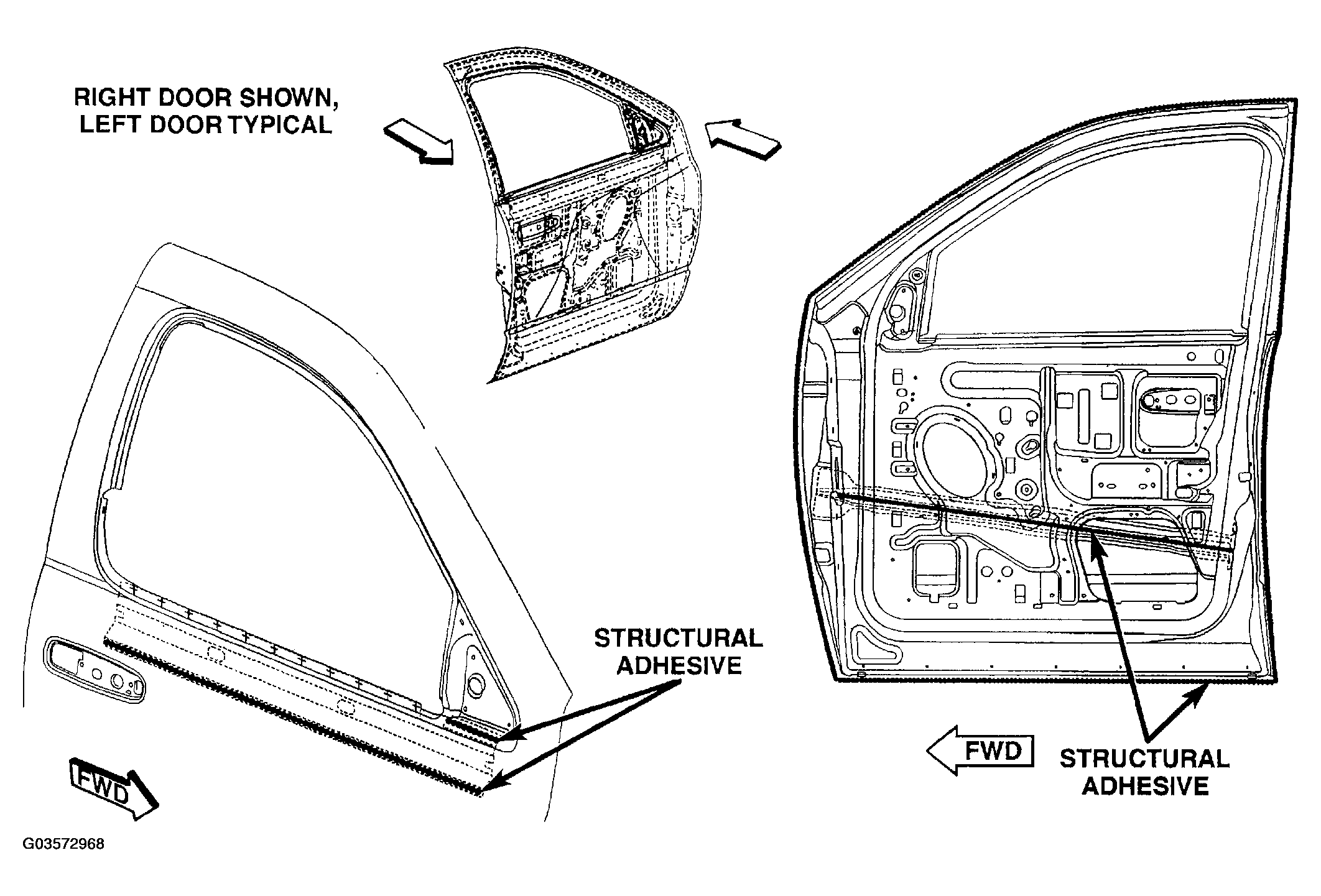

Fig 8: Identifying Structural Adhesive Locations Of Inner Door Panel

G03572968

Courtesy of DAIMLERCHRYSLER CORP.

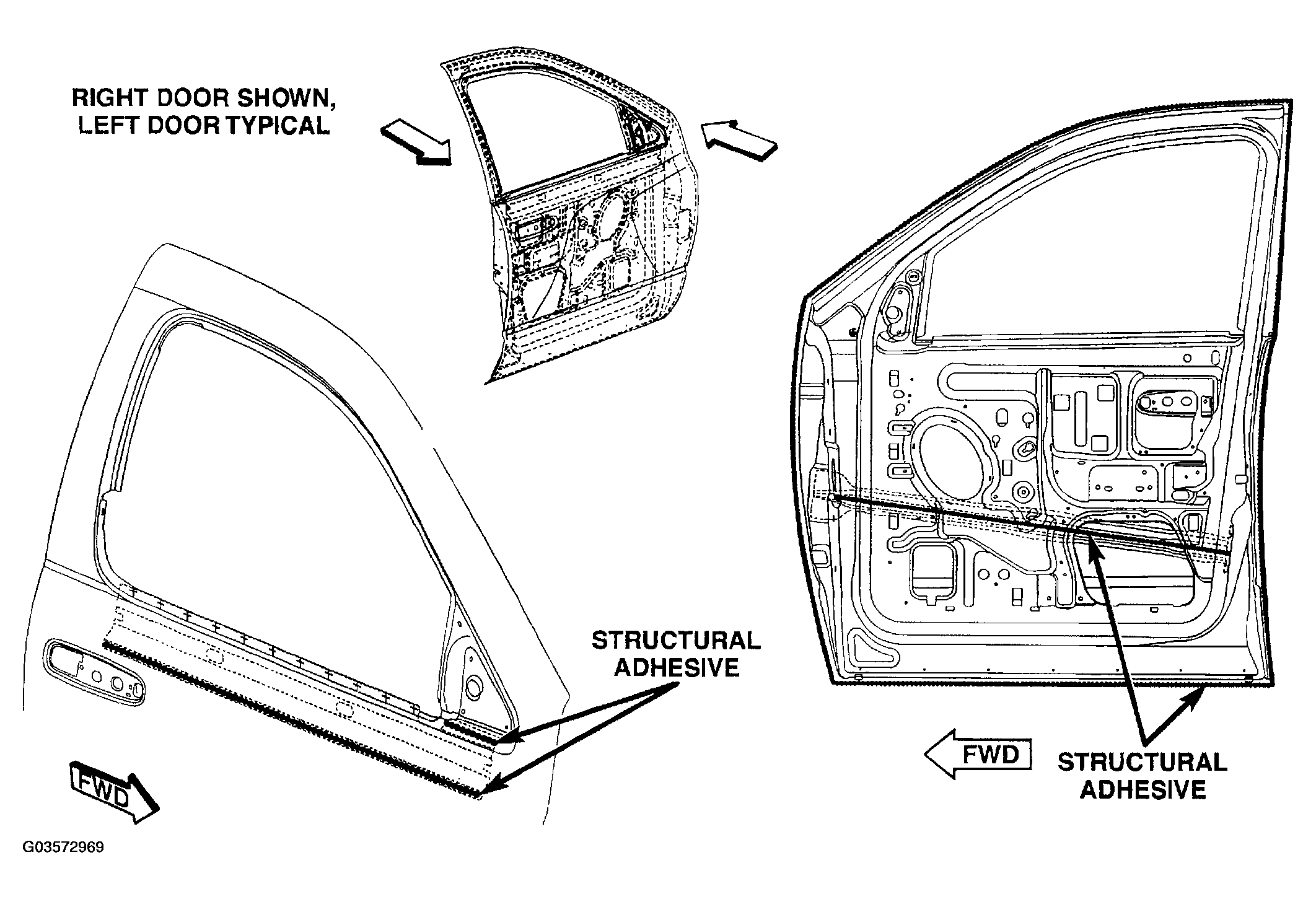

Fig 9: Identifying Structural Adhesive Locations Of Inner Door Panel

G03572969

Courtesy of DAIMLERCHRYSLER CORP.

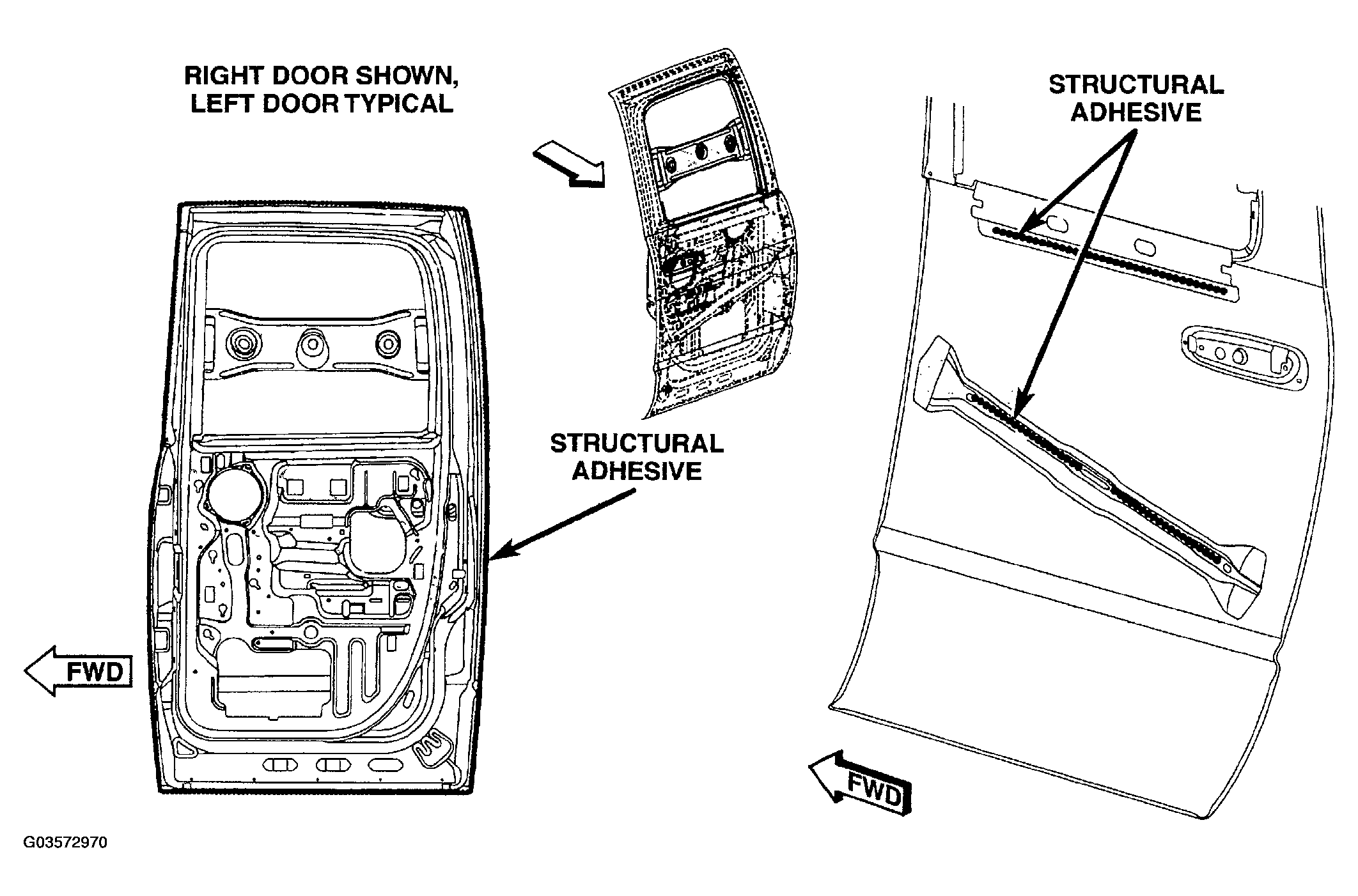

Fig 10: Identifying Structural Adhesive Locations Of Rear Door Inner Panel

G03572970

Courtesy of DAIMLERCHRYSLER CORP.

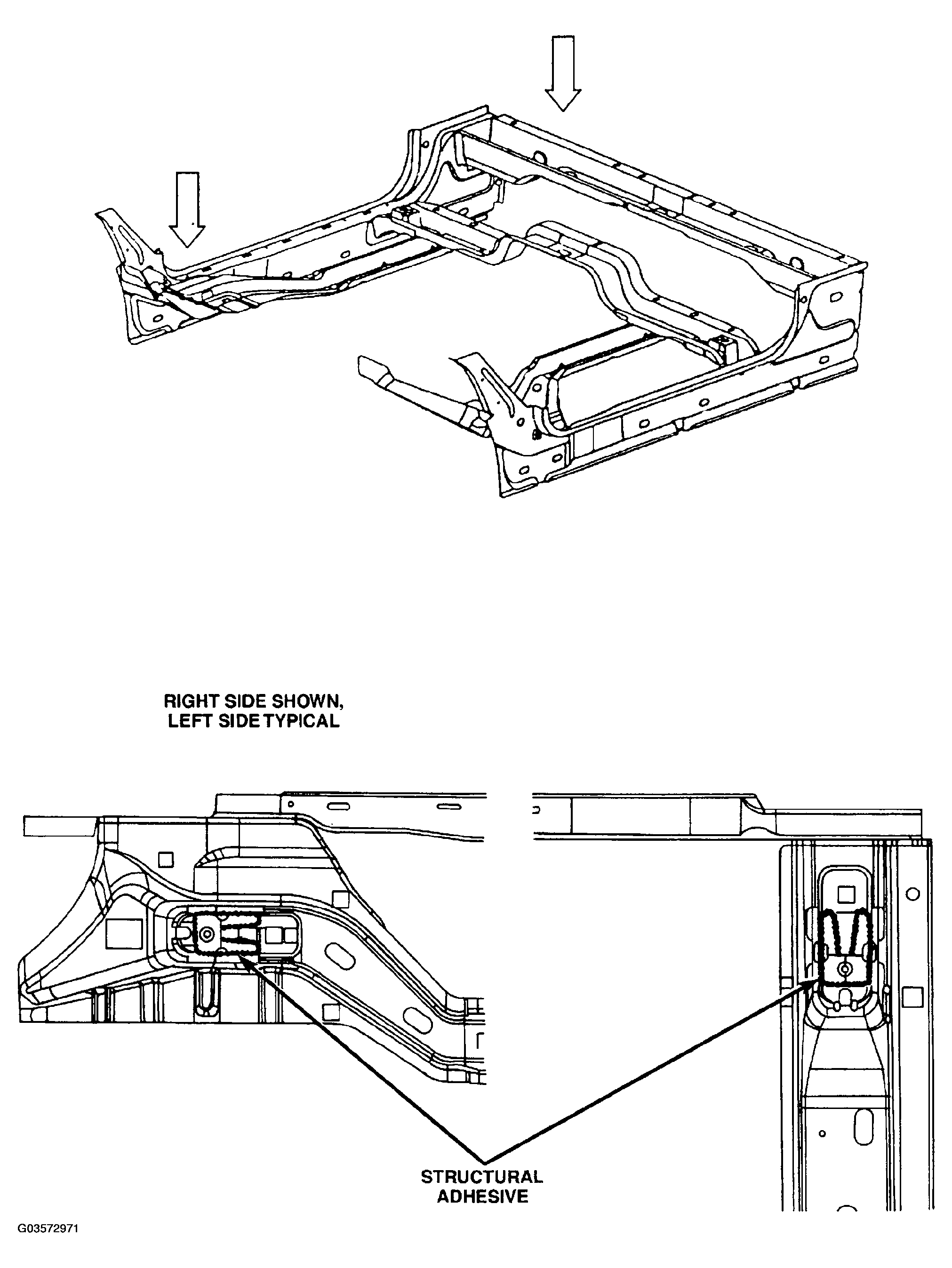

Fig 11: Identifying Structural Adhesive Locations Of Sill Rail - Std Cab

G03572971

Courtesy of DAIMLERCHRYSLER CORP.

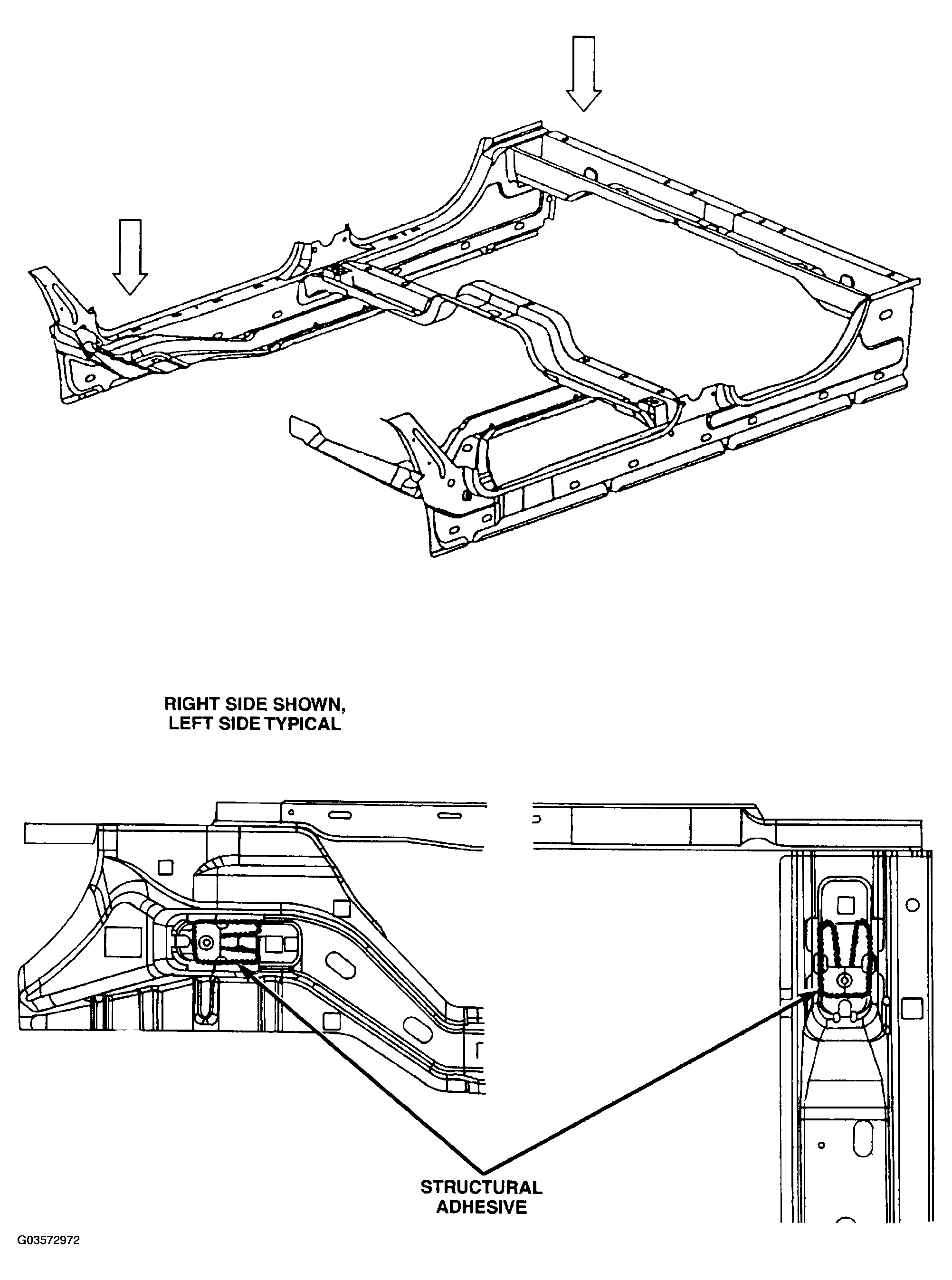

Fig 12: Identifying Structural Adhesive Locations Of Sill Rail - Quad Cab

G03572972

Courtesy of DAIMLERCHRYSLER CORP.
