Weld Locations: Specifications: Index

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
INDEX

DESCRIPTION FIGURE
FENDER BRACE, CLOSURE TUBE AND FRAME MOUNTING BRACKET TO FRONT FENDER SUPPORT, FRONT FENDER AND RADIATOR TUBE 31
STEERING COLUMN SUPPORT, CONNECTOR WIRING BRACKET AND WELD NUTS TO LOWER PLENUM PANEL 32
WIPER ATTACHING WELD NUTS AND VACUUM RESERVOIR ATTACHING STUDS TO COWL PAR PANEL 33
DASH PANEL TO FRONT FLOOR PAN 34
DASH PANEL TO LOWER PLENUM PANEL 35
LOWER PLENUM PANEL TO COWL BACK PANEL 36
FRONT FENDER AND RADIATOR TUBE DASH PANEL, INSTRUMENT PANEL MOUNTING BRACKET, AND WELD NUTS TO COWL SIDE PANEL - LEFT SIDE 37
DASH PANEL, LOWER PLENUM PANEL AND COWL PANEL BAR TO COWL SIDE PANEL - LEFT SIDE 38
FRONT FENDER AND RADIATOR TUBE DASH PANEL, INSTRUMENT PANEL MOUNTING BRACKET AND WELD NUTS TO COWL SIDE PANEL - RIGHT SIDE 39
DASH PANEL, LOWER PLENUM PANEL AND COWL PANEL BAR TO COWL SIDE PANEL - RIGHT SIDE 40
REINFORCEMENT AND HEADLAMP MOUNTING PANEL TO OUTER FENDER PANEL 41
SEAT MOUNTING FRONT BRACKETS TO SEAT MOUNTING FRONT CROSSMEMBER TO FRONT FLOOR PAN 42
AIR BAG MODULE BRACKET SHIFTER MOUNTING PLATE AND REAR FLOOR PANE TO FRONT FLOOR PAN 43
RIGHT TO LEFT REAR FLOOR CROSSMEMBER AND RIGHT TO LEFT SEAT MOUNTING CROSSMEMBER 44
REAR FLOOR CROSSMEMBER, SEAT MOUNTING CROSSMEMBER AND UNDERBODY SUPPORT TO FLOOR SILL 45
SEAT MOUNTING FRONT CROSSMEMBER TO FRONT FLOOR PAN TO UNDERBODY SUPPORT 46
FRONT SEAT MOUNTING CROSSMEMBERS TO FRONT SEAT MOUNTING BRACKET TO FRONT FLOOR PAN 47
REAR FLOOR CROSSMEMBERS TO REAR FLOOR PAN 48
FLOOR SILL TO FRONT SEAT MOUNTING CROSSMEMBER, FRONT AND REAR FLOOR PAN 49
AIR BAG MODULE BRACKET, SHIFTER MOUNTING PLATE AND FRONT SEAT MOUNTING CROSSMEMBER TO FRONT FLOOR PAN 50
REAR SEAT MIDDLE MOUNTING PLATE TO REAR FLOOR PAN TO FRONT FLOOR PAN 51
REAR FLOOR CROSSMEMBER, SEAT MOUNTING CROSSMEMBER AND UNDERBODY SUPPORT TO FLOOR SILL 52
LEFT REAR CROSSMEMBER TO RIGHT REAR CROSSMEMBER TO REAR FLOOR PAN 53
STORAGE BIN TO RIGHT AND LEFT REAR FLOOR CROSSMEMBER TO REAR FLOOR PAN 54
RIGHT REAR FRONT SEAT MOUNTING CROSSMEMBER TO LEFT REAR FRONT SEAT MOUNTING CROSSMEMBER TO REAR FLOOR PAN 55
FRONT SEAT MOUNTING FRONT CROSSMEMBER AND STORAGE BIN TO FLOOR SILL TO FRONT AND REAR FLOOR PAN 56
FRONT SEAT MOUNTING FRONT CROSSMEMBER TO UNDERBODY SUPPORT TO FRONT FLOOR PAN 57
A-PILLAR REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 58
A-PILLAR REINFORCEMENT TO FRONT APERTURE EXTENSION TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 59
INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 60
SHOULDER BELT REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 61
FRONT PILLAR TAPPING PLATES TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 62
INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 63
C-PILLAR BAFFLE AND OUTER BODY SIDE APERTURE TO INNER BODY SIDE APERTURE 64
A-PILLER REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 65
FRONT EXTENSION PLATE TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE TO A-PILLAR REINFORCEMENT 66
OUTER BODY SIDE APERTURE TO INNER BODY SIDE APERTURE 67
B-PILLAR REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 68
UPPER B-PILLAR TAPPING PLATE AND LOWER B-PILLAR TAPPING PLATE TO OUTER BODY SIDE APERTURE 69
UPPER A-PILLAR TAPPING PLATE AND LOWER A-PILLAR TAPPING PLATE TO INNER BODY SIDE APERTURE 70
SEAT BELT MOUNTING PLATES AND REINFORCEMENTS TO INNER BODY SIDE APERTURE 71
OUTER BODY SIDE APERTURE TO INNER BODY SIDE APERTURE 72
C-PILLAR REINFORCEMENTS AND SHOULDER BELT MOUNTING REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 73
SEAT BELT RETRACTOR PLATE TO FLOOR SILL TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 74
FLOOR SILL TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 75
BACK REINFORCEMENT AND CAB BACK PANEL TO REAR FLOOR CROSSMEMBER AND INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 76
CAB BACK REINFORCEMENT TO CAB BACK PANEL (CHILD TETHERS) 77
COWL SIDE PANEL TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 78
OUTER ROOF PANEL TO OUTER BODY SIDE APERTURE 79
ROOF HEADER TO OUTER ROOF PANEL TO A-PILLAR REINFORCEMENT TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 80
REAR ROOF HEADER TO OUTER ROOF PANEL TO INNER BODY SIDE APERTURE TO OUTER BODY SIDE APERTURE 81
OUTER BODY SIDE APERTURE TO CAB BACK PANEL TO FLOOR SILL, INNER BODY SIDE APERTURE TO FLOOR SILL 82
OUTER BODY SIDE APERTURE TO INNER BODY SIDE APERTURE TO FLOOR SILL 83
REAR FLOOR CROSSMEMBER AND CAB BACK REINFORCEMENT TO CAB BACK PANEL TO INNER BODY SIDE APERTURE 84
CAB BACK REINFORCEMENT TO CAB BACK PANEL 85
CENTER SHOULDER BELT REINFORCEMENT AND TAPPING PLATES TO CAB BACK REINFORCEMENT 86
A-PILLAR REINFORCEMENT TO COWL SIDE PANEL TO OUTER BODY SIDE APERTURE/APERTURE EXTENSION TO COWL SIDE PANEL 87
B-PILLAR REINFORCEMENT TO OUTER ROOF PANEL TO OUTER BODY SIDE APERTURE 88
FRONT ROOF HEADER TO OUTER ROOF PANEL/ROOF BOW TO INNER BODY SIDE APERTURE/FRONT ROOF HEADER TO A-PILLAR REINFORCEMENT 89
INNER BODY SIDE APERTURE TO REAR ROOF HEADER AND OUTER BODY SIDE APERTURE TO OUTER ROOF PANEL 90
FRONT CROSSMEMBER, WHEELHOUSE CROSSMEMBER AND BRACKET SUPPORT CROSSMEMBER TO BOX FLOOR PAN 91
LONG CROSSMEMBER AND FLOOR BOX CROSS SILL TO BOX FLOOR PAN 92
TAPPING PLATES AND SUPPORT BRACKETS TO REAR CROSS BOX SILL, FRONT WHEELHOUSE, LONG AND BRACKET SUPPORT CROSSMEMBERS 93
STAKE POCKET REINFORCEMENTS AND TIE DOWN REINFORCEMENTS TO INNER BOX SIDE PANEL 94
OUTER BOX SIDE REINFORCEMENT BRACES NUT PLATES TO OUTER BOX SIDE PANEL MOUNTING 95
OUTER WHEELHOUSE TO OUTER BOX SIDE PANEL 96
WELD NUT STRIKER CAGE NUT, OUTER BOX SIDE PANEL AND NUT PLATE TO BOX SIDE TAILGATE REINFORCEMENT 97
FRONT BOX PANEL TO FRONT INNER STAKE POCKET REINFORCEMENT TO FRONT BOX SIDE PANEL 98
FRONT CROSSMEMBER TO FRONT BOX SIDE PANEL AND BOX FLOOR PANEL TO BOX FRONT PANEL 99
BOX FLOOR PANEL AND INNER WHEELHOUSE PANEL TO INNER BOX SIDE PANEL 100
FRONT CROSSMEMBER AND END SUPPORT BRACKET TO LONG CROSSMEMBER TO INNER BOX SIDE PANEL/STAKE POCKET REINFORCEMENT AND BOX FLOOR SILL TO OUTER TAILGATE PILLAR TO INNER TAILGATE PILLAR 101
STAKE POCKET REINFORCEMENT AND BOX FLOOR SILL CROSSMEMBER TO INNER TAILGATE PILLAR 102
INNER TAILGATE PILLAR PANEL TO INNER BOX SIDE PANEL TO TIE DOWN MOUNTING REINFORCEMENT 103
BOX FLOOR SILL CROSSMEMBER TO INNER BOX SIDE PANEL 104
INNER TAILGATE PILLAR TO TAILGATE BOX SIDE REINFORCEMENT TO OUTER TAILGATE PILLAR 105
BOX SIDE PANEL AND OUTER TAILGATE PILLAR TO OUTER BOX SIDE PANEL 106
FRONT BOX PANEL TO OUTER BOX SIDE PANEL 107
INNER BOX SIDE PANEL AND INNER TAILGATE PILLAR TO OUTER BOX SIDE PANEL 108
OUTER WHEELHOUSE PANEL TO INNER WHEELHOUSE PANEL 109
FRONT CROSSMEMBER, LONG CROSSMEMBER, AND WHEELHOUSE CROSSMEMBER TO FLOOR PAN 110
WHEELHOUSE CROSSMEMBER, LONG CROSSMEMBER AND REAR CROSS BOX SILL TO BOX FLOOR PAN 111
FRONT AND CENTER STAKE POCKET REINFORCEMENTS AND TIE DOWN MOUNTING REINFORCEMENT TO INNER BOX SIDE PANEL 112
OUTER FRONT AND CENTER STAKE POCKET REINFORCEMENT AND OUTER TIE DOWN MOUNTING REINFORCEMENT TO INNER BOX SIDE PANEL 113
OUTER WHEELHOUSE AND OUTER BRACE MOUNTING REINFORCEMENT TO OUTER BOX SIDE PANEL 114
TAILGATE BOX SIDE PIVOT REINFORCEMENT TO OUTER BOX SIDE PANEL 115
FRONT BOX SIDE PANEL TO FRONT CROSSMEMBER TO INNER BOX SIDE PANEL 116
FRONT BOX SIDE PANEL TO BOX FRONT PANEL TO INNER BOX SIDE PANEL/FRONT STAKE POCKET REINFORCEMENT TO FRONT BOX SIDE PANEL TO BOX FRONT PANEL 117
BOX FRONT PANEL TO BOX FLOOR PANEL 118
BOX FLOOR PANEL TO INNER BOX SIDE PANEL 119
LONG CROSSMEMBERS TO CROSSMEMBER END SUPPORT BRACKETS TO INNER BOX SIDE PANEL 120
INNER WHEELHOUSE PANEL TO INNER BOX SIDE PANEL 121
TAILGATE PILLAR OUTER PANEL TO TAILGATE PILLAR INNER PANEL TO INNER BOX SIDE PANEL 122
REAR SILL CROSS BOX TO TAILGATE PILLAR OUTER PANEL AND INNER BOX SIDE PANEL 123
OUTER BOX SIDE PANEL TO BOX FRONT PANEL AND BOX FRONT SIDE PANEL 124
STAKE POCKET REINFORCEMENTS TO INNER BOX SIDE PANEL TO OUTER BOX SIDE PANEL 125
TAILGATE PIVOT REINFORCEMENT AND INNER TAILGATE PILLAR TO INNER BOX SIDE PANEL TO OUTER BOX SIDE PANEL 126
INNER WHEELHOUSE TO OUTER WHEELHOUSE/TAILGATE PIVOT REINFORCEMENT TO OUTER TAILGATE PILLAR TO INNER TAILGATE PILLAR 127
OUTER TAILGATE PILLAR TO OUTER BOX SIDE PANEL 128

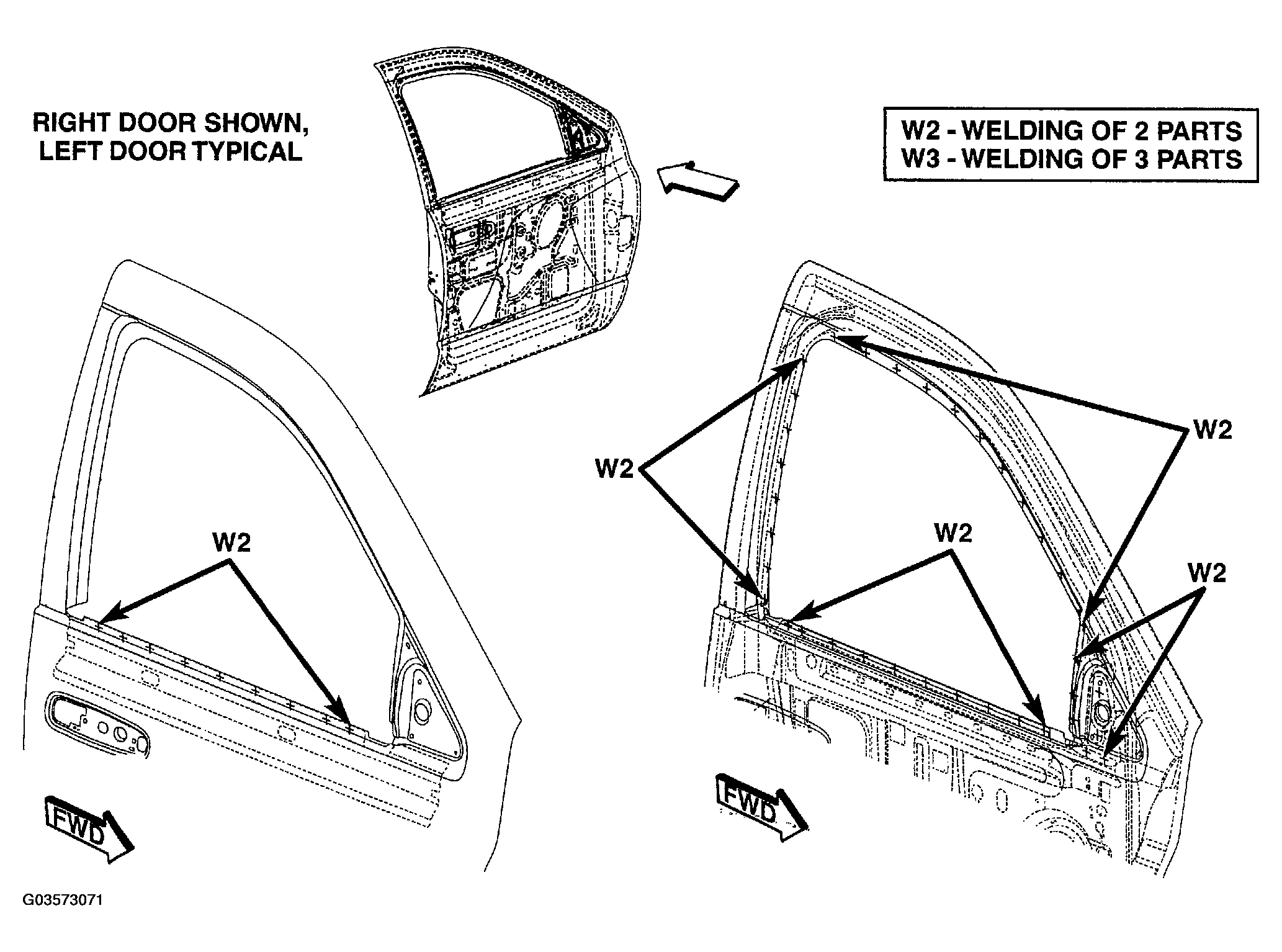

INNER DOOR PANEL TO OUTER DOOR PANEL - FRONT DOOR (QUAD CAB) 129
INNER DOOR PANEL TO OUTER DOOR PANEL - FRONT DOOR (STANDARD CAB) 130
INNER DOOR PANEL TO OUTER DOOR PANEL - REAR DOOR (QUAD CAB) 131

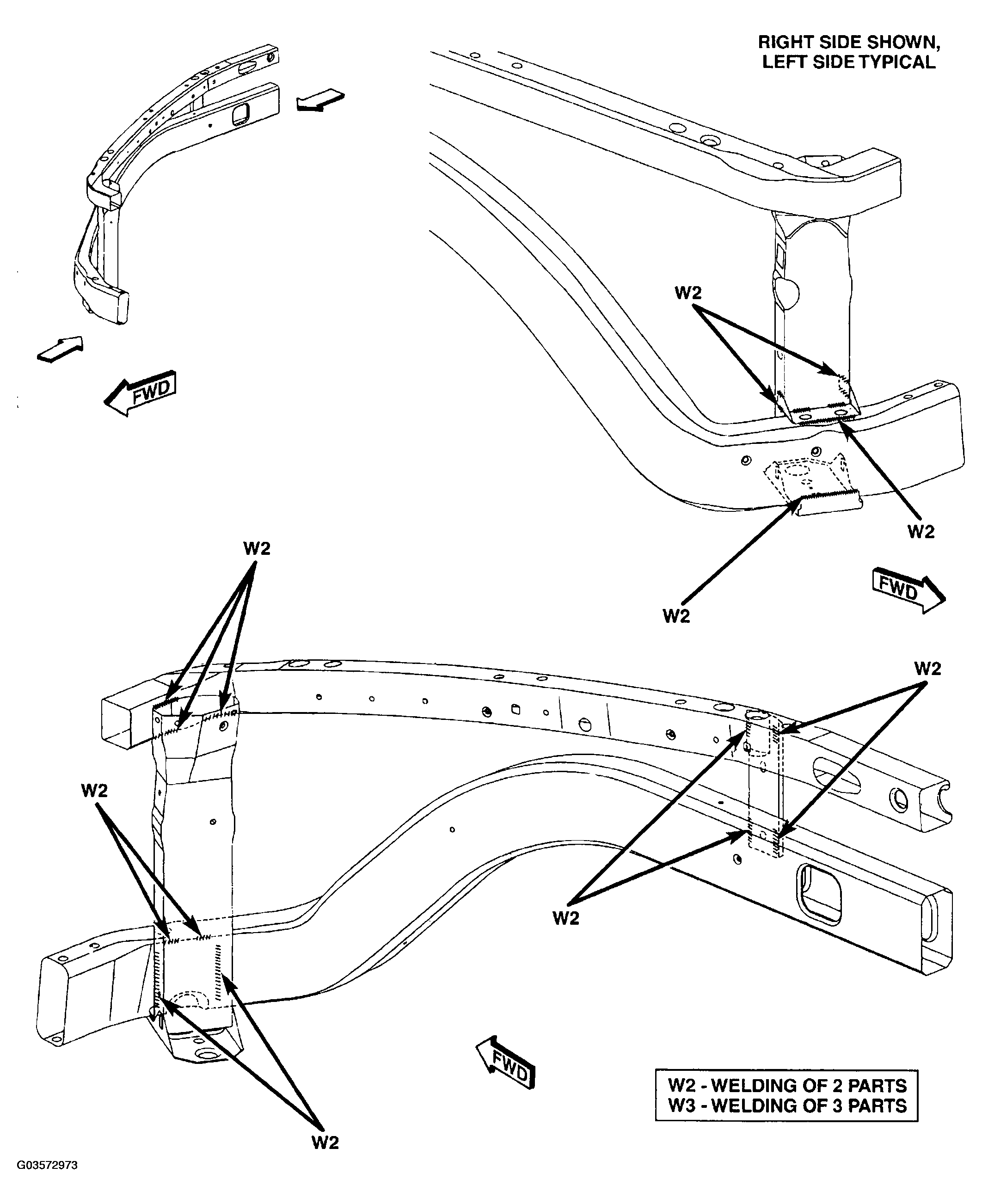

Fig 1: Identifying Weld Locations Of Fender Brace
G03572973Courtesy of DAIMLERCHRYSLER CORP.

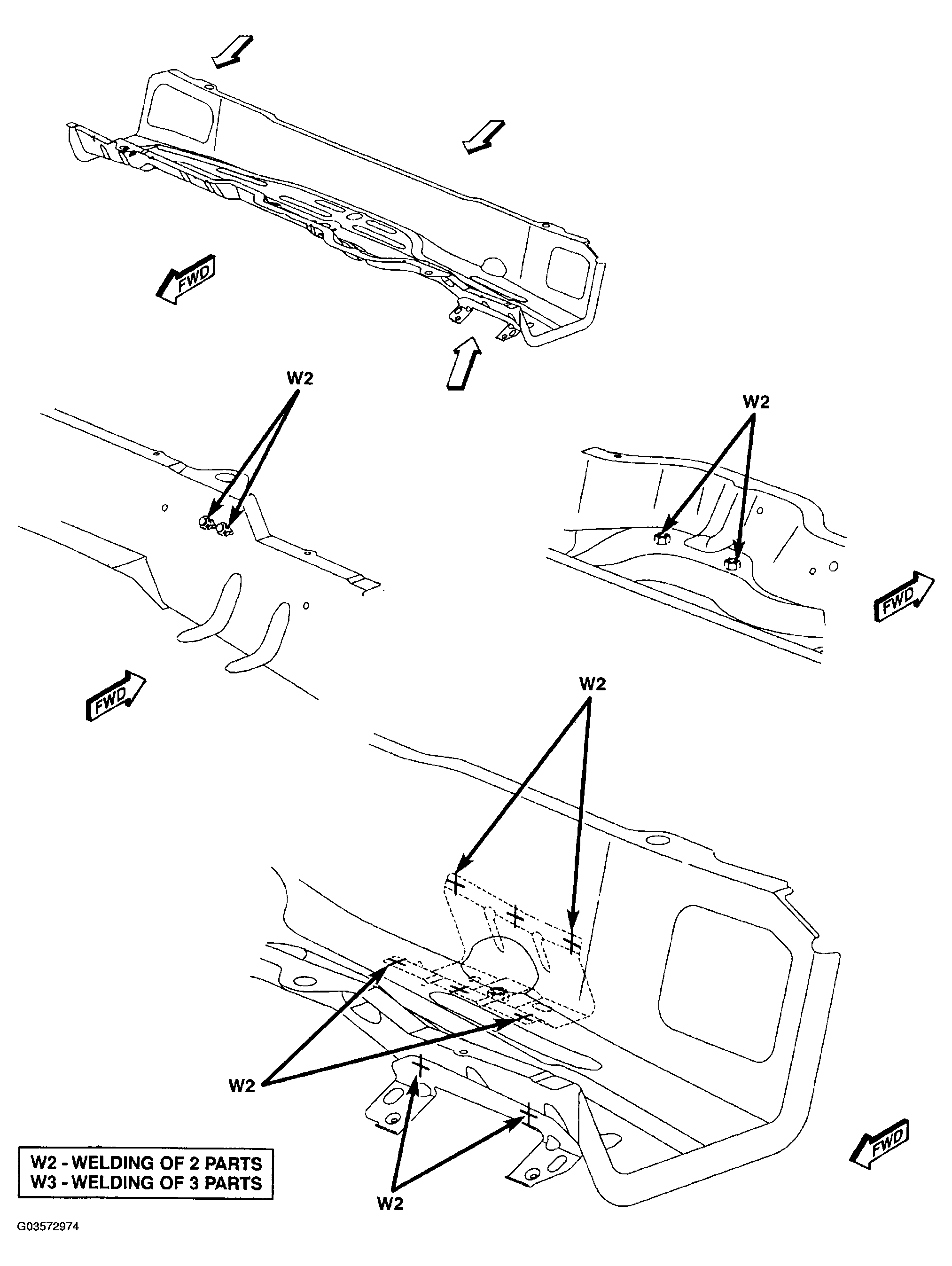

Fig 2: Identifying Weld Locations Of Steering Column Support
G03572974Courtesy of DAIMLERCHRYSLER CORP.

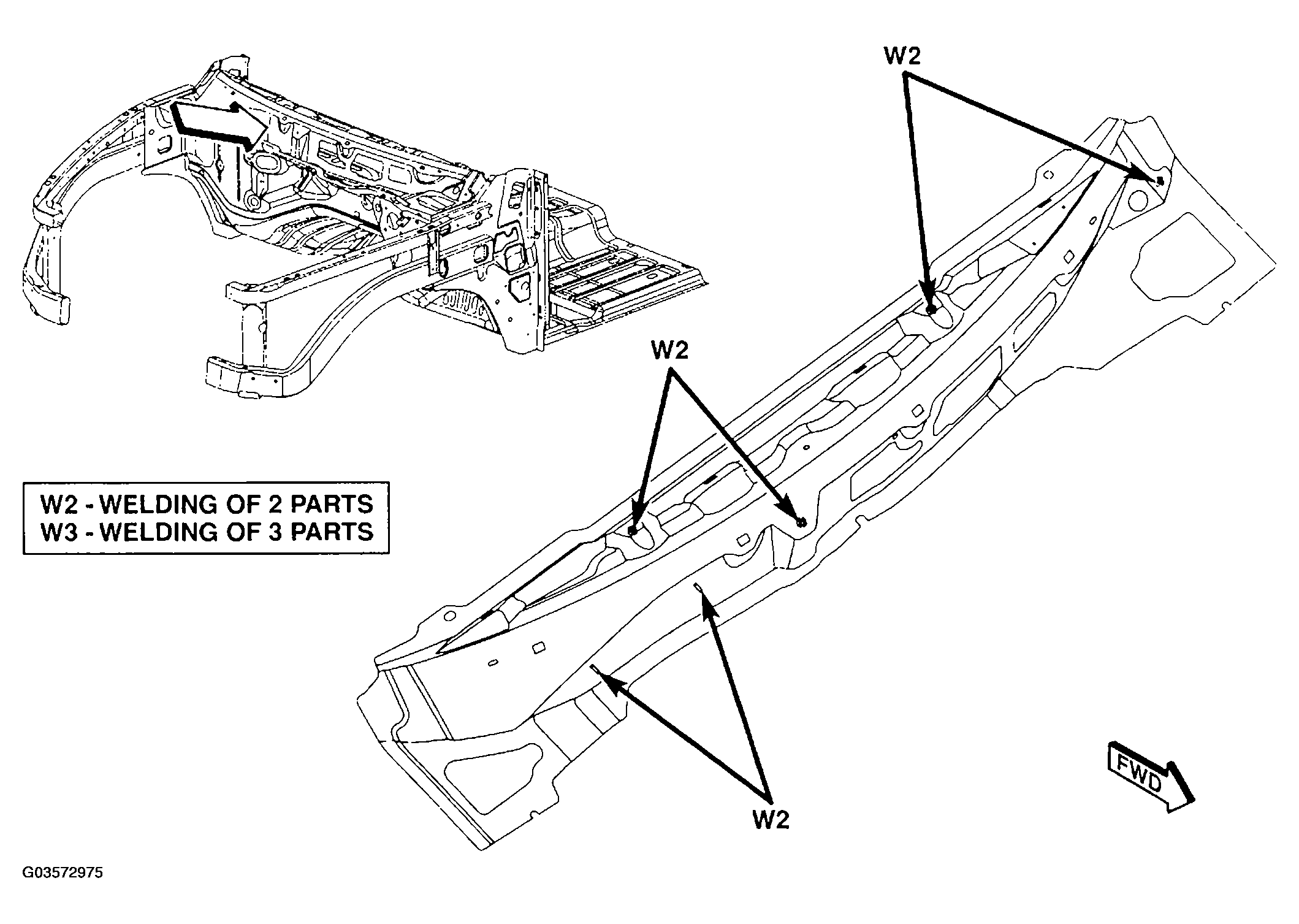

Fig 3: Identifying Weld Locations Of Wiper Attaching Weld Nuts
G03572975Courtesy of DAIMLERCHRYSLER CORP.

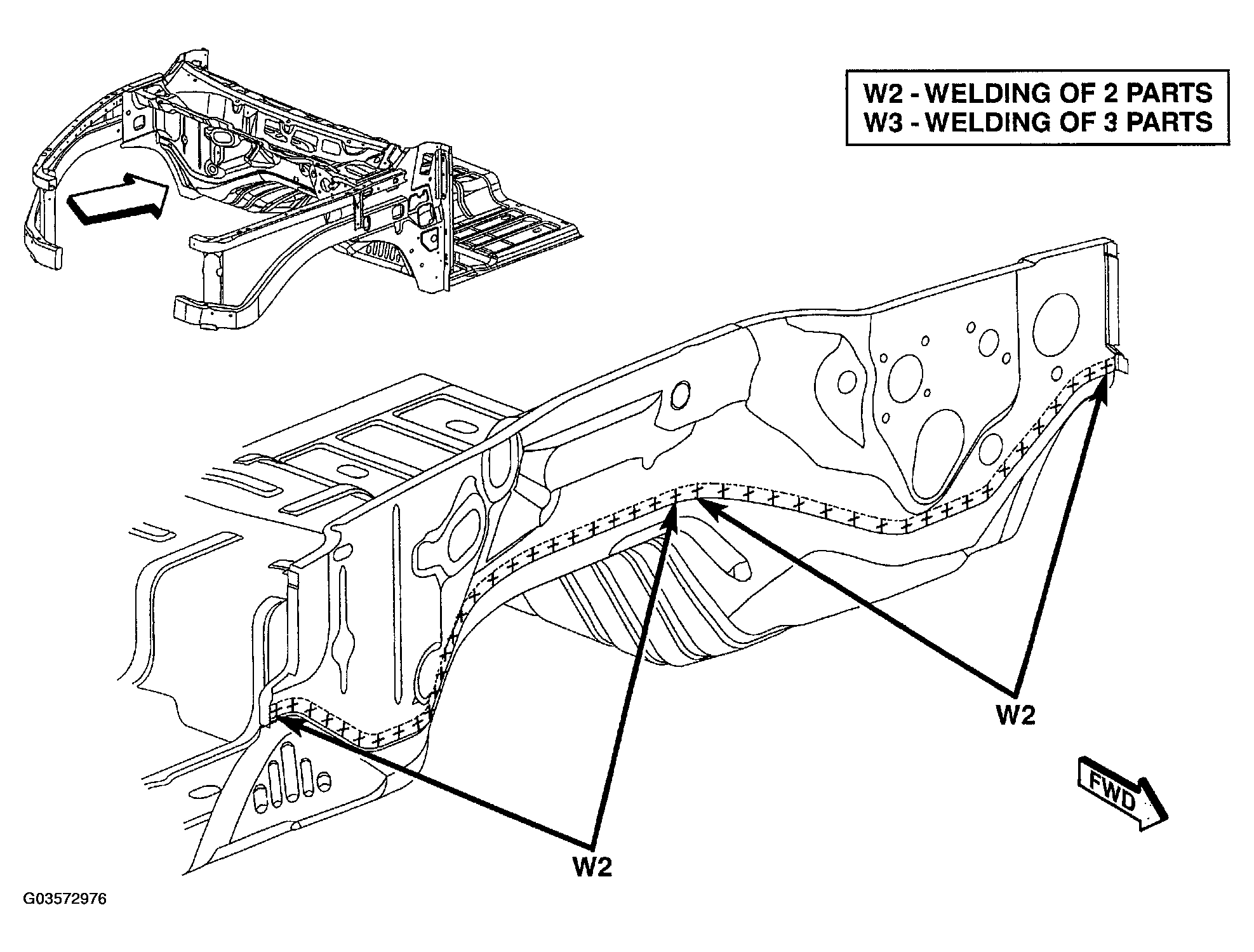

Fig 4: Identifying Weld Locations Of Dash Panel
G03572976Courtesy of DAIMLERCHRYSLER CORP.

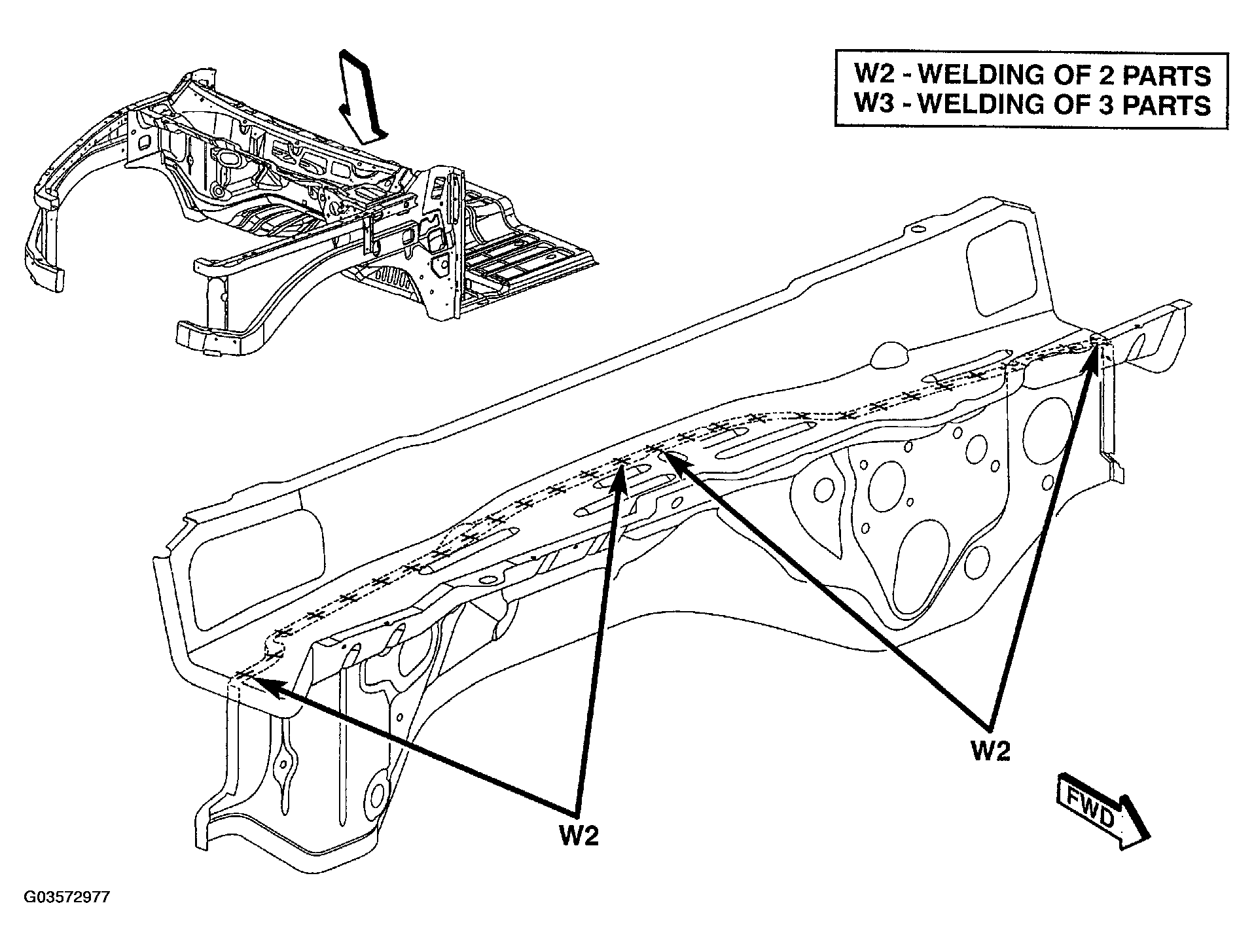

Fig 5: Identifying Weld Locations Of Dash Panel
G03572977Courtesy of DAIMLERCHRYSLER CORP.

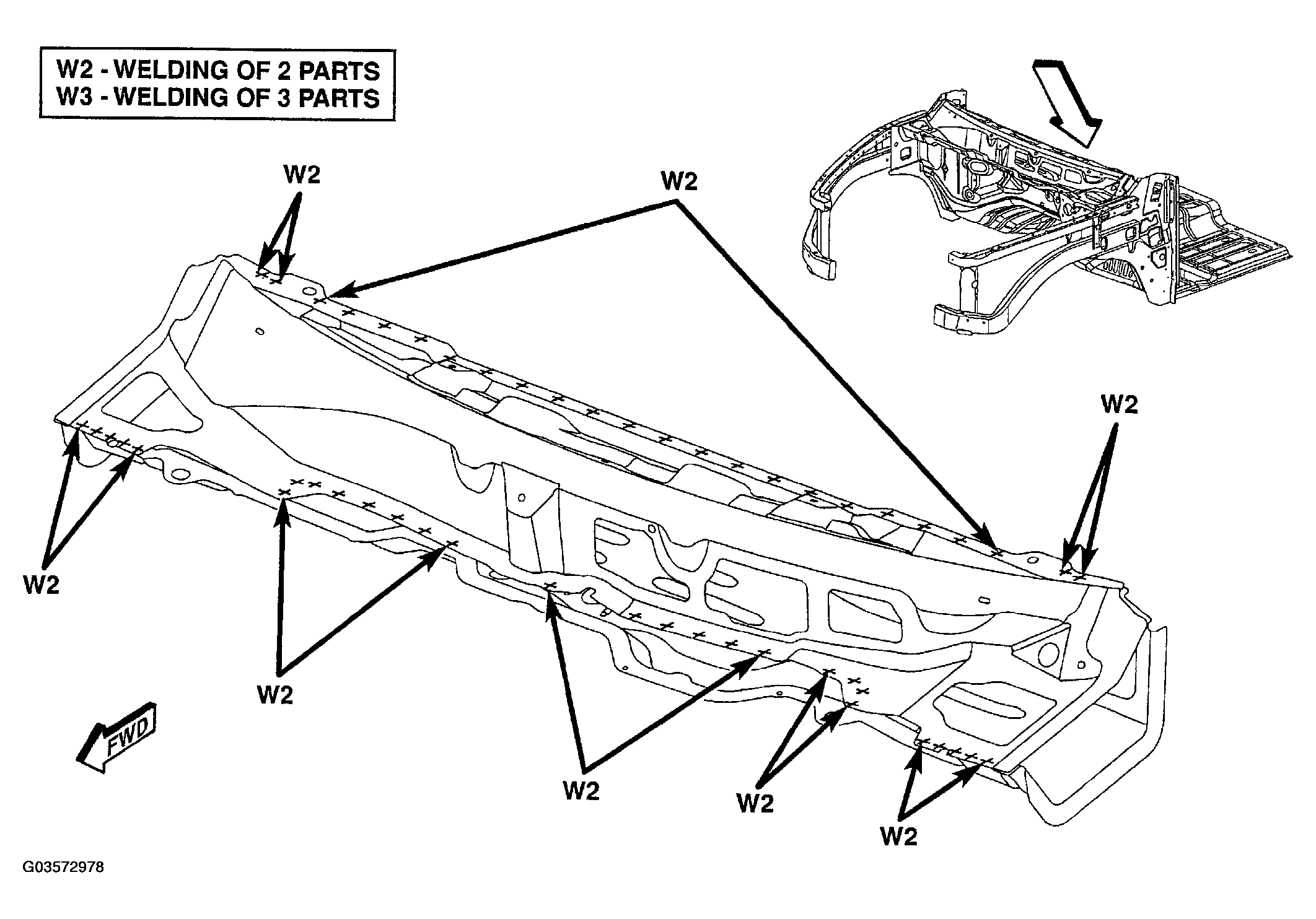

Fig 6: Identifying Weld Locations Of Lower Plenum Panel
G03572978Courtesy of DAIMLERCHRYSLER CORP.

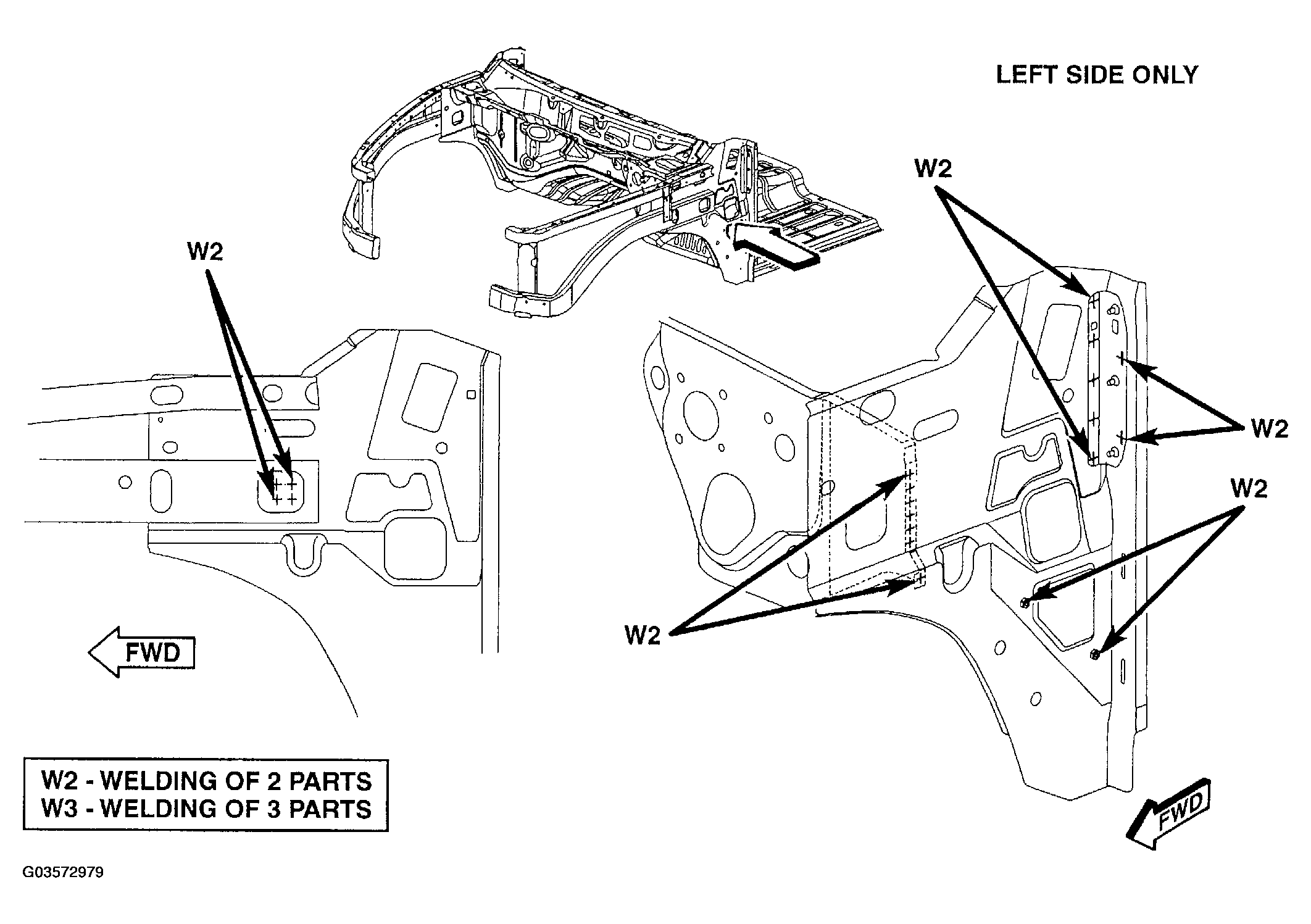

Fig 7: Identifying Weld Locations Of Front Fender
G03572979Courtesy of DAIMLERCHRYSLER CORP.

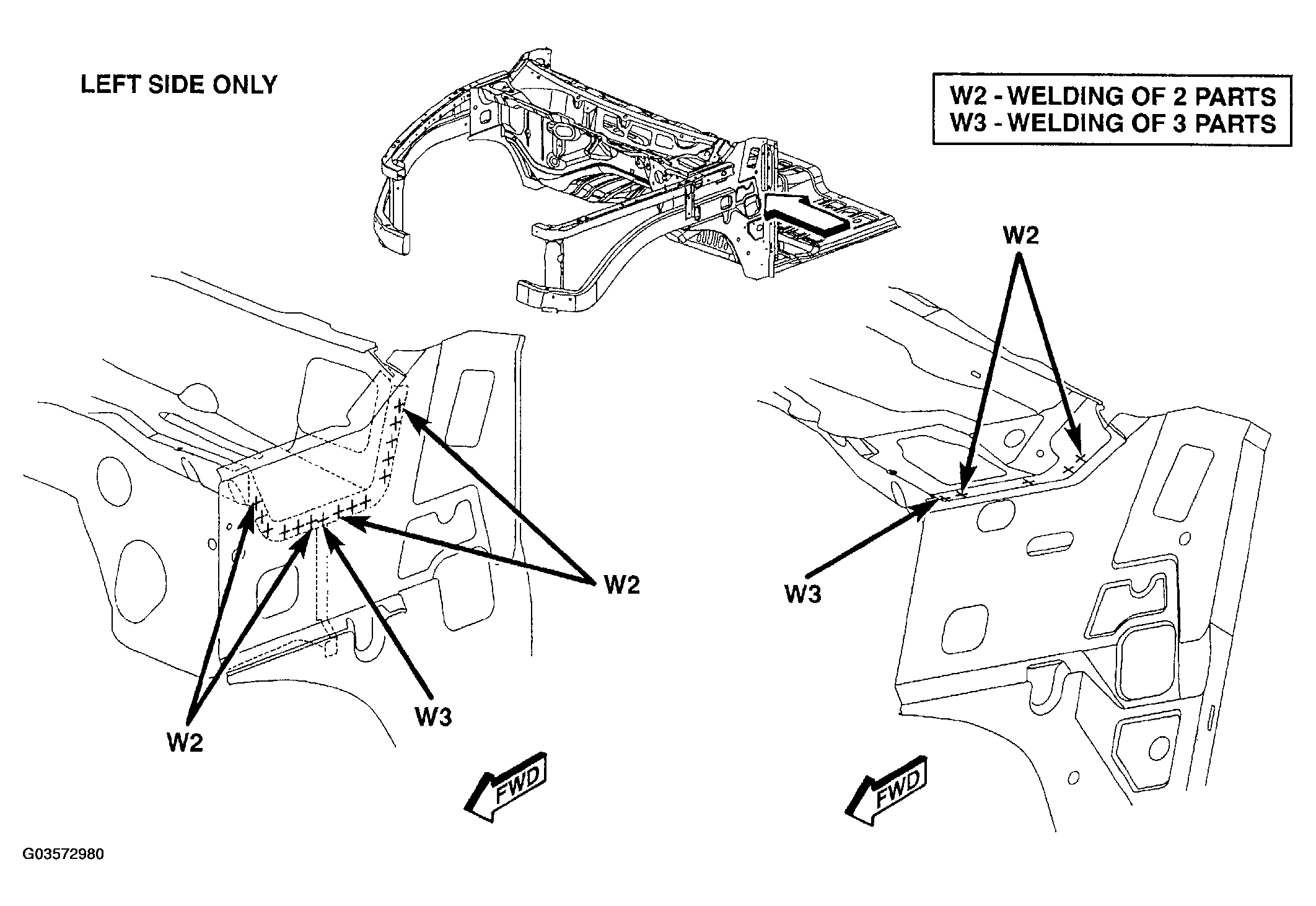

Fig 8: Identifying Weld Locations Of Dash Panel
G03572980Courtesy of DAIMLERCHRYSLER CORP.

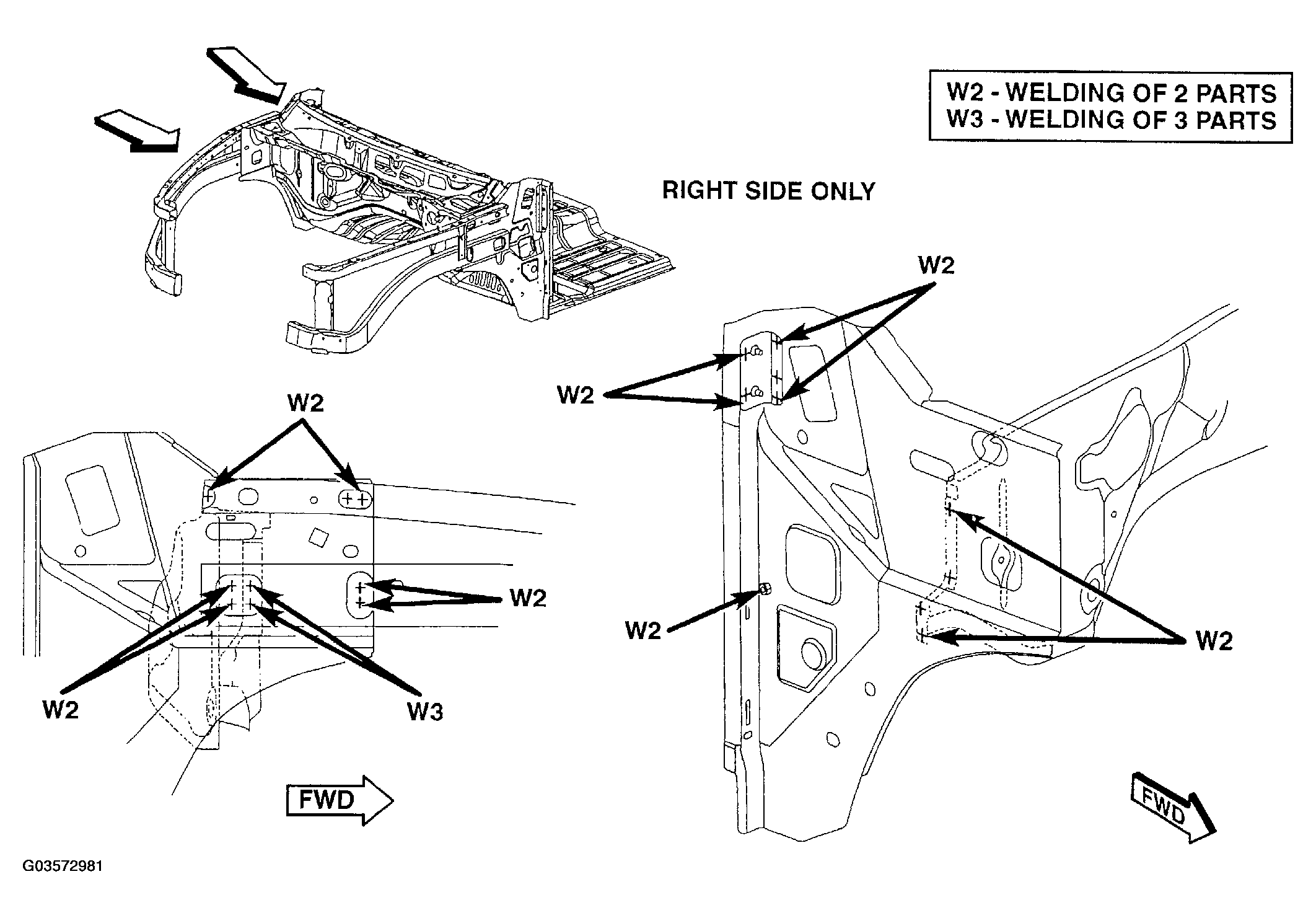

Fig 9: Identifying Weld Locations Of Front Fender
G03572981Courtesy of DAIMLERCHRYSLER CORP.

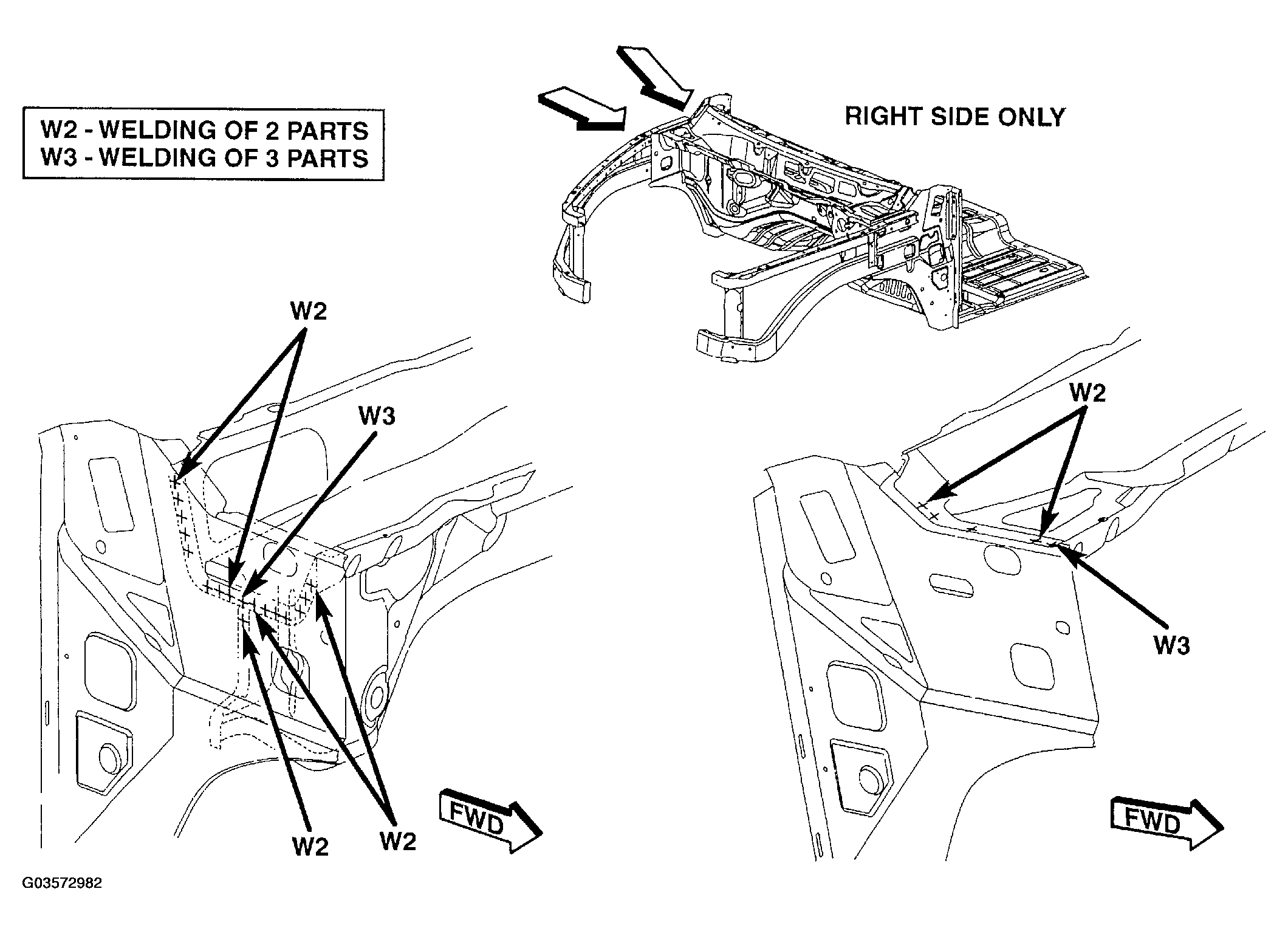

Fig 10: Identifying Weld Locations Of Dash Panel
G03572982Courtesy of DAIMLERCHRYSLER CORP.

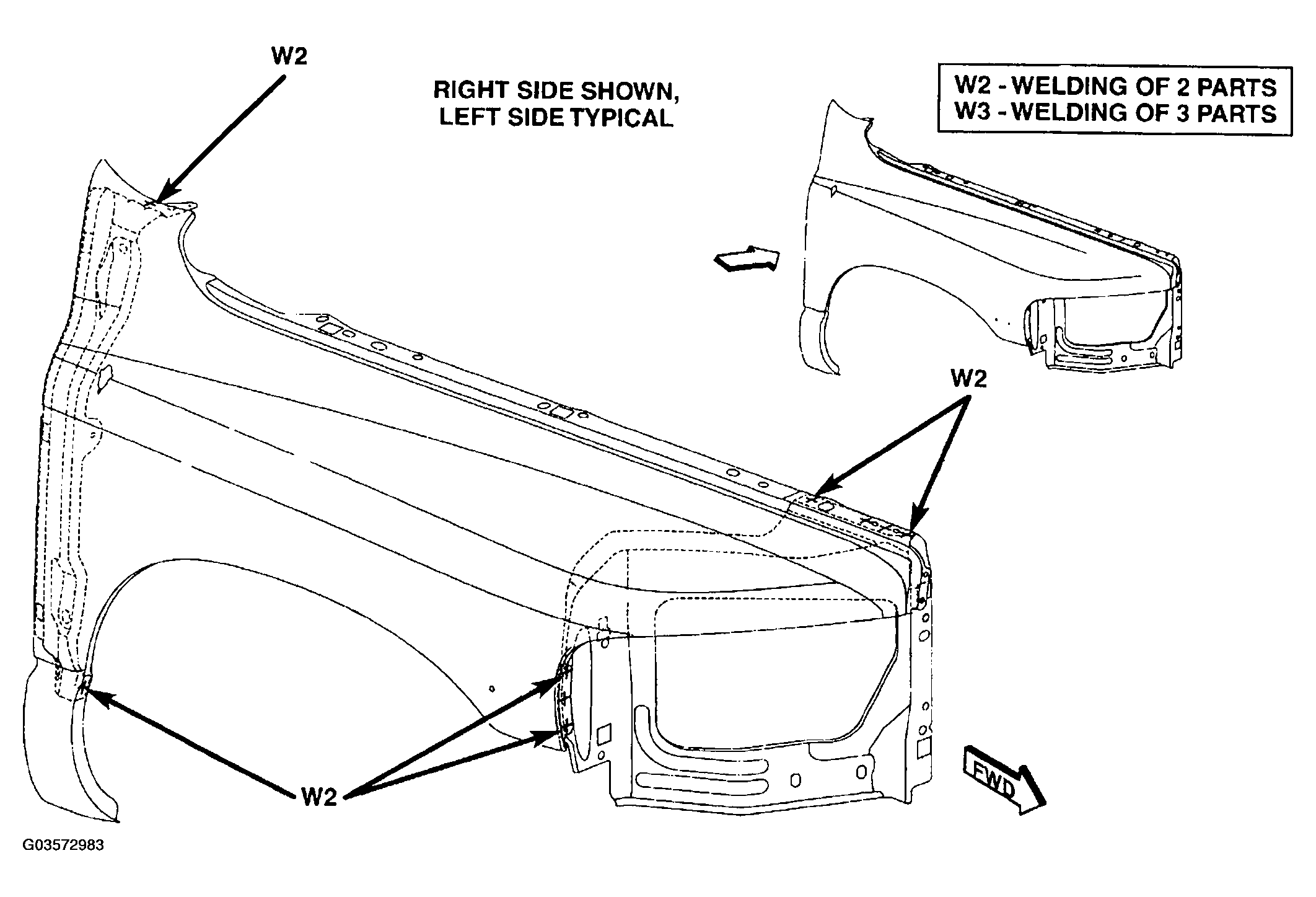

Fig 11: Identifying Weld Locations Of Headlamp Mounting Panel
G03572983Courtesy of DAIMLERCHRYSLER CORP.

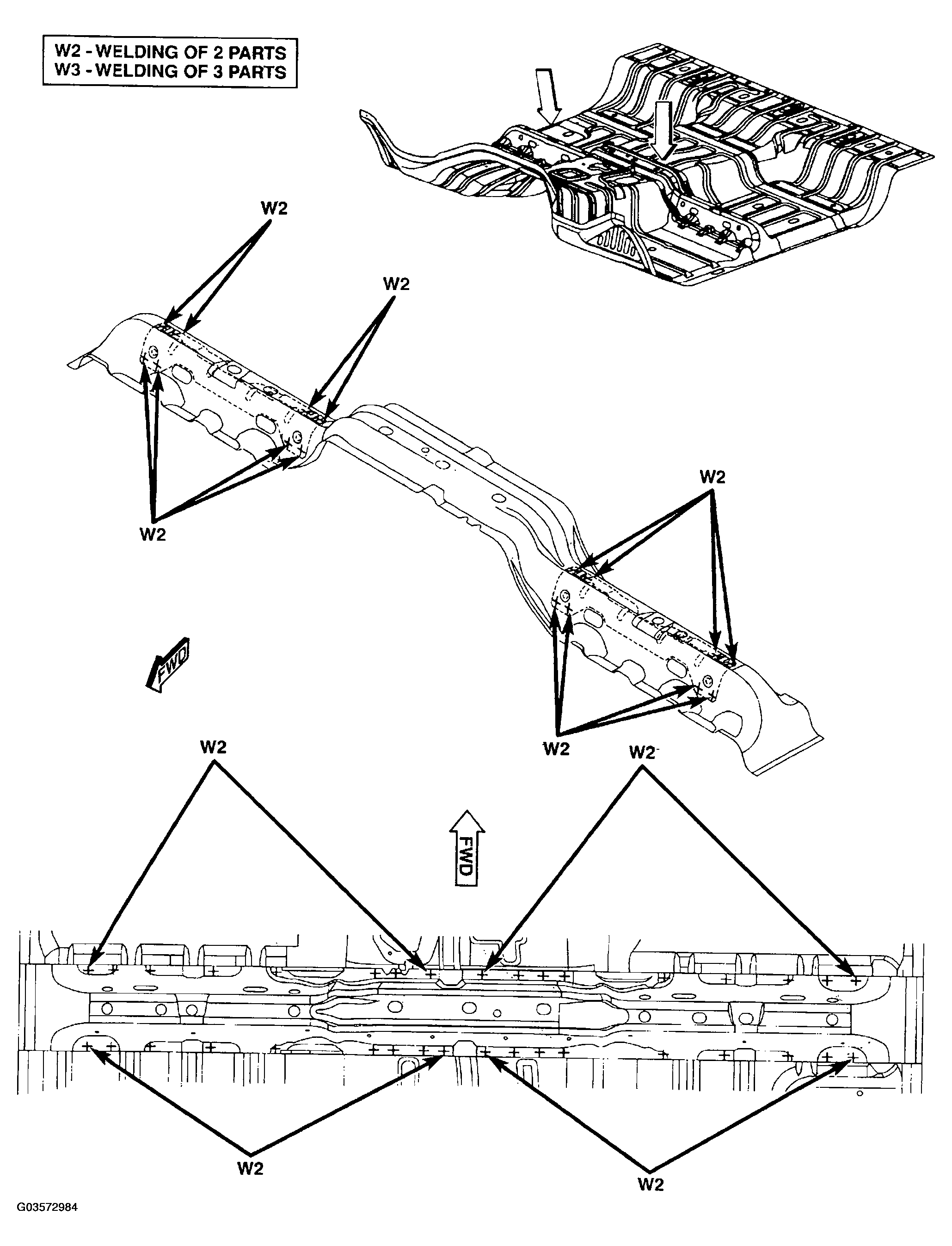

Fig 12: Identifying Weld Locations Of Seat Mounting Front Brackets - Standard Cab
G03572984Courtesy of DAIMLERCHRYSLER CORP.

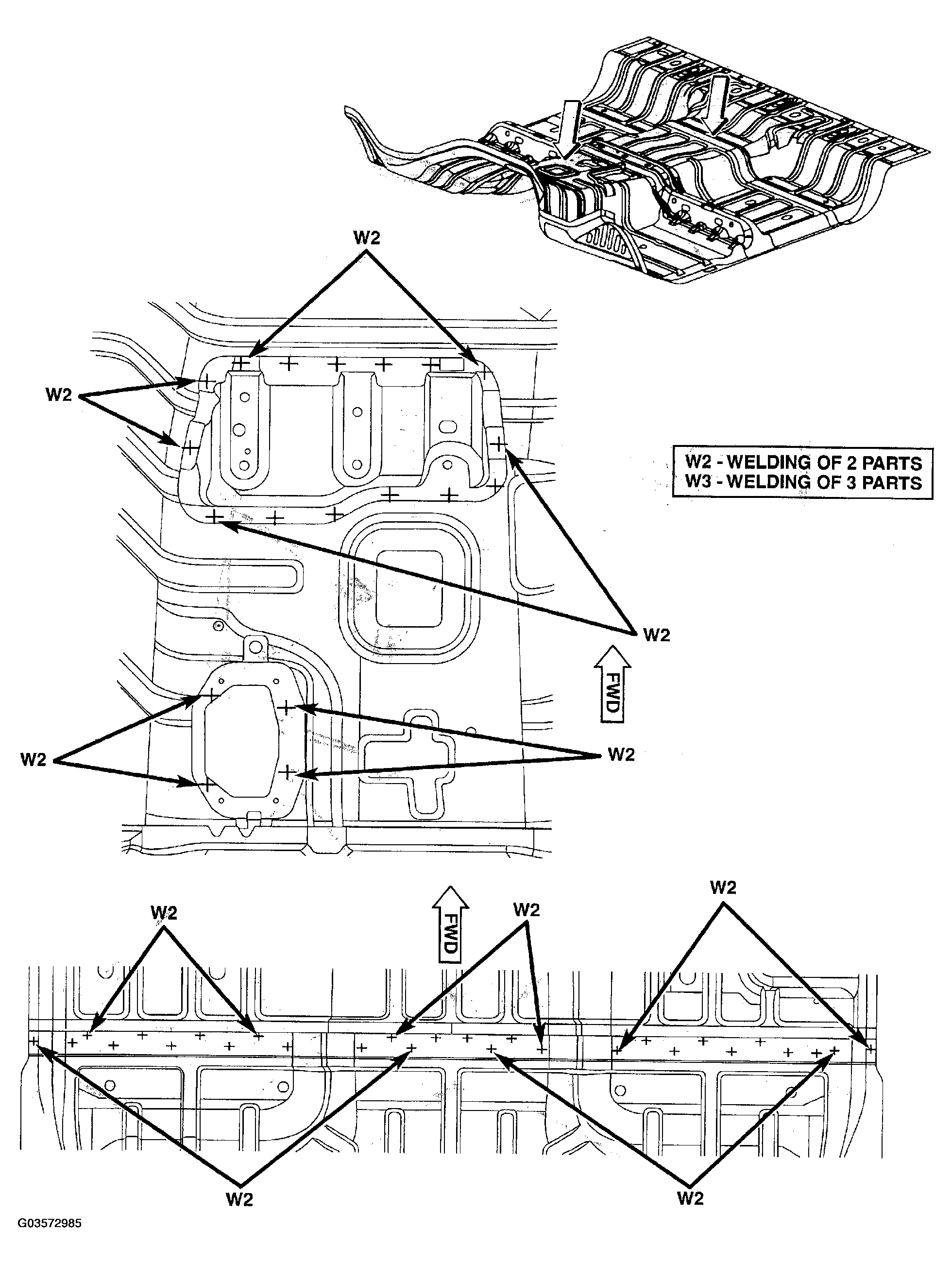

Fig 13: Identifying Weld Locations Of Air Bag Module Bracket - Standard Cab
G03572985Courtesy of DAIMLERCHRYSLER CORP.

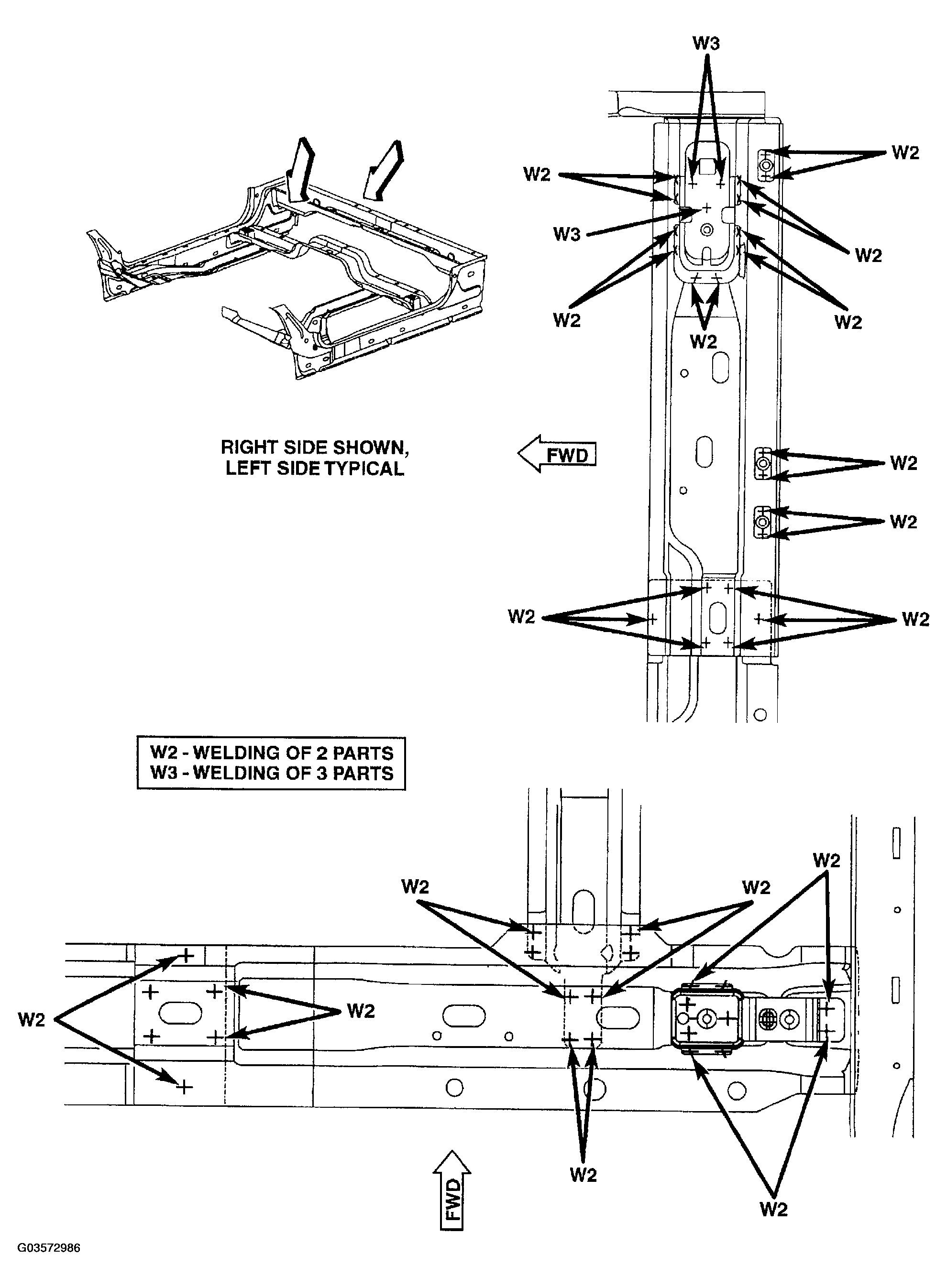

Fig 14: Identifying Weld Locations Of Right To Left Rear Floor Crossmember - Standard Cab
G03572986Courtesy of DAIMLERCHRYSLER CORP.

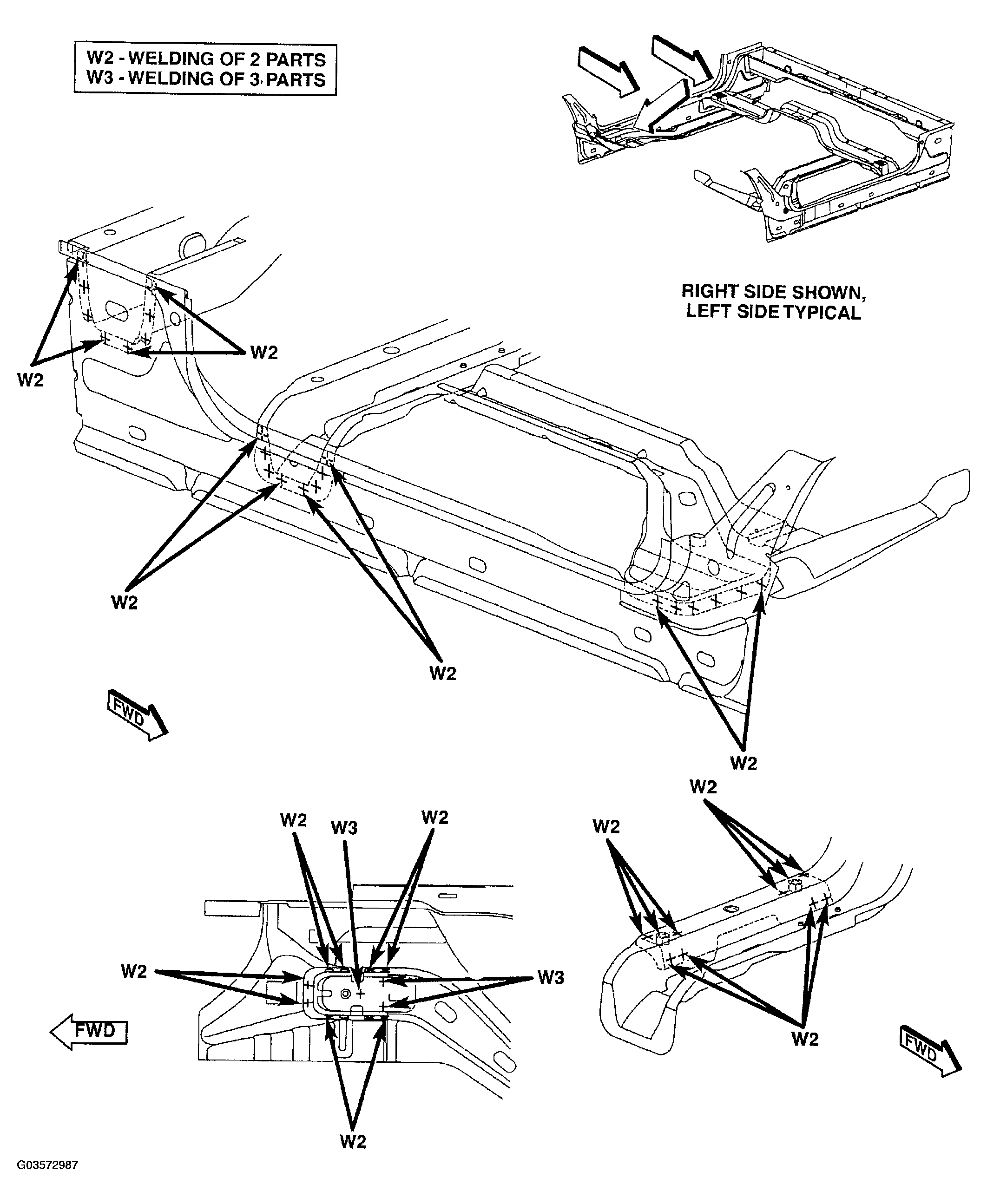

Fig 15: Identifying Weld Locations Of Rear Floor Crossmember - Standard Cab
G03572987Courtesy of DAIMLERCHRYSLER CORP.

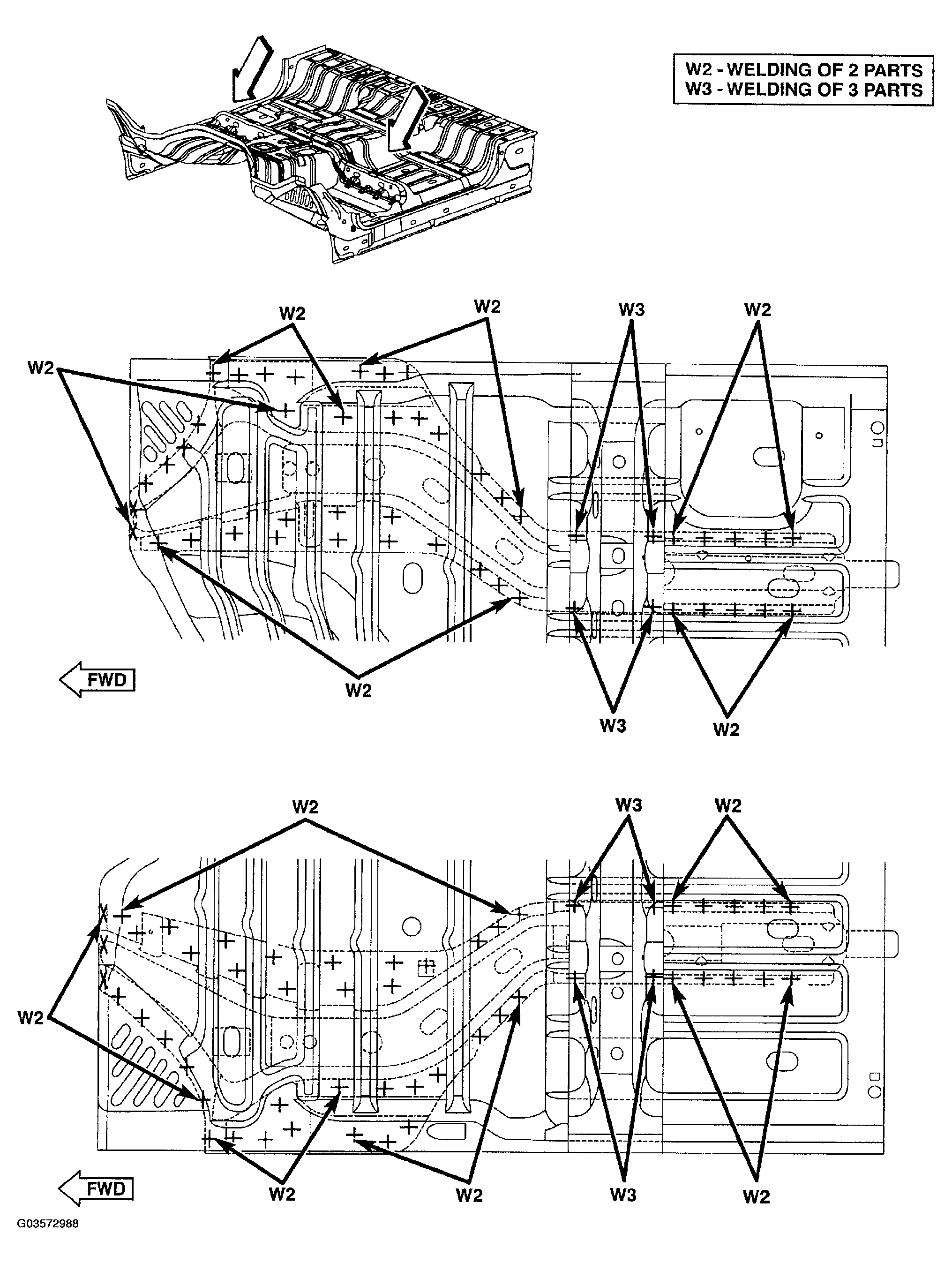

Fig 16: Identifying Weld Locations Of Seat Mounting Front Crossmember - Standard Cab
G03572988Courtesy of DAIMLERCHRYSLER CORP.

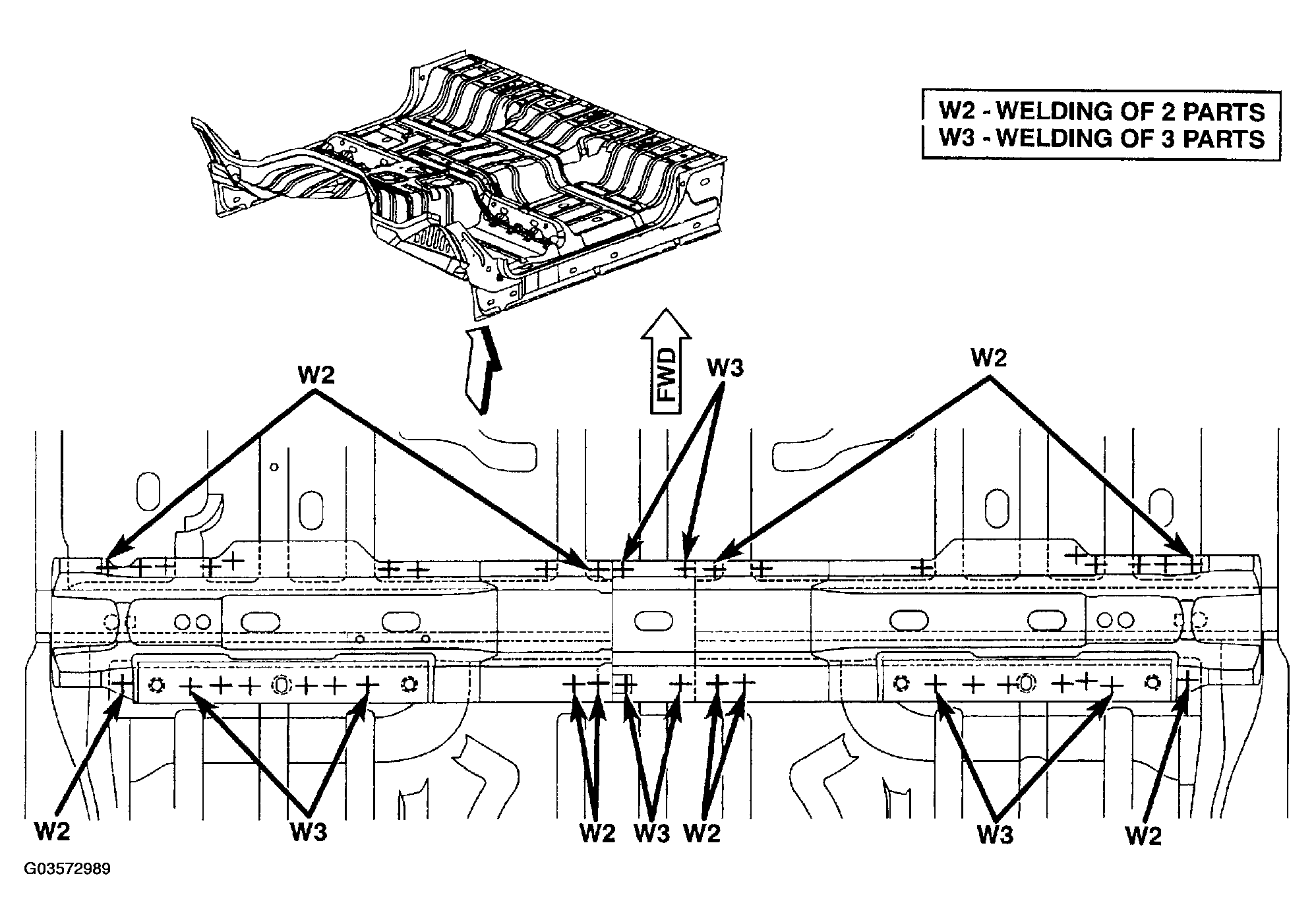

Fig 17: Identifying Weld Locations Of Front Seat Mounting Crossmembers - Standard Cab
G03572989Courtesy of DAIMLERCHRYSLER CORP.

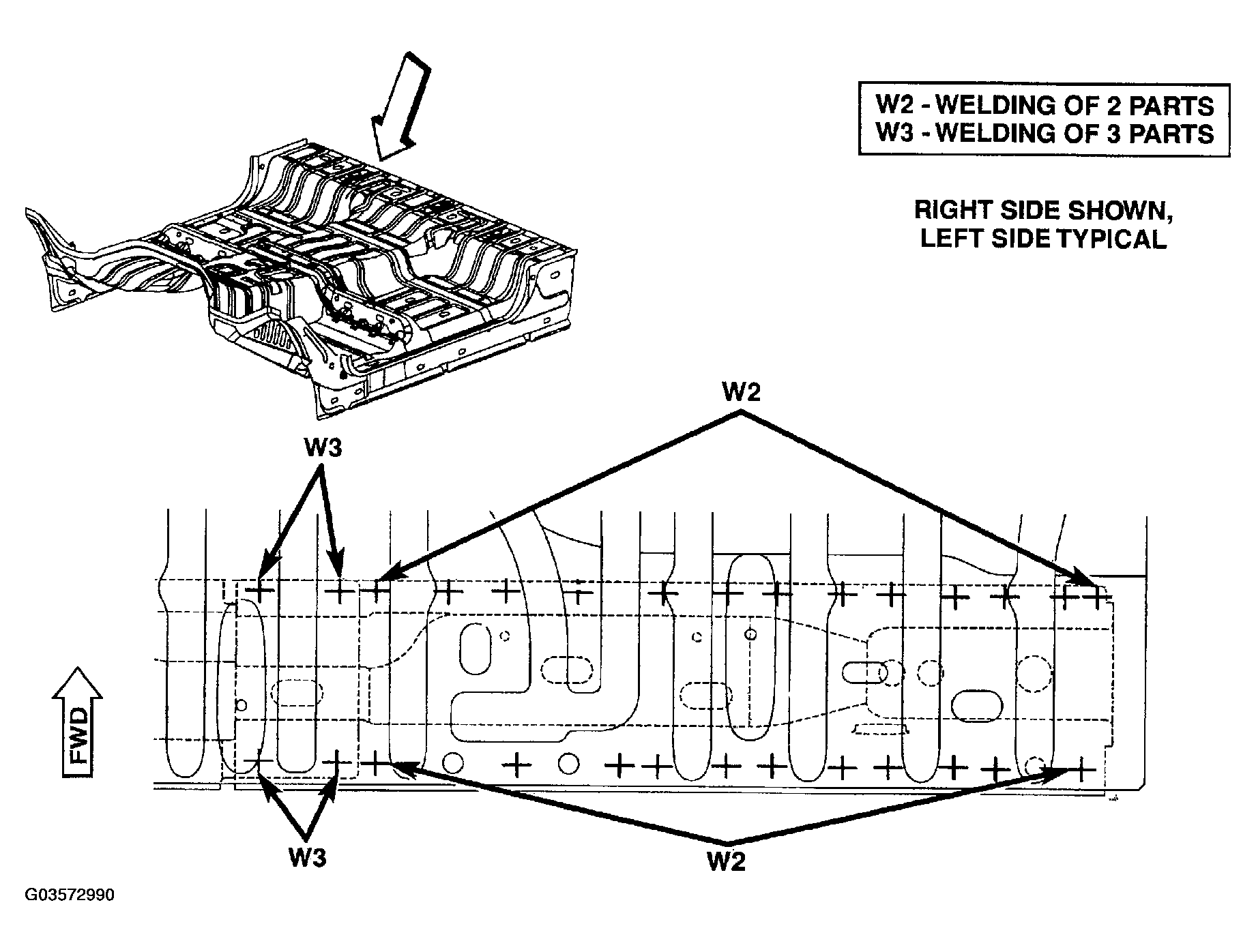

Fig 18: Identifying Weld Locations Of Rear Floor Crossmembers - Standard Cab
G03572990Courtesy of DAIMLERCHRYSLER CORP.

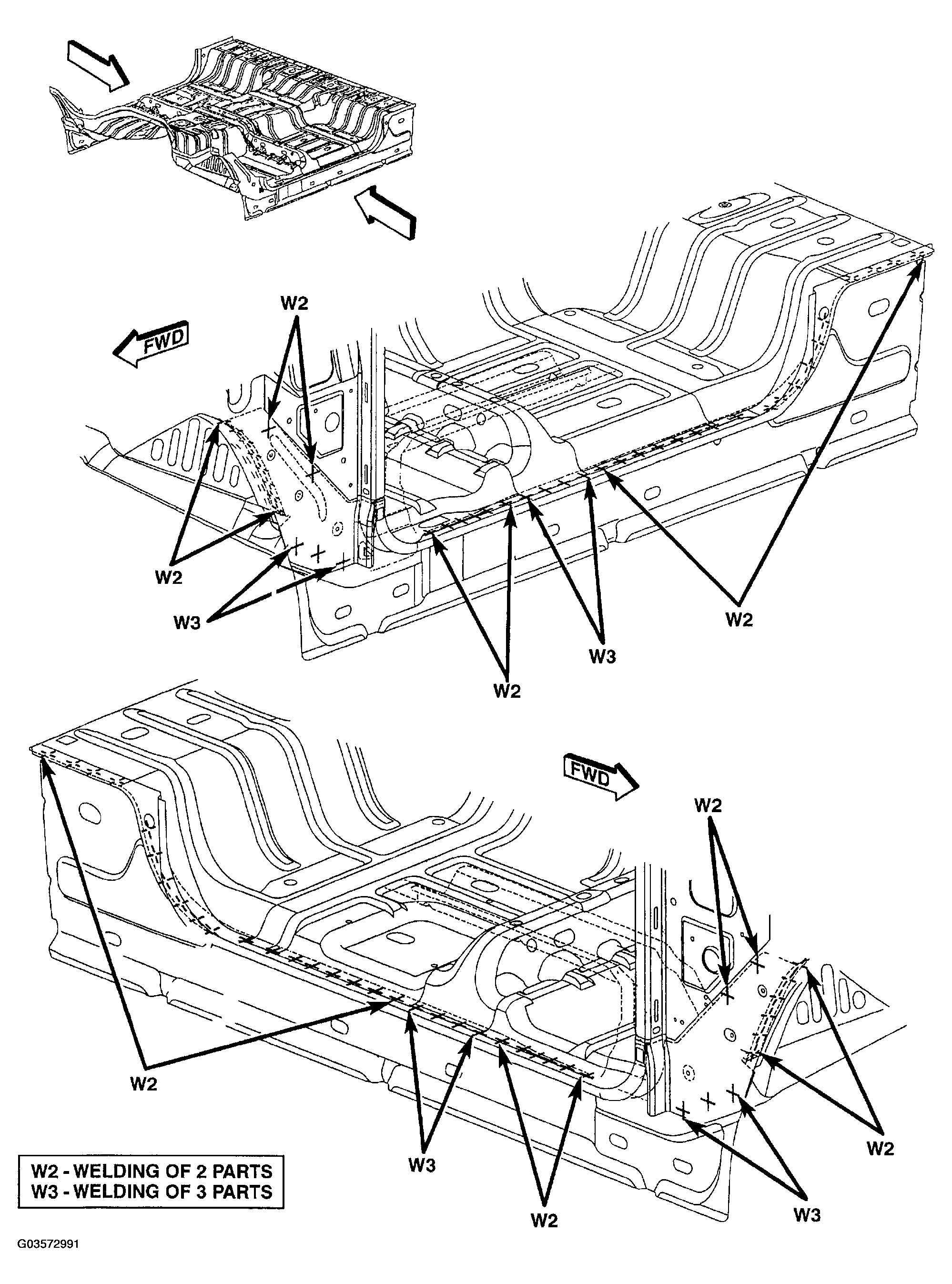

Fig 19: Identifying Weld Locations Of Floor Sill - Standard Cab
G03572991Courtesy of DAIMLERCHRYSLER CORP.

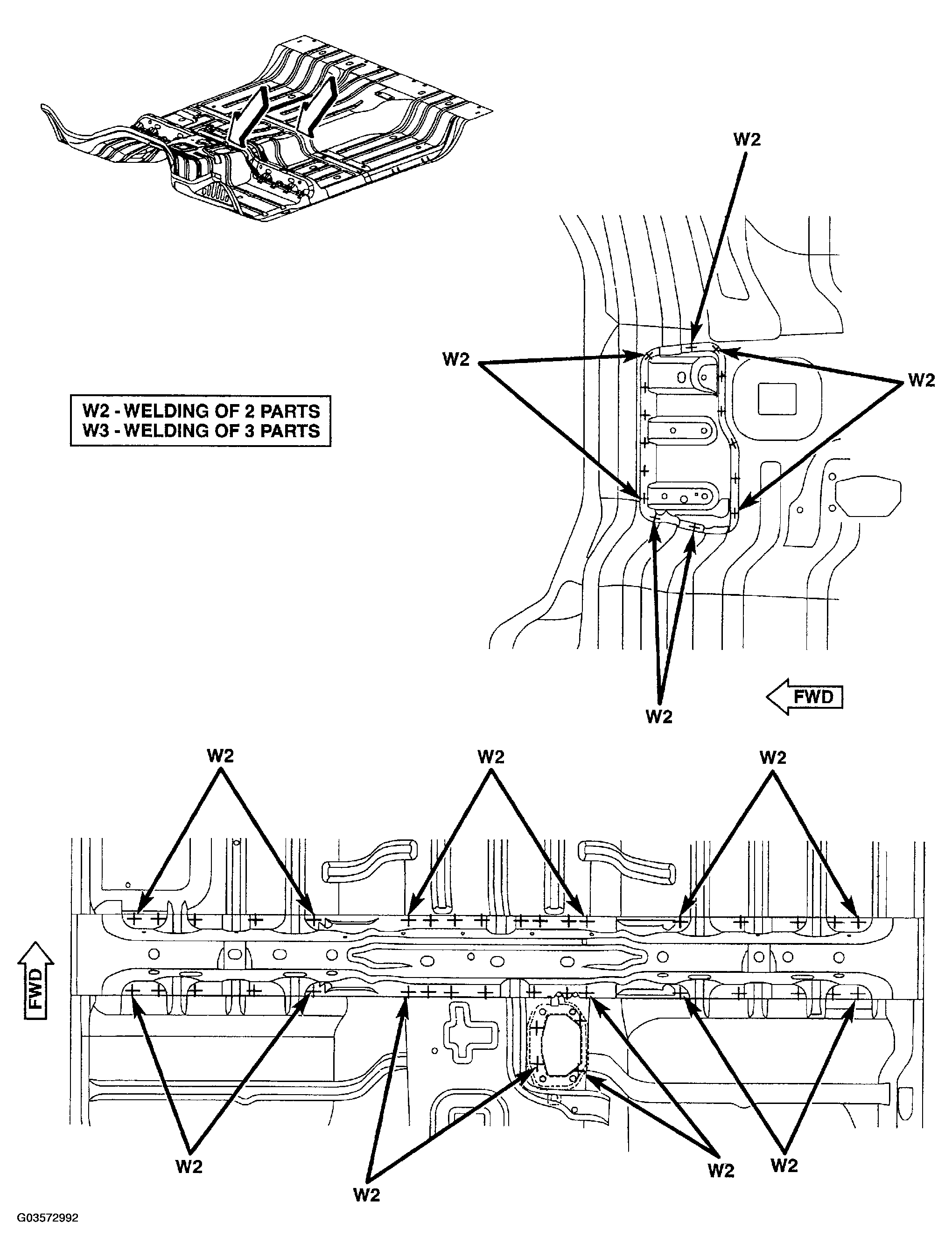

Fig 20: Identifying Weld Locations Of Air Bag Module Bracket - Quad Cab
G03572992Courtesy of DAIMLERCHRYSLER CORP.

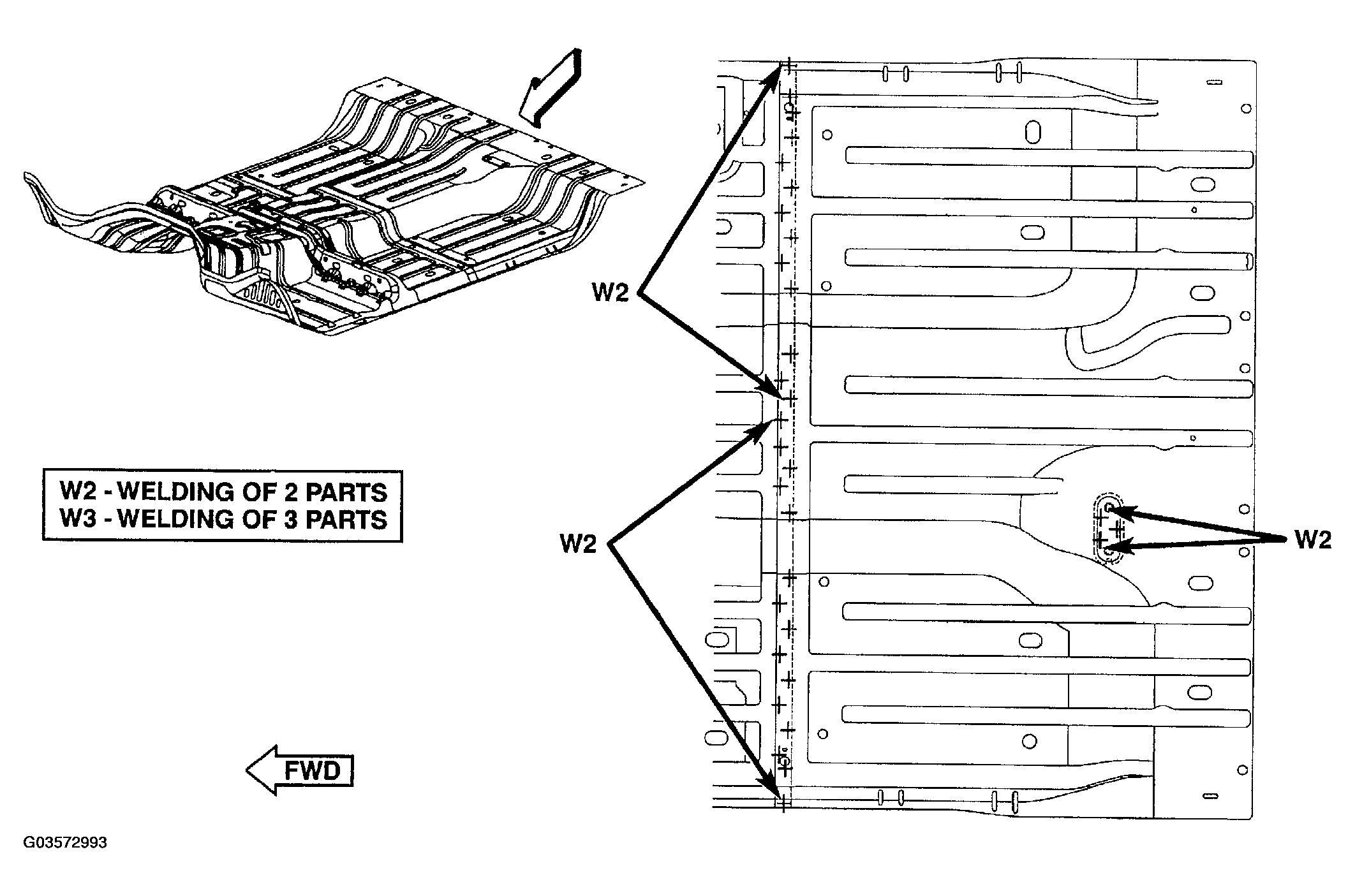

Fig 21: Identifying Weld Locations Of Rear Seat Middle Mounting Plate - Quad Cab
G03572993Courtesy of DAIMLERCHRYSLER CORP.

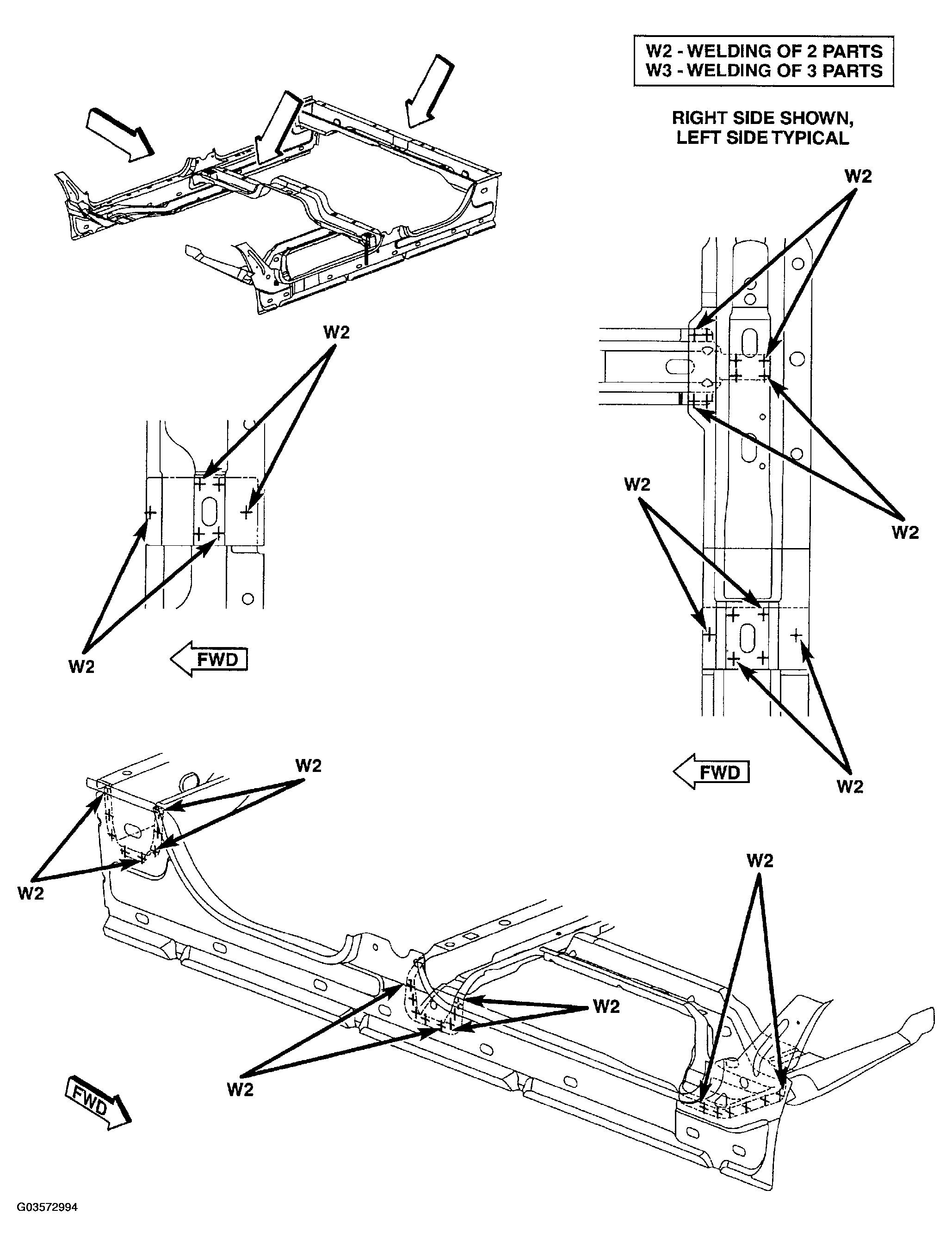

Fig 22: Identifying Weld Locations Of Rear Floor Crossmember - Quad Cab
G03572994Courtesy of DAIMLERCHRYSLER CORP.

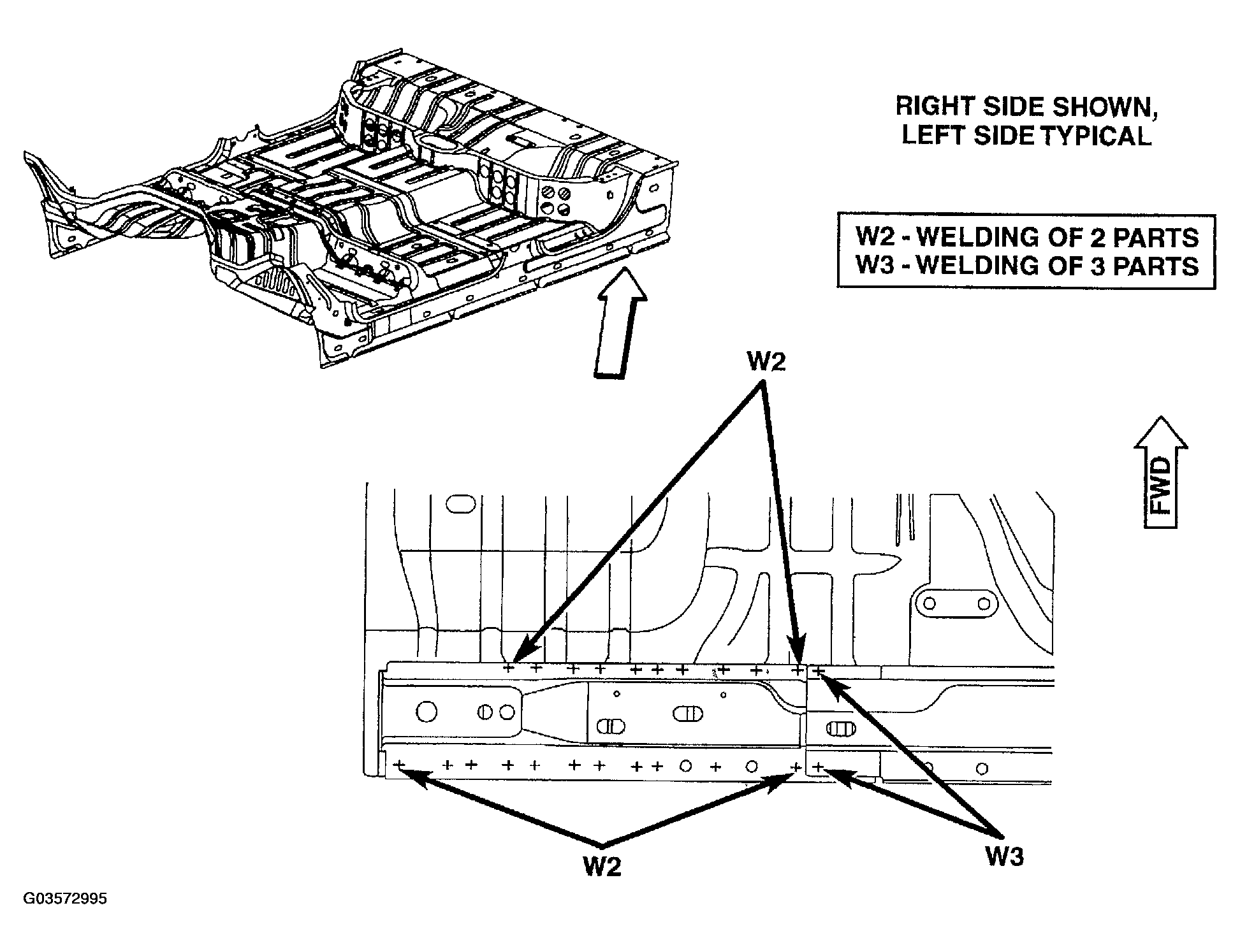

Fig 23: Identifying Weld Locations Of Left Rear Crossmember - Quad Cab
G03572995Courtesy of DAIMLERCHRYSLER CORP.

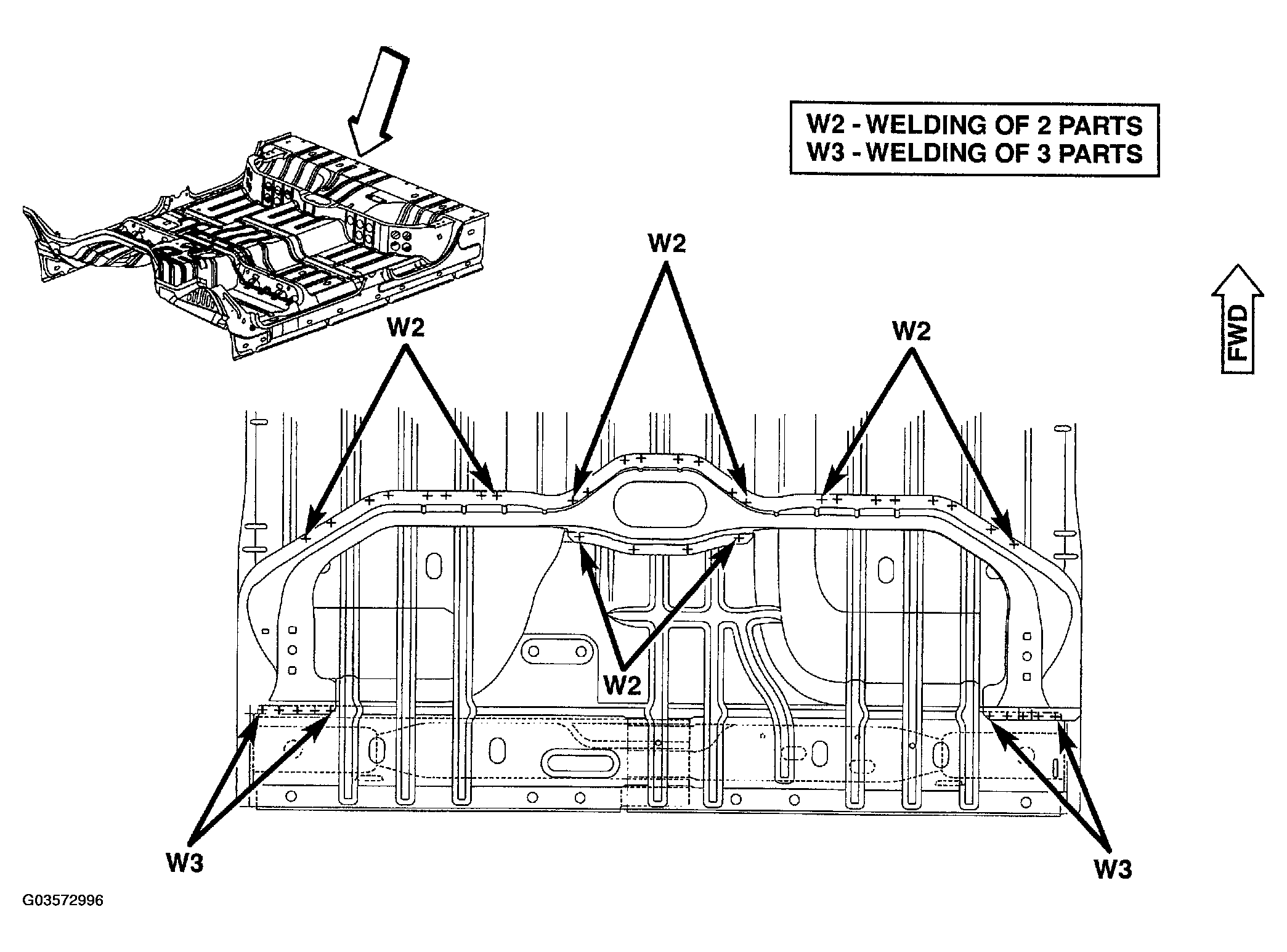

Fig 24: Identifying Weld Locations Of Storage Bin - Quad Cab
G03572996Courtesy of DAIMLERCHRYSLER CORP.

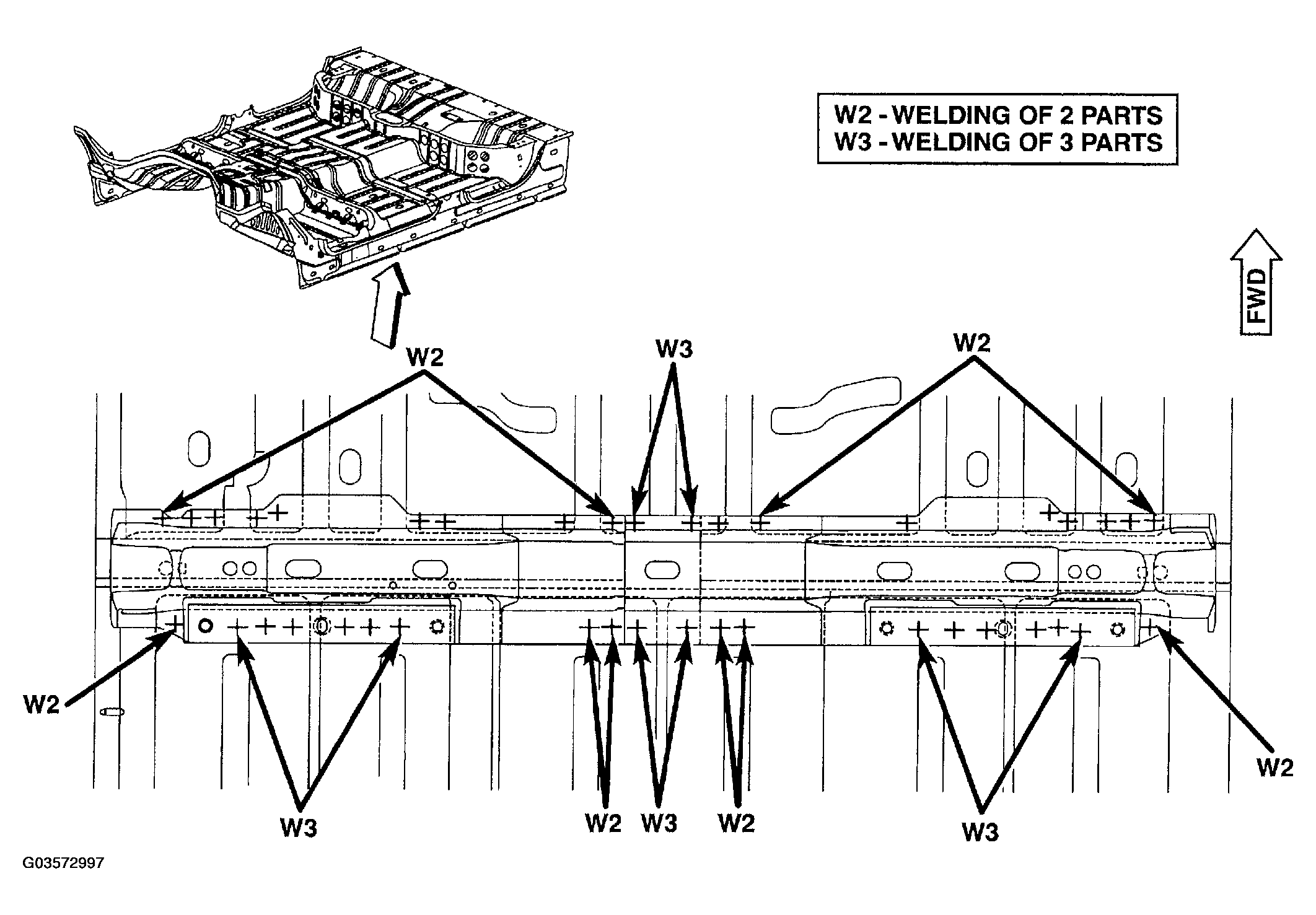

Fig 25: Identifying Weld Locations Of Right Rear Front Seat Mounting Crossmember - Quad Cab
G03572997Courtesy of DAIMLERCHRYSLER CORP.

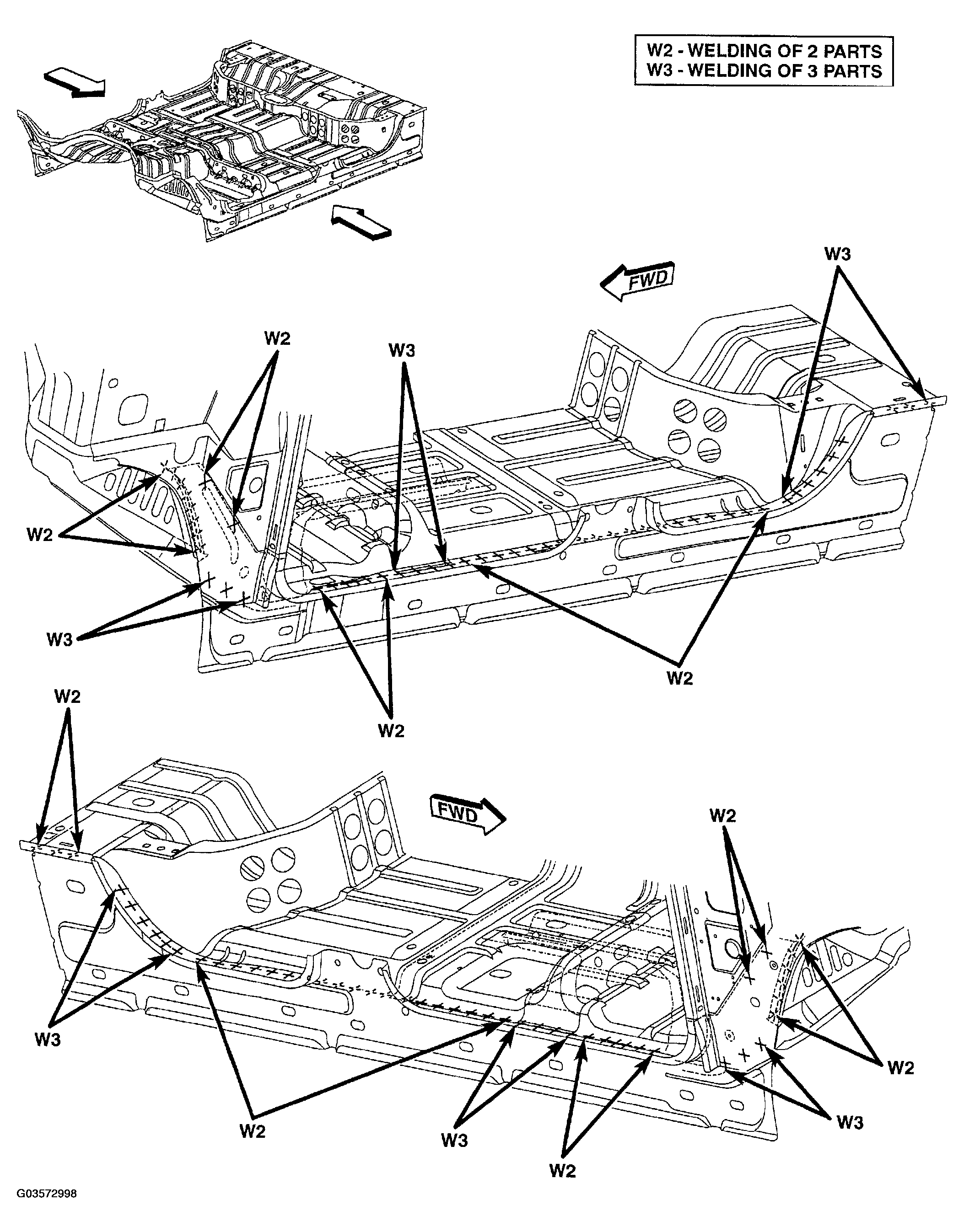

Fig 26: Identifying Weld Locations Of Front Seat Mounting Front Crossmember - Quad Cab
G03572998Courtesy of DAIMLERCHRYSLER CORP.

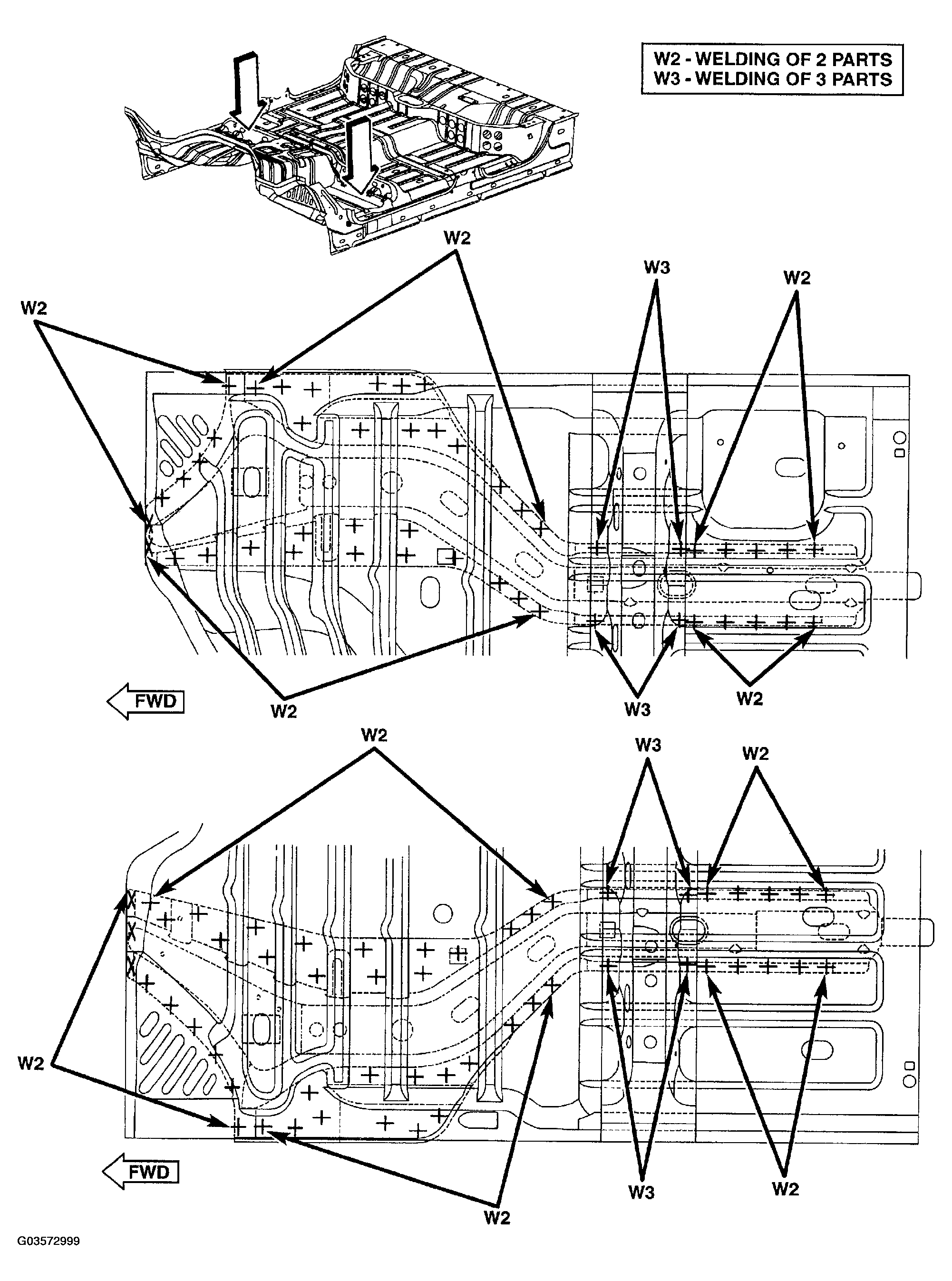

Fig 27: Identifying Weld Locations Of Front Seat Mounting Front Crossmember
G03572999Courtesy of DAIMLERCHRYSLER CORP.

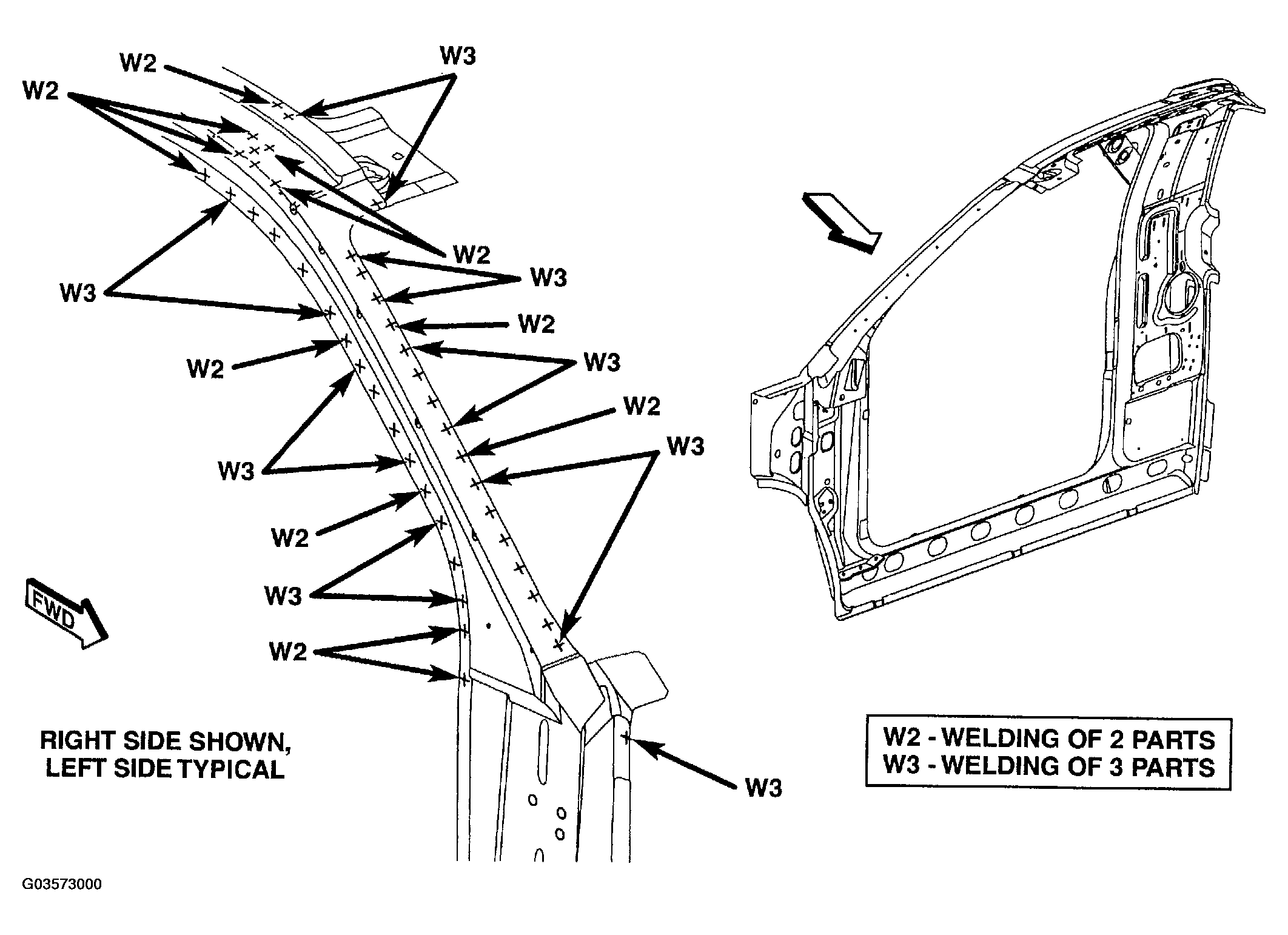

Fig 28: Identifying Weld Locations Of A-Pillar Reinforcement - Standard Cab
G03573000Courtesy of DAIMLERCHRYSLER CORP.

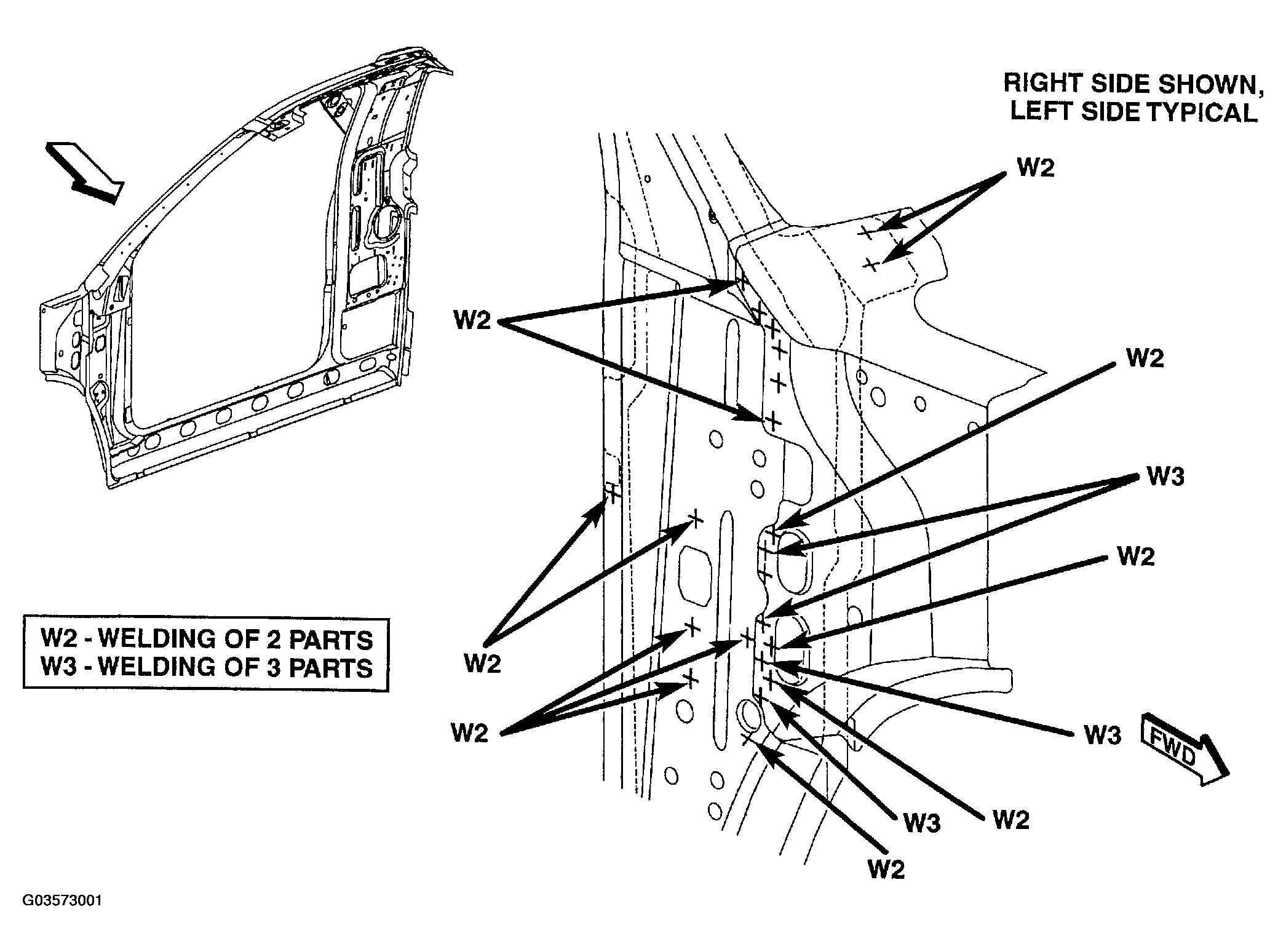

Fig 29: Identifying Weld Locations Of A-Pillar Reinforcement - Standard Cab
G03573001Courtesy of DAIMLERCHRYSLER CORP.

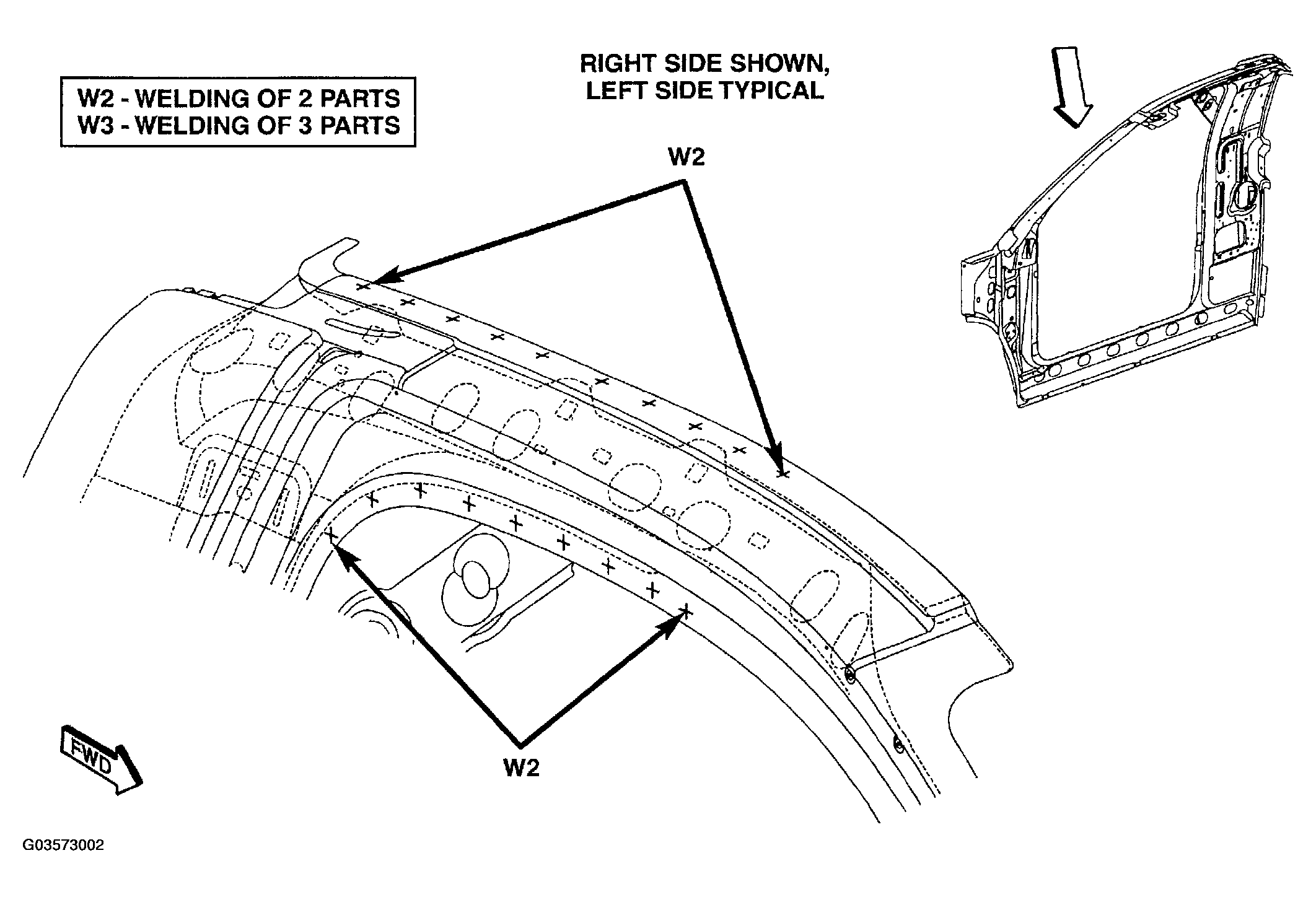

Fig 30: Identifying Weld Locations Of Inner Body Side Aperture - Standard Cab
G03573002Courtesy of DAIMLERCHRYSLER CORP.

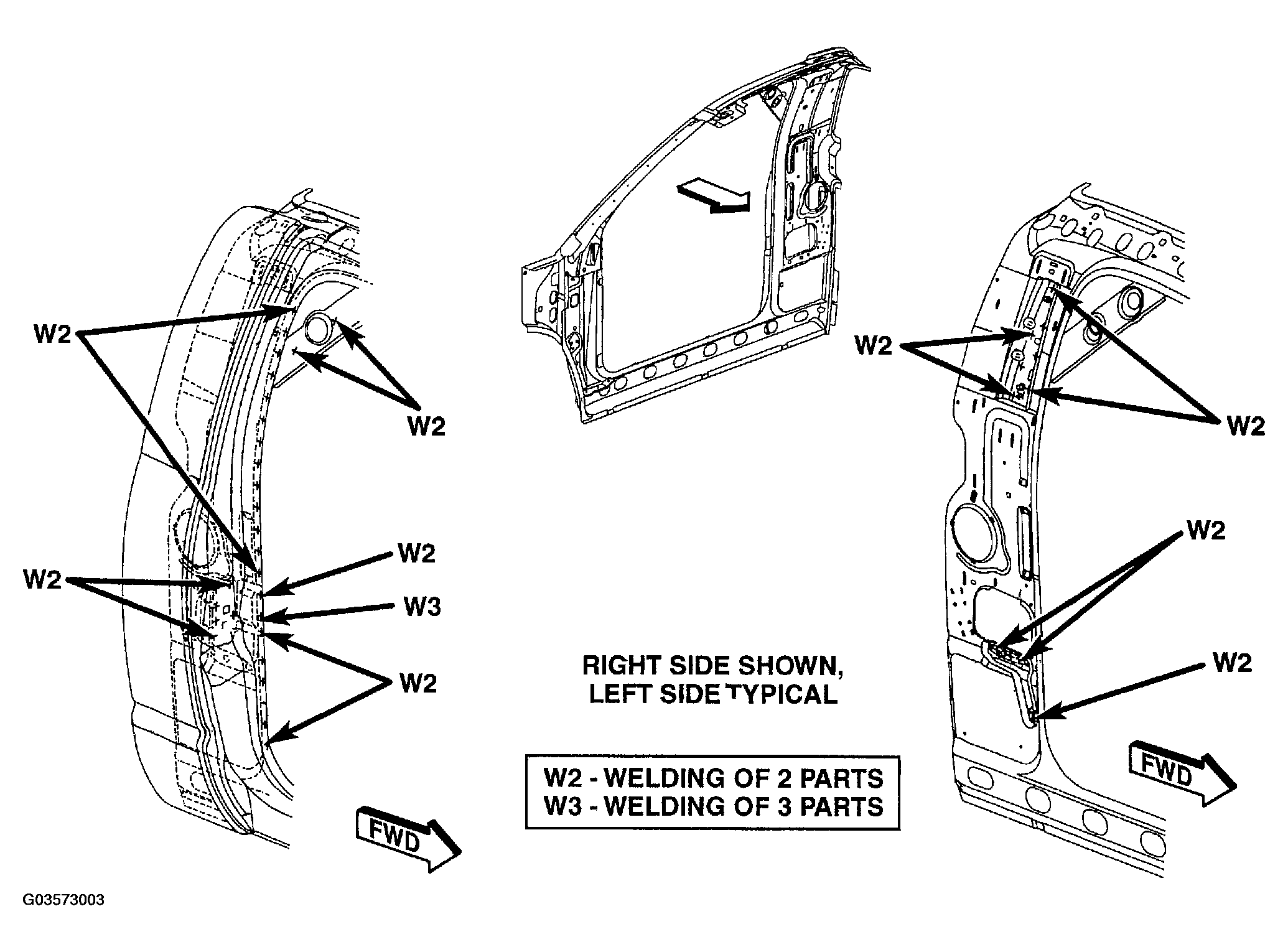

Fig 31: Identifying Weld Locations Of Shoulder Belt Reinforcement - Standard Cab
G03573003Courtesy of DAIMLERCHRYSLER CORP.

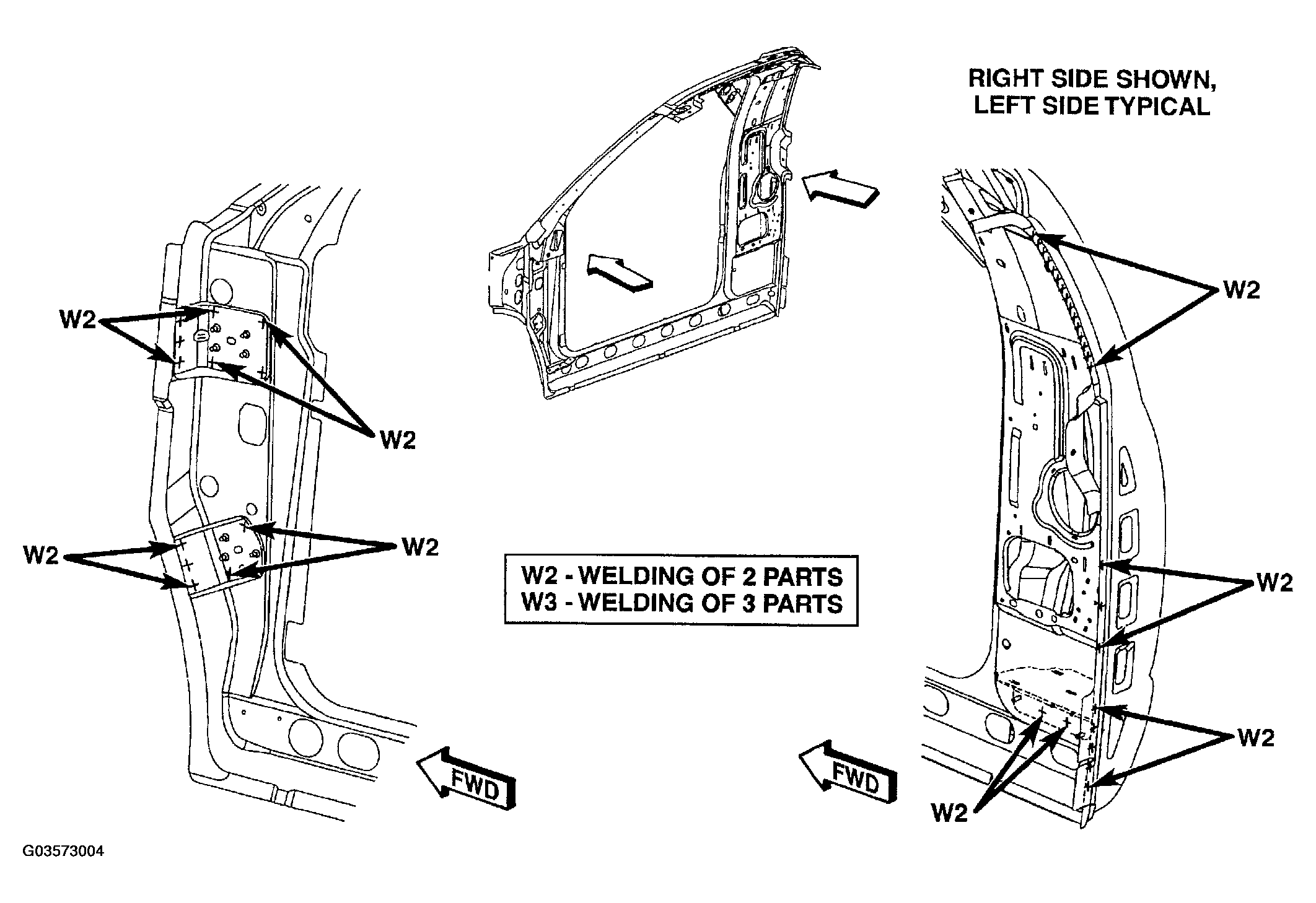

Fig 32: Identifying Weld Locations Of Front Pillar Tapping Plates - Standard Cab
G03573004Courtesy of DAIMLERCHRYSLER CORP.

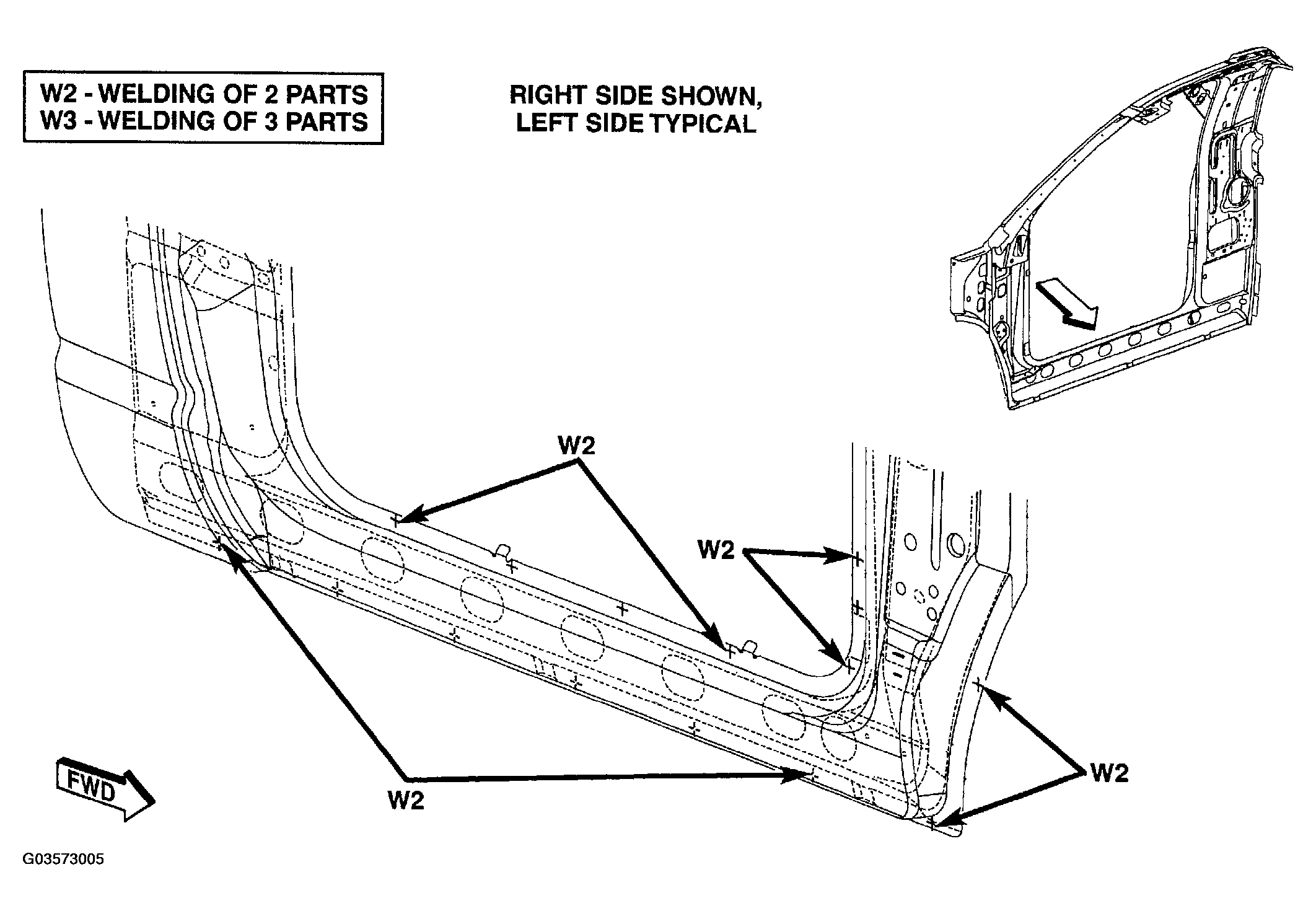

Fig 33: Identifying Weld Locations Of Inner Body Side Aperture - Standard Cab
G03573005Courtesy of DAIMLERCHRYSLER CORP.

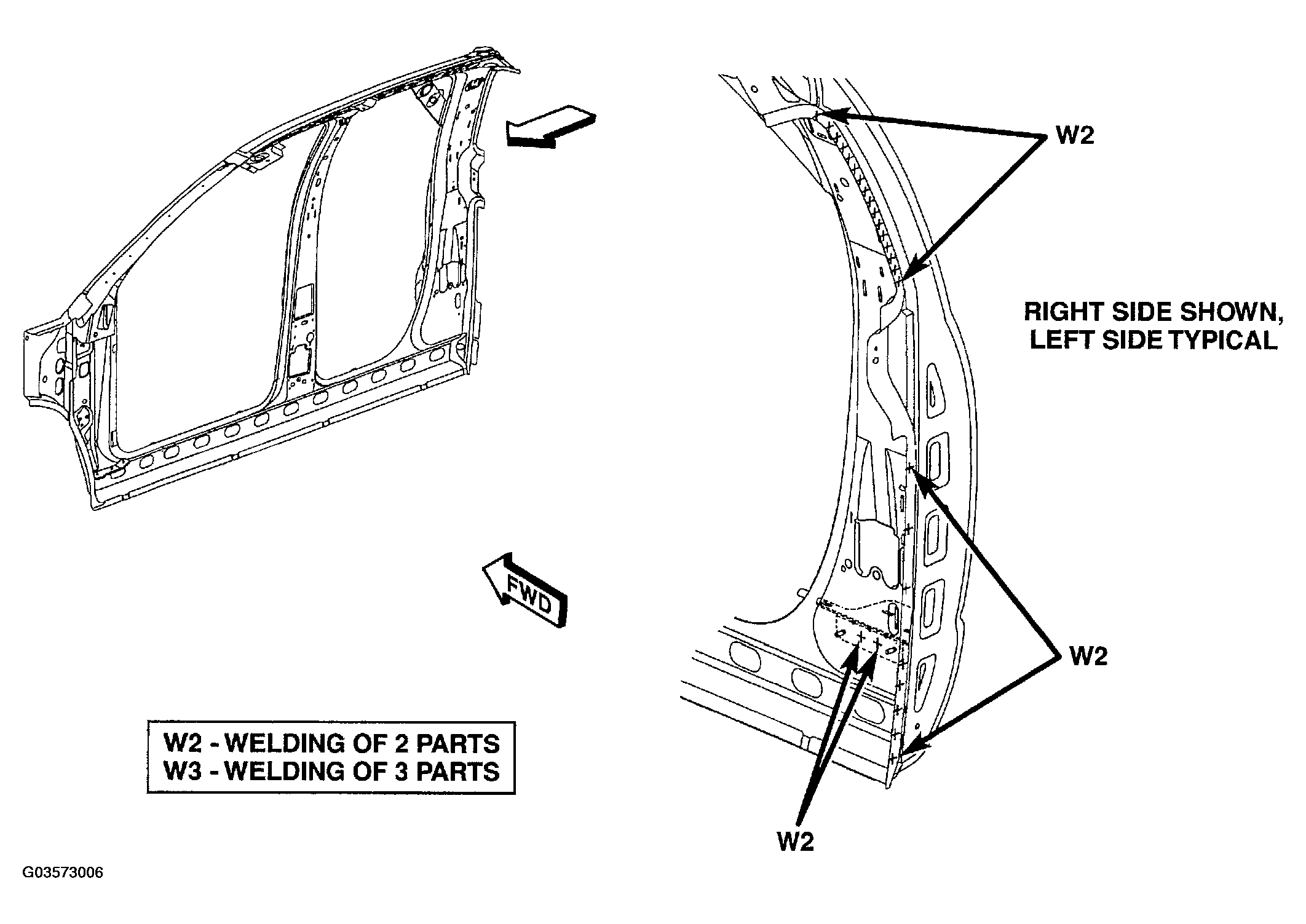

Fig 34: Identifying Weld Locations Of C-Pillar Baffle - Quad Cab
G03573006Courtesy of DAIMLERCHRYSLER CORP.

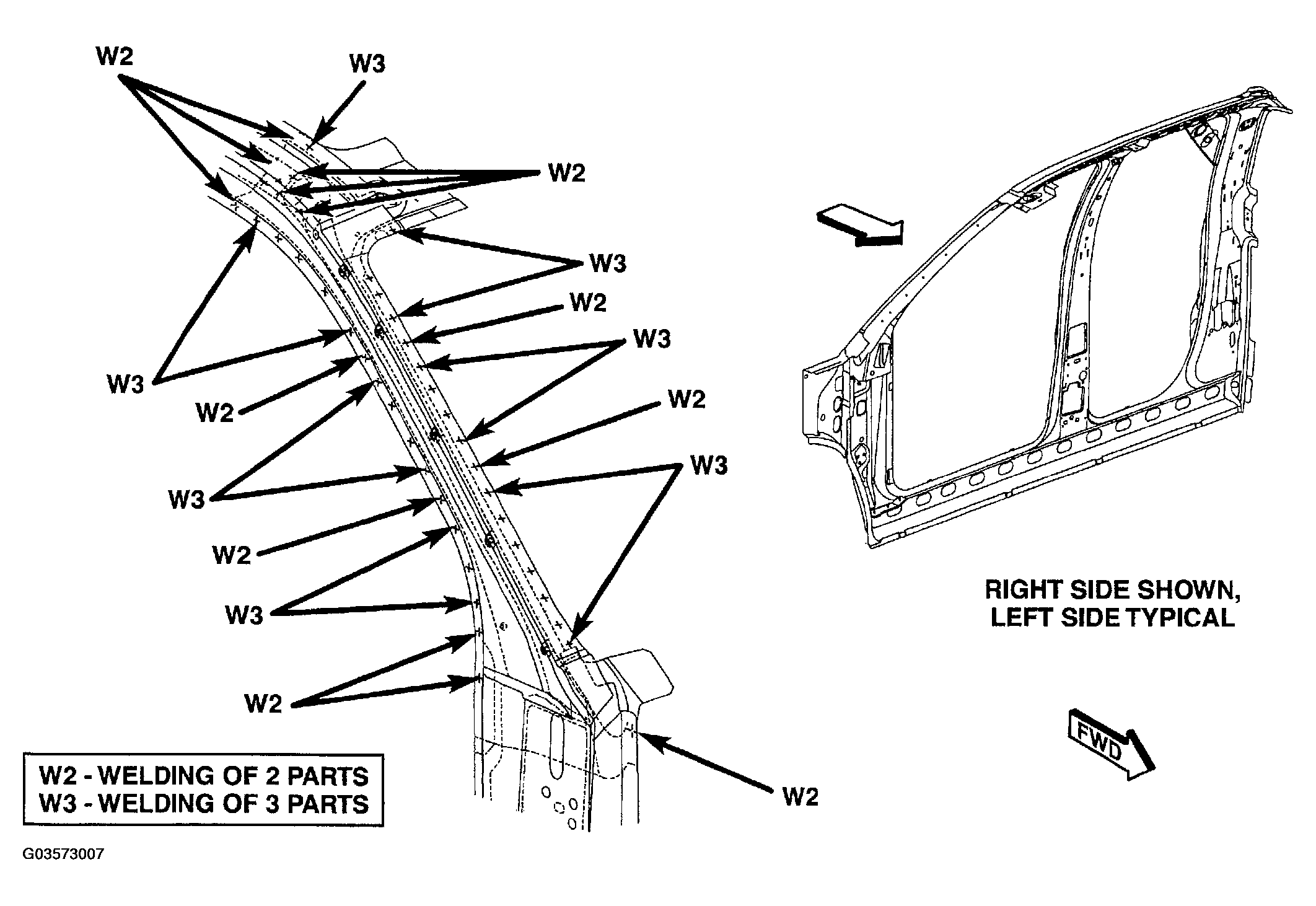

Fig 35: Identifying Weld Locations Of A-Pillar Reinforcement - Quad Cab
G03573007Courtesy of DAIMLERCHRYSLER CORP.

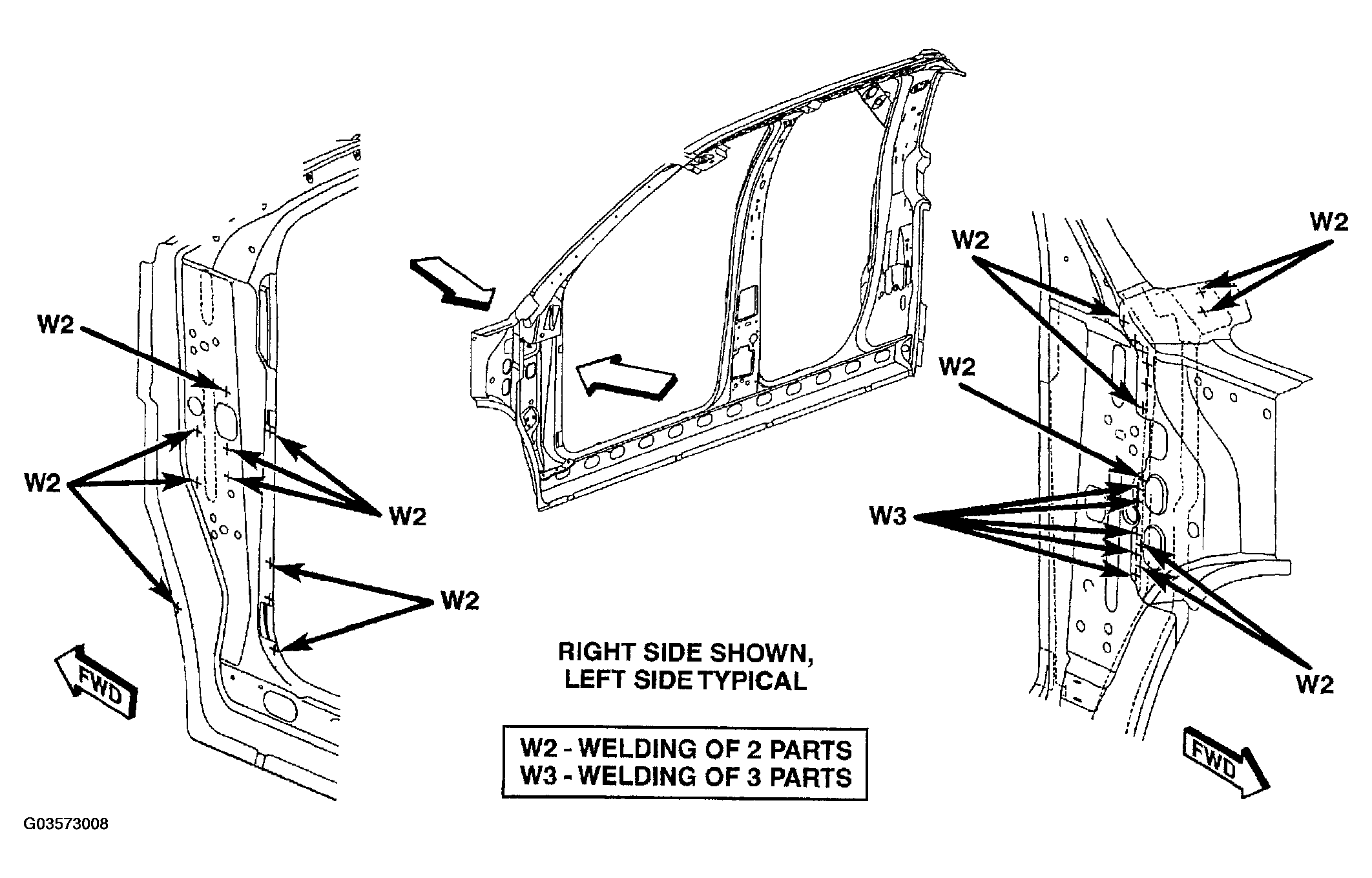

Fig 36: Identifying Weld Locations Of Front Extension Plate - Quad Cab
G03573008Courtesy of DAIMLERCHRYSLER CORP.

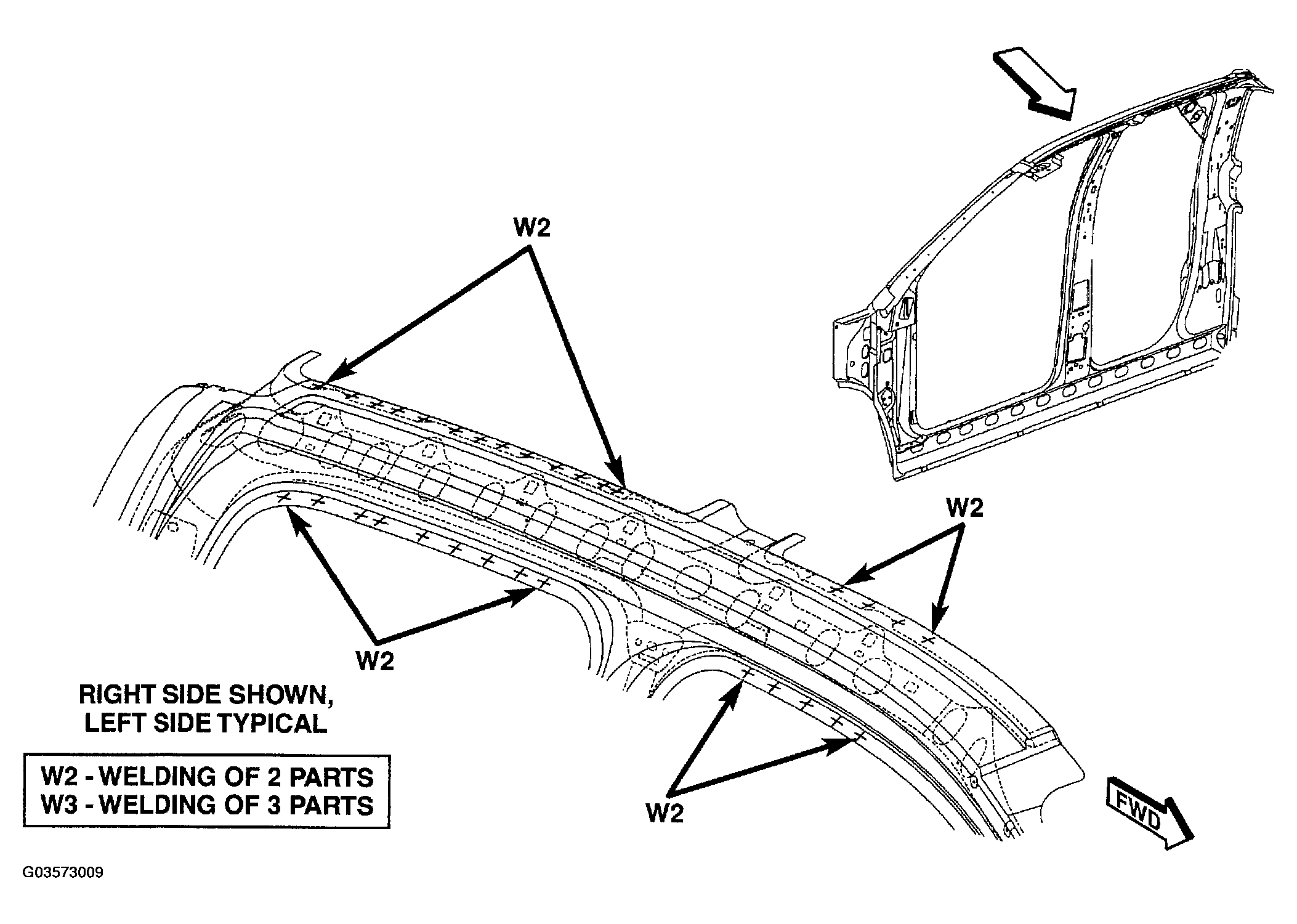

Fig 37: Identifying Weld Locations Of Outer Body Side Aperture - Quad Cab
G03573009Courtesy of DAIMLERCHRYSLER CORP.

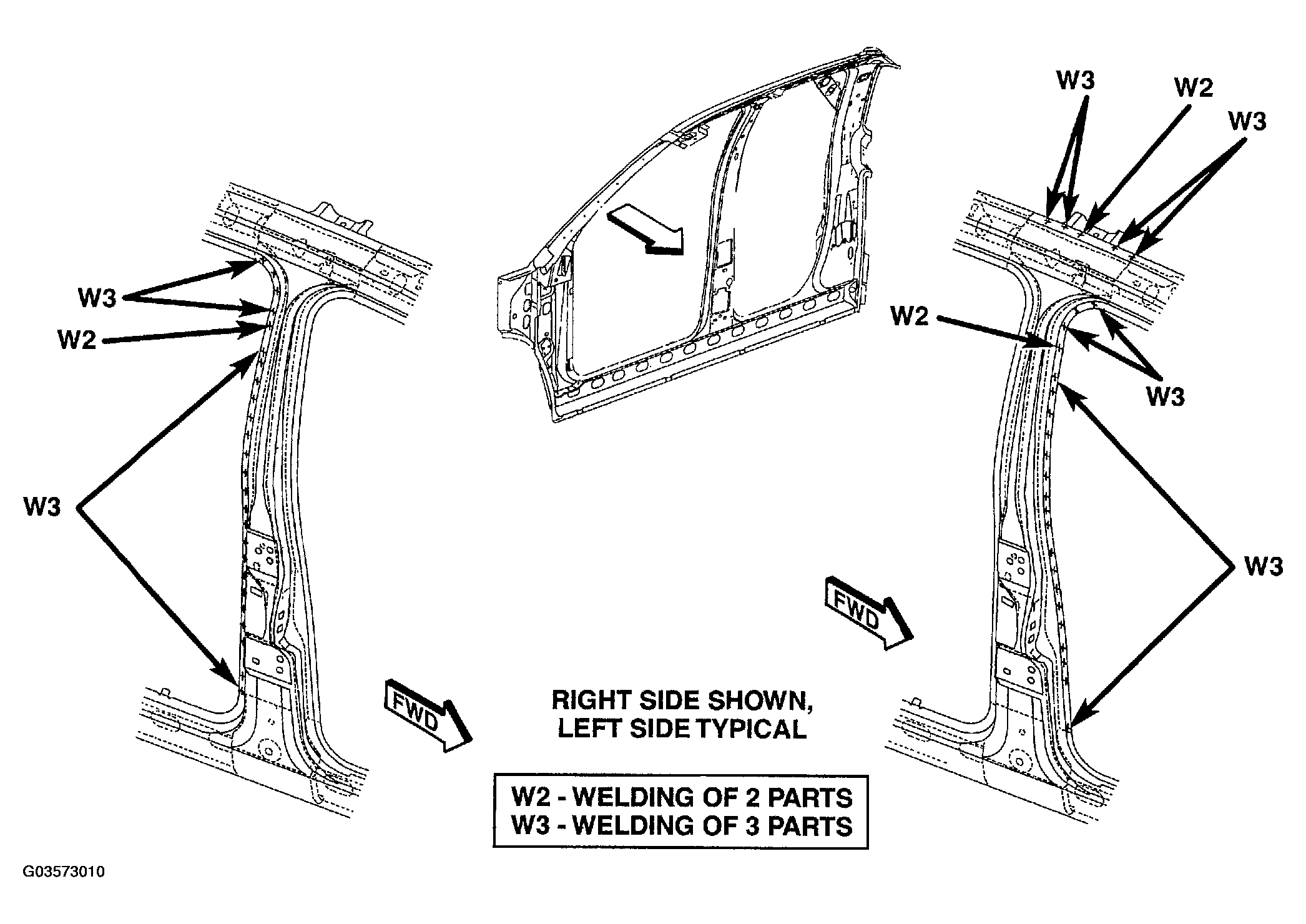

Fig 38: Identifying Weld Locations Of B-Pillar Reinforcement - Quad Cab
G03573010Courtesy of DAIMLERCHRYSLER CORP.

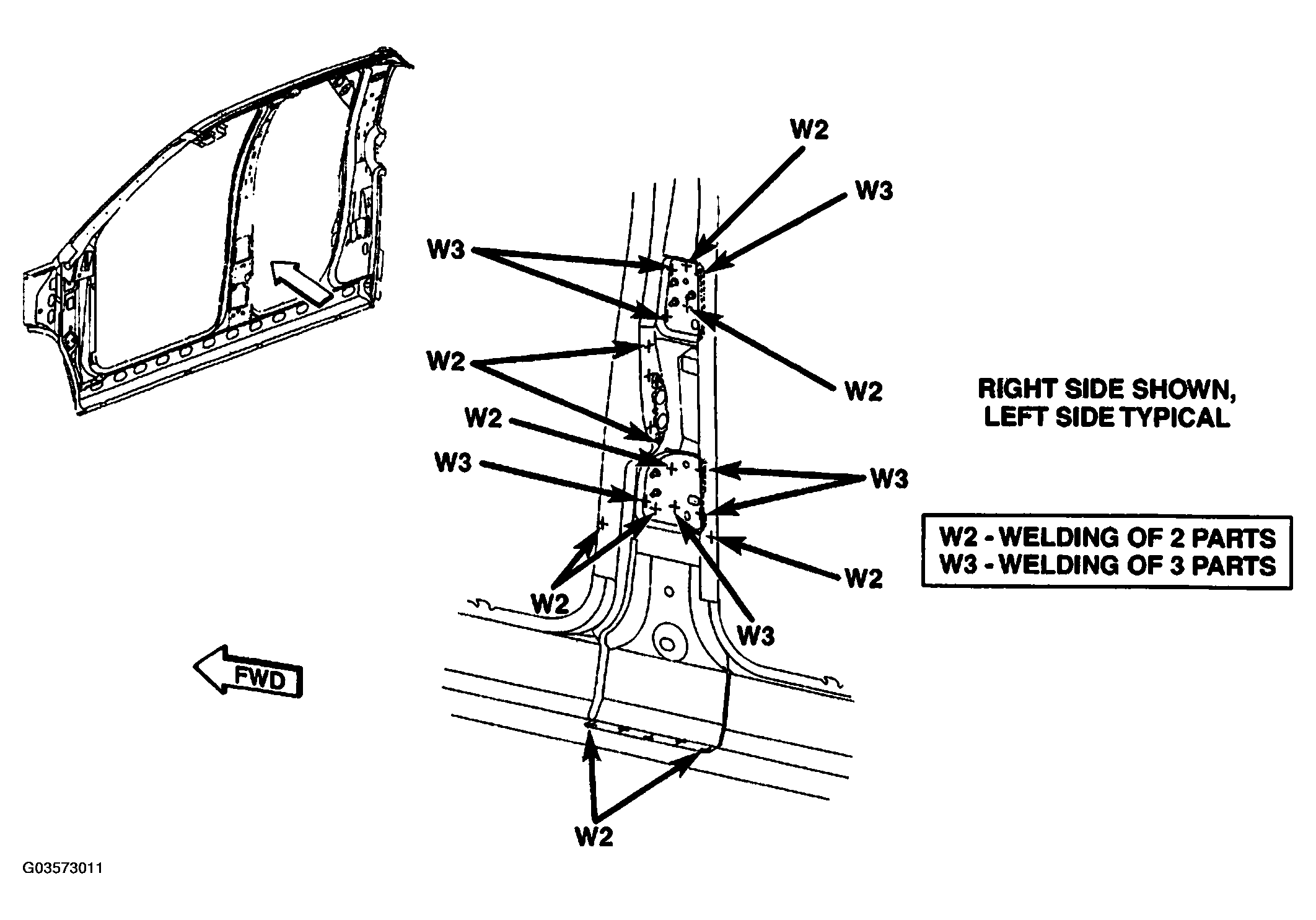

Fig 39: Identifying Weld Locations Of Upper Tapping Plate - Quad Cab
G03573011Courtesy of DAIMLERCHRYSLER CORP.

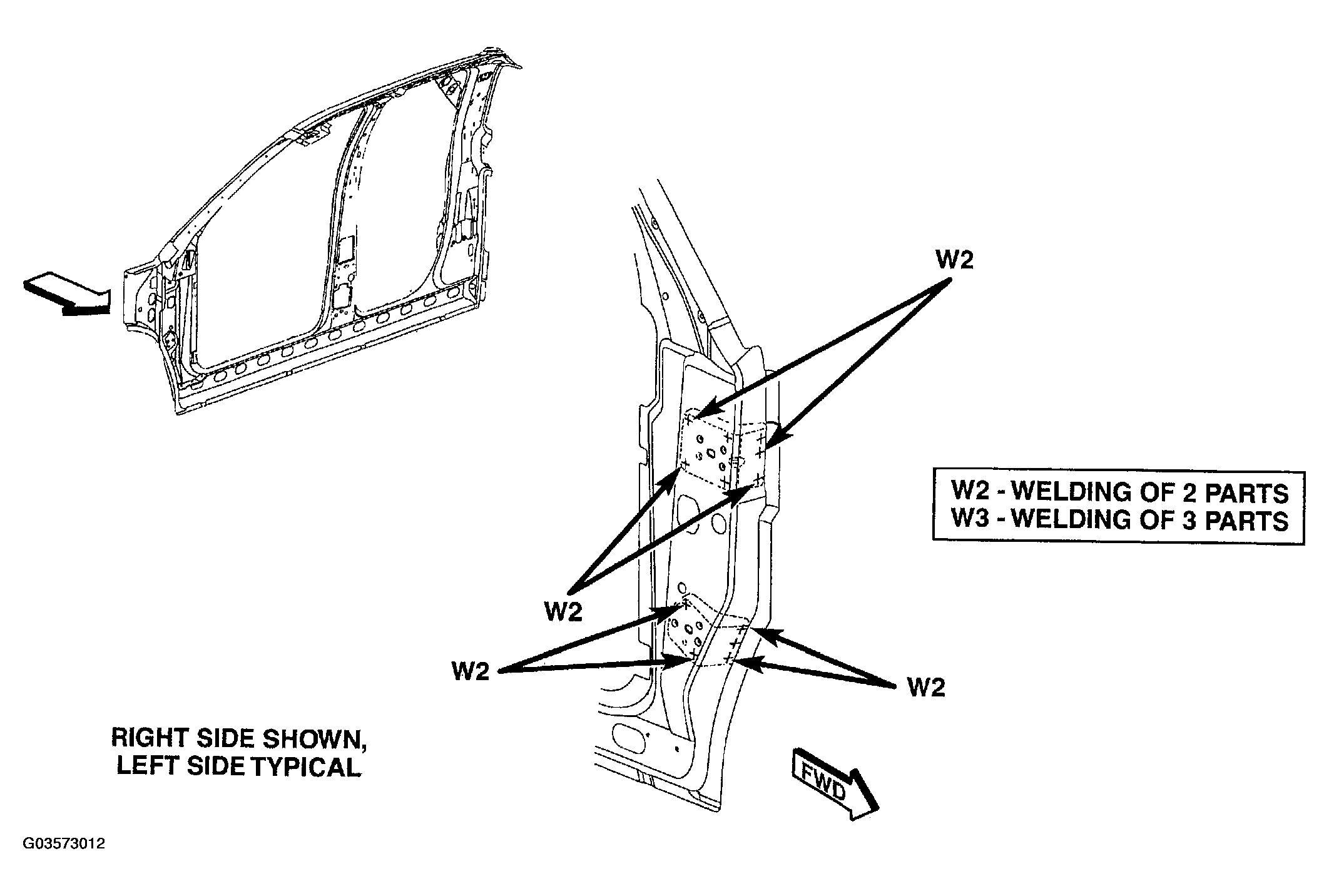

Fig 40: Identifying Weld Locations Of Upper A-Pillar Tapping Plate - Quad Cab
G03573012Courtesy of DAIMLERCHRYSLER CORP.

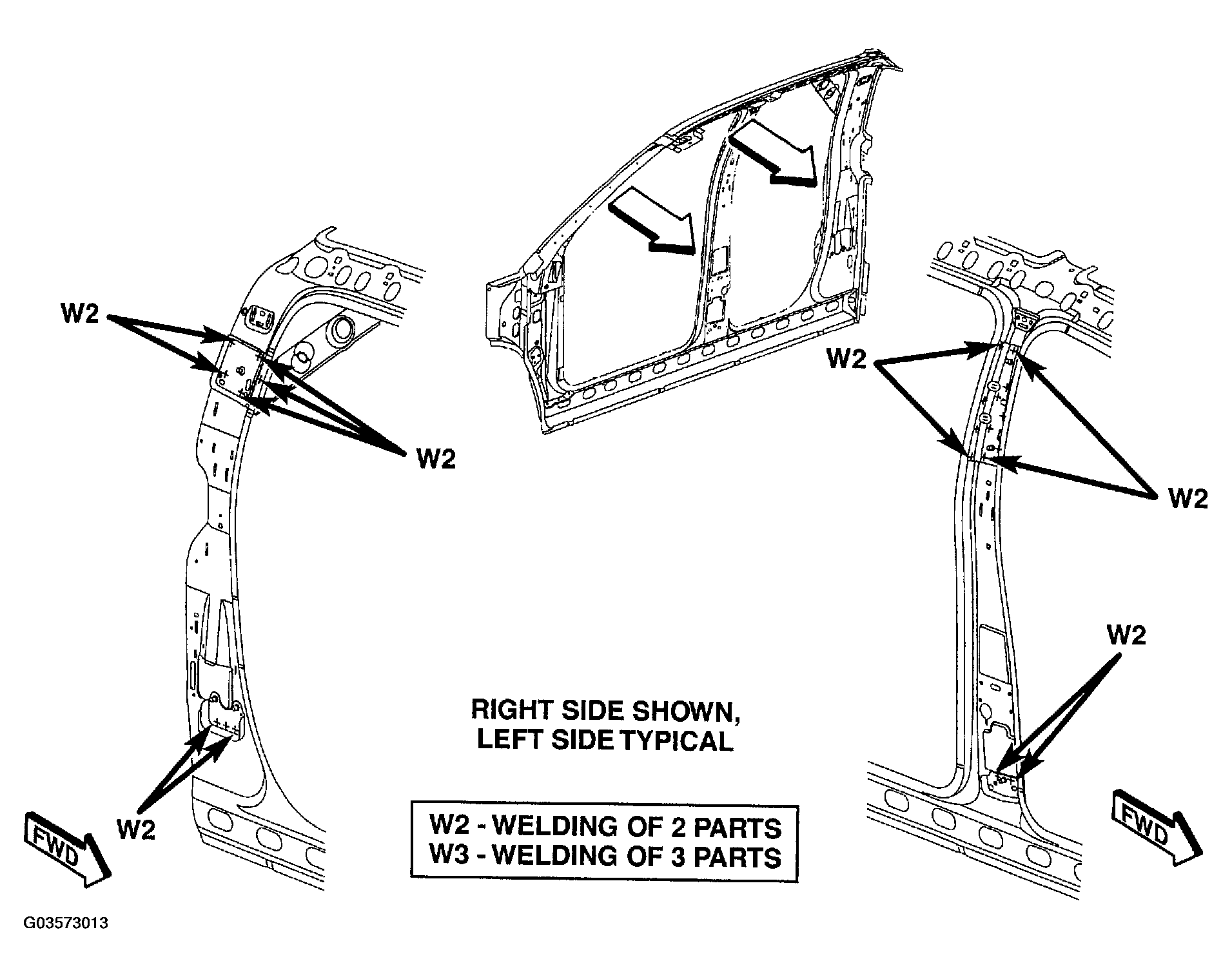

Fig 41: Identifying Weld Locations Of Seat Belt Mounting Plates - Quad Cab
G03573013Courtesy of DAIMLERCHRYSLER CORP.

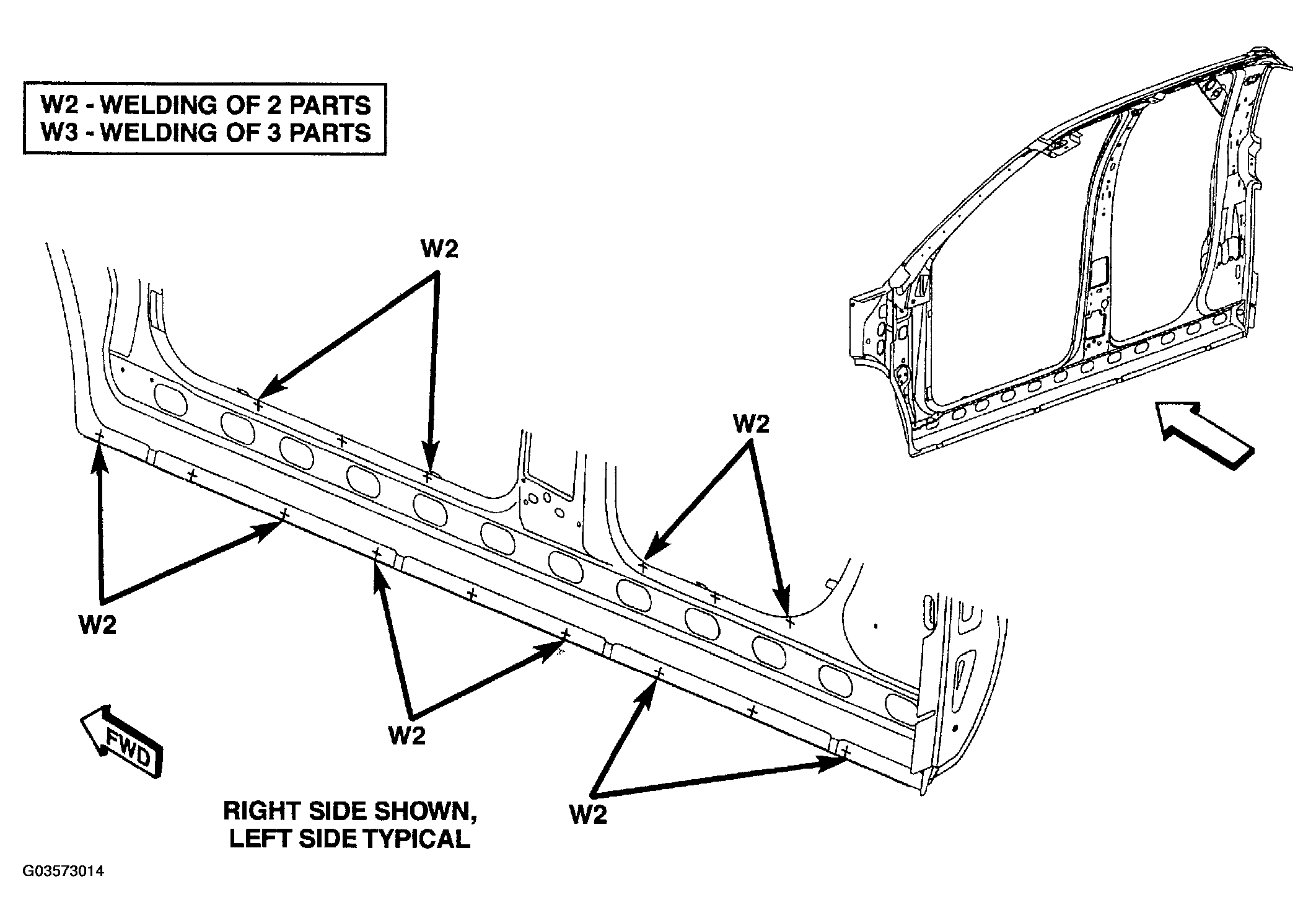

Fig 42: Identifying Weld Locations Of Outer Body Side Aperture - Quad Cab
G03573014Courtesy of DAIMLERCHRYSLER CORP.

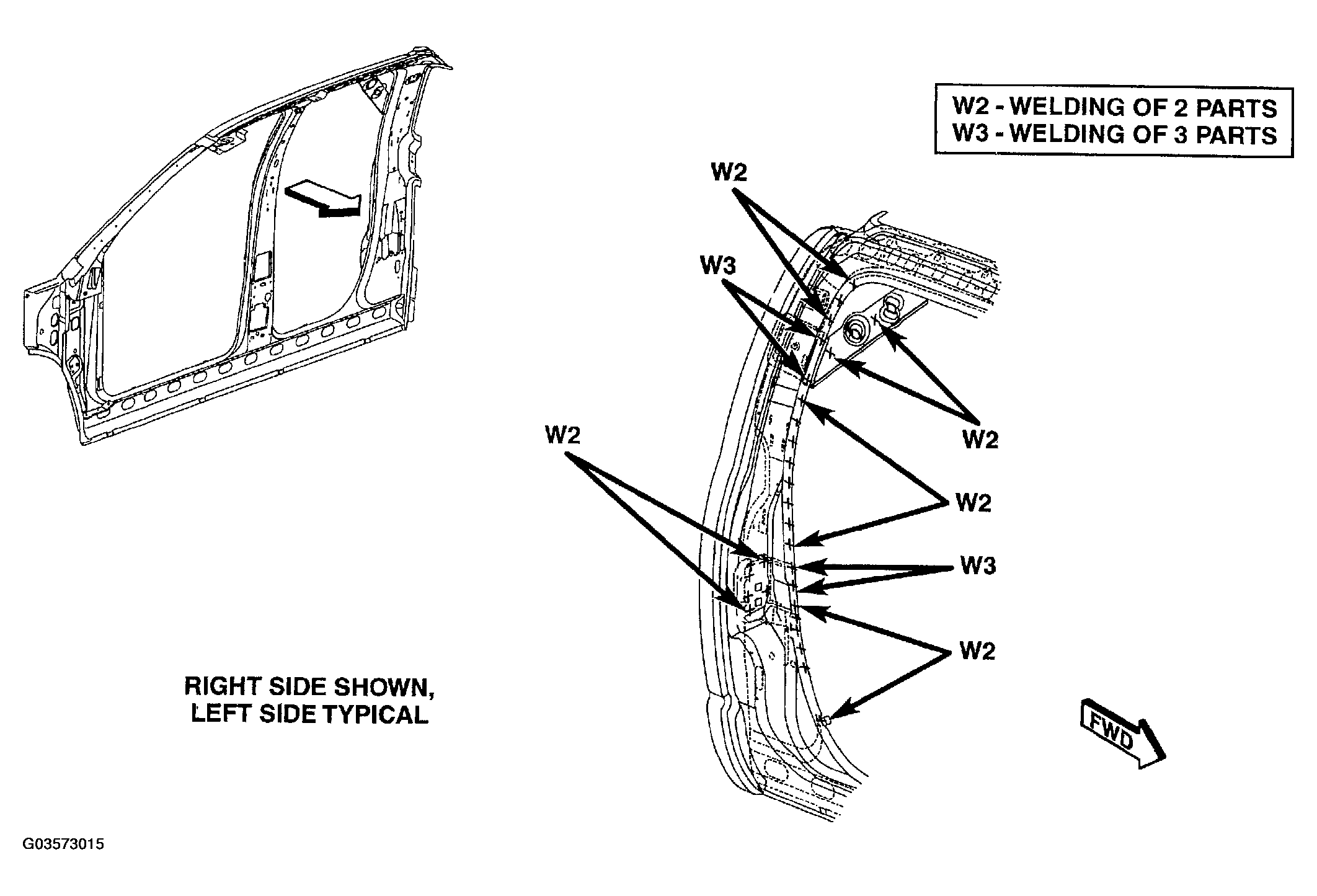

Fig 43: Identifying Weld Locations Of C-Pillar Reinforcement - Quad Cab
G03573015Courtesy of DAIMLERCHRYSLER CORP.

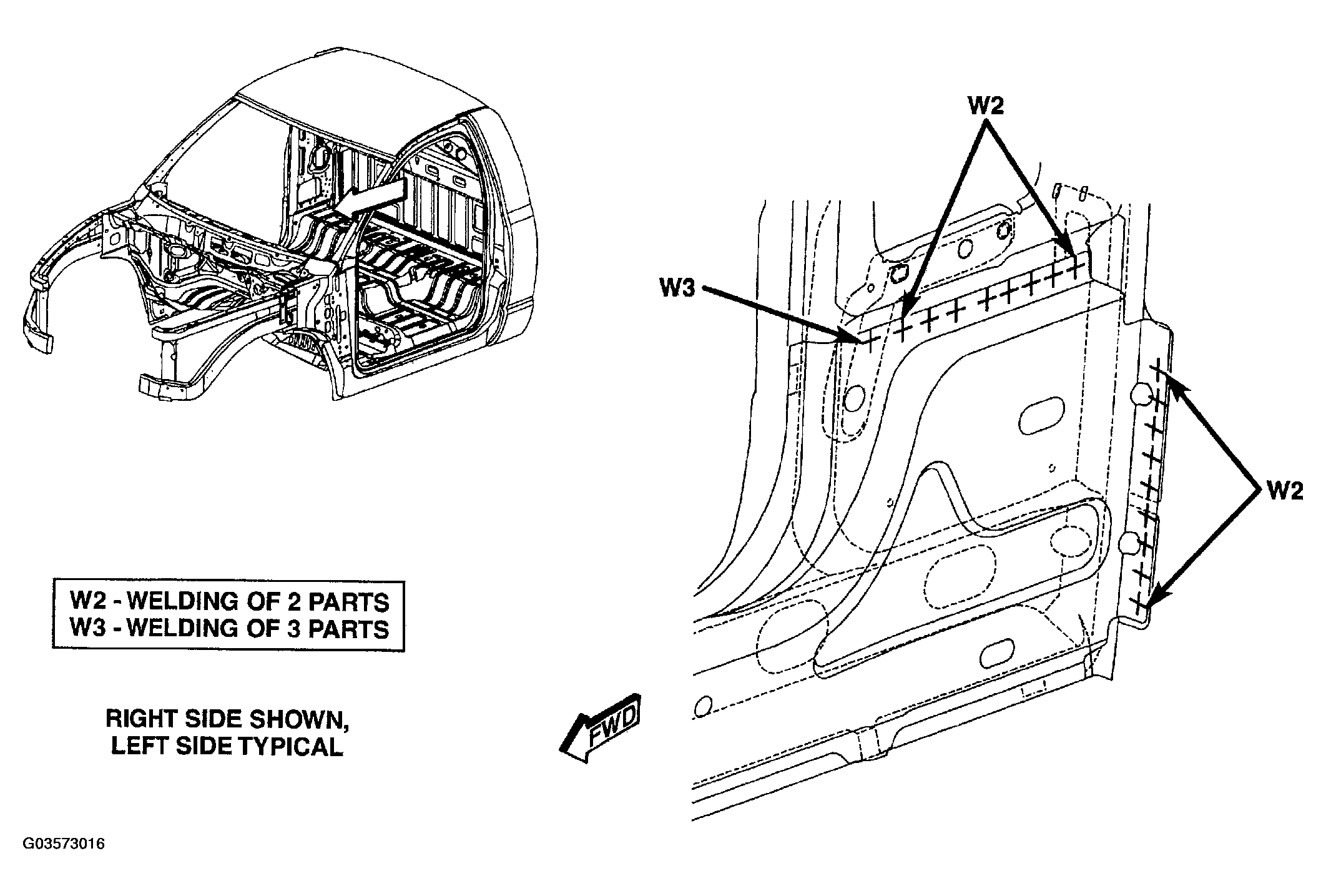

Fig 44: Identifying Weld Locations Of Seat Belt Retractor Plate - Standard Cab
G03573016Courtesy of DAIMLERCHRYSLER CORP.

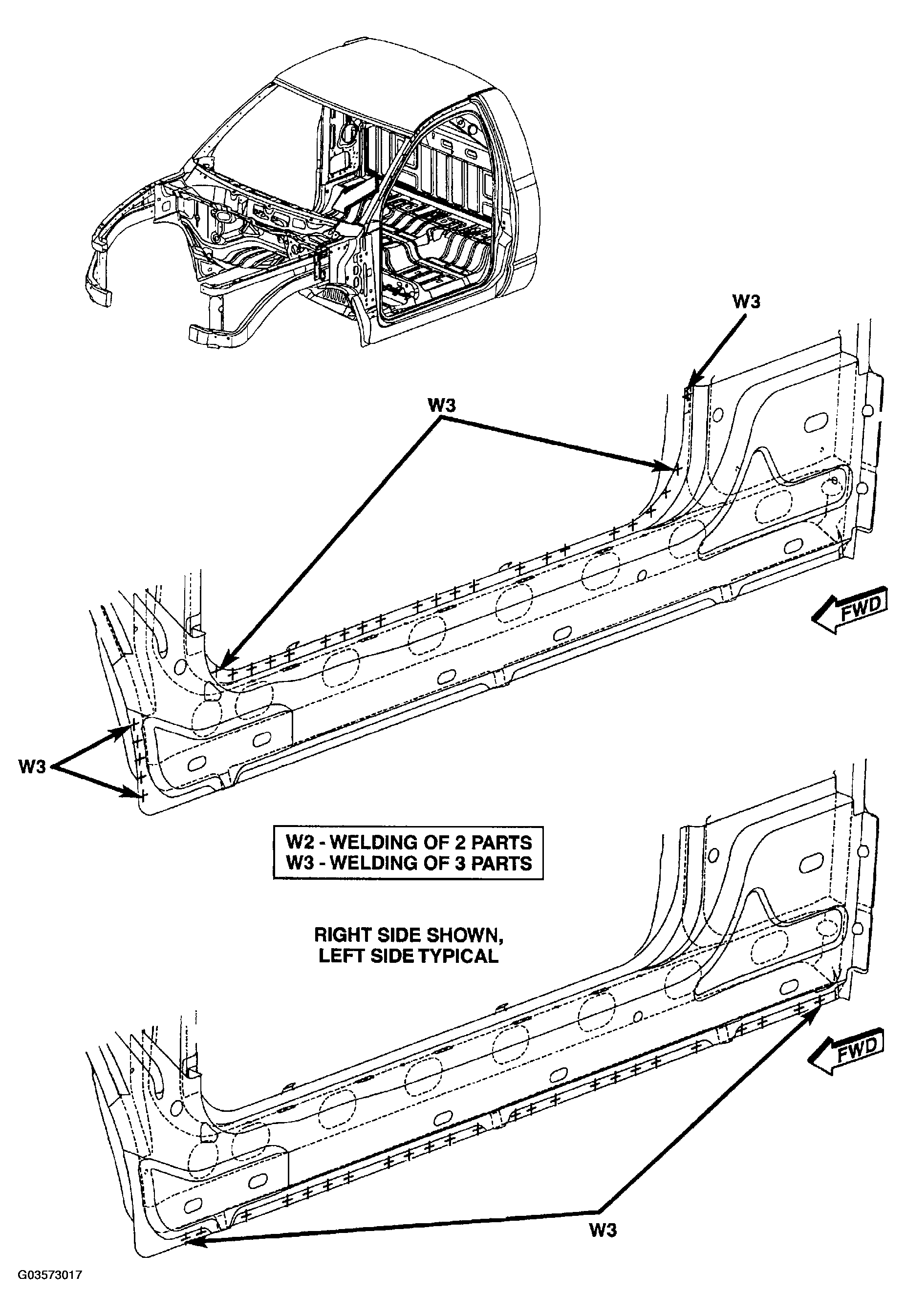

Fig 45: Identifying Weld Locations Of Floor Sill - Standard Cab
G03573017Courtesy of DAIMLERCHRYSLER CORP.

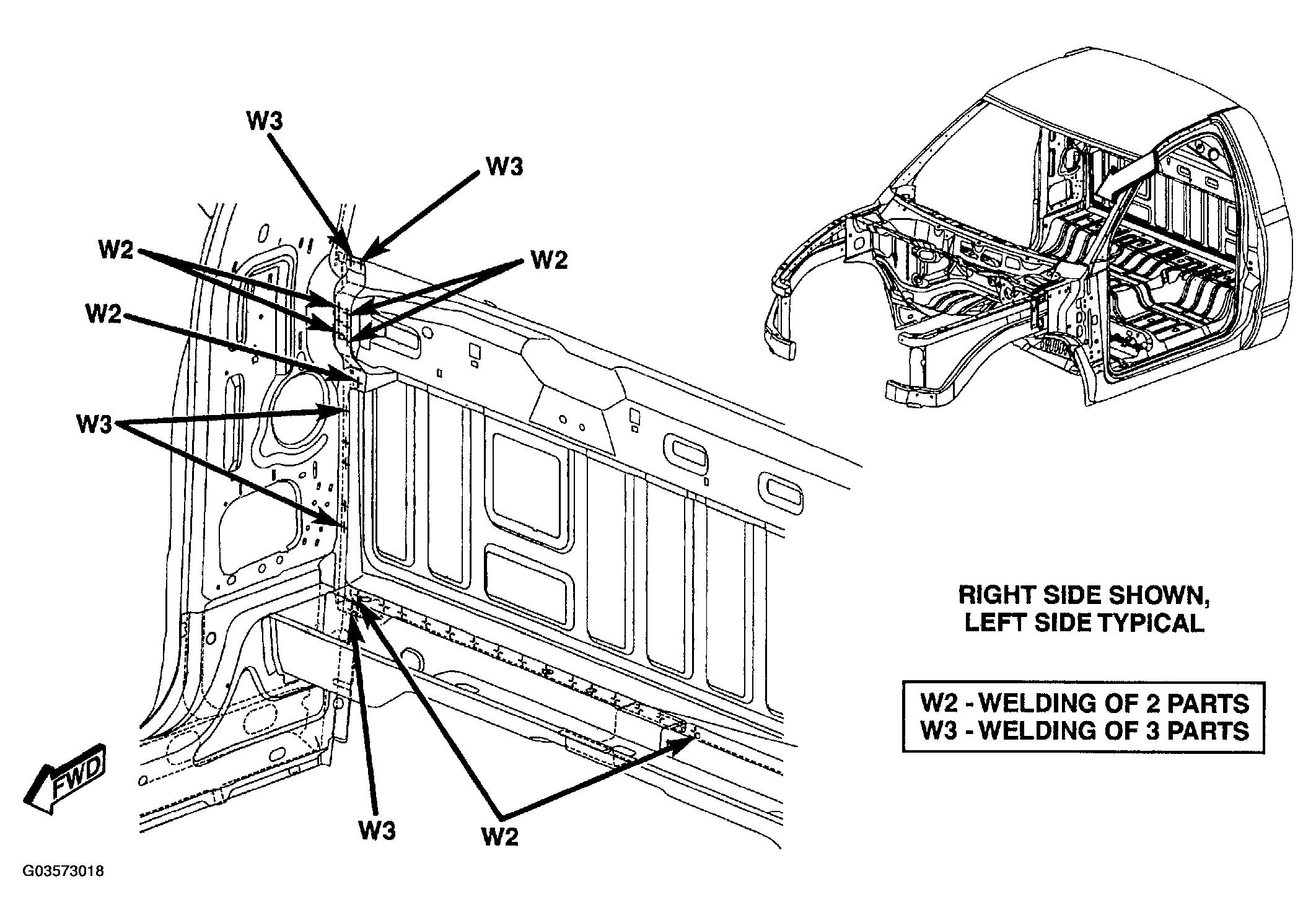

Fig 46: Identifying Weld Locations Of Back Reinforcement - Standard Cab
G03573018Courtesy of DAIMLERCHRYSLER CORP.

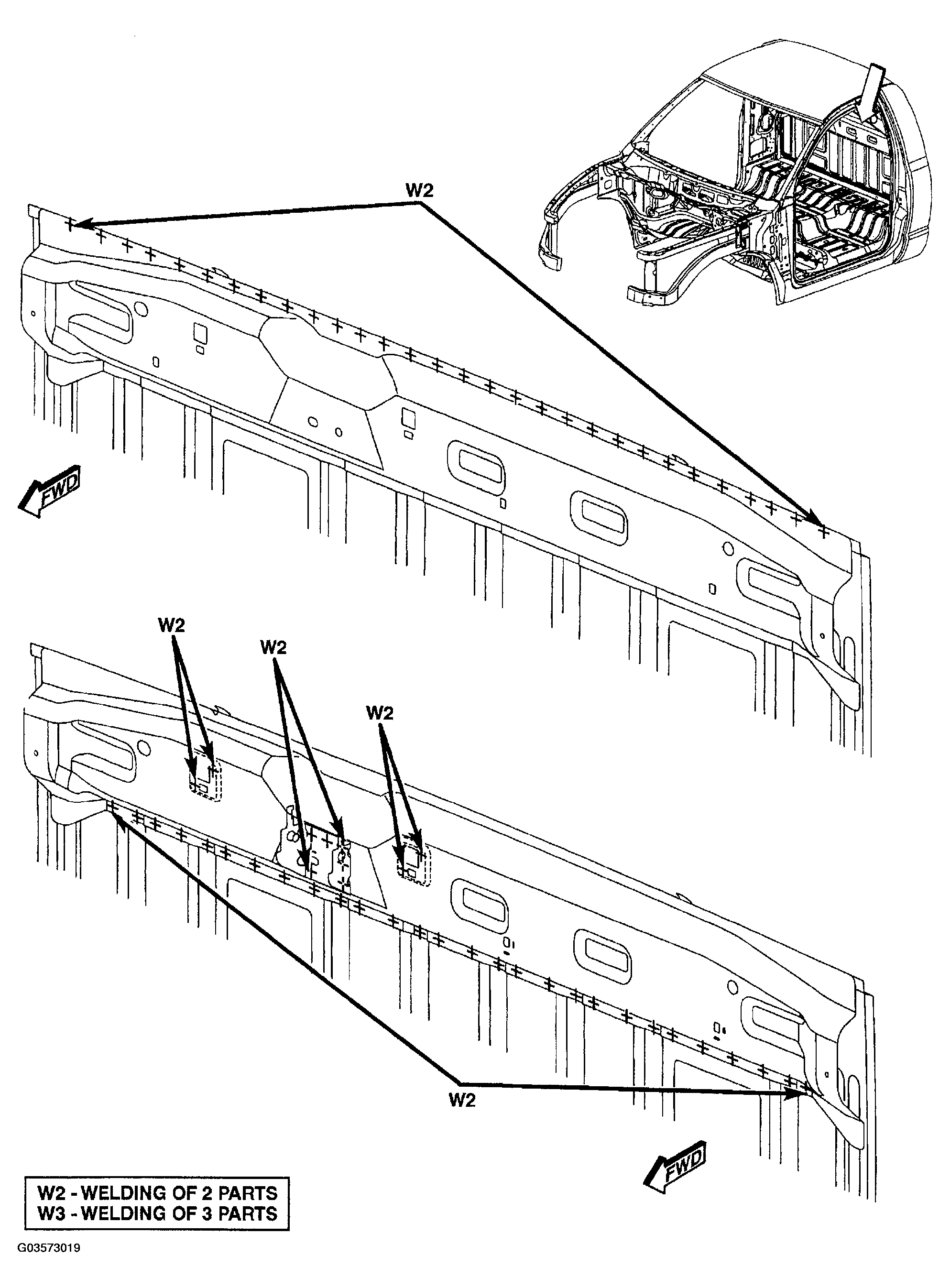

Fig 47: Identifying Weld Locations Of Cab Back Reinforcement - Standard Cab
G03573019Courtesy of DAIMLERCHRYSLER CORP.

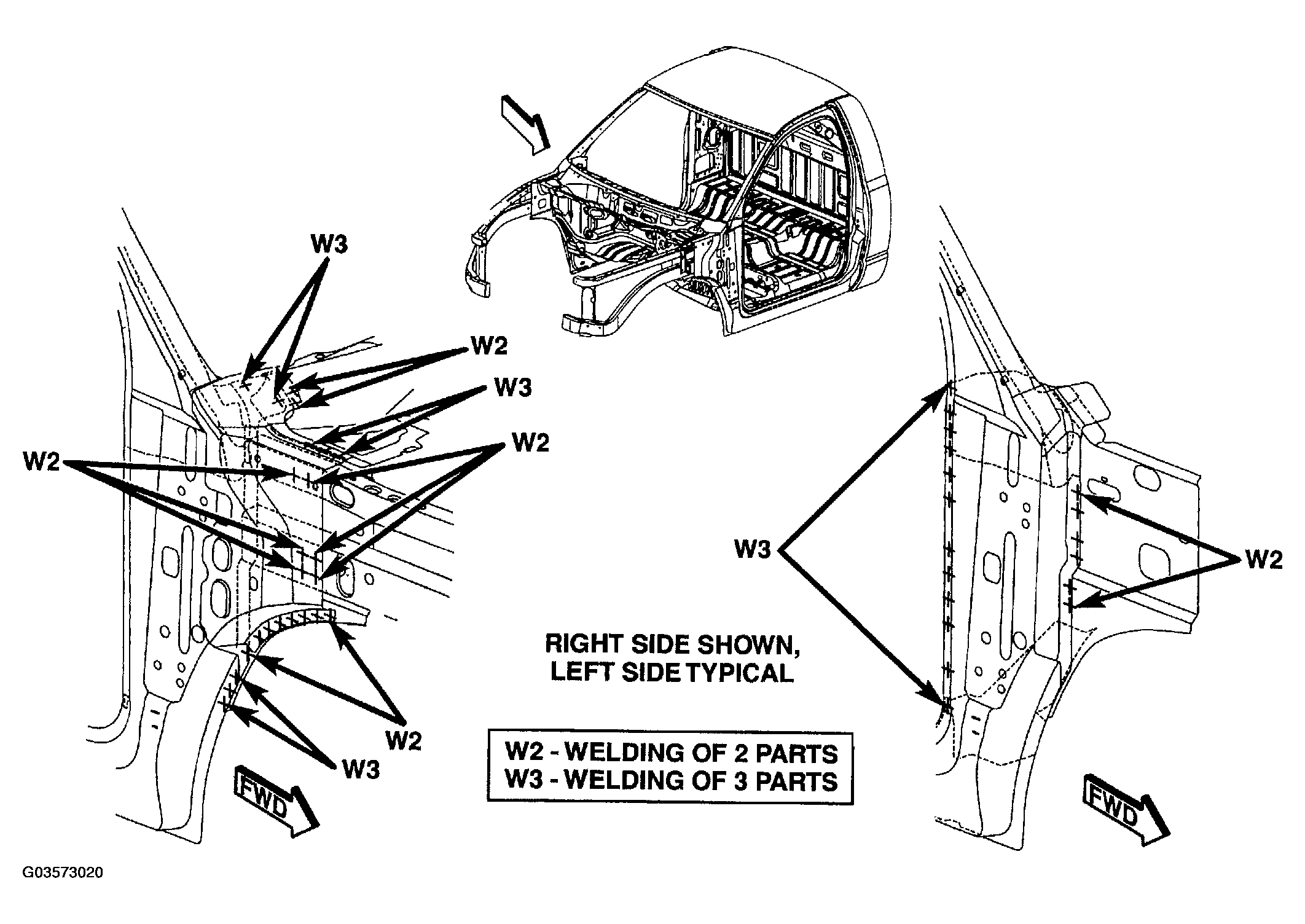

Fig 48: Identifying Weld Locations Of Cowl Side Panel - Standard Cab
G03573020Courtesy of DAIMLERCHRYSLER CORP.

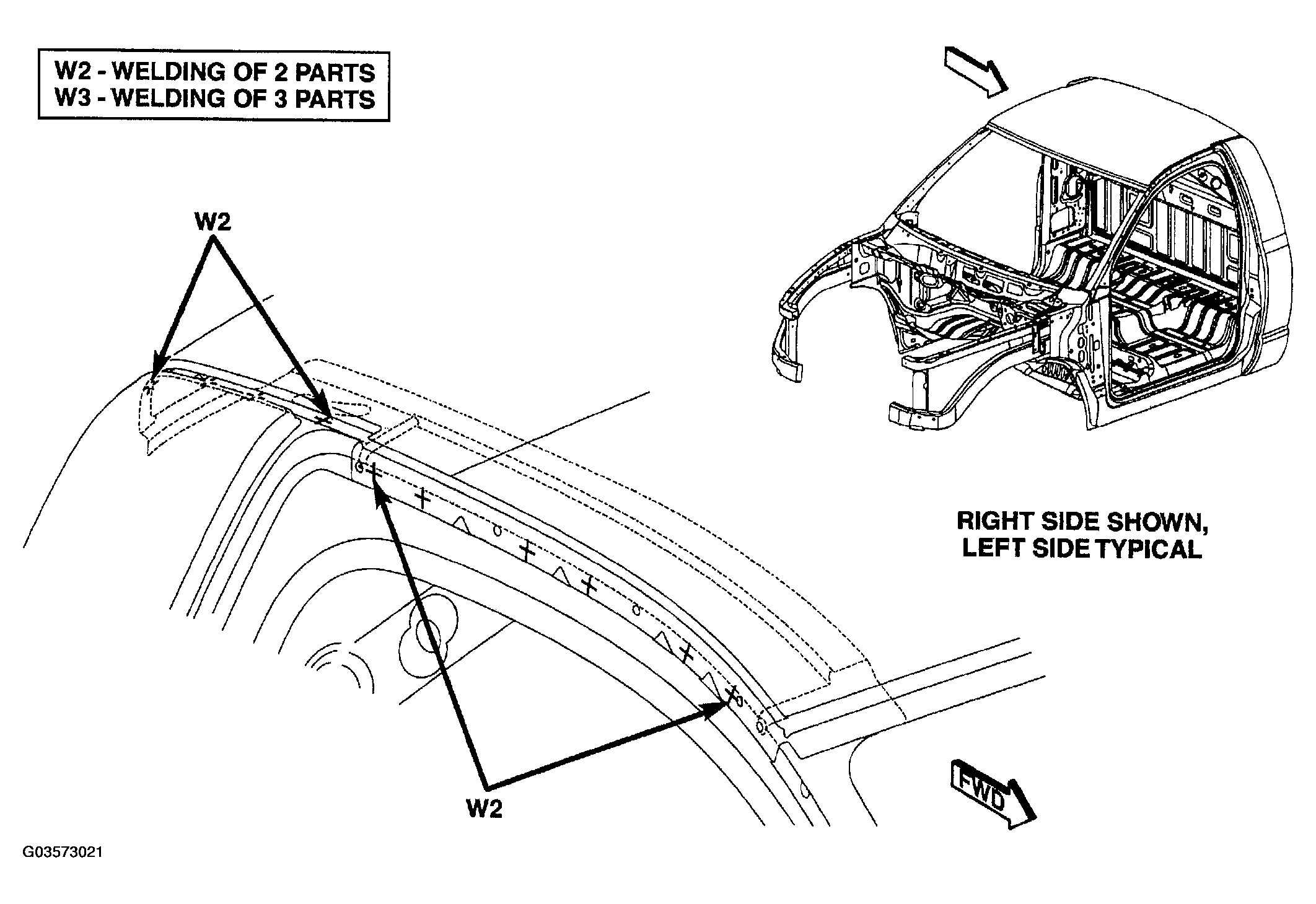

Fig 49: Identifying Weld Locations Of Outer Roof Panel - Standard Cab
G03573021Courtesy of DAIMLERCHRYSLER CORP.

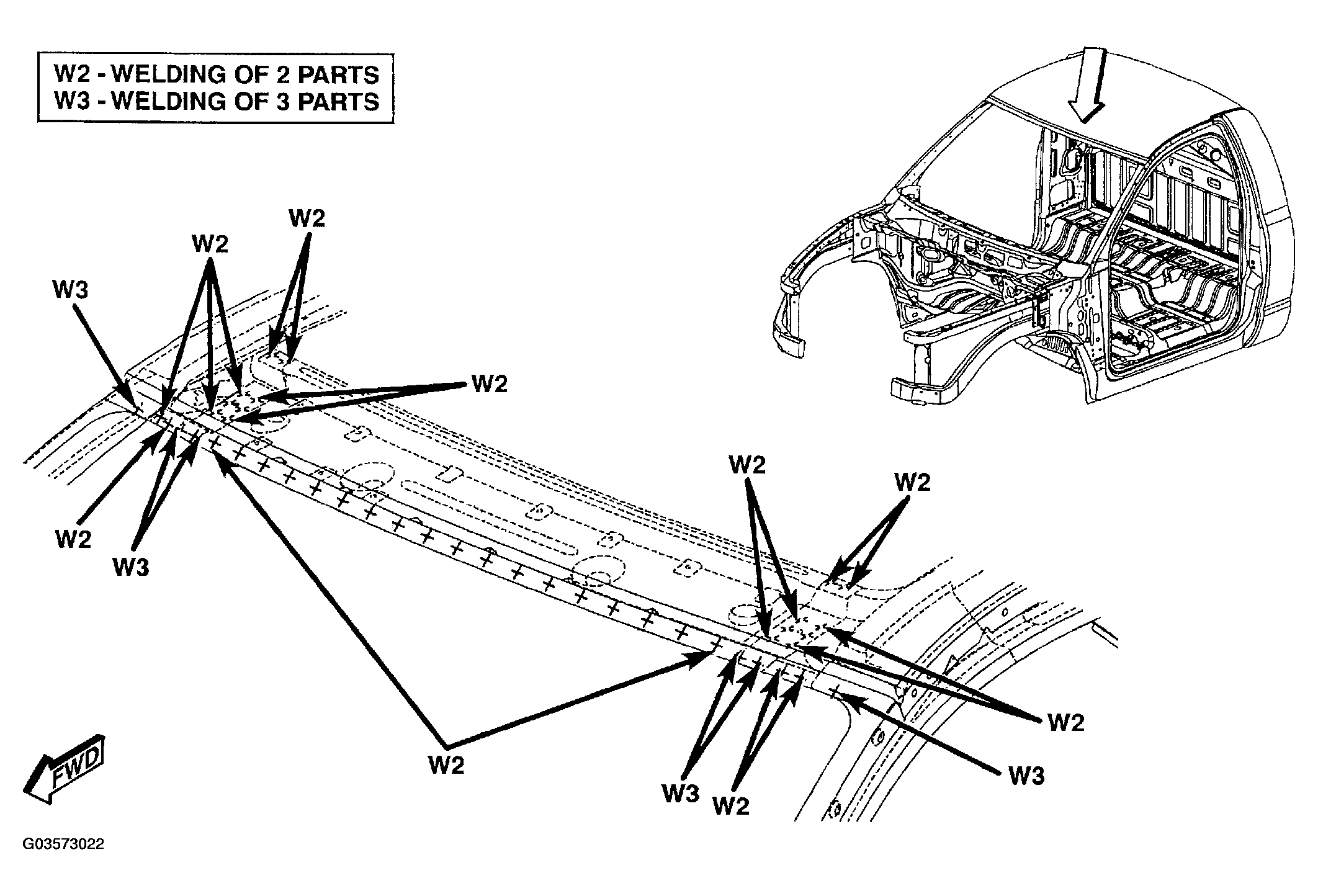

Fig 50: Identifying Weld Locations Of Front Roof Header - Standard Cab
G03573022Courtesy of DAIMLERCHRYSLER CORP.

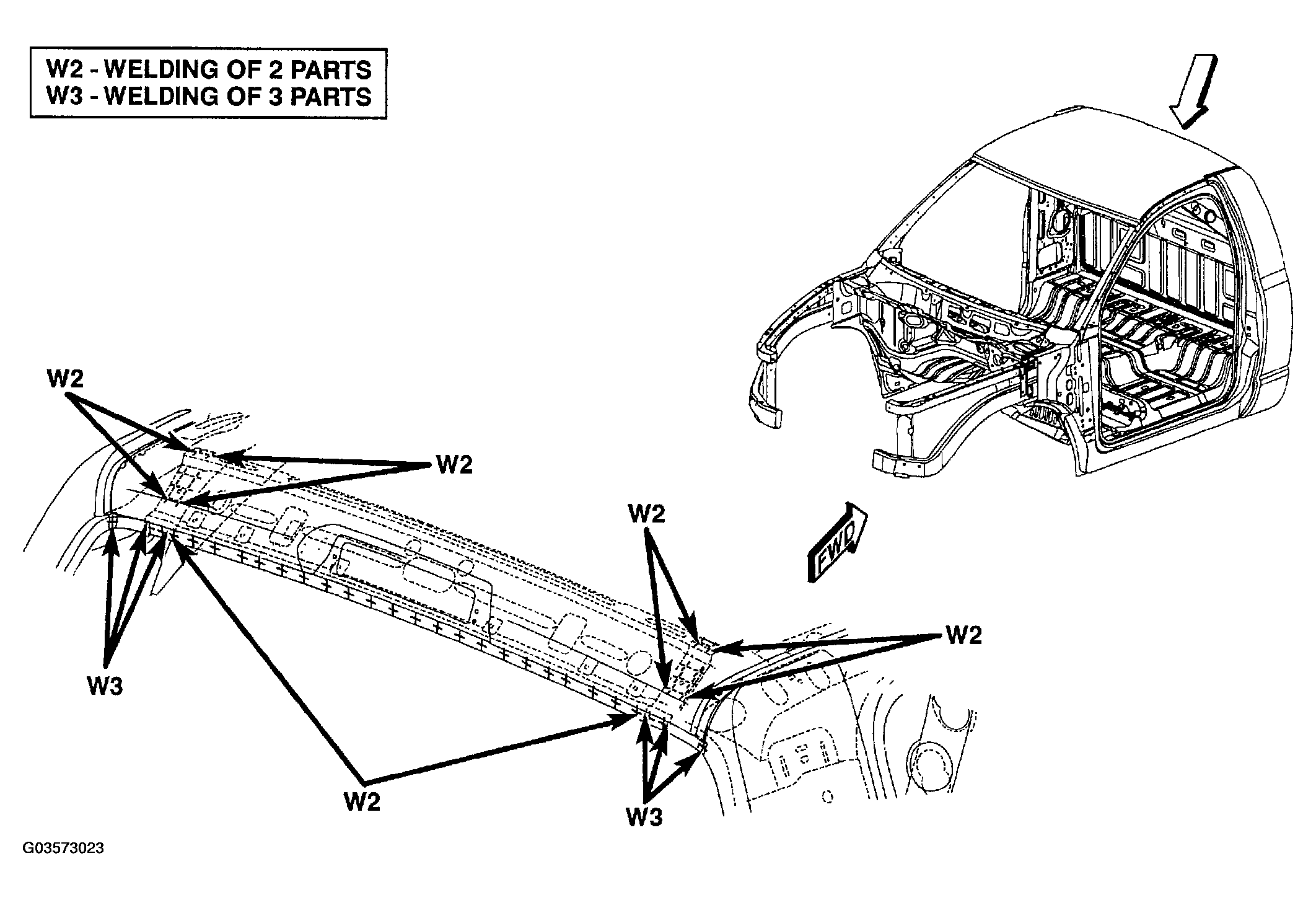

Fig 51: Identifying Weld Locations Of Rear Roof Header - Standard Cab
G03573023Courtesy of DAIMLERCHRYSLER CORP.

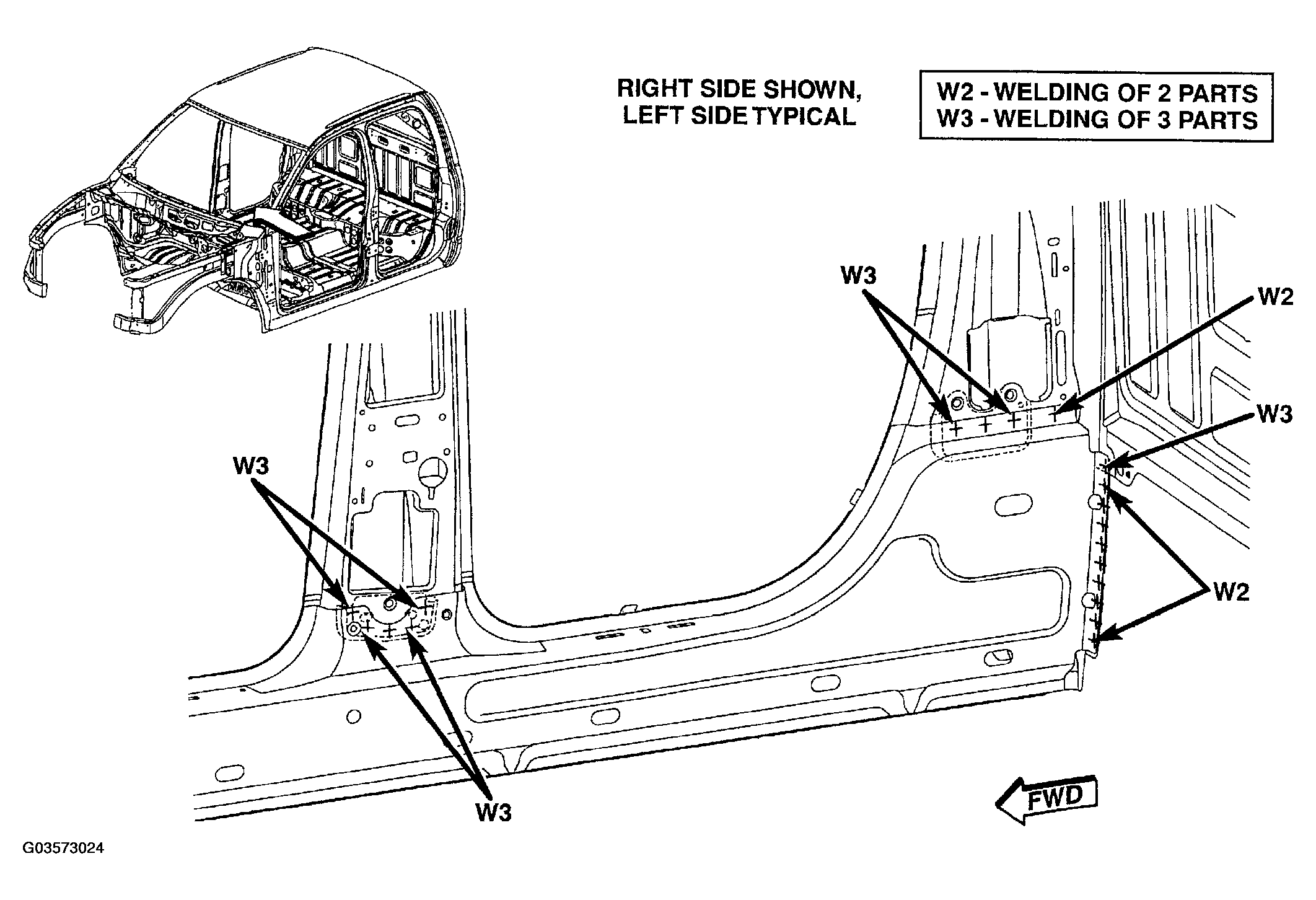

Fig 52: Identifying Weld Locations Of Outer Body Side Aperture - Quad Cab
G03573024Courtesy of DAIMLERCHRYSLER CORP.

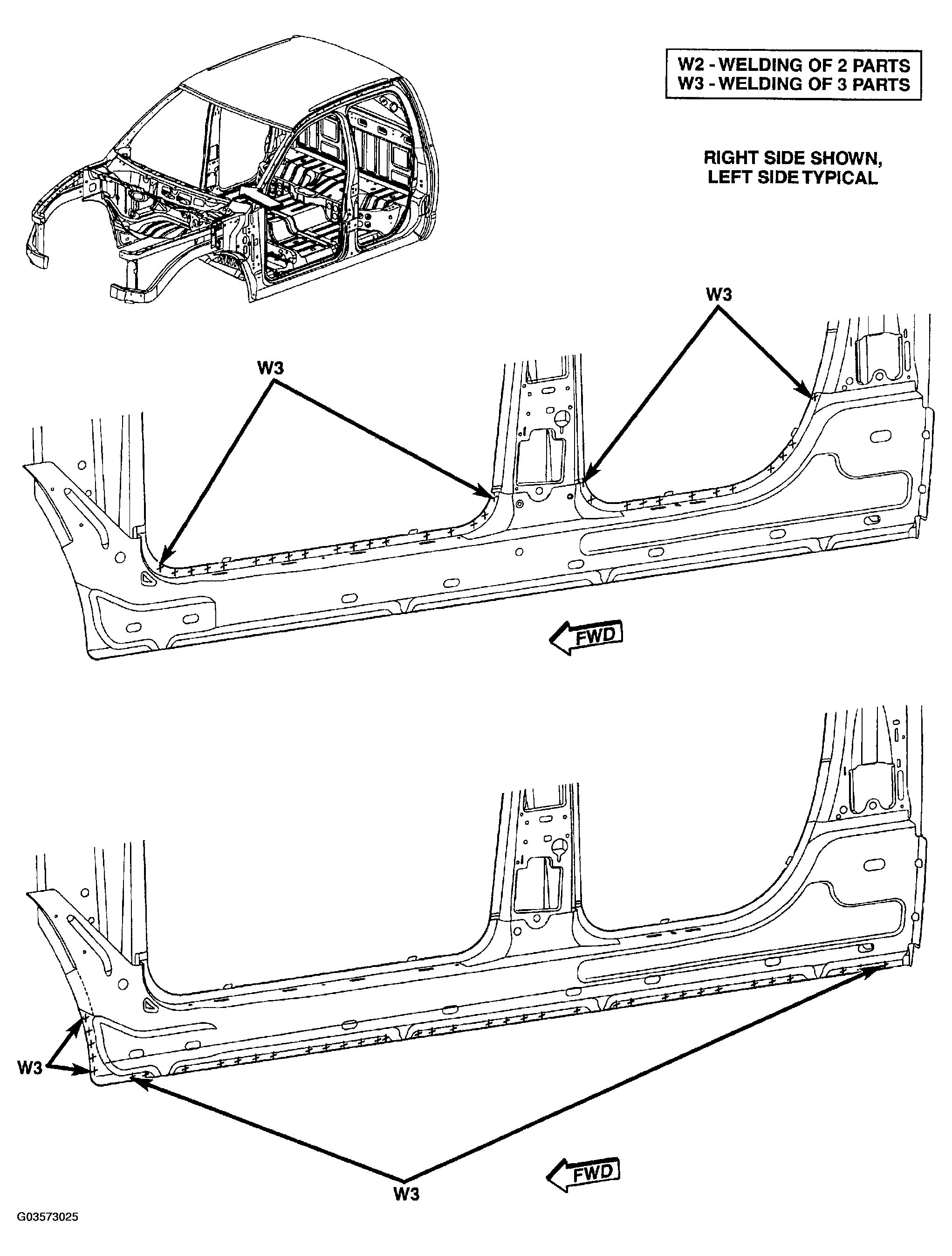

Fig 53: Identifying Weld Locations Of Outer Body Side Aperture- Quad Cab
G03573025Courtesy of DAIMLERCHRYSLER CORP.

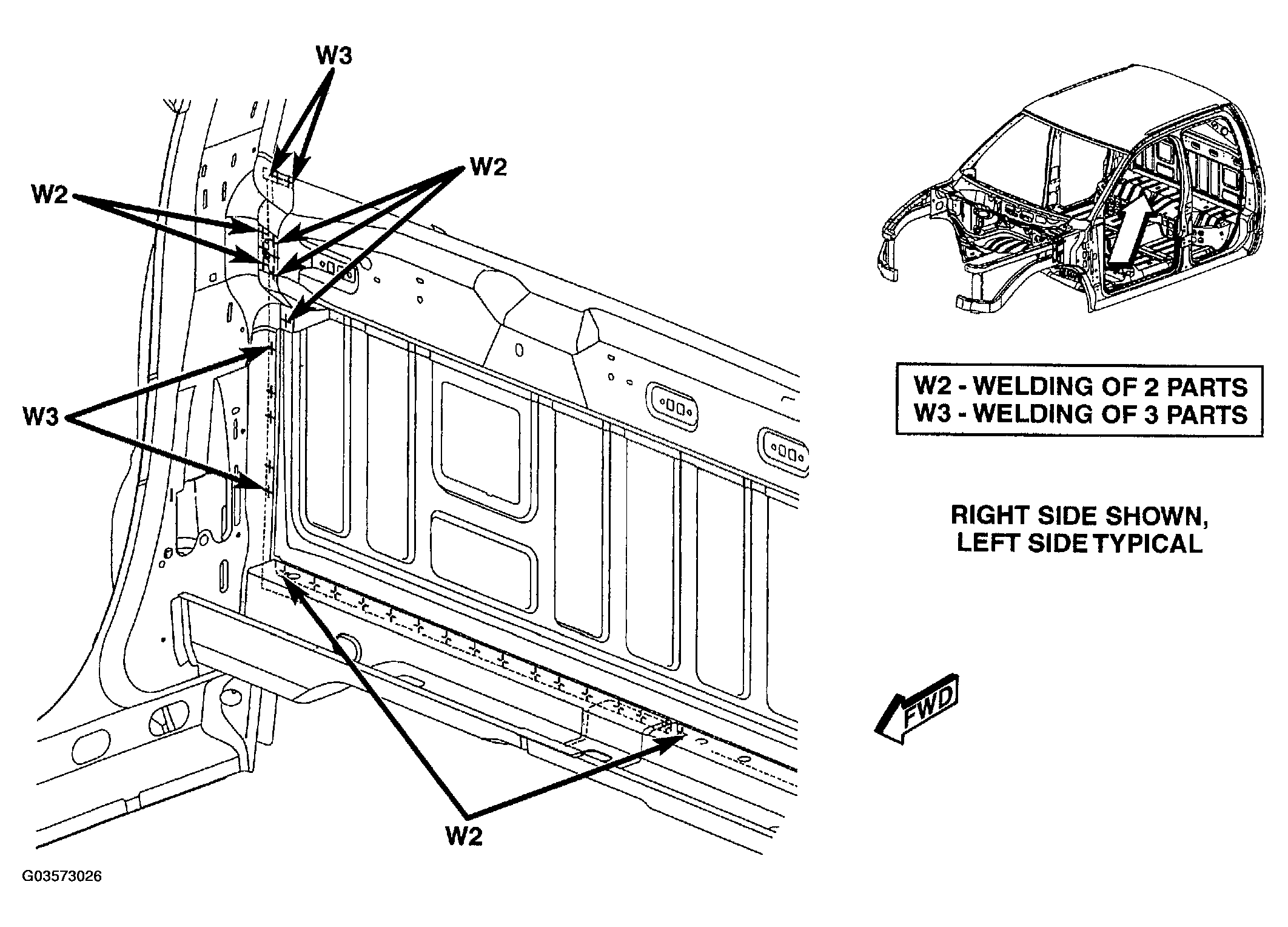

Fig 54: Identifying Weld Locations Of Rear Floor Crossmember - Quad Cab
G03573026Courtesy of DAIMLERCHRYSLER CORP.

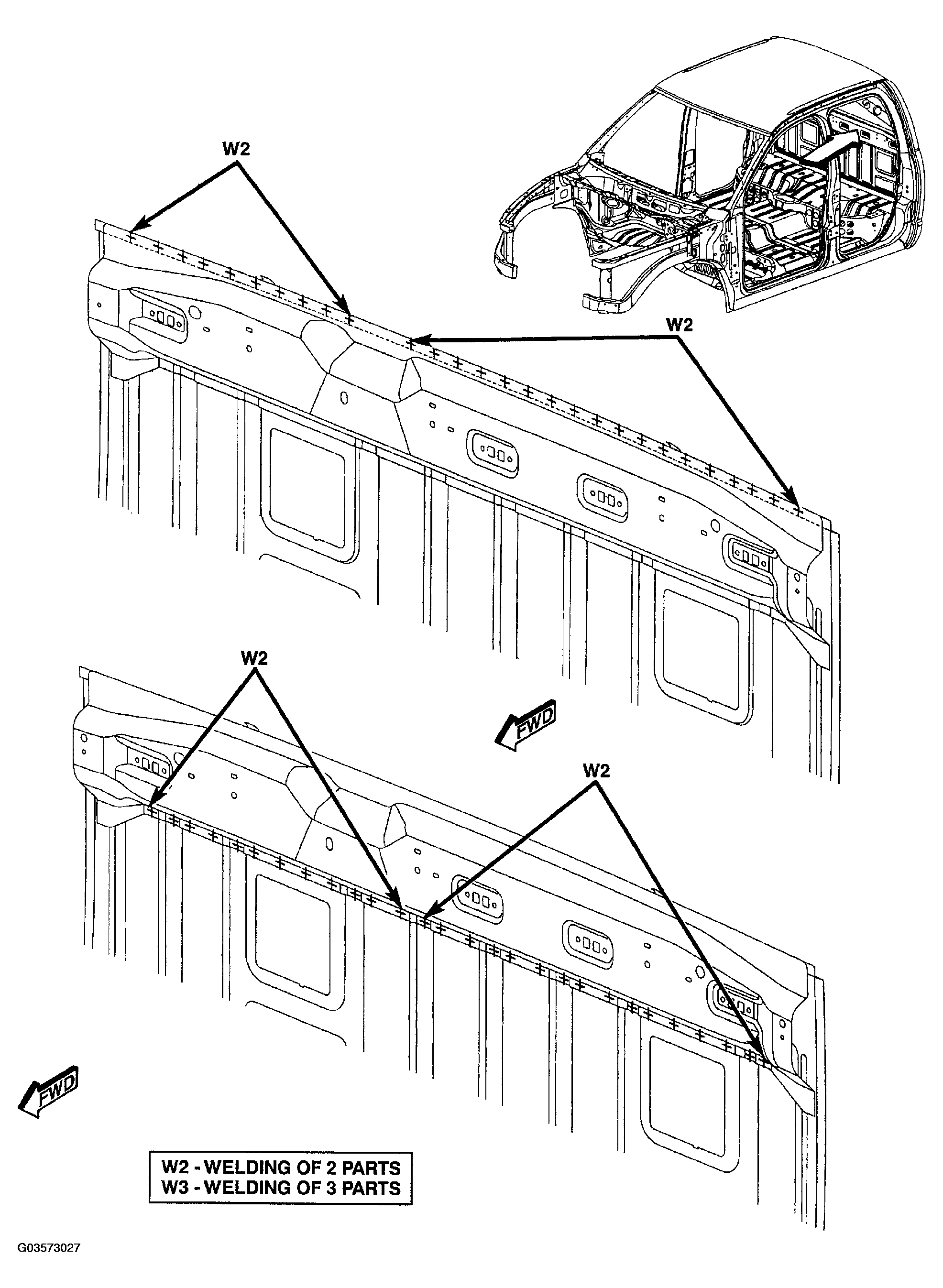

Fig 55: Identifying Weld Locations Of Cab Back Reinforcement- Quad Cab
G03573027Courtesy of DAIMLERCHRYSLER CORP.

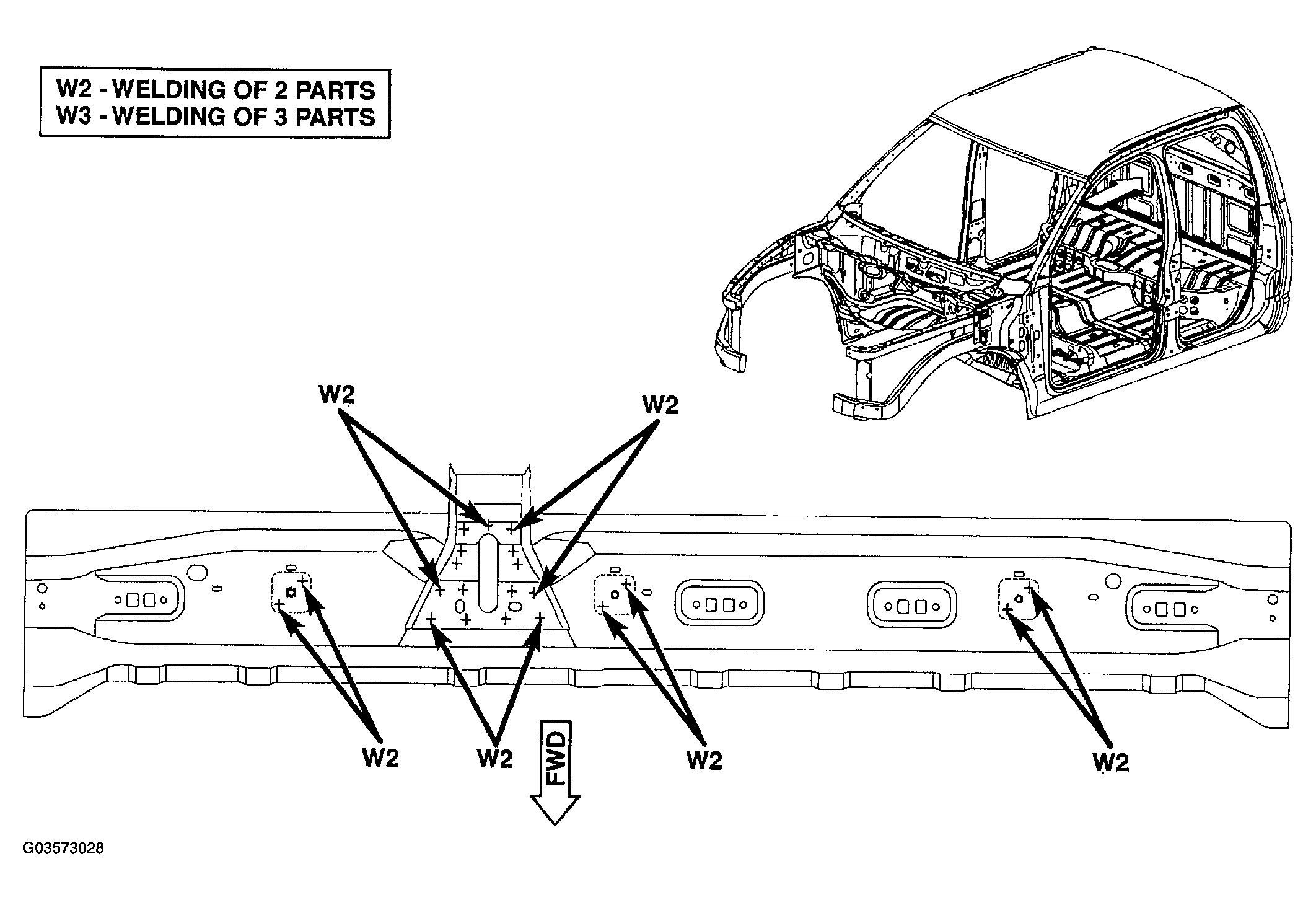

Fig 56: Identifying Weld Locations Of Center Shoulder Belt Reinforcement- Quad Cab
G03573028Courtesy of DAIMLERCHRYSLER CORP.

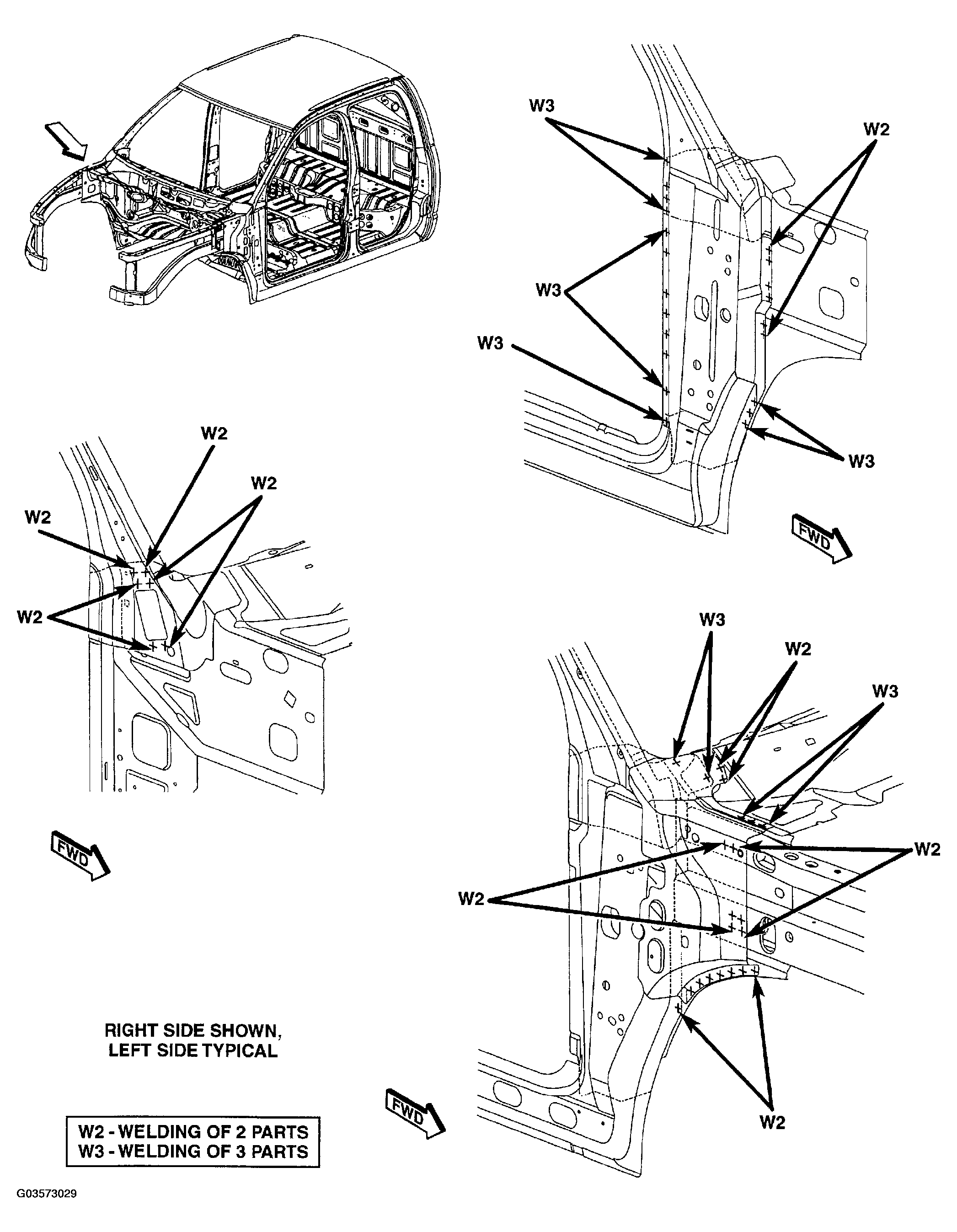

Fig 57: Identifying Weld Locations Of A-Pillar Reinforcement - Quad Cab
G03573029Courtesy of DAIMLERCHRYSLER CORP.

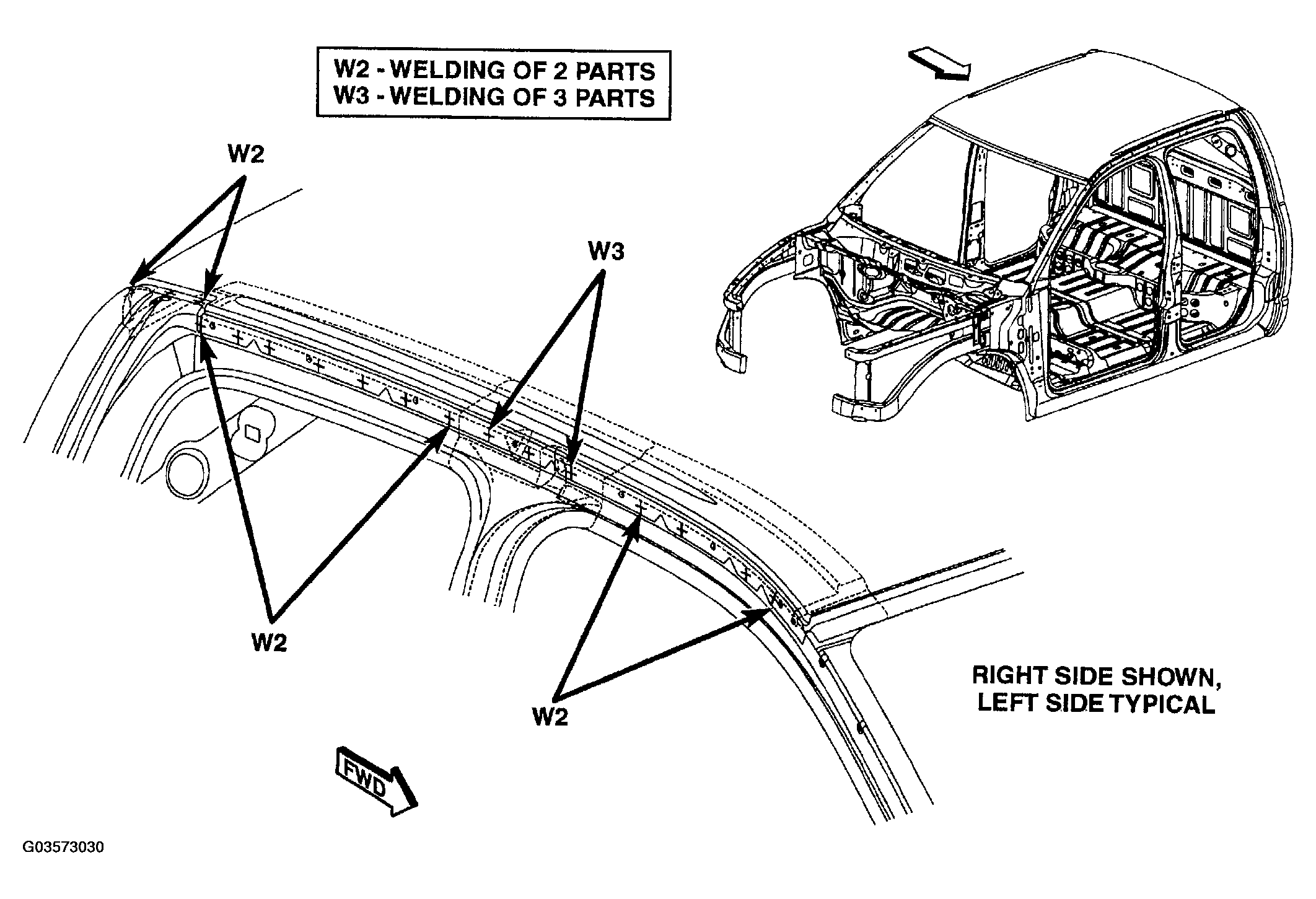

Fig 58: Identifying Weld Locations Of B-Pillar Reinforcement - Quad Cab
G03573030Courtesy of DAIMLERCHRYSLER CORP.

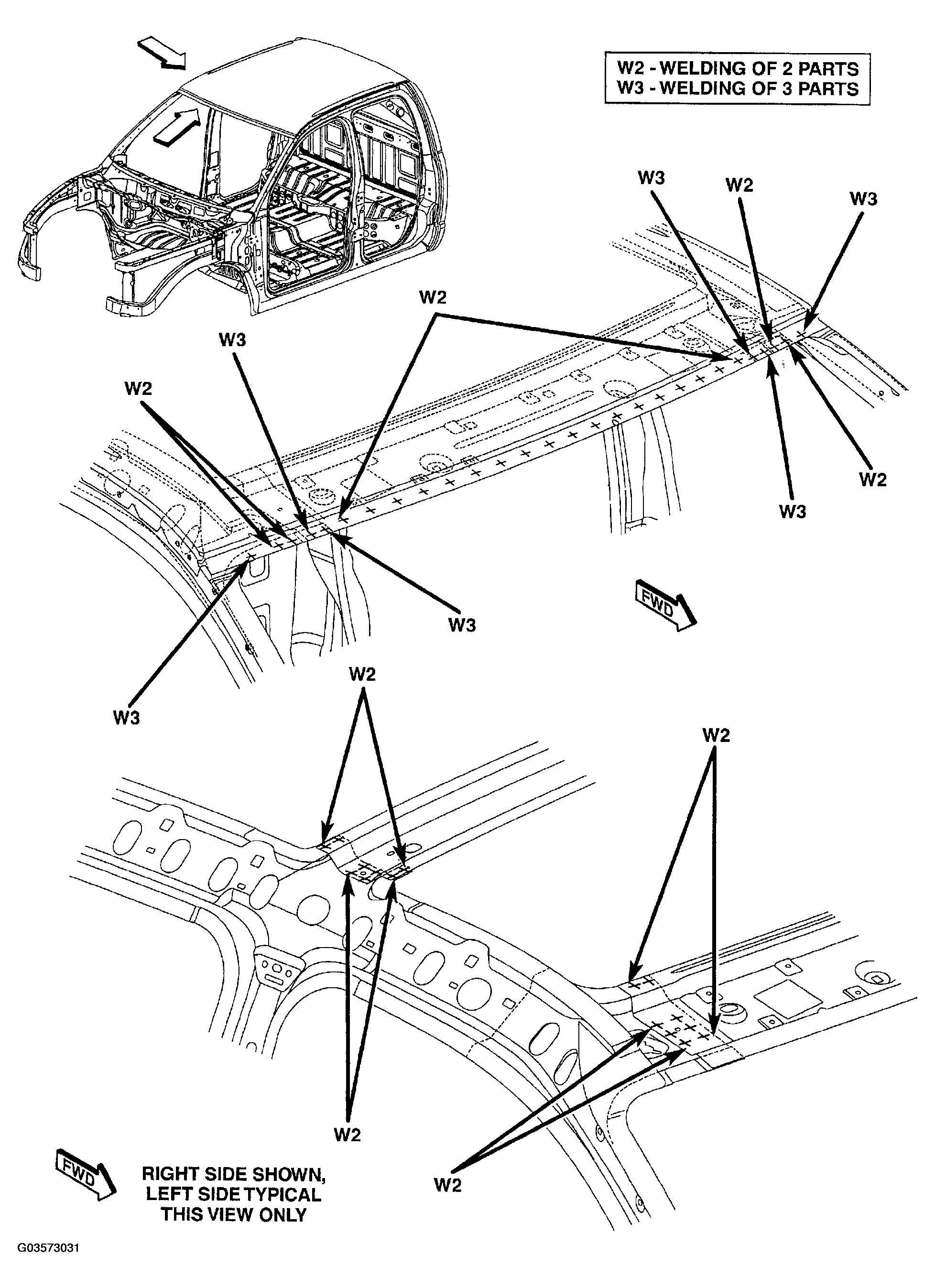

Fig 59: Identifying Weld Locations Of Front Roof Header- Quad Cab
G03573031Courtesy of DAIMLERCHRYSLER CORP.

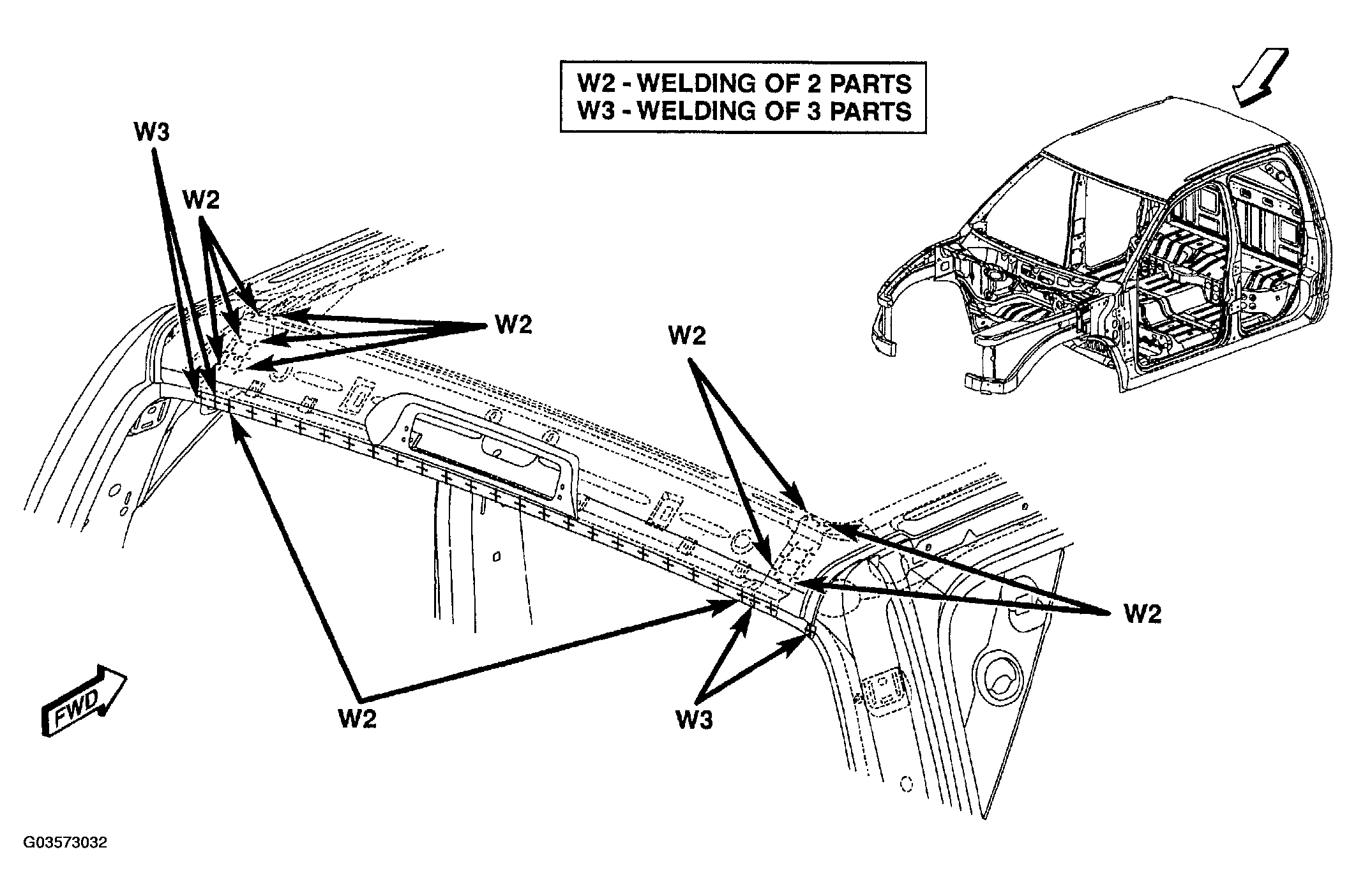

Fig 60: Identifying Weld Locations Of Inner Body Side Aperture- Quad Cab
G03573032Courtesy of DAIMLERCHRYSLER CORP.

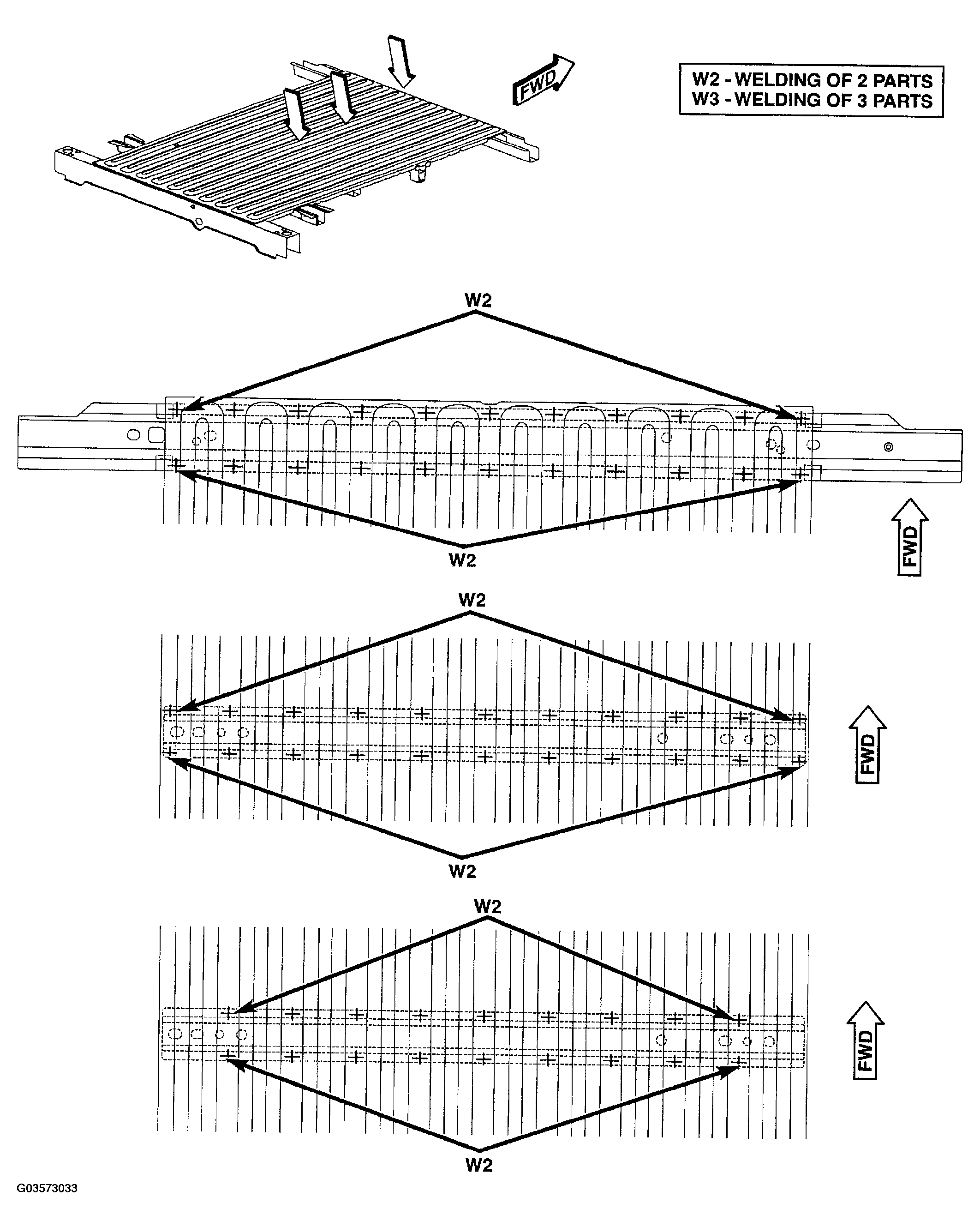

Fig 61: Identifying Weld Locations Of Front Crossmember - Short Cargo Box Only
G03573033Courtesy of DAIMLERCHRYSLER CORP.

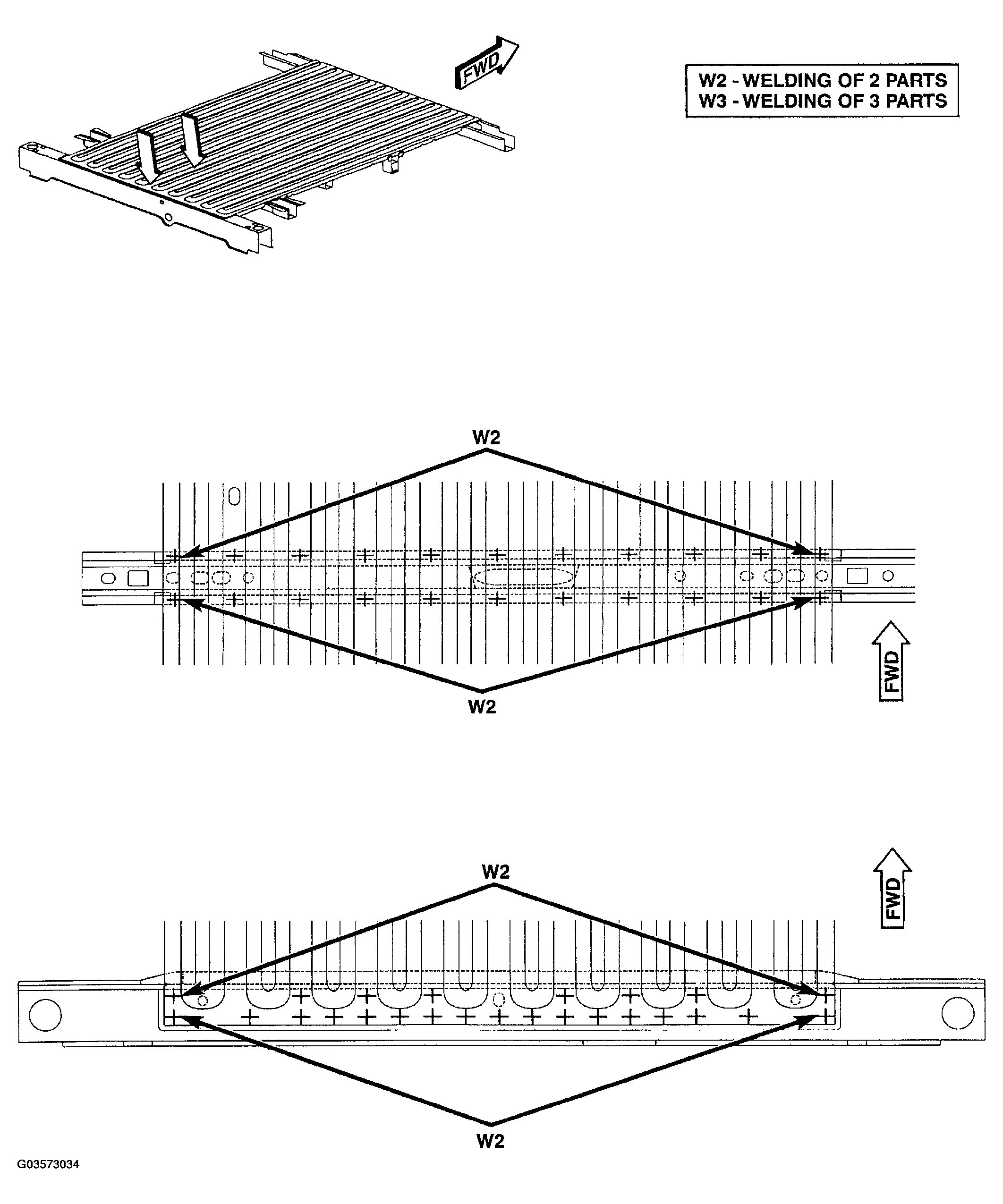

Fig 62: Identifying Weld Locations Of Long Crossmember - Short Cargo Box Only
G03573034Courtesy of DAIMLERCHRYSLER CORP.

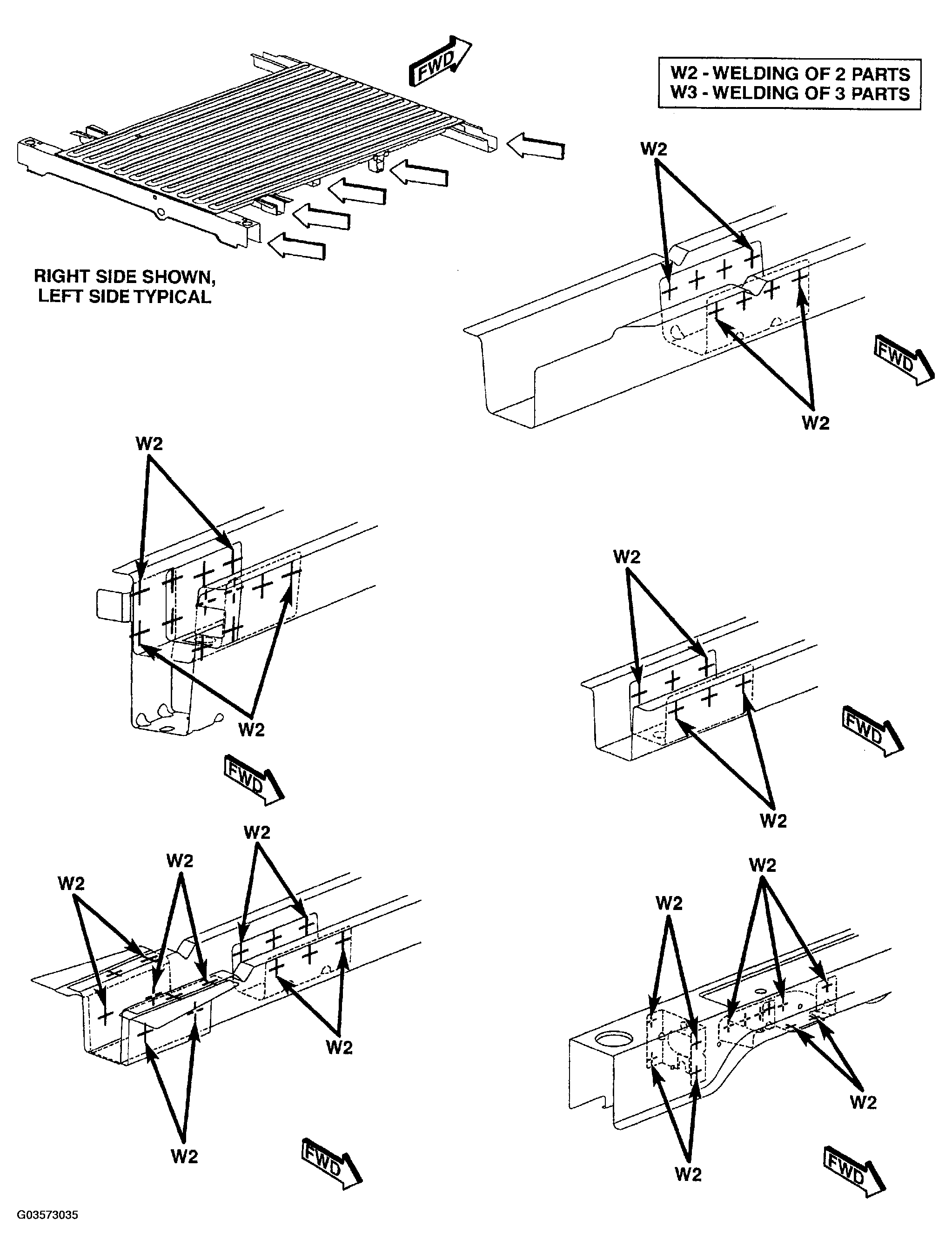

Fig 63: Identifying Weld Locations Of Tapping Plates - Short Cargo Box Only
G03573035Courtesy of DAIMLERCHRYSLER CORP.

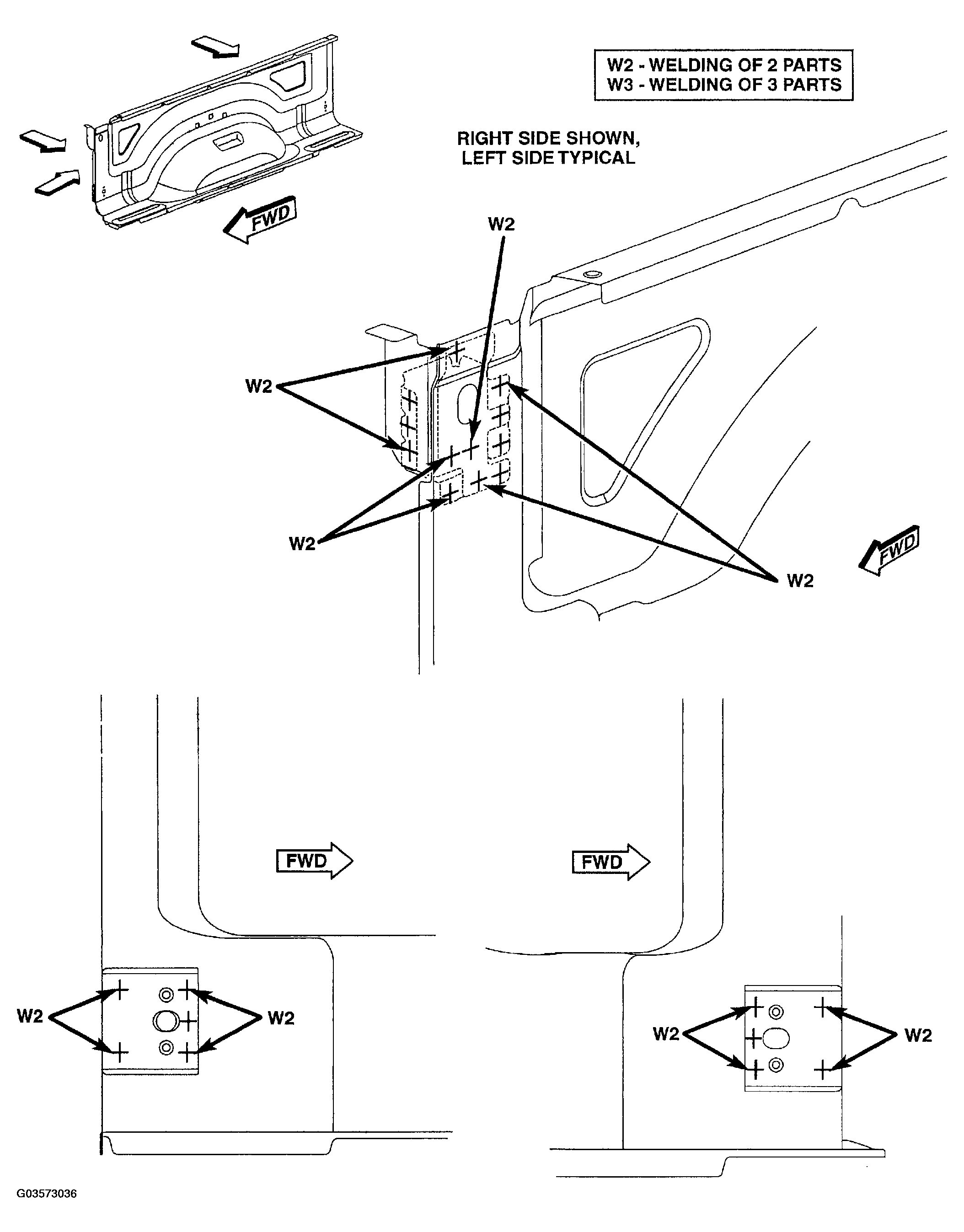

Fig 64: Identifying Weld Locations Of Stake Pocket Reinforcements - Short Cargo Box Only
G03573036Courtesy of DAIMLERCHRYSLER CORP.

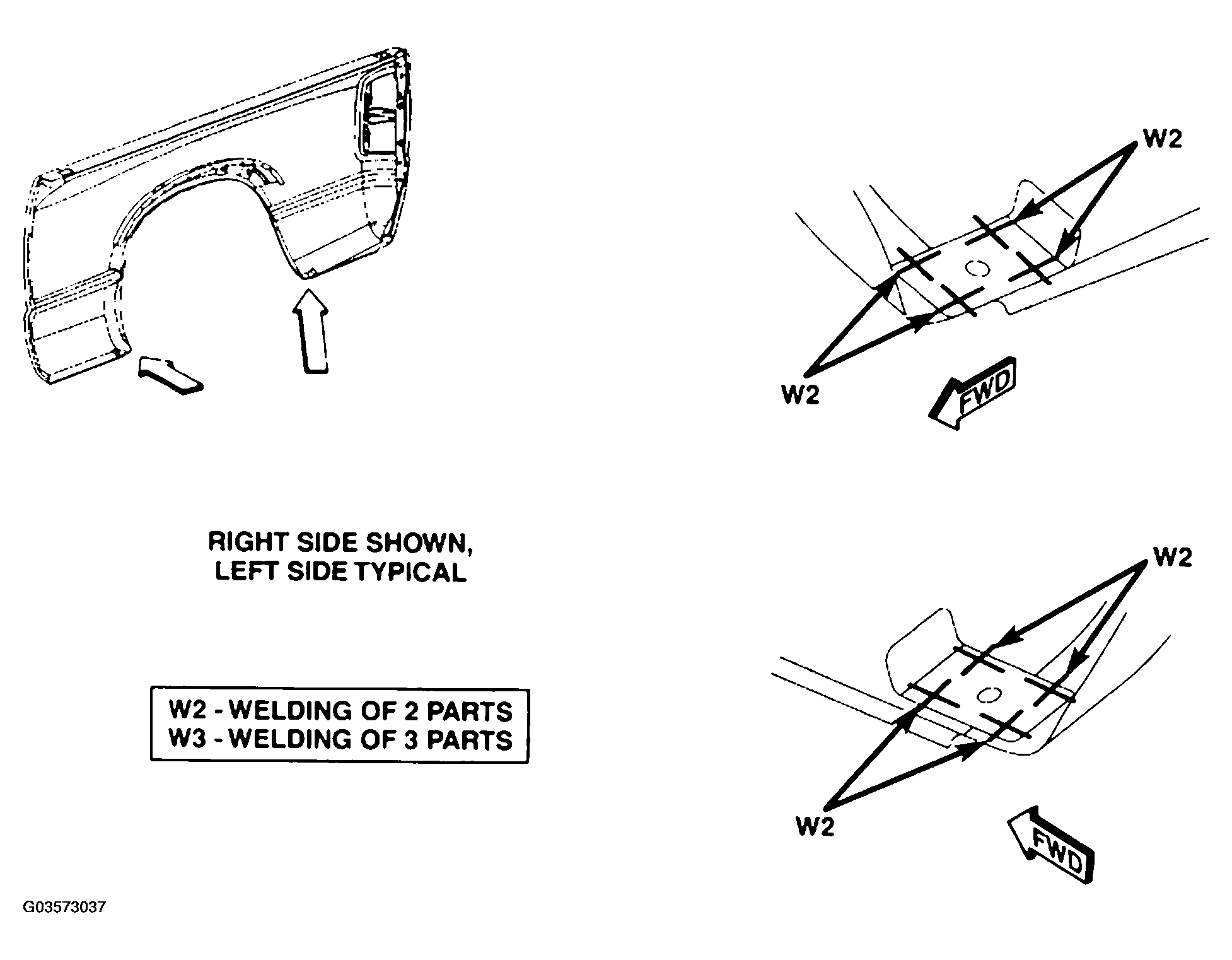

Fig 65: Identifying Weld Locations Of Outer Box Side Reinforcement Braces - Short Cargo Box Only
G03573037Courtesy of DAIMLERCHRYSLER CORP.

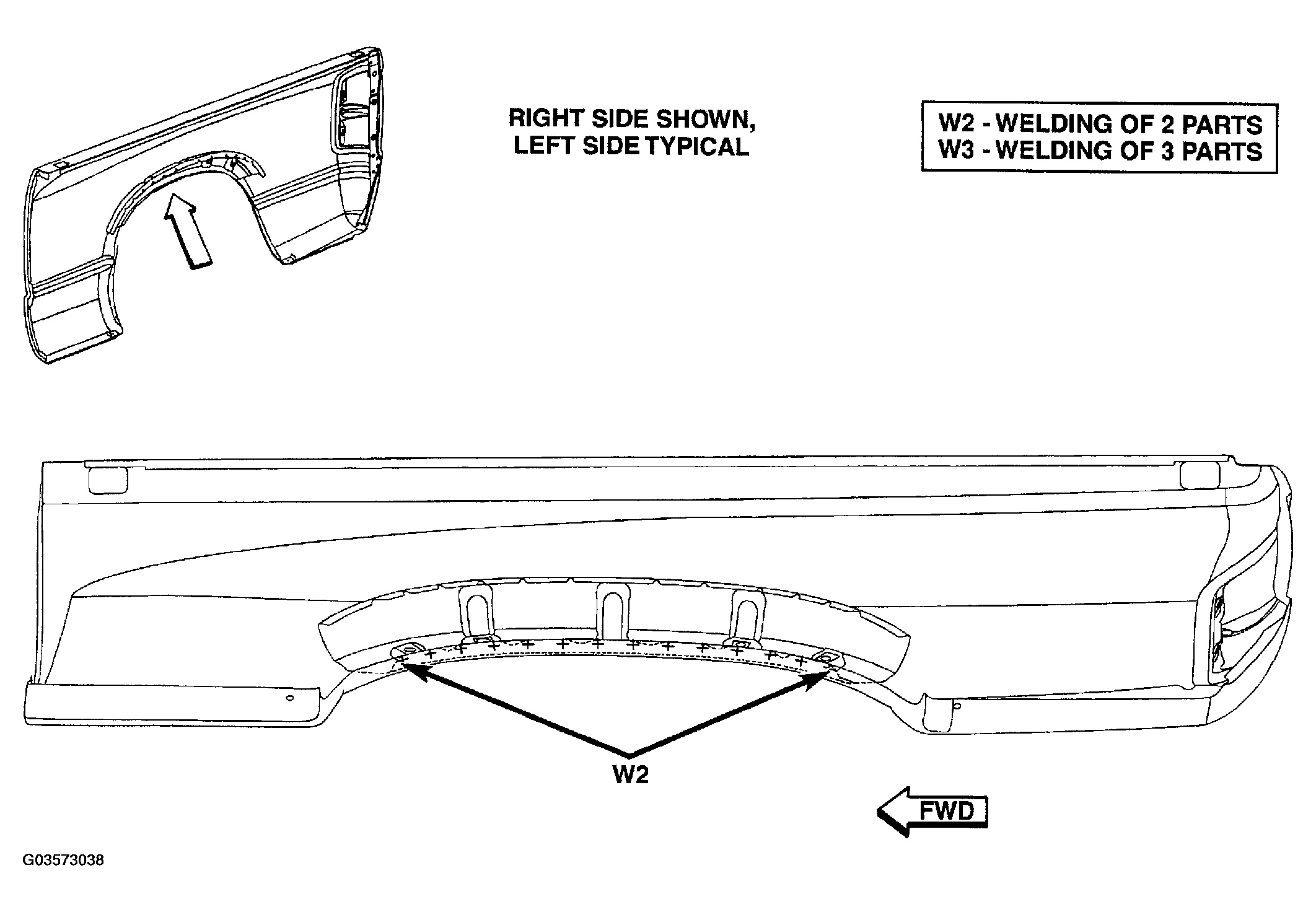

Fig 66: Identifying Weld Locations Of Outer Wheelhouse - Short Cargo Box Only
G03573038Courtesy of DAIMLERCHRYSLER CORP.

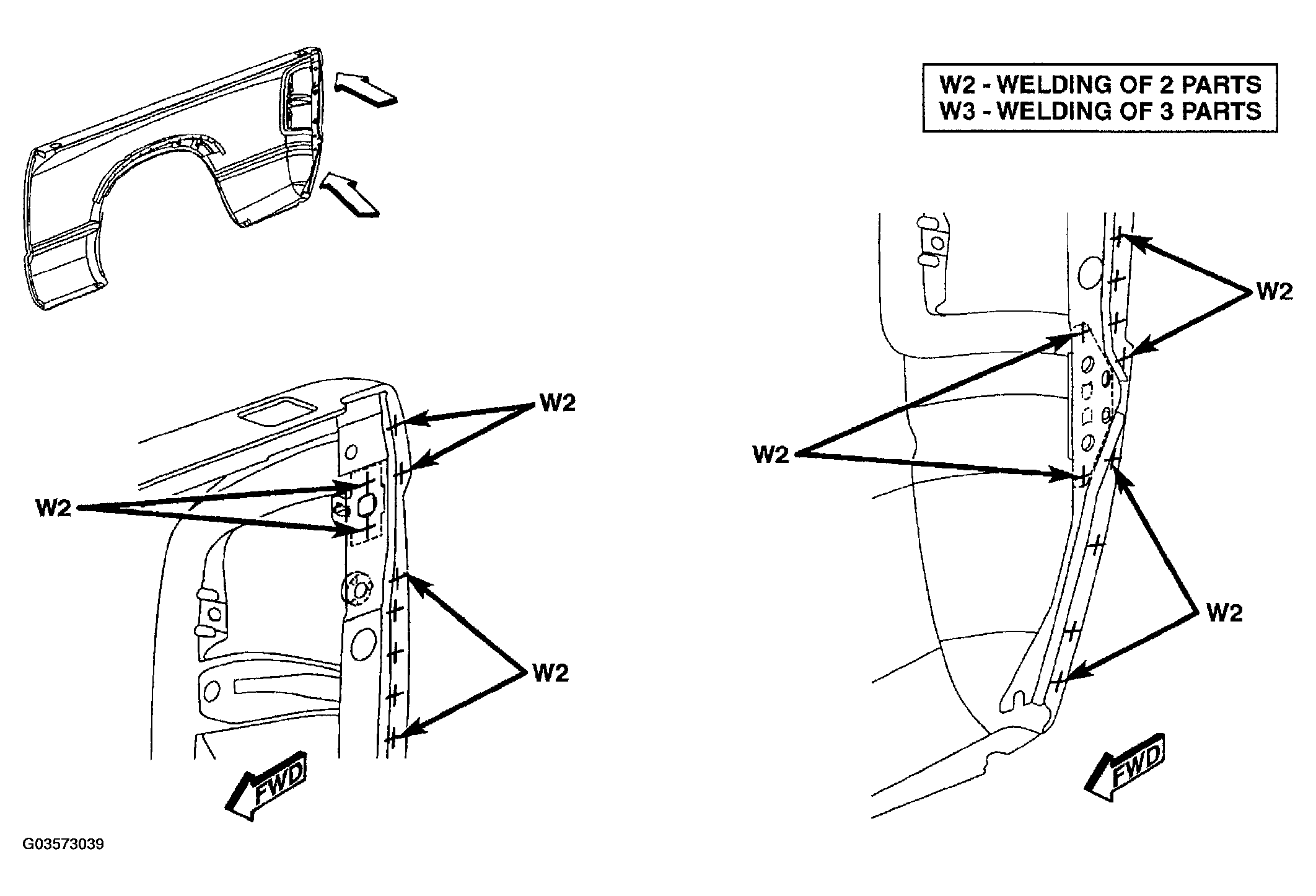

Fig 67: Identifying Weld Locations Of Weld Nut - Short Cargo Box Only - Short Cargo Box Only
G03573039Courtesy of DAIMLERCHRYSLER CORP.

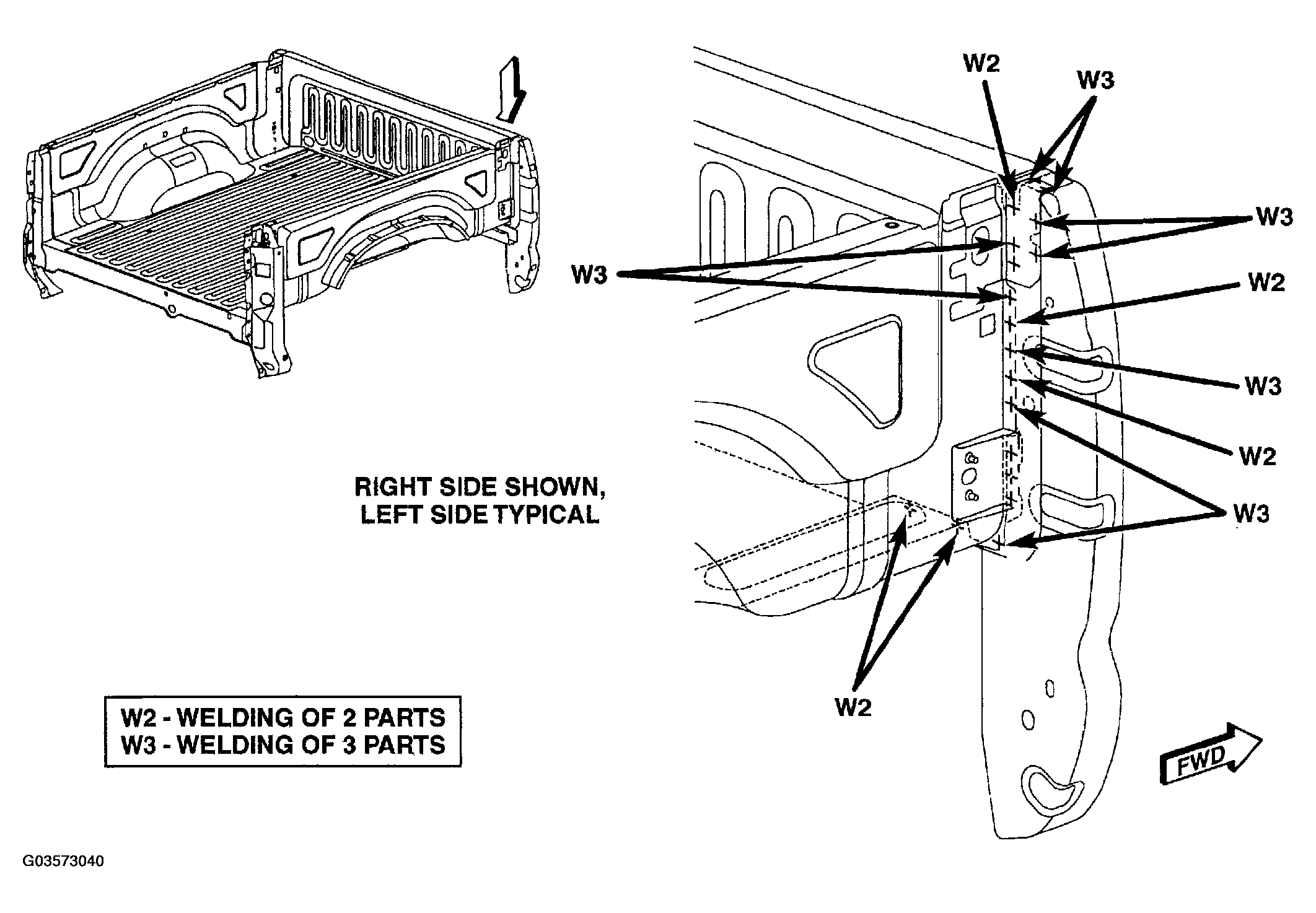

Fig 68: Identifying Weld Locations Of Front Box Panel - Short Cargo Box Only
G03573040Courtesy of DAIMLERCHRYSLER CORP.

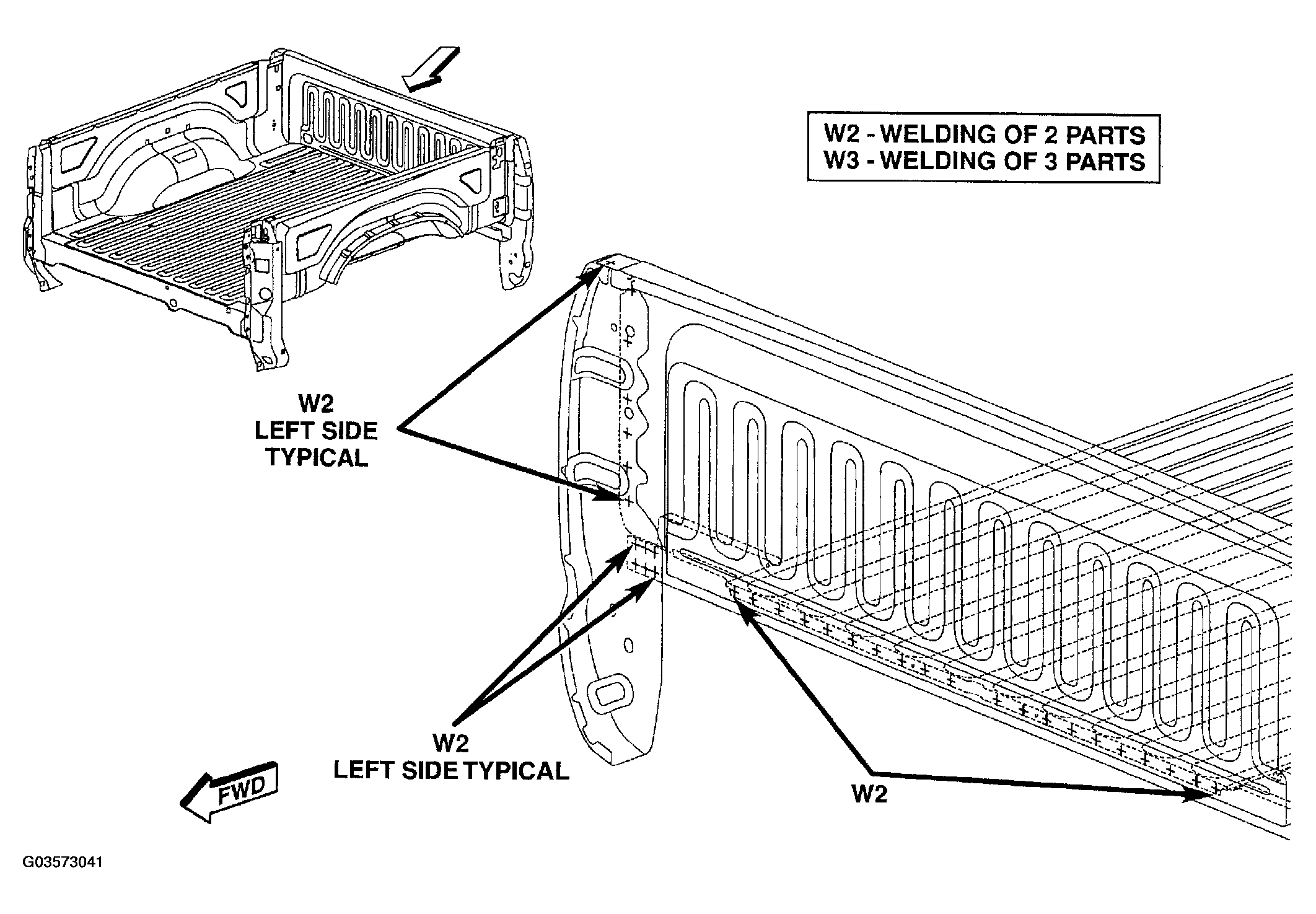

Fig 69: Identifying Weld Locations Of Front Crossmember - Short Cargo Box Only
G03573041Courtesy of DAIMLERCHRYSLER CORP.

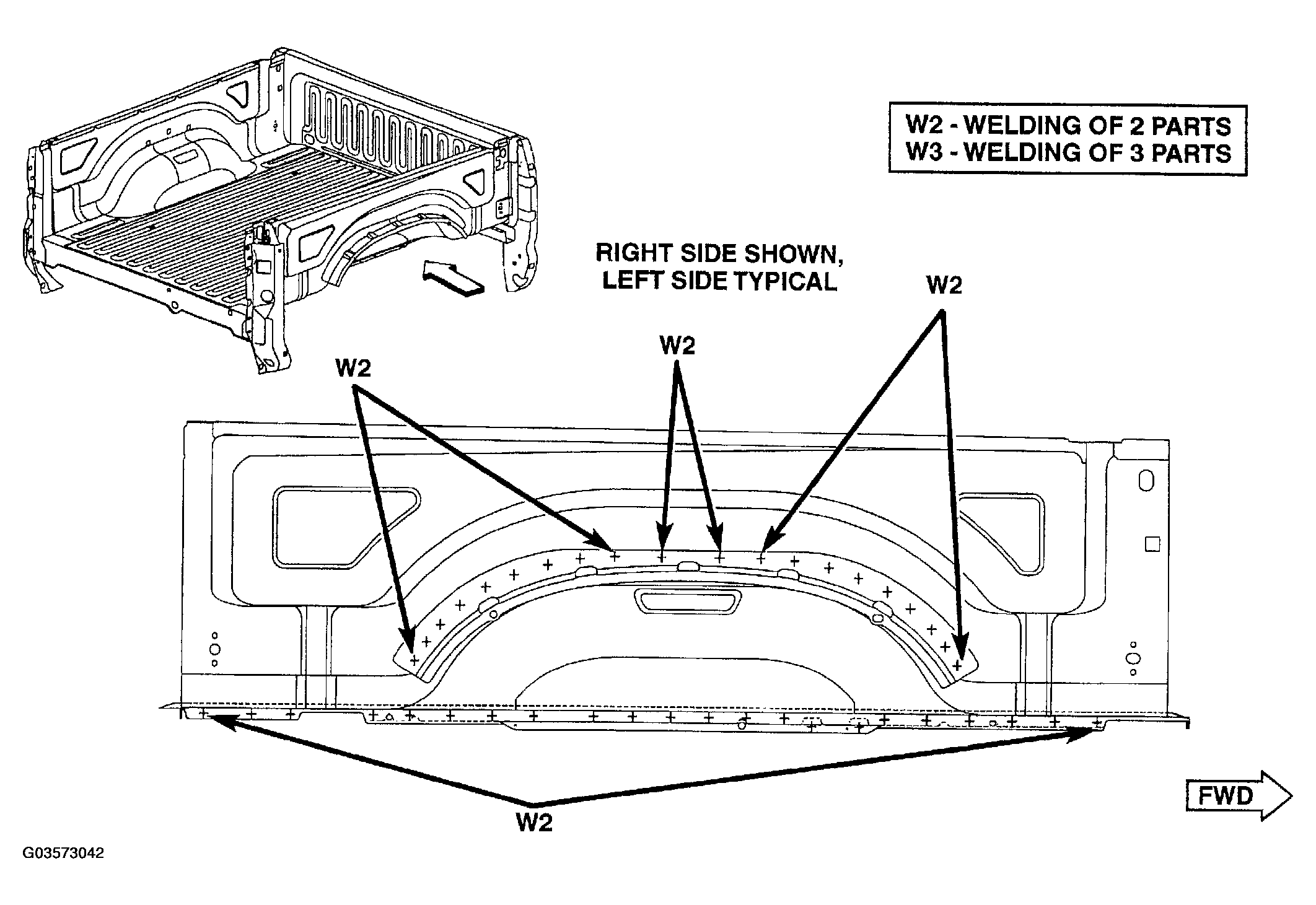

Fig 70: Identifying Weld Locations Of Box Floor Panel - Short Cargo Box Only
G03573042Courtesy of DAIMLERCHRYSLER CORP.

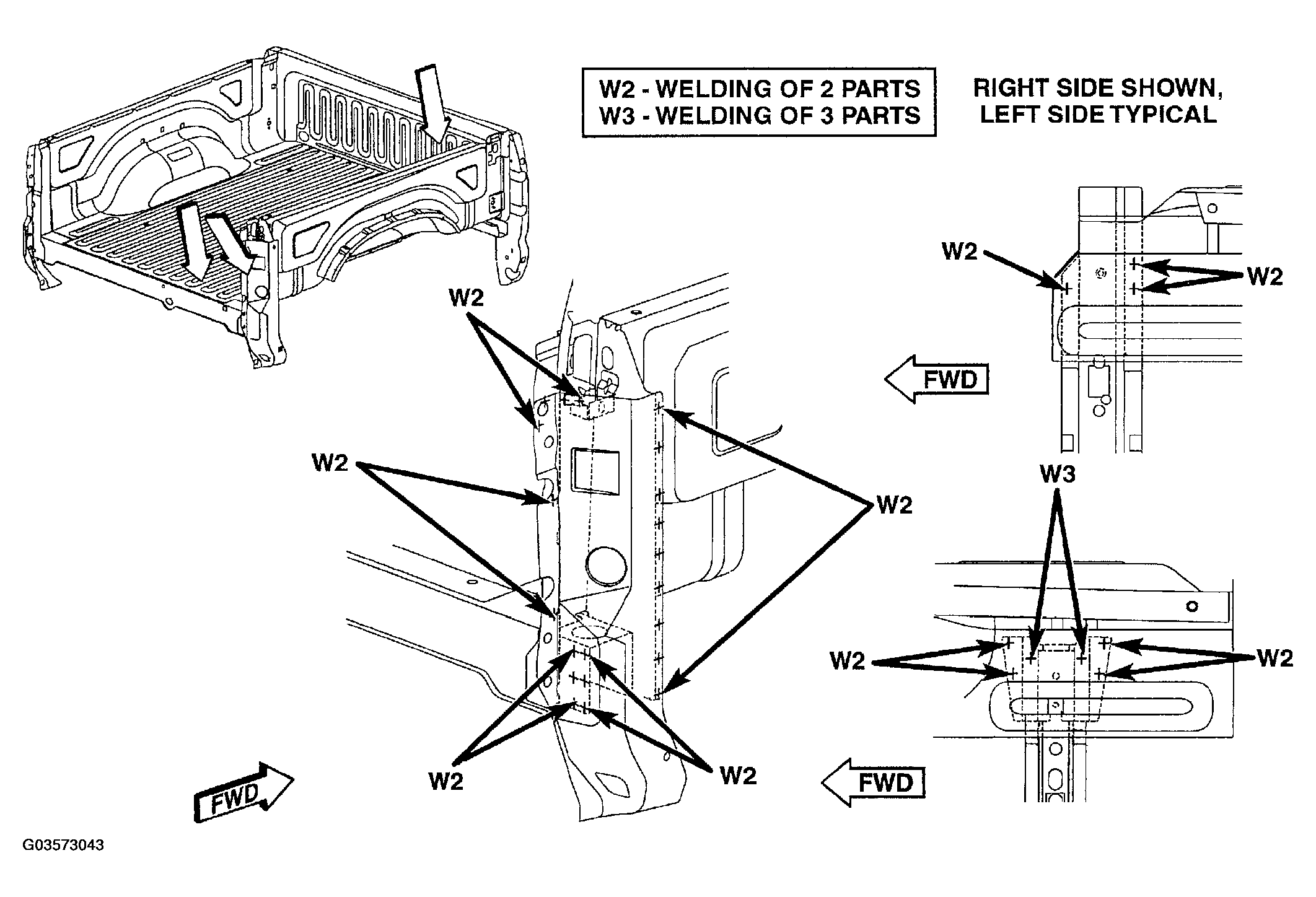

Fig 71: Identifying Weld Locations Of Front Crossmember - Short Cargo Box Only
G03573043Courtesy of DAIMLERCHRYSLER CORP.

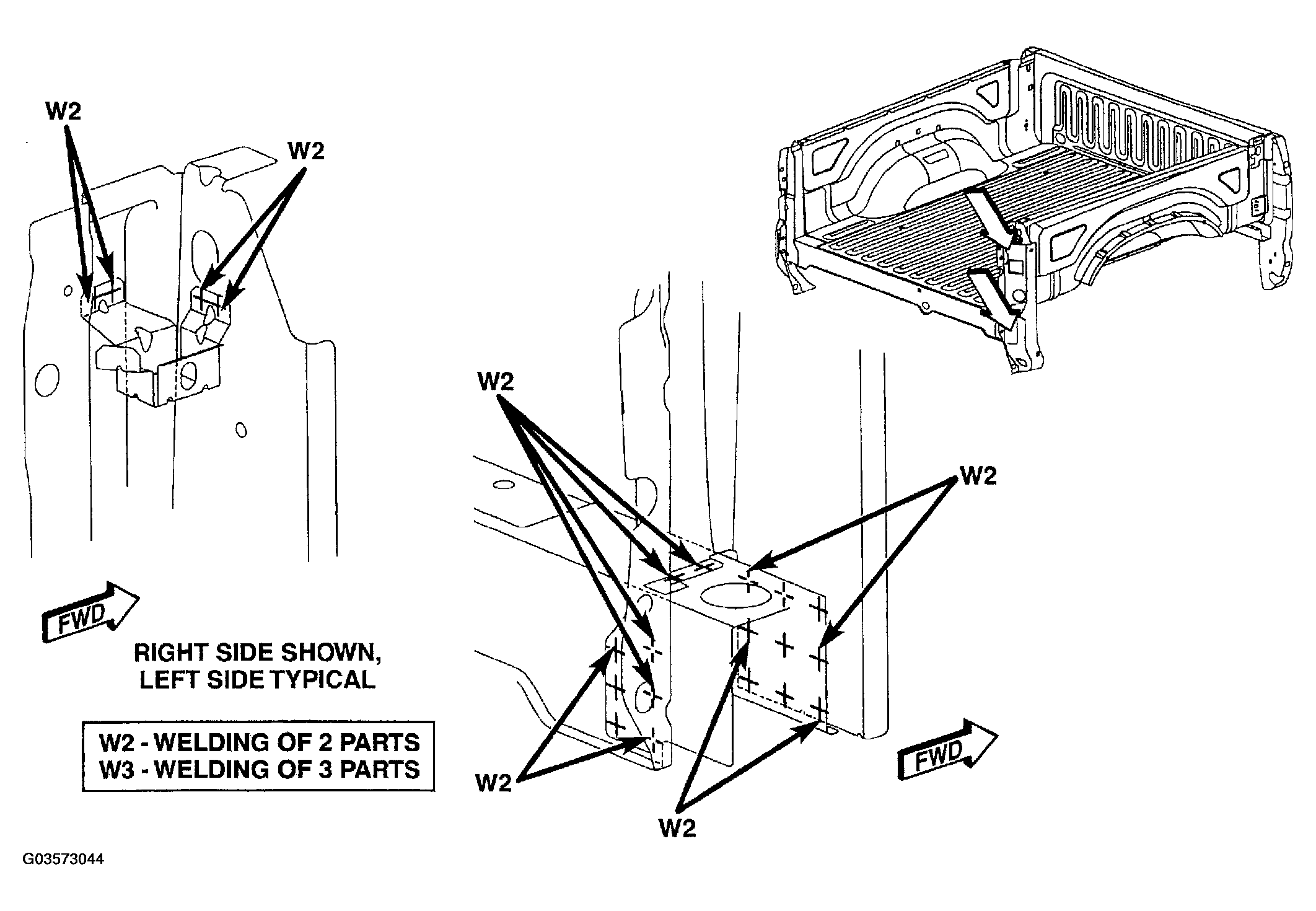

Fig 72: Identifying Weld Locations Of Stake Pocket Reinforcement - Short Cargo Box Only
G03573044Courtesy of DAIMLERCHRYSLER CORP.

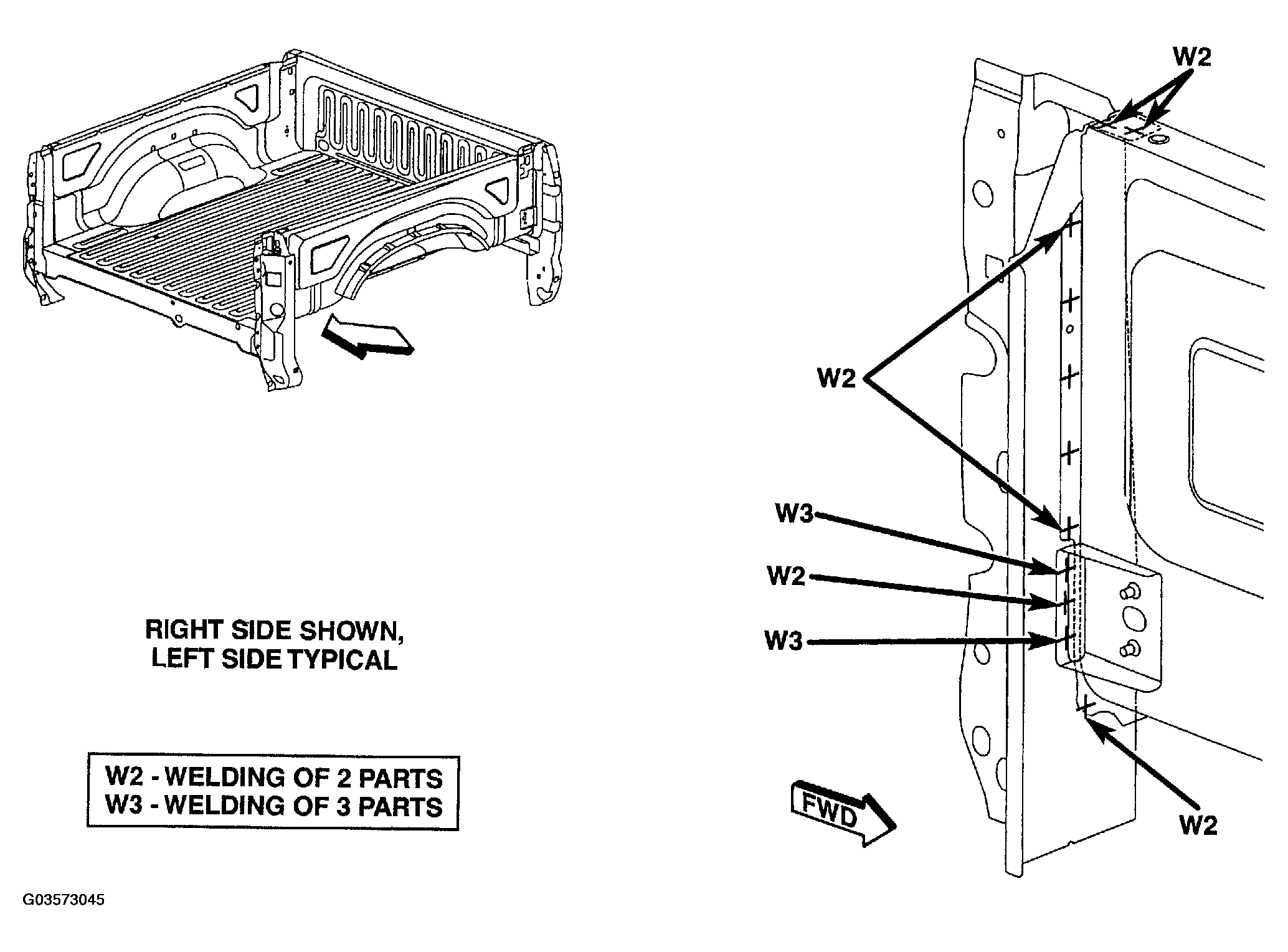

Fig 73: Identifying Weld Locations Of Inner Tailgate Pillar Panel - Short Cargo Box Only
G03573045Courtesy of DAIMLERCHRYSLER CORP.

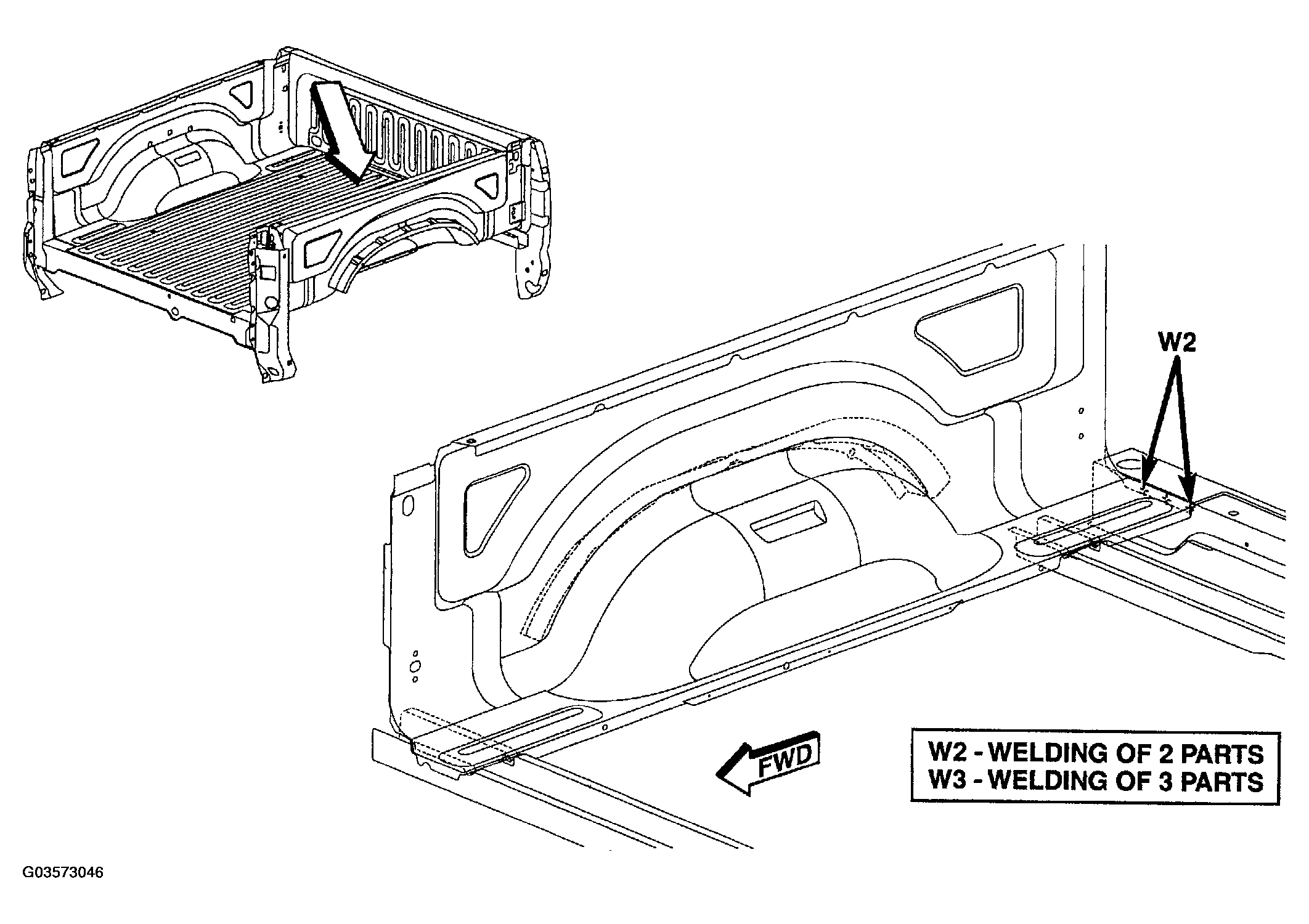

Fig 74: Identifying Weld Locations Of Box Floor Sill Crossmember - Short Cargo Box Only
G03573046Courtesy of DAIMLERCHRYSLER CORP.

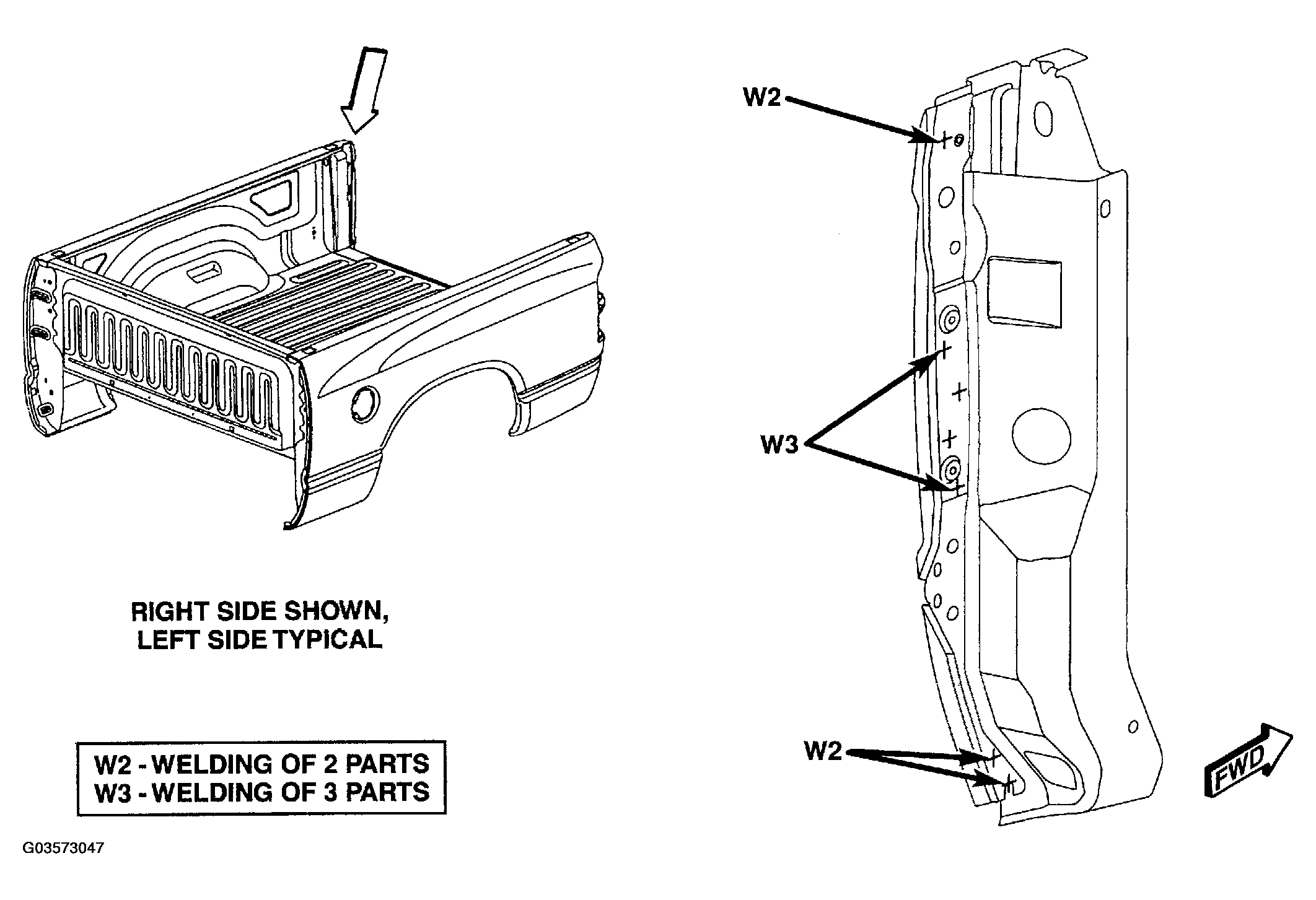

Fig 75: Identifying Weld Locations Of Inner Tailgate Pillar - Short Cargo Box Only
G03573047Courtesy of DAIMLERCHRYSLER CORP.

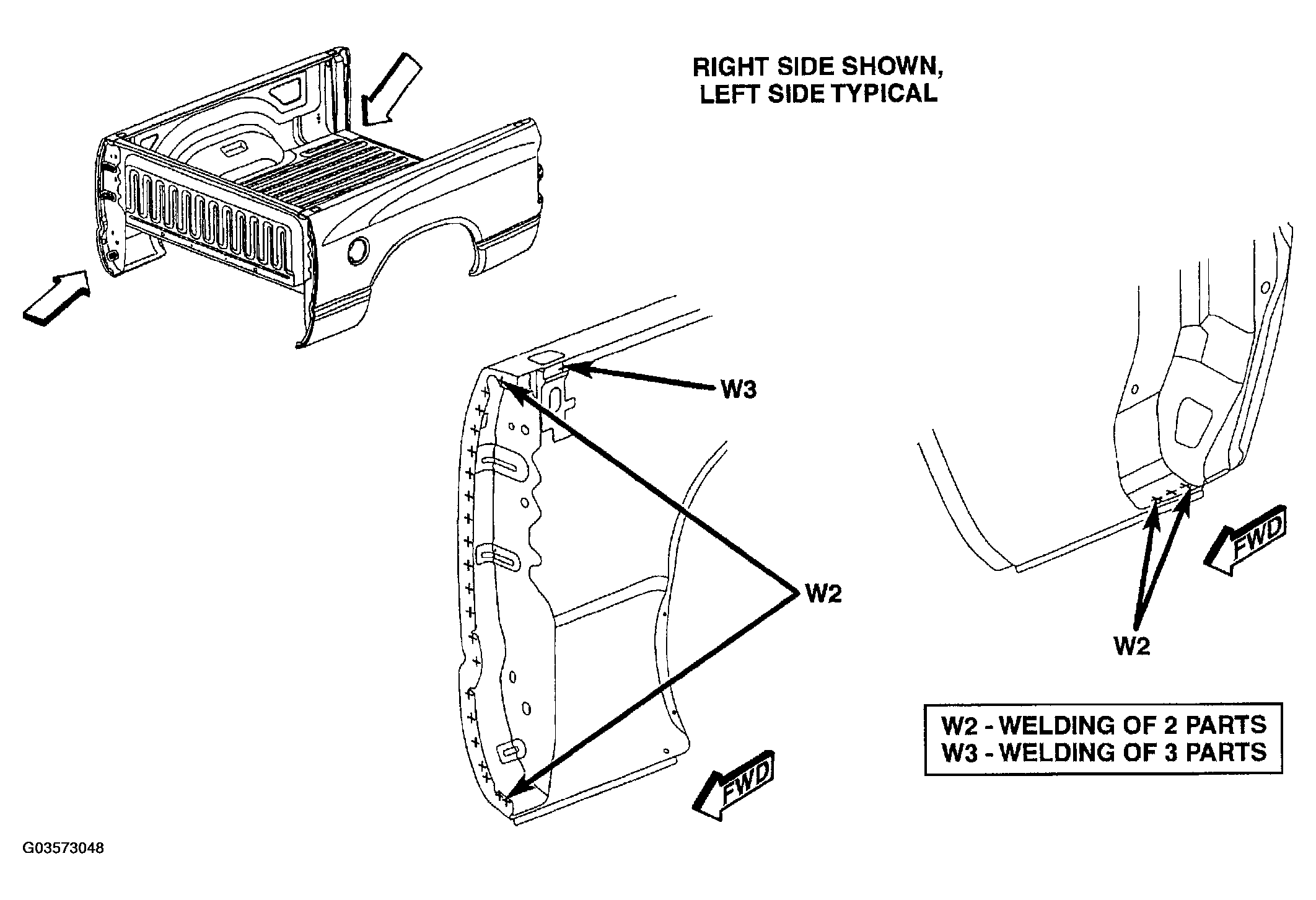

Fig 76: Identifying Weld Locations Of Box Side Panel - Short Cargo Box Only
G03573048Courtesy of DAIMLERCHRYSLER CORP.

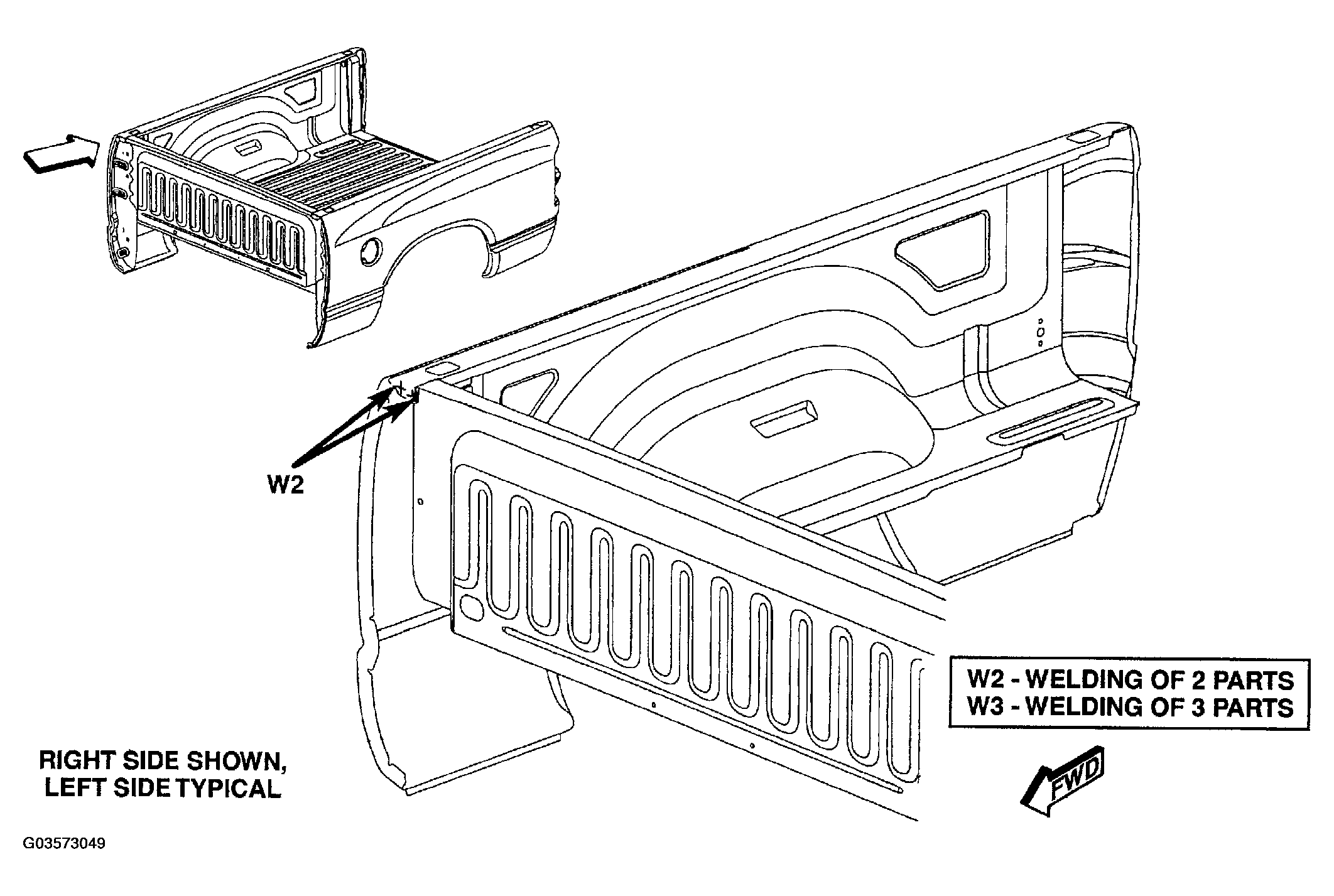

Fig 77: Identifying Weld Locations Of Front Box Panel - Short Cargo Box Only
G03573049Courtesy of DAIMLERCHRYSLER CORP.

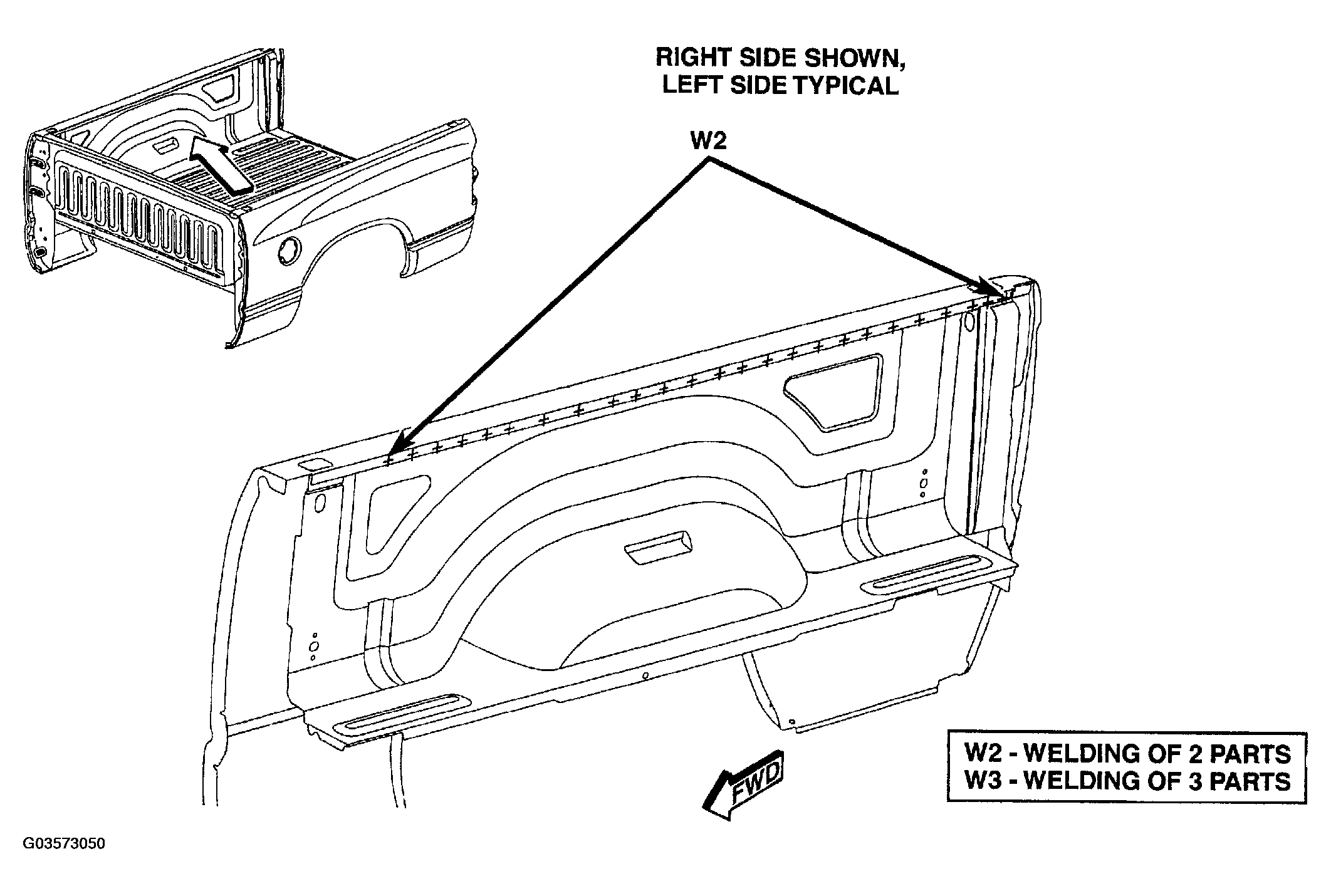

Fig 78: Identifying Weld Locations Of Inner Box Side Panel - Short Cargo Box Only
G03573050Courtesy of DAIMLERCHRYSLER CORP.

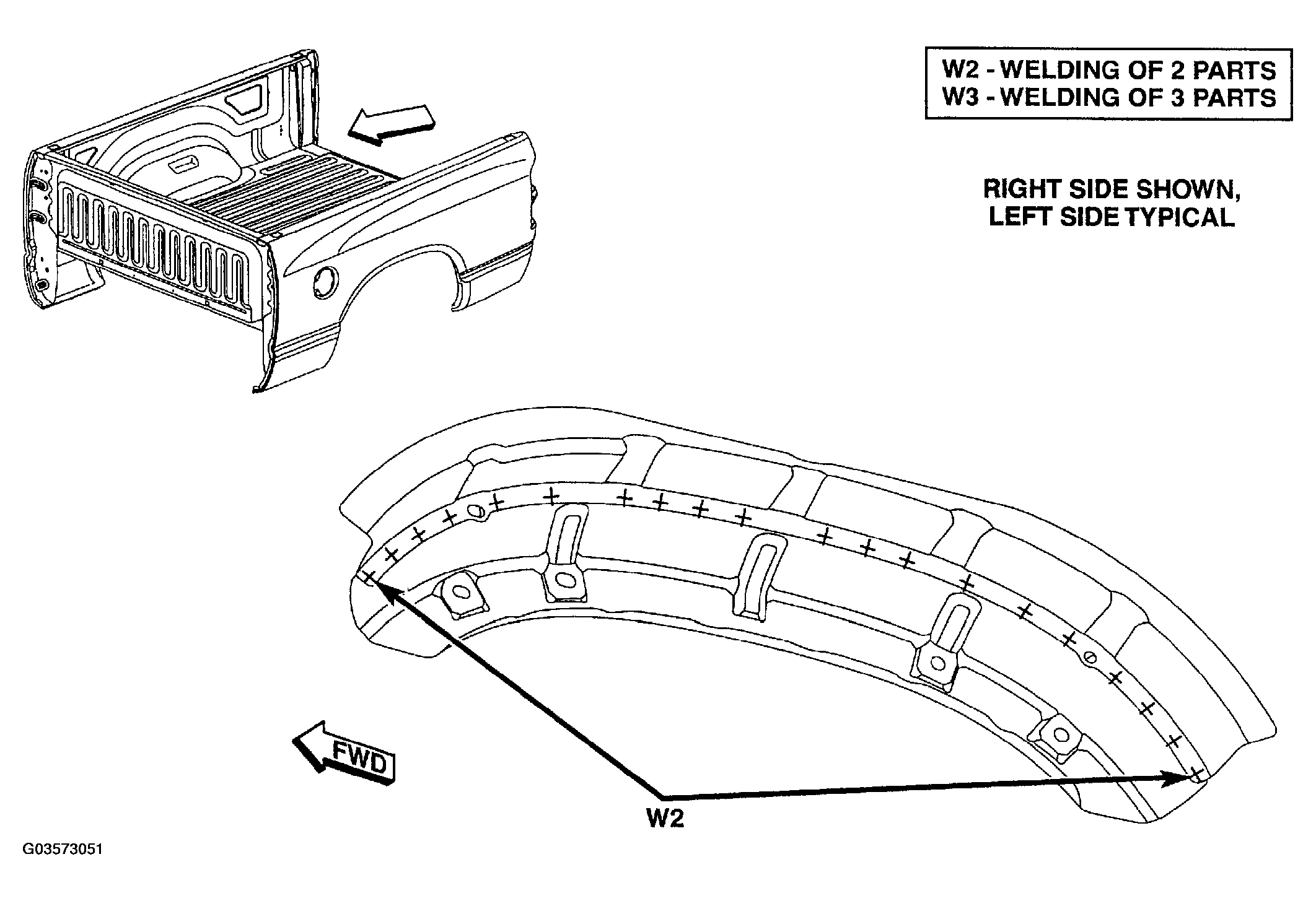

Fig 79: Identifying Weld Locations Of Outer Wheelhouse Panel - Short Cargo Box Only
G03573051Courtesy of DAIMLERCHRYSLER CORP.

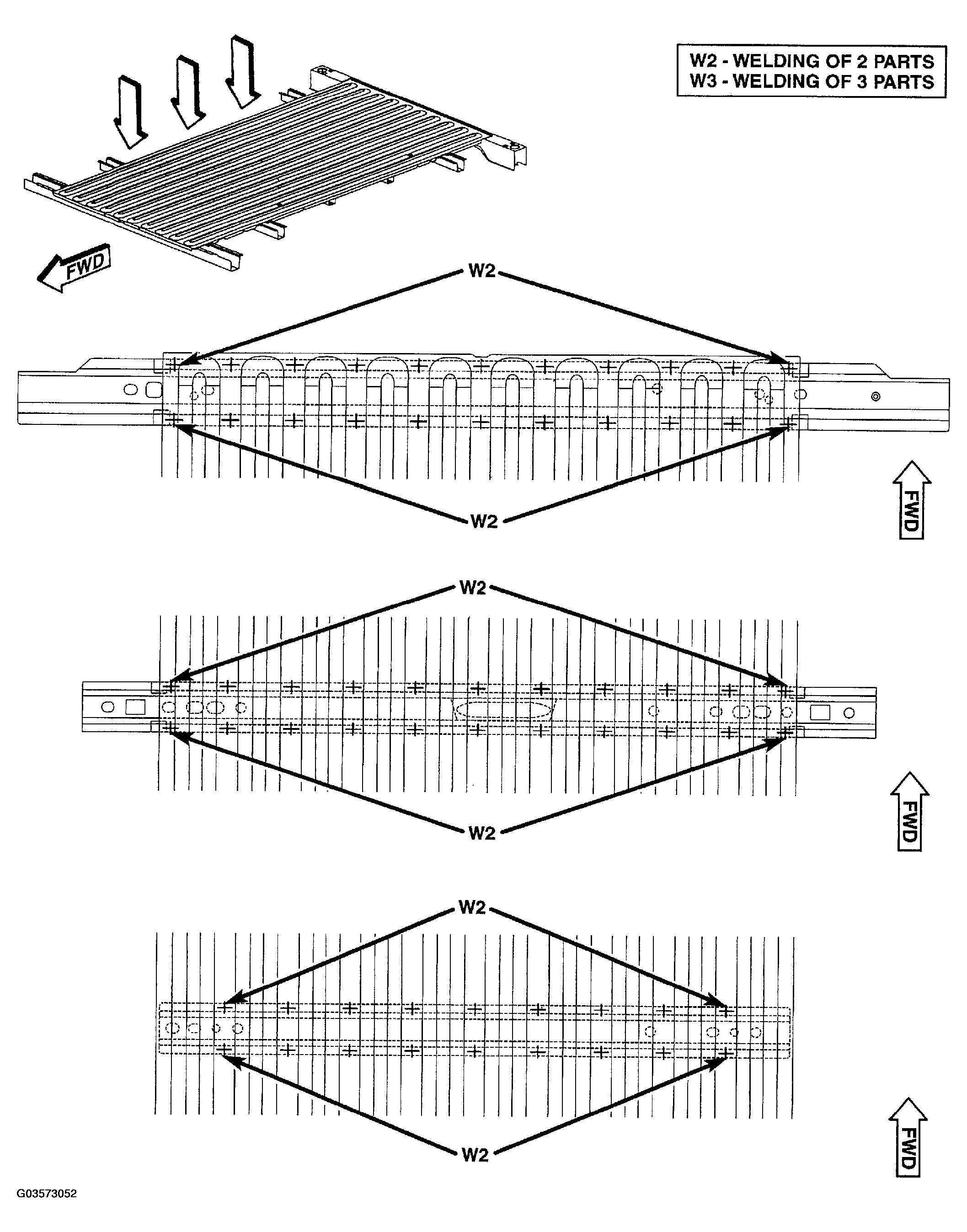

Fig 80: Identifying Weld Locations Of Front Crossmember - Long Cargo Box Only
G03573052Courtesy of DAIMLERCHRYSLER CORP.

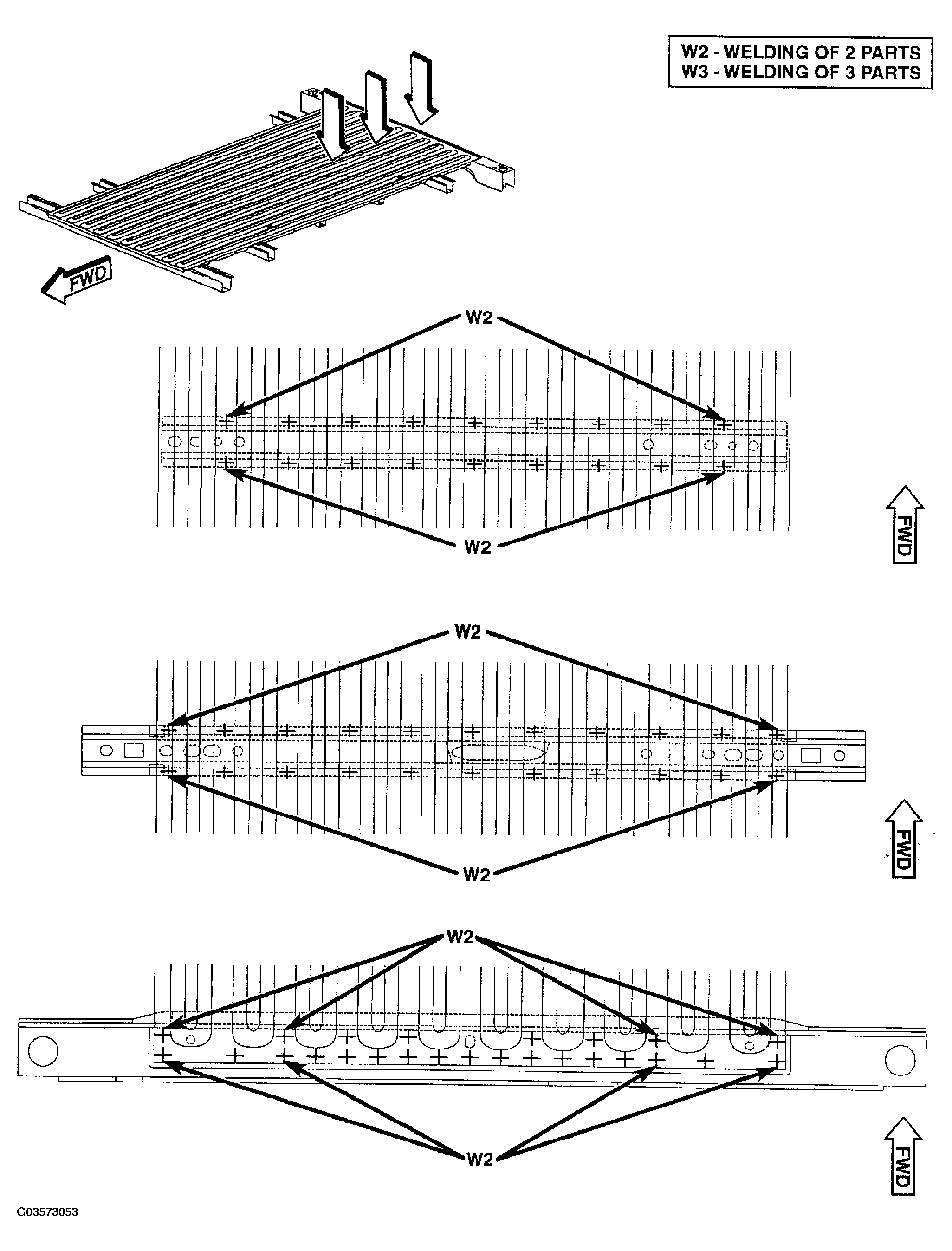

Fig 81: Identifying Weld Locations Of Wheelhouse Crossmember - Long Cargo Box Only
G03573053Courtesy of DAIMLERCHRYSLER CORP.
Fig 82: Identifying Weld Locations Of Front And Center Stake Pocket Reinforcements - Long Cargo Box Only
G03573054Courtesy of DAIMLERCHRYSLER CORP.

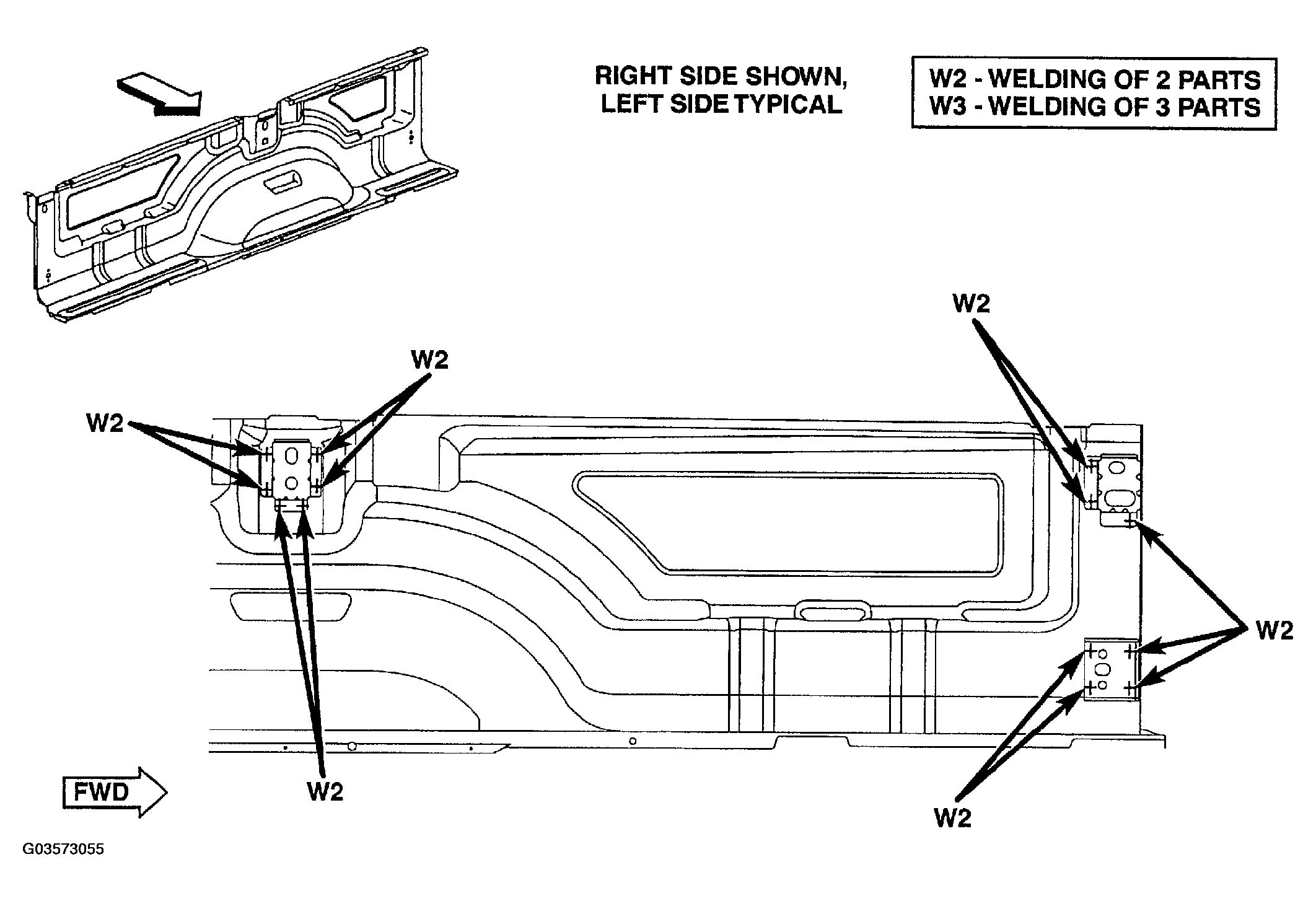

Fig 83: Identifying Weld Locations Of Outer Front And Center Stake Pocket Reinforcement - Long Cargo Box Only
G03573055Courtesy of DAIMLERCHRYSLER CORP.

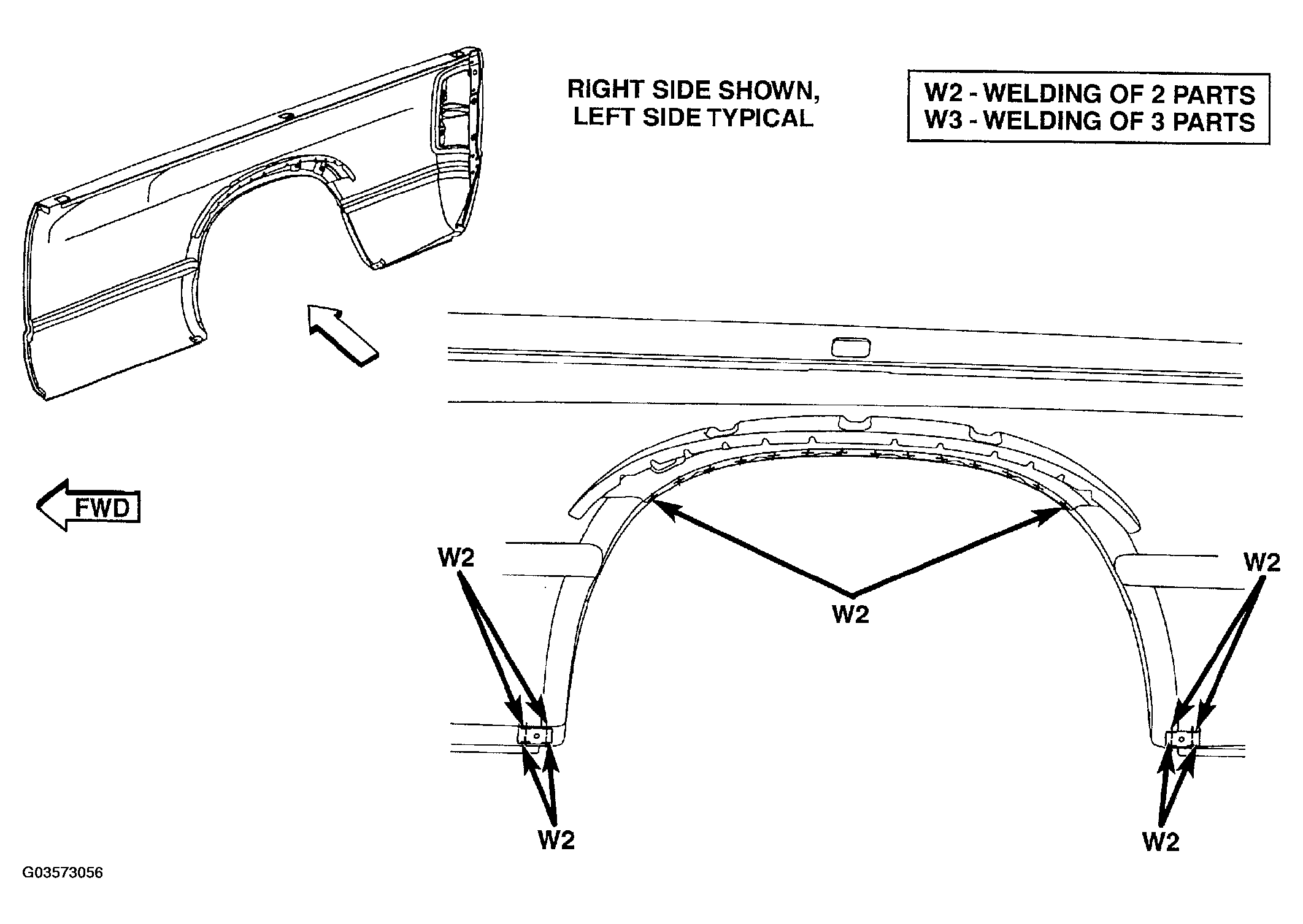

Fig 84: Identifying Weld Locations Of Outer Wheelhouse - Long Cargo Box Only
G03573056Courtesy of DAIMLERCHRYSLER CORP.

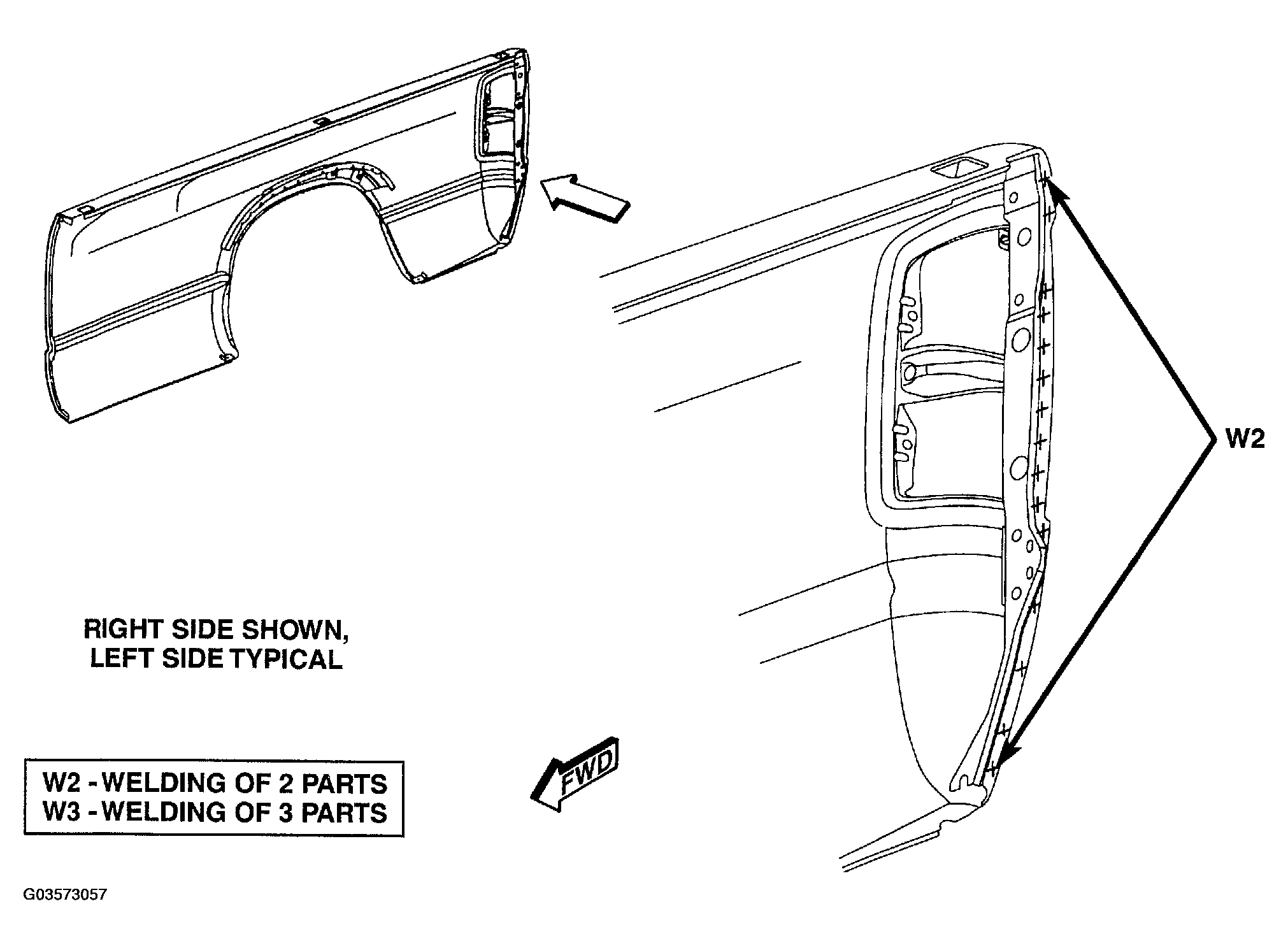

Fig 85: Identifying Weld Locations Of Tailgate Box Side Pivot Reinforcement - Long Cargo Box Only
G03573057Courtesy of DAIMLERCHRYSLER CORP.
Fig 86: Identifying Weld Locations Of Front Box Side Panel - Long Cargo Box Only
G03573058Courtesy of DAIMLERCHRYSLER CORP.

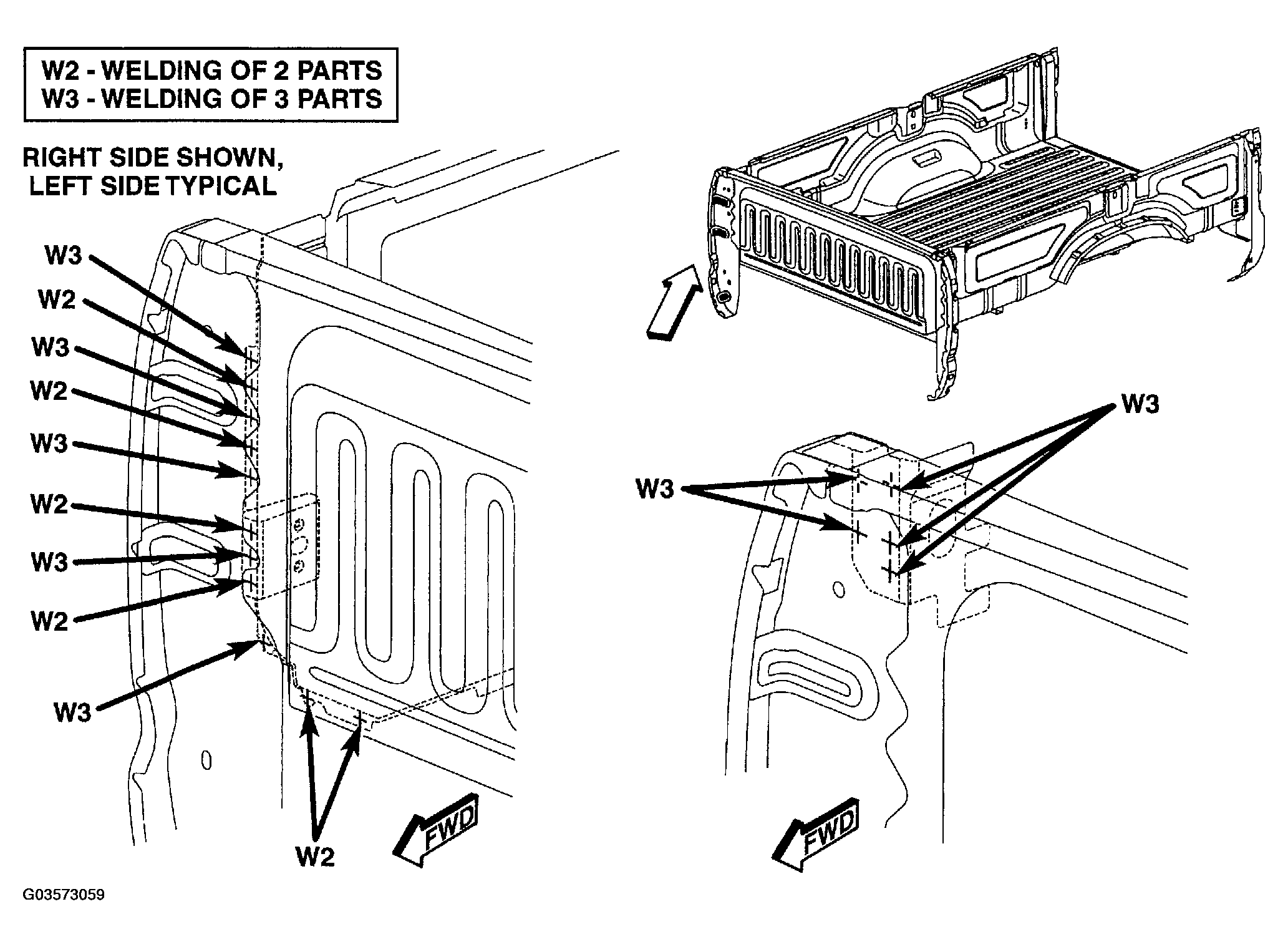

Fig 87: Identifying Weld Locations Of Front Box Side Panel - Long Cargo Box Only
G03573059Courtesy of DAIMLERCHRYSLER CORP.

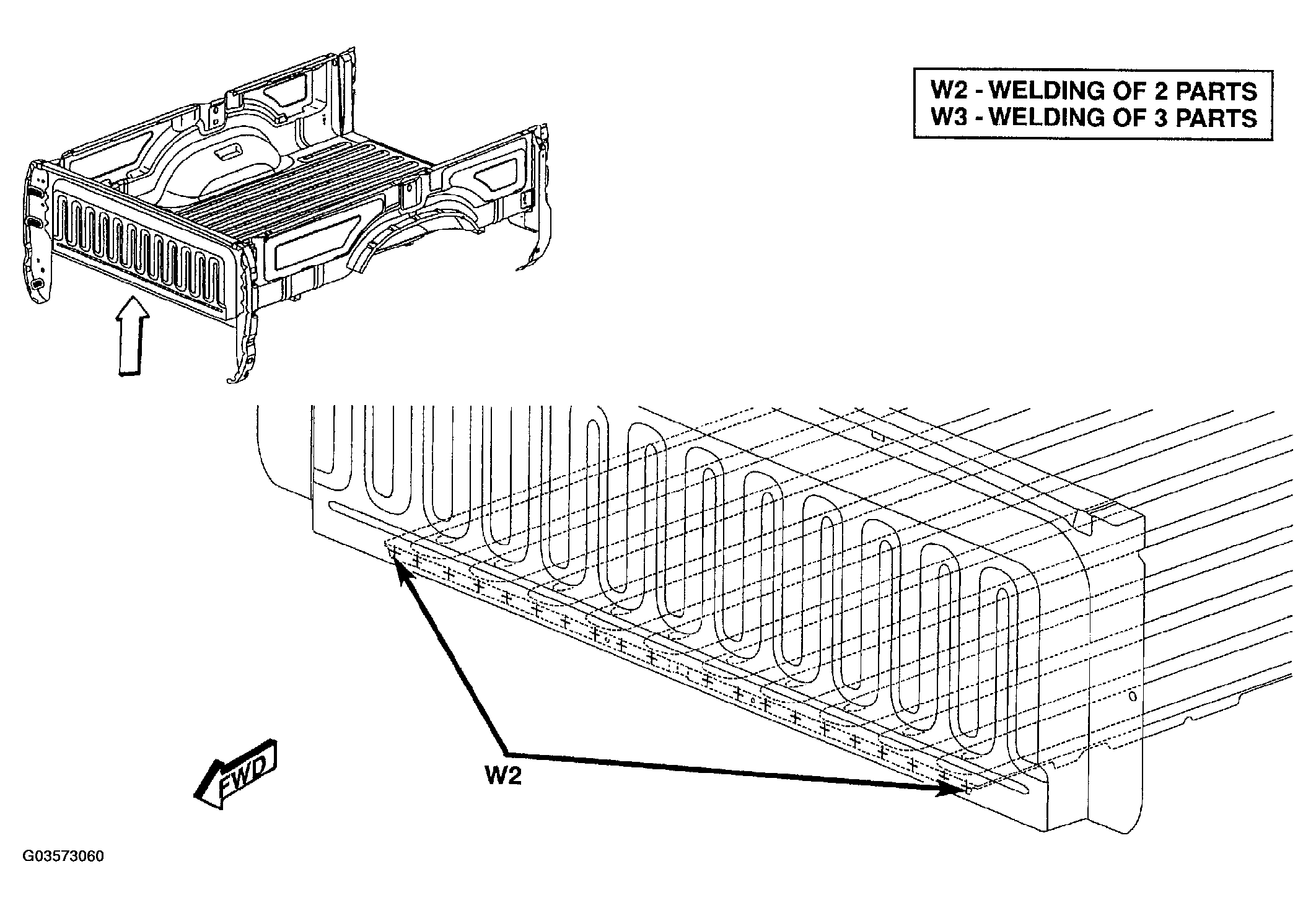

Fig 88: Identifying Weld Locations Of Box Front Panel - Long Cargo Box Only
G03573060Courtesy of DAIMLERCHRYSLER CORP.

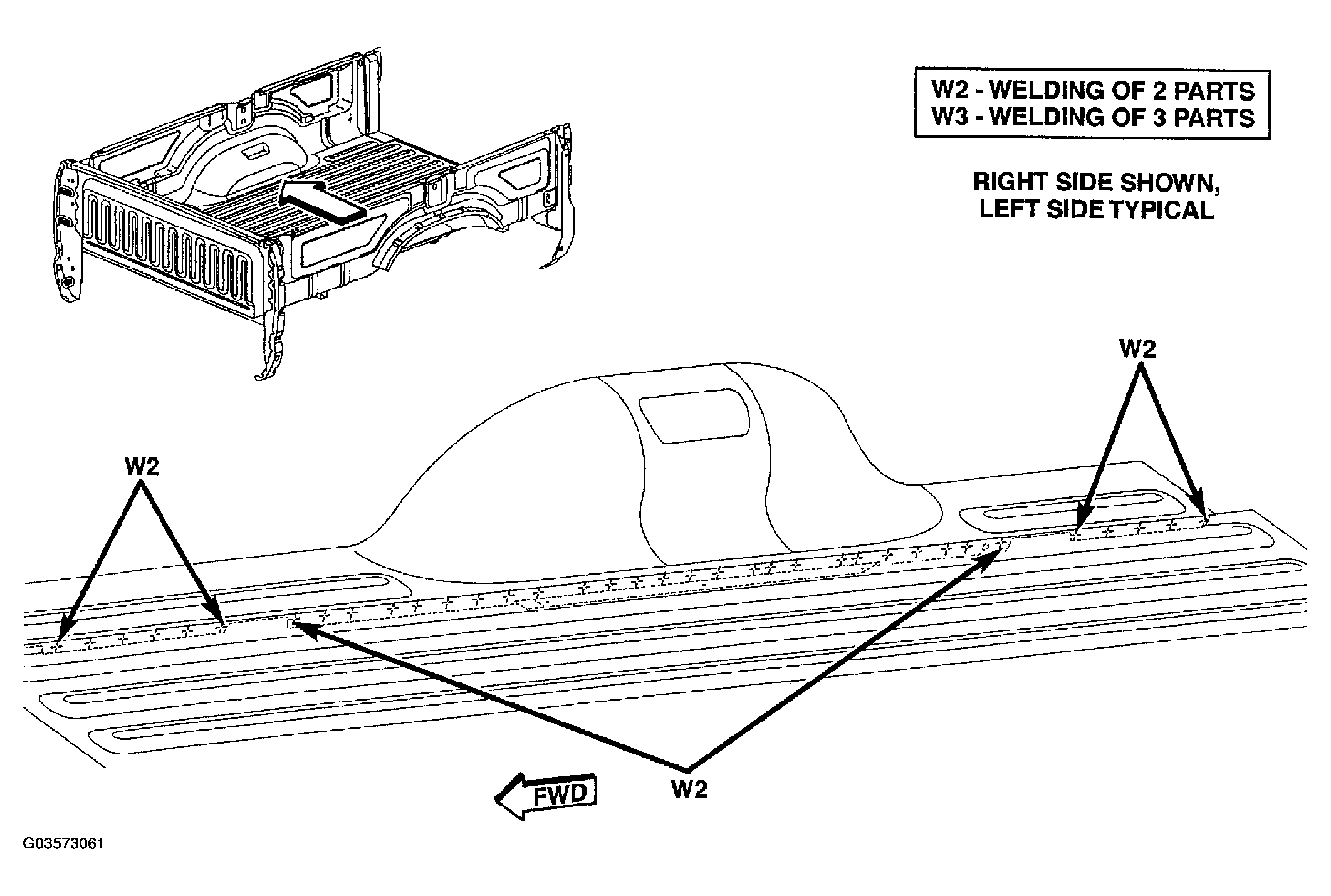

Fig 89: Identifying Weld Locations Of Box Floor Panel - Long Cargo Box Only
G03573061Courtesy of DAIMLERCHRYSLER CORP.

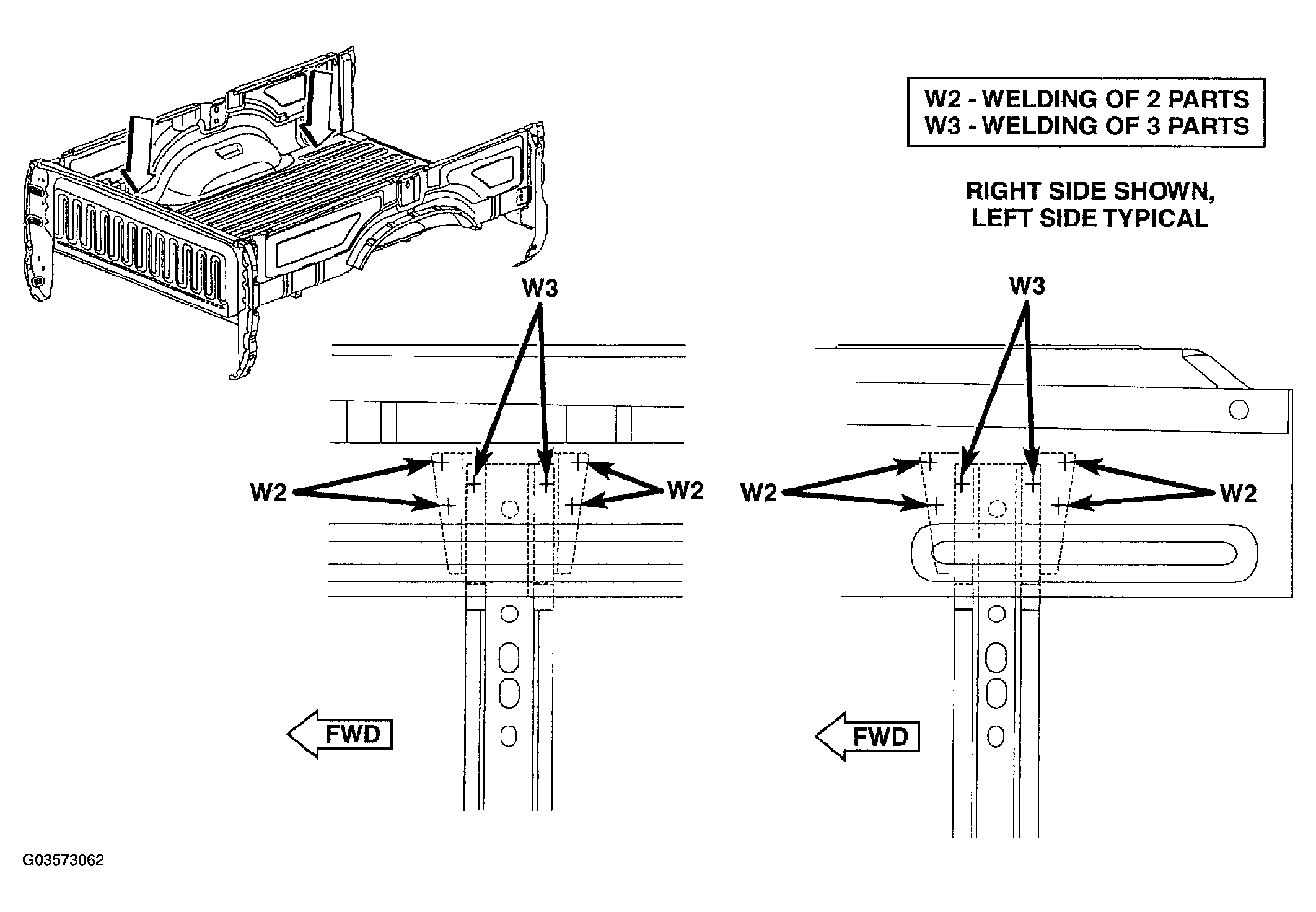

Fig 90: Identifying Weld Locations Of Long Crossmembers - Long Cargo Box Only
G03573062Courtesy of DAIMLERCHRYSLER CORP.

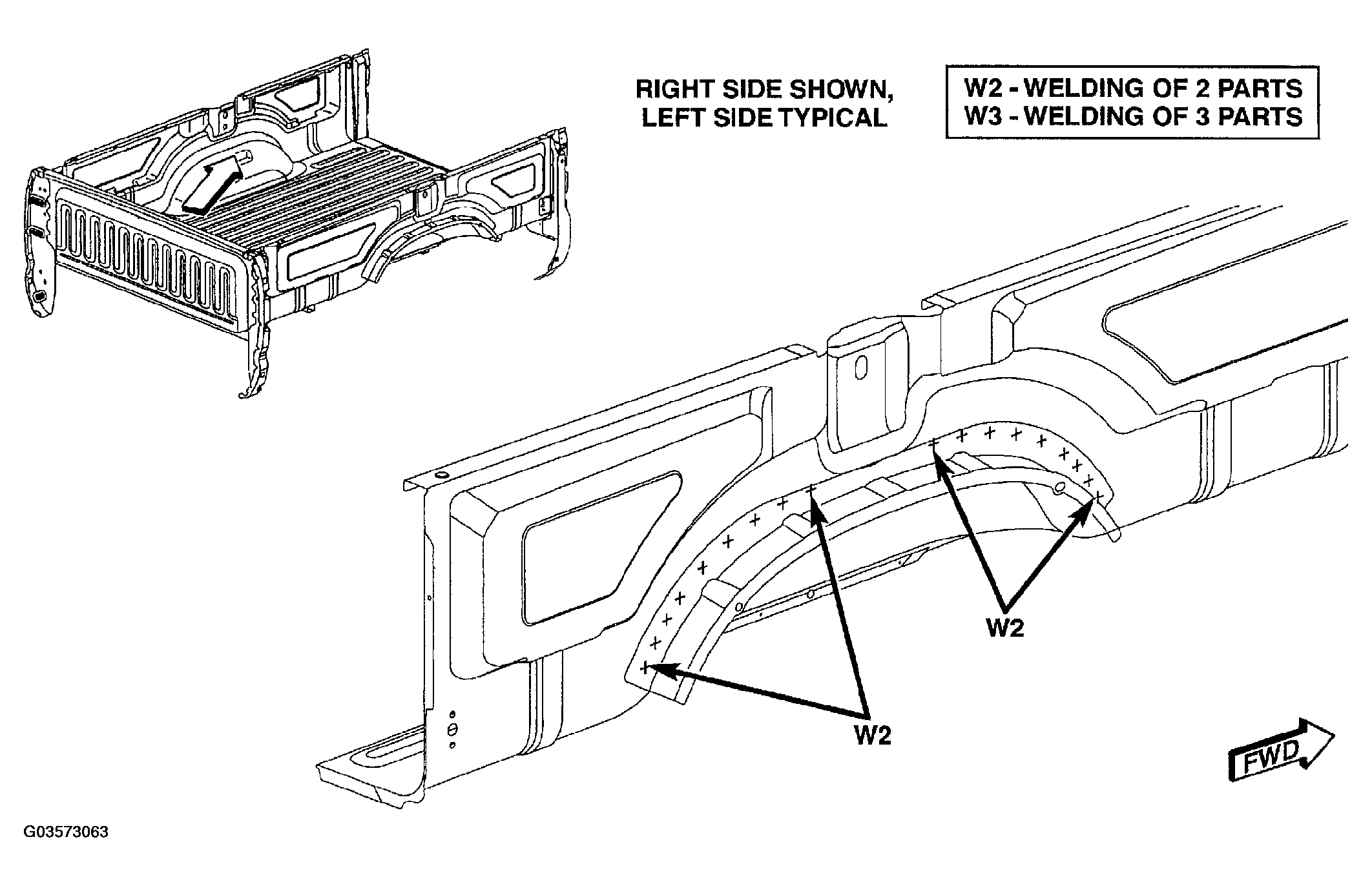

Fig 91: Identifying Weld Locations Of Inner Wheelhouse Panel - Long Cargo Box Only
G03573063Courtesy of DAIMLERCHRYSLER CORP.

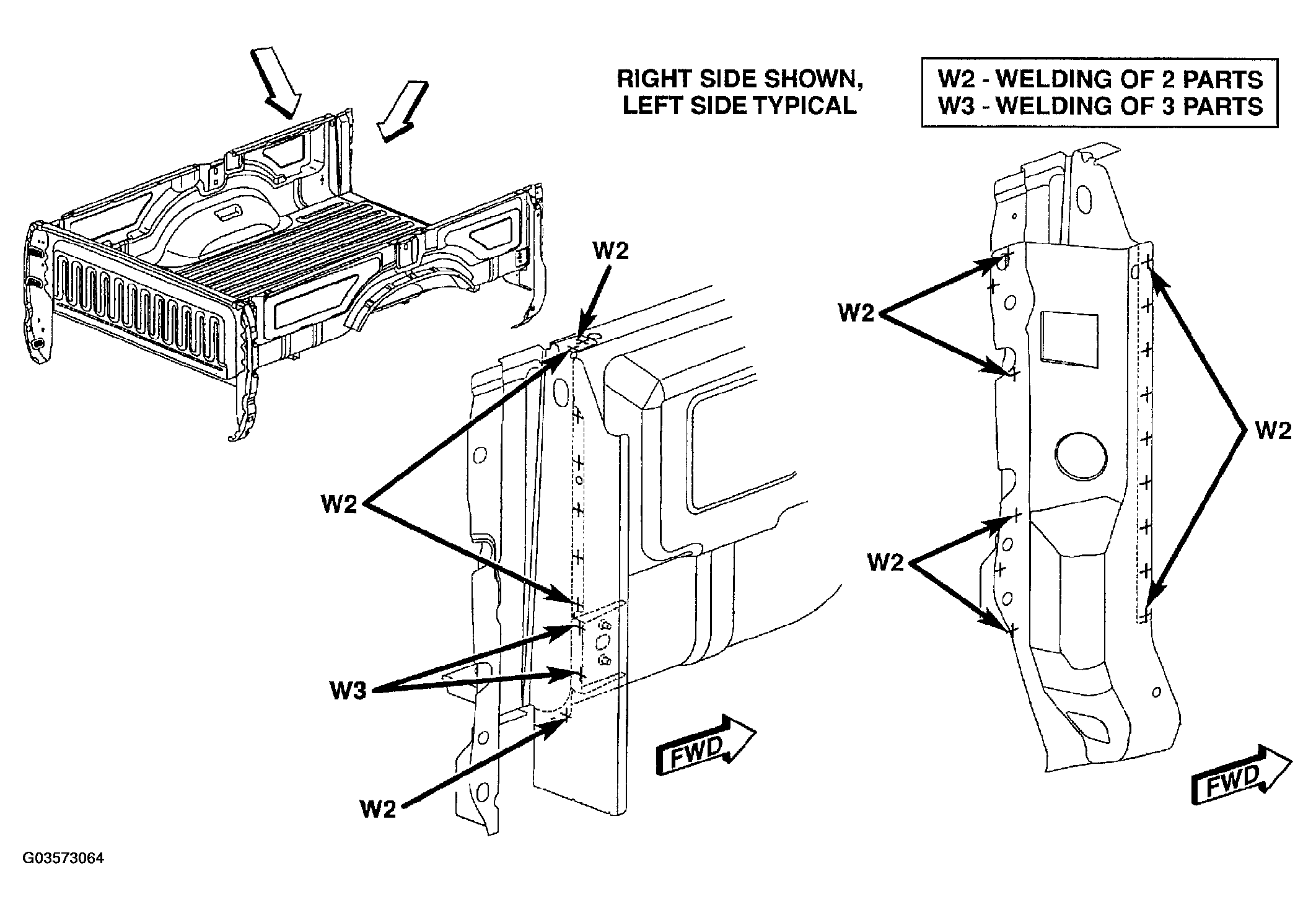

Fig 92: Identifying Weld Locations Of Tailgate Pillar Outer Panel - Long Cargo Box Only
G03573064Courtesy of DAIMLERCHRYSLER CORP.

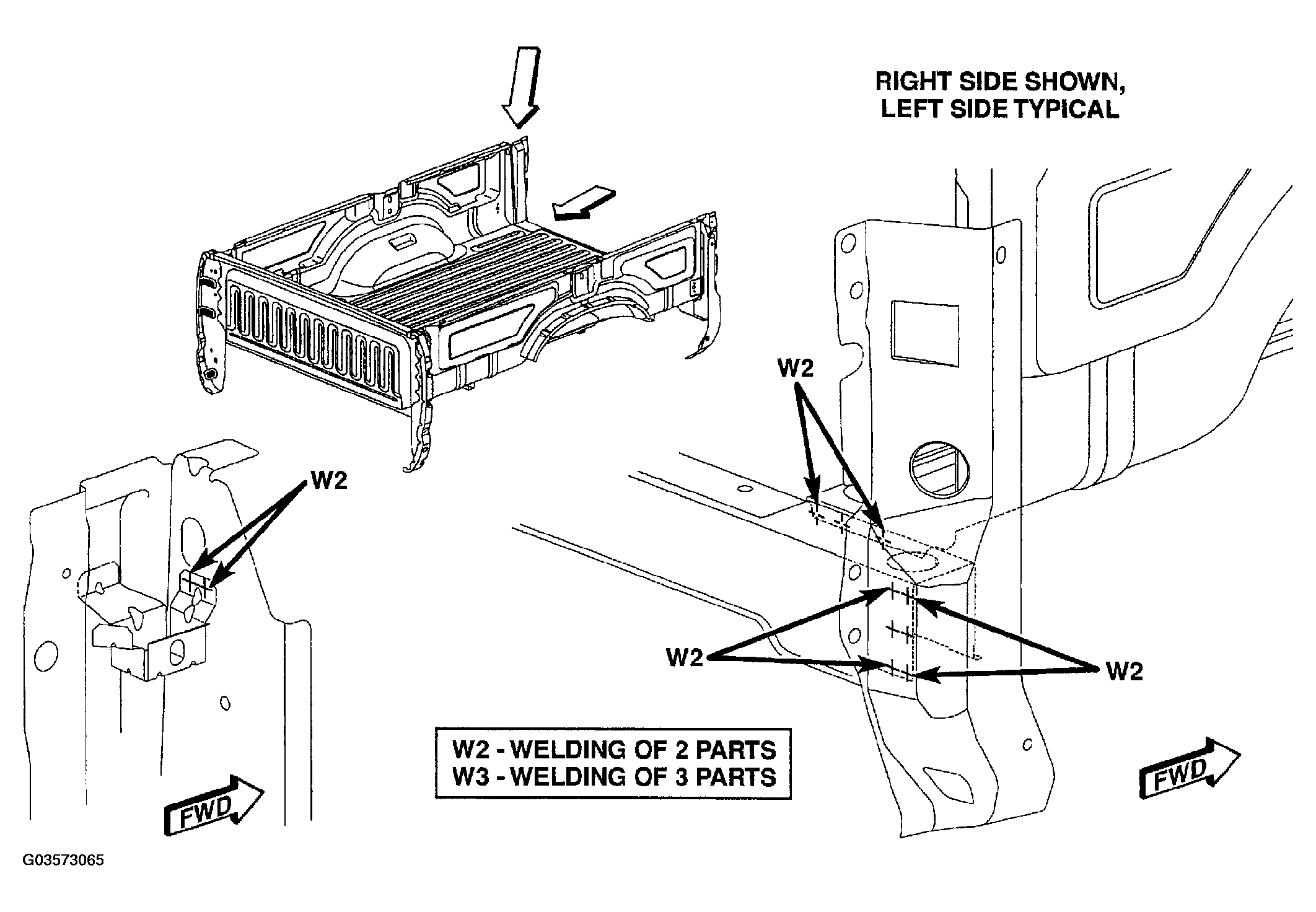

Fig 93: Identifying Weld Locations Of Rear Sill Cross Box - Long Cargo Box Only
G03573065Courtesy of DAIMLERCHRYSLER CORP.

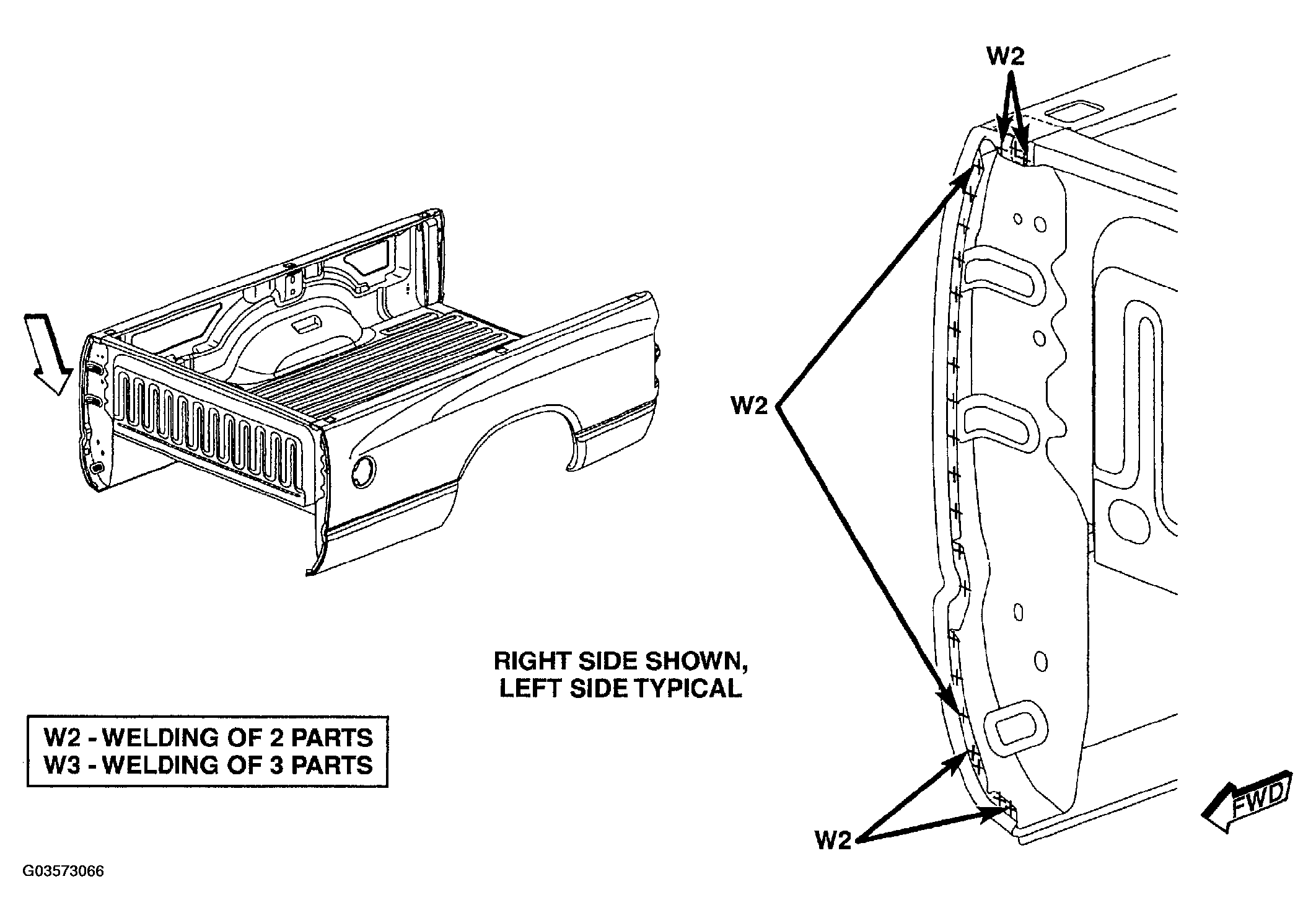

Fig 94: Identifying Weld Locations Of Outer Box Side Panel - Long Cargo Box Only
G03573066Courtesy of DAIMLERCHRYSLER CORP.

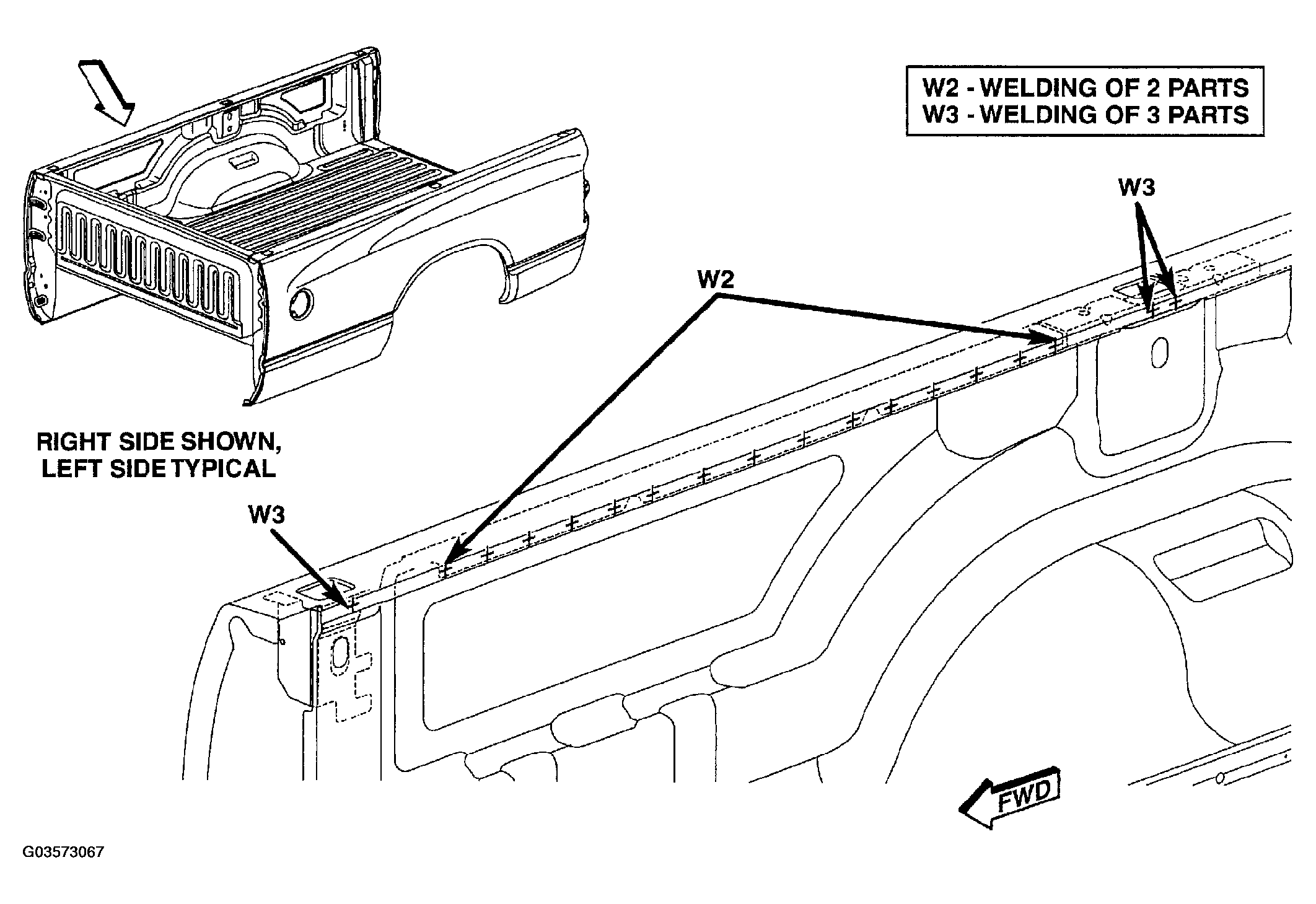

Fig 95: Identifying Weld Locations Of Stake Pocket Reinforcements - Long Cargo Box Only
G03573067Courtesy of DAIMLERCHRYSLER CORP.

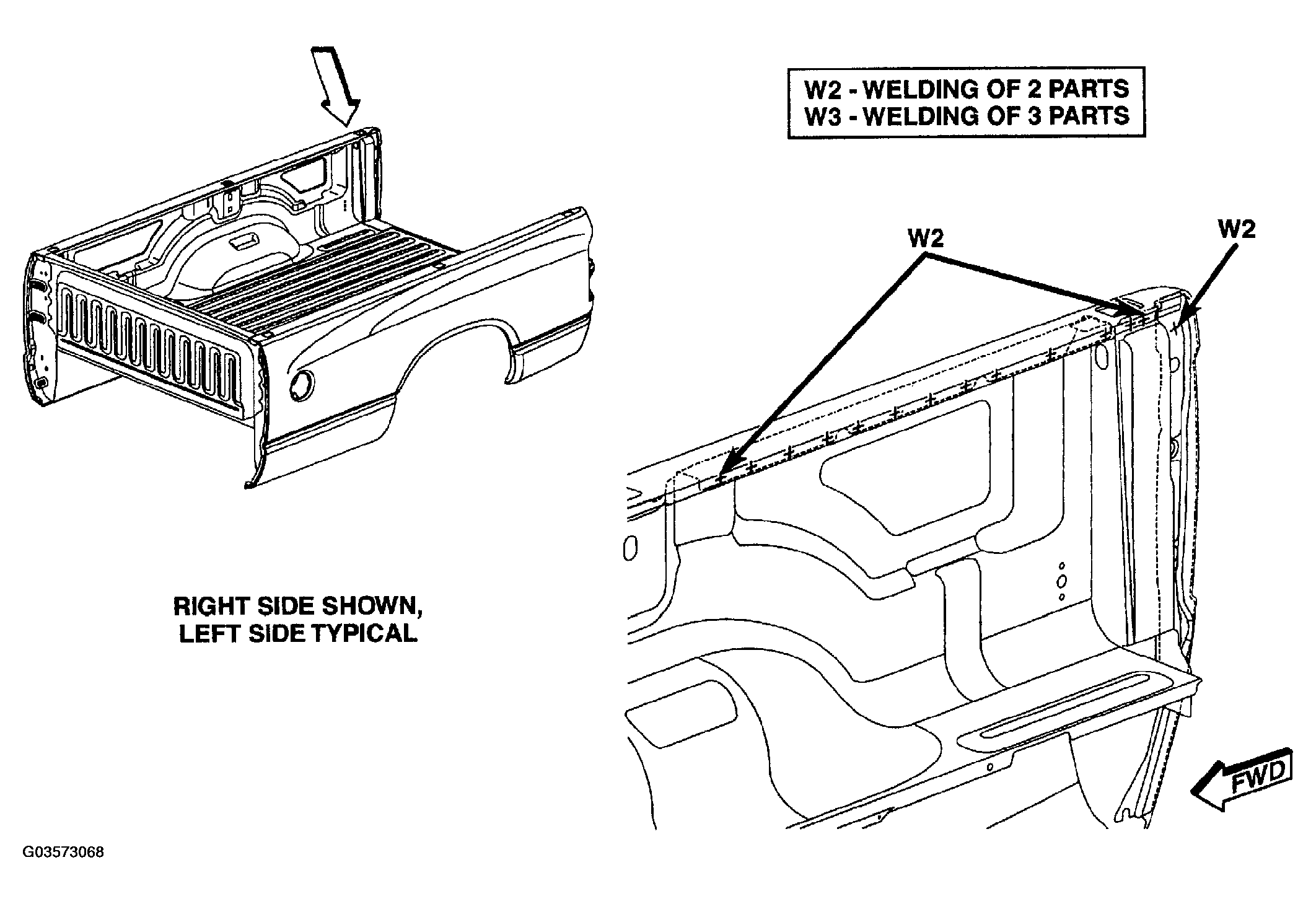

Fig 96: Identifying Weld Locations Of Tailgate Pivot Reinforcement - Long Cargo Box Only
G03573068Courtesy of DAIMLERCHRYSLER CORP.

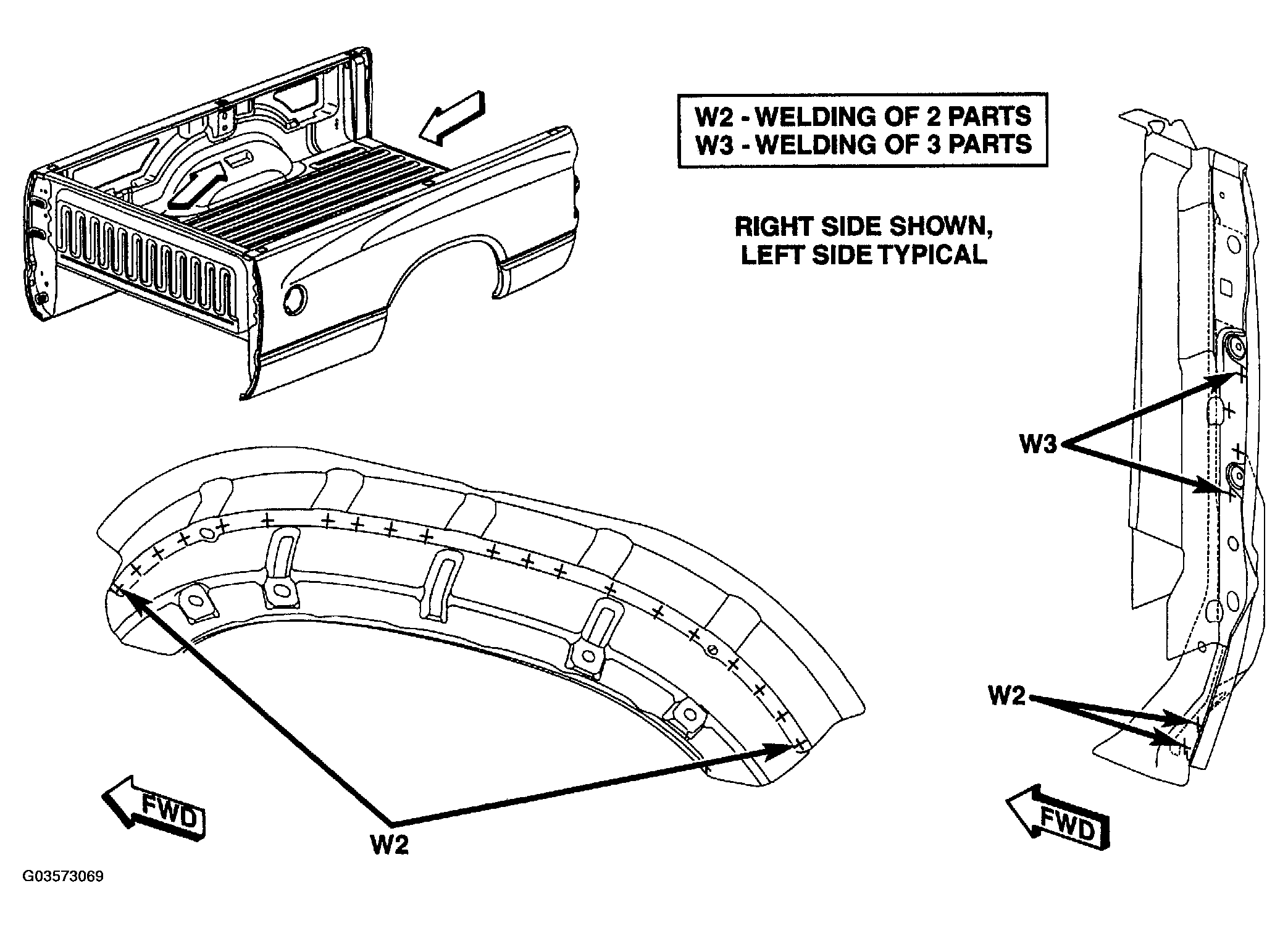

Fig 97: Identifying Weld Locations Of Inner Wheelhouse - Long Cargo Box Only
G03573069Courtesy of DAIMLERCHRYSLER CORP.

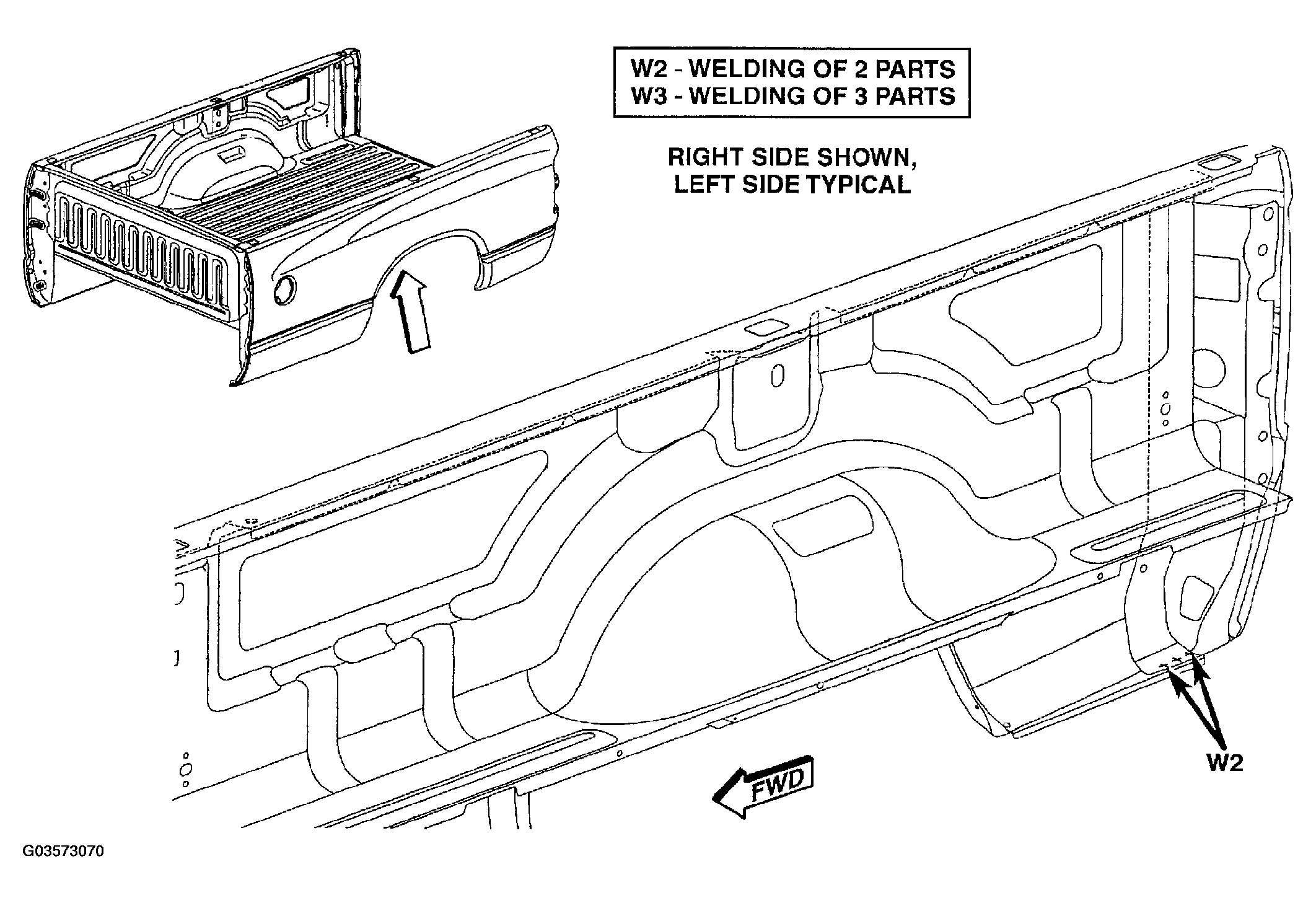

Fig 98: Identifying Weld Locations Of Outer Tailgate Pillar - Long Cargo Box Only
G03573070Courtesy of DAIMLERCHRYSLER CORP.
Fig 99: Identifying Weld Locations Of Inner Door Panel - Quad Cab
G03573071Courtesy of DAIMLERCHRYSLER CORP.

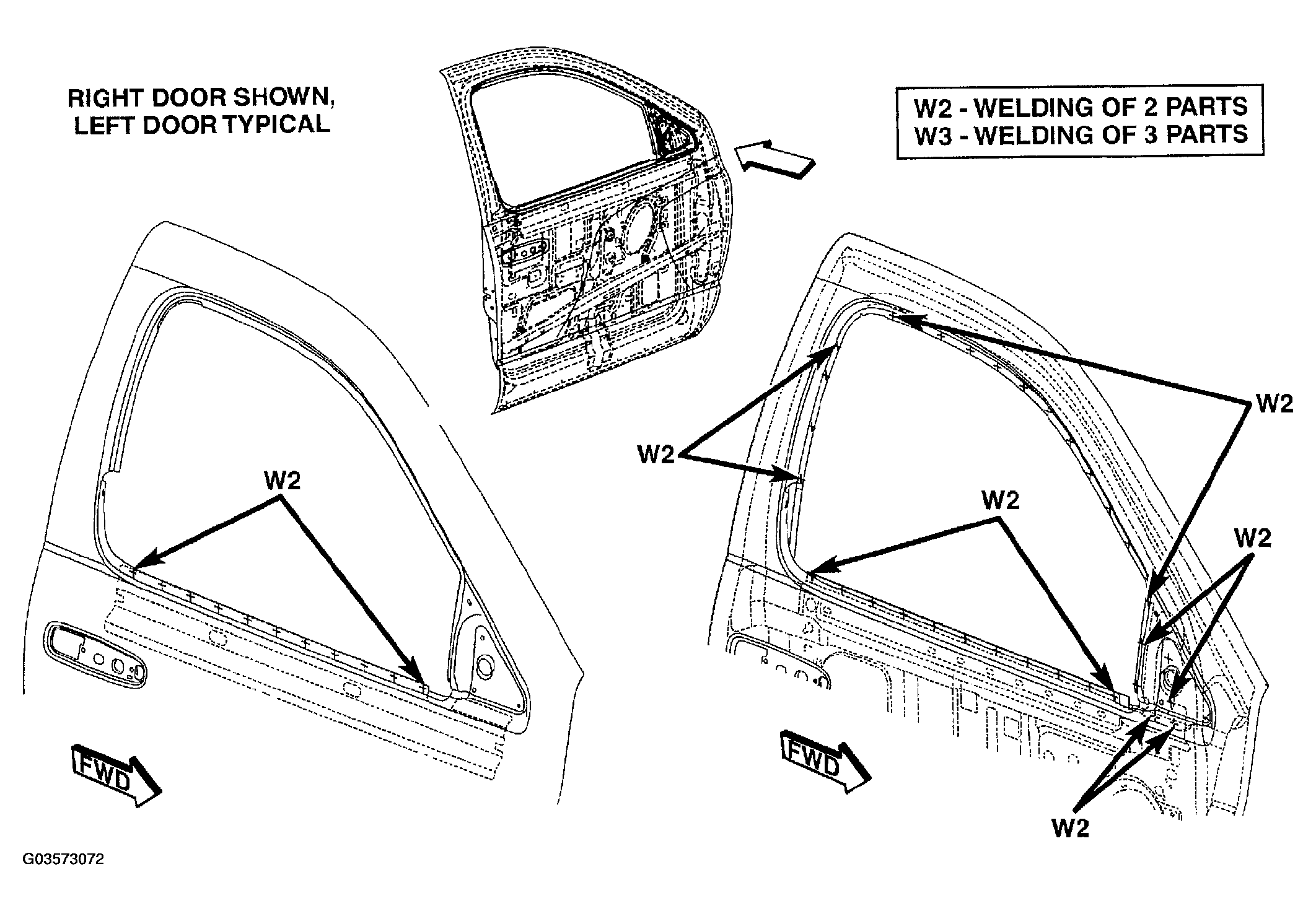

Fig 100: Identifying Weld Locations Of Inner Door Panel - Standard Cab
G03573072Courtesy of DAIMLERCHRYSLER CORP.

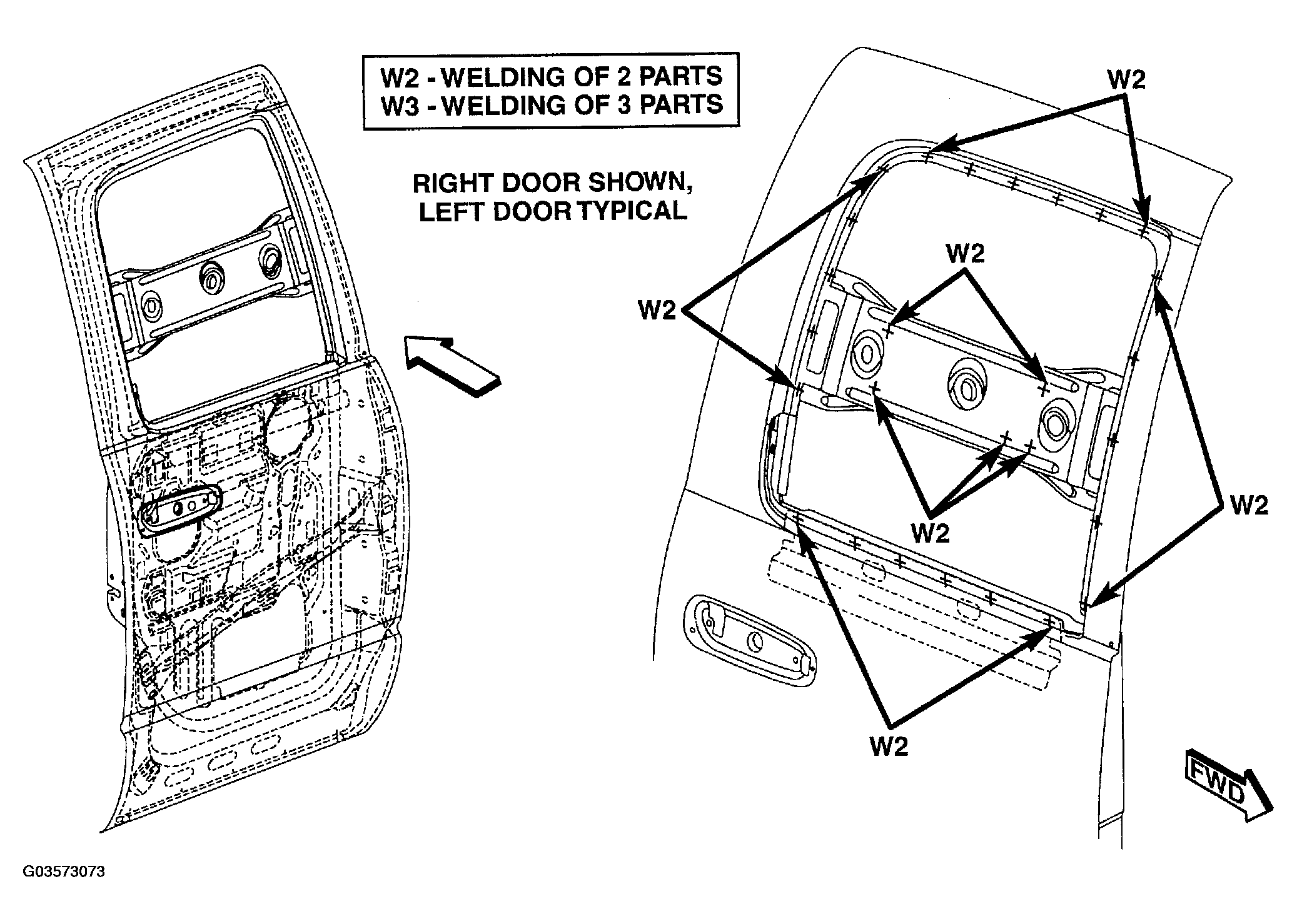

Fig 101: Identifying Weld Locations Of Inner Door Panel - Quad Cab
G03573073Courtesy of DAIMLERCHRYSLER CORP.
About FixVault
