A/C Heater Control: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the A/C-heater control onto the instrument panel center bezel and install the retaining screws. Tighten the screws to 2.2 N.m (20 in. lbs.).
  2. Install the instrument panel center bezel (Refer to INSTRUMENT PANEL CENTER BEZEL ).

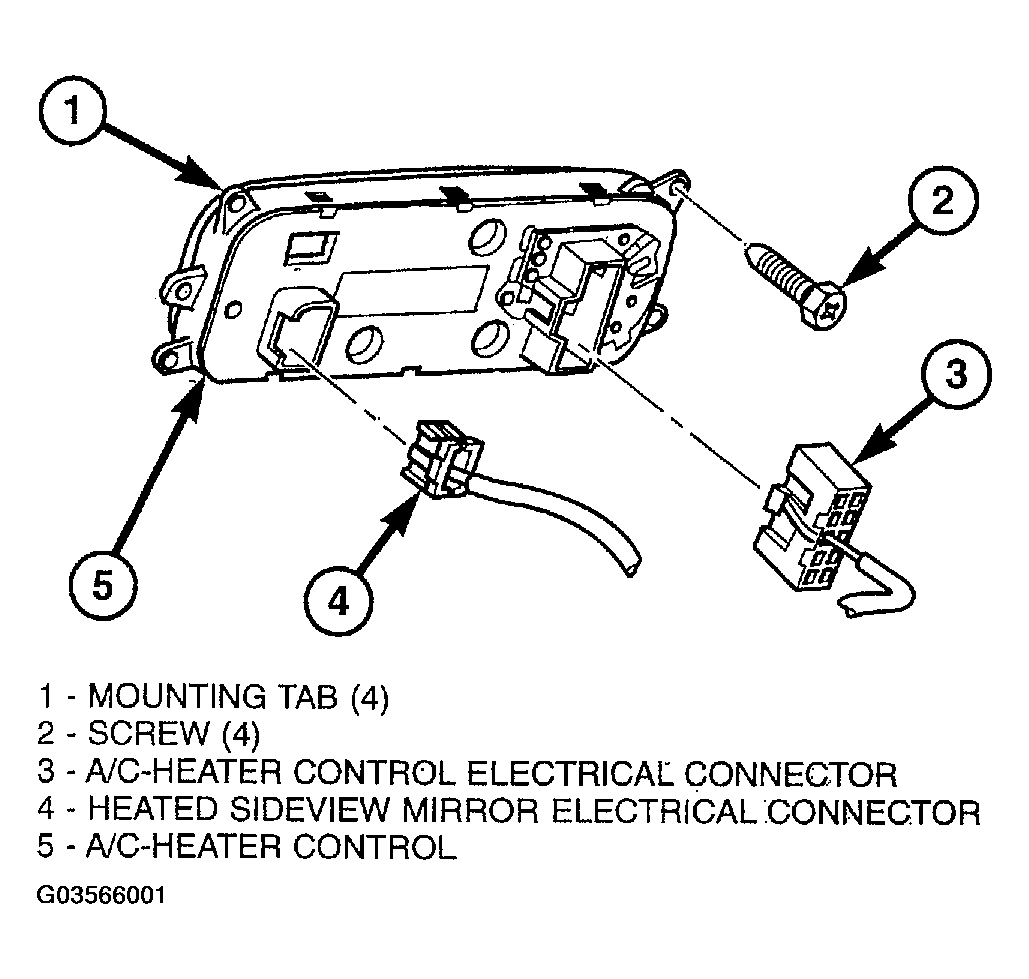

    Fig 1: Identifying A/C-Heater Control
    G03566001Courtesy of DAIMLERCHRYSLER CORP.
  3. Reconnect the battery negative cable.
