Remote Keyless Entry Module: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the RKE module and install the screws.

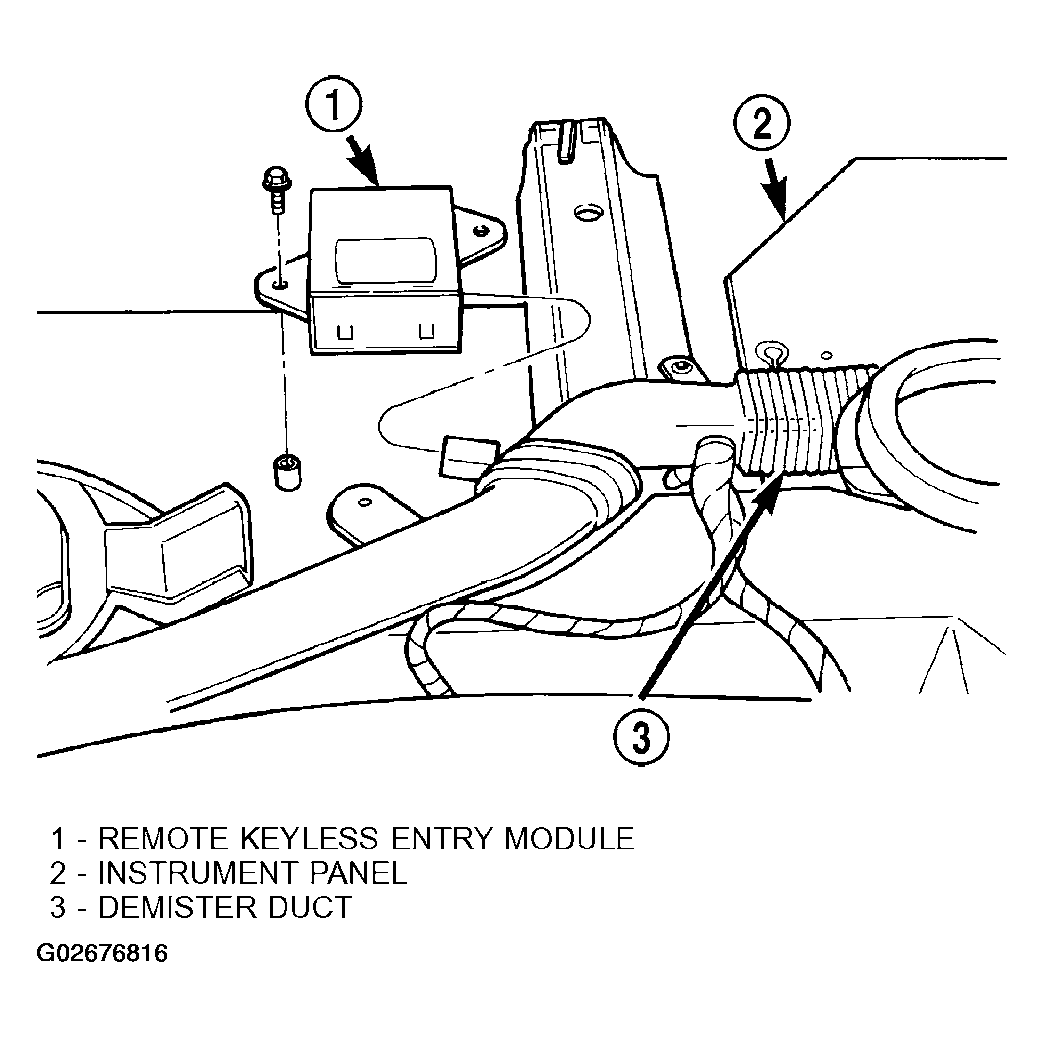

  2. Connect the wire connector to the RKE module (Figure ).
  3. Install the instrument panel top pad.
  4. Connect the battery negative cable.
