Power Outlet: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Look inside and note position of the retaining bosses (Fig 1 ).

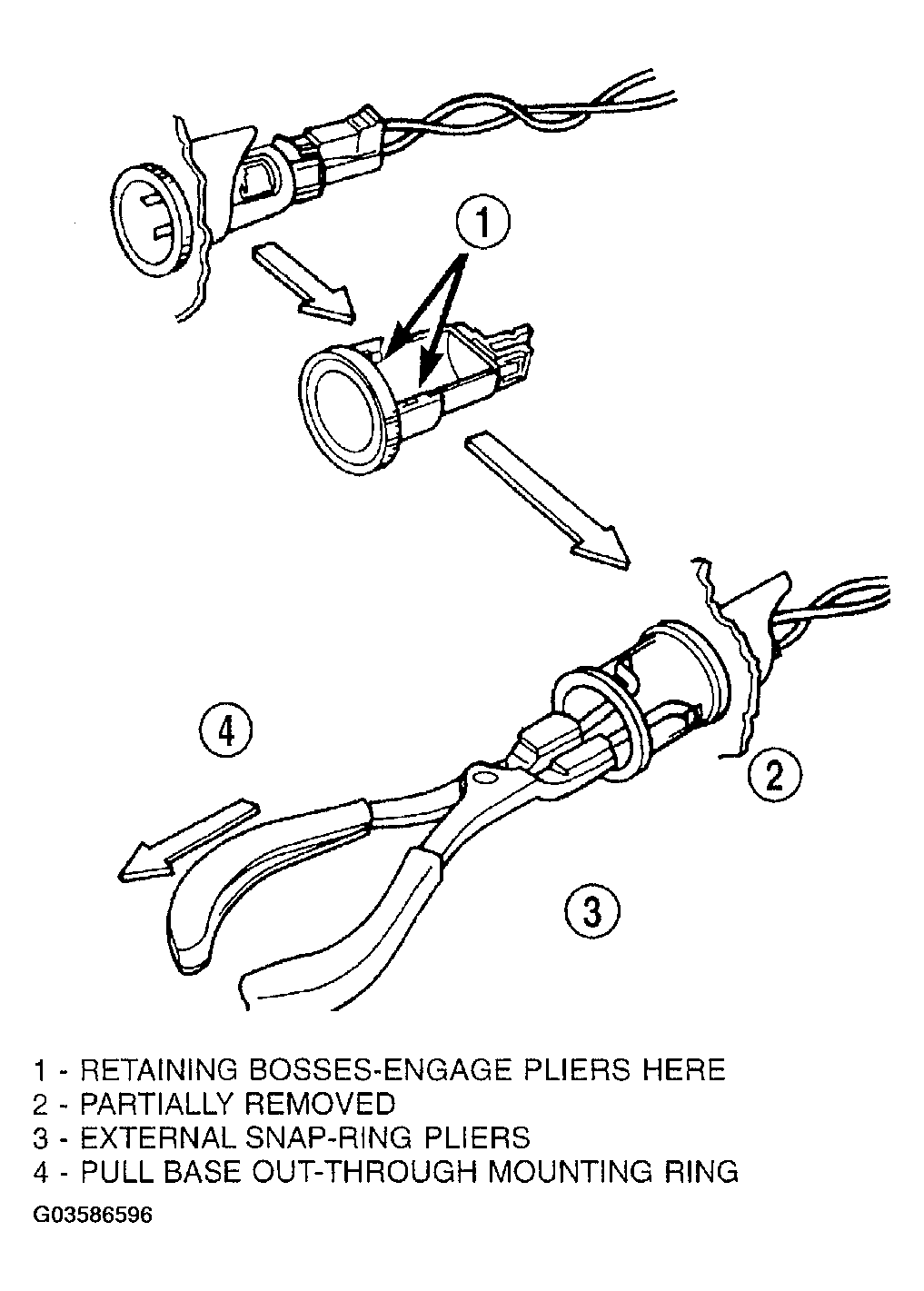

Fig 1: Removing Outlet Base
Courtesy of DAIMLERCHRYSLER CORP.
Using external snap ring pliers with 90 degree tips. Insert pliers with tips against bosses and squeeze forcing bosses out of base.
Pull out the base through mounting ring by gently rocking pliers. A tool can be made to do the same. Refer to (Fig 2 ).

Fig 2: Identifying Tool For Outlet
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the base wires.
Set base aside. Remove light ring and disconnect wire.
