Fuel Pump Module: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be careful not to allow dirt/debris to fall into the fuel tank.
- Wipe seal area of tank clean and place a new O-ring seal in position on pump.
- Position fuel pump module in tank.

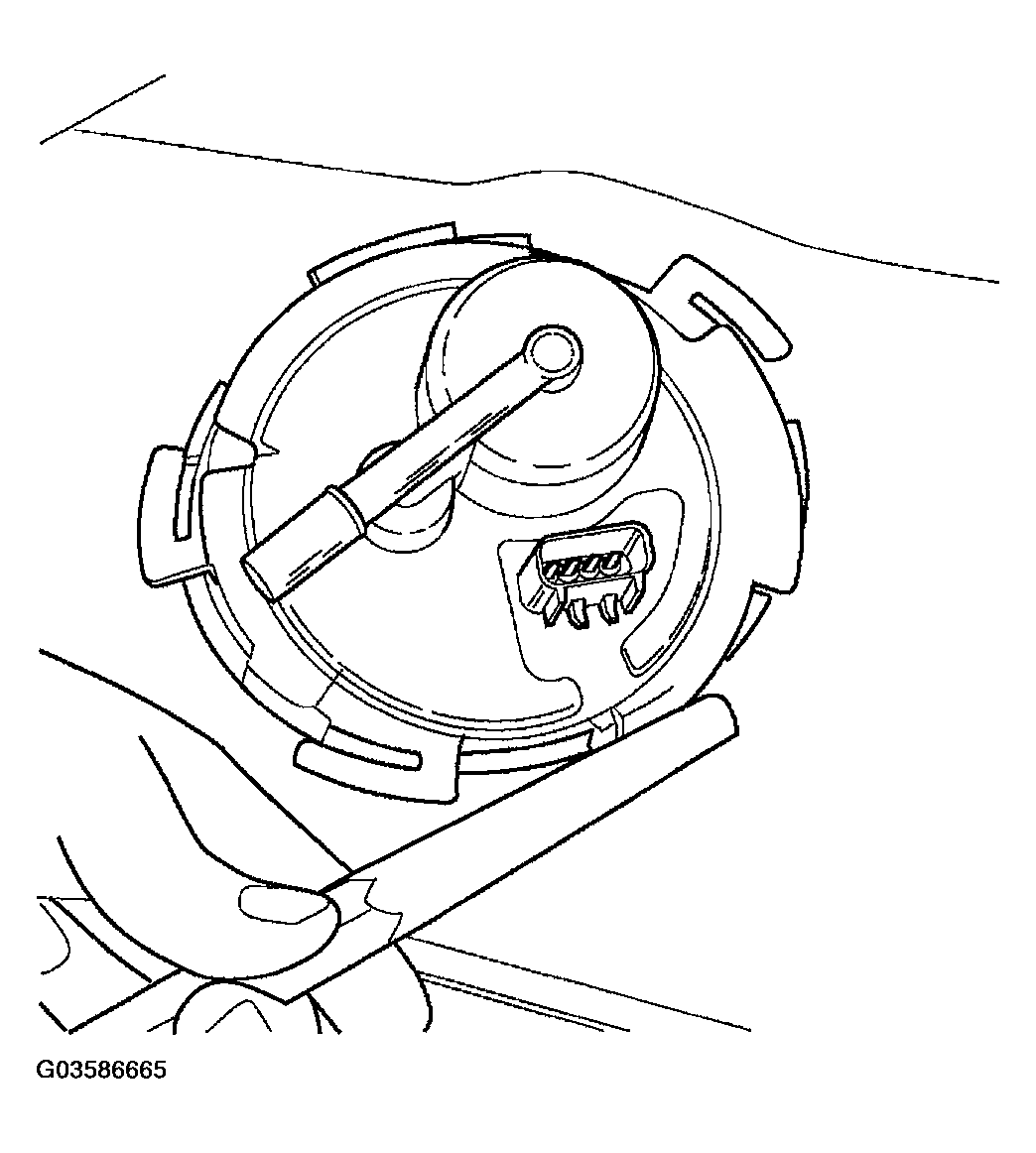

- Tighten lockring using a brass punch and hammer to install the lockring (Figure).
- Install fuel tank. Refer to FUEL TANK .
- Lower vehicle.
- Connect negative cable battery.
- Fill fuel tank. Use the DRB III® scan tool to pressurize the fuel system. Check for leaks.
- Install fuel filler cap.
