Section 236 (Door System - Front): Latch: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The screws attaching the door latch to the door end frame have nylon patches on the threads. All screws must be replaced when the latch has been removed.

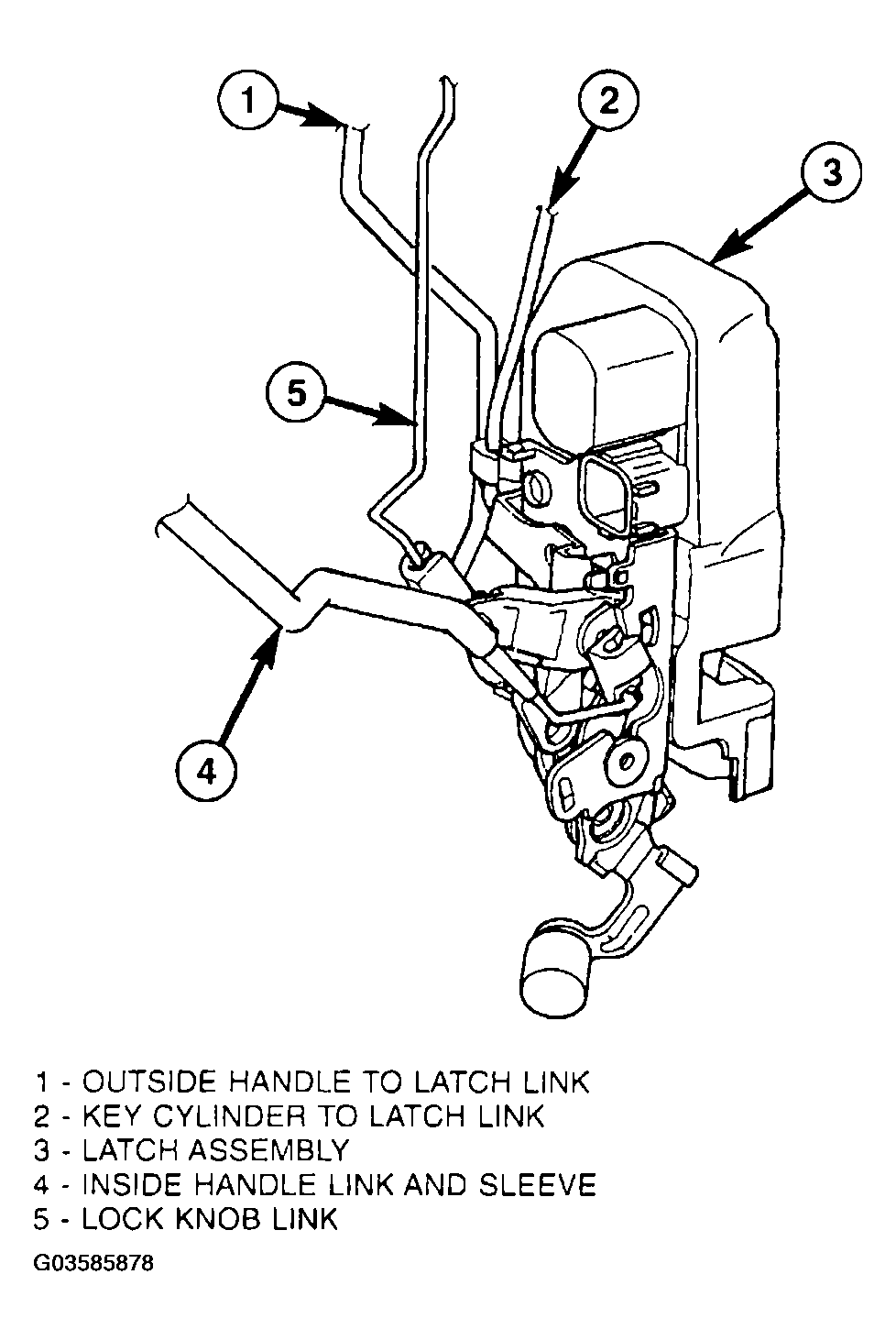

- Insert inside handle latch link to door latch and engage clip (Figure ).
- Place door latch in position on door end frame.

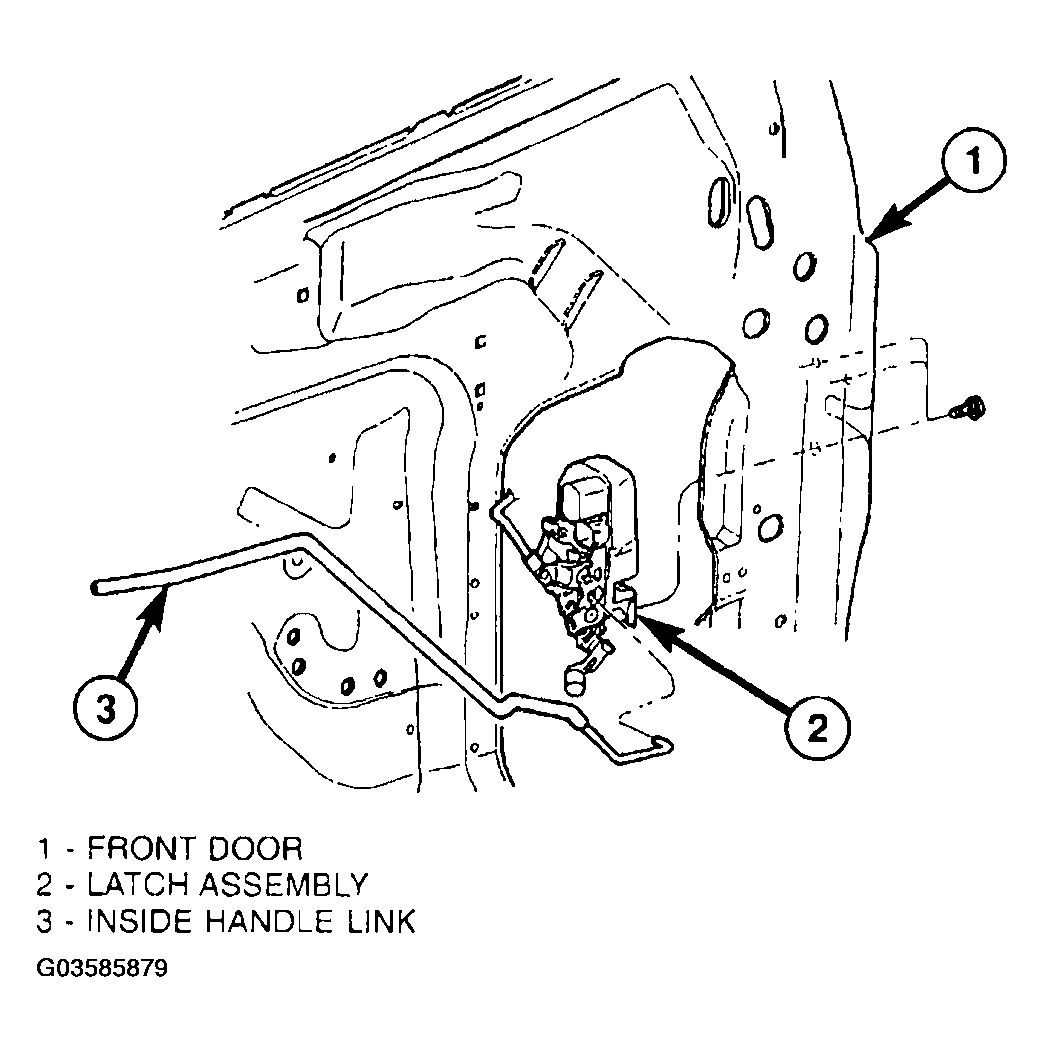

- Install screws attaching door latch to door end frame. Tighten screws to 10 N.m (90 in. lbs.) torque (Figure ).
- Insert other linkages to door latch and engage clips.
- Connect wire connector into power door lock motor, if equipped.
- Insert a hex wrench through the elongated hole located in the door shut face above the latch.
- Loosen allen head screw.
- Pull outward on the outside door handle and release.
- Tighten allen head screw.
- Verify door latch and power door lock operation.
- Install watershield and front door trim panel.
