Section 242 (Seat System): Armrest: Removal
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

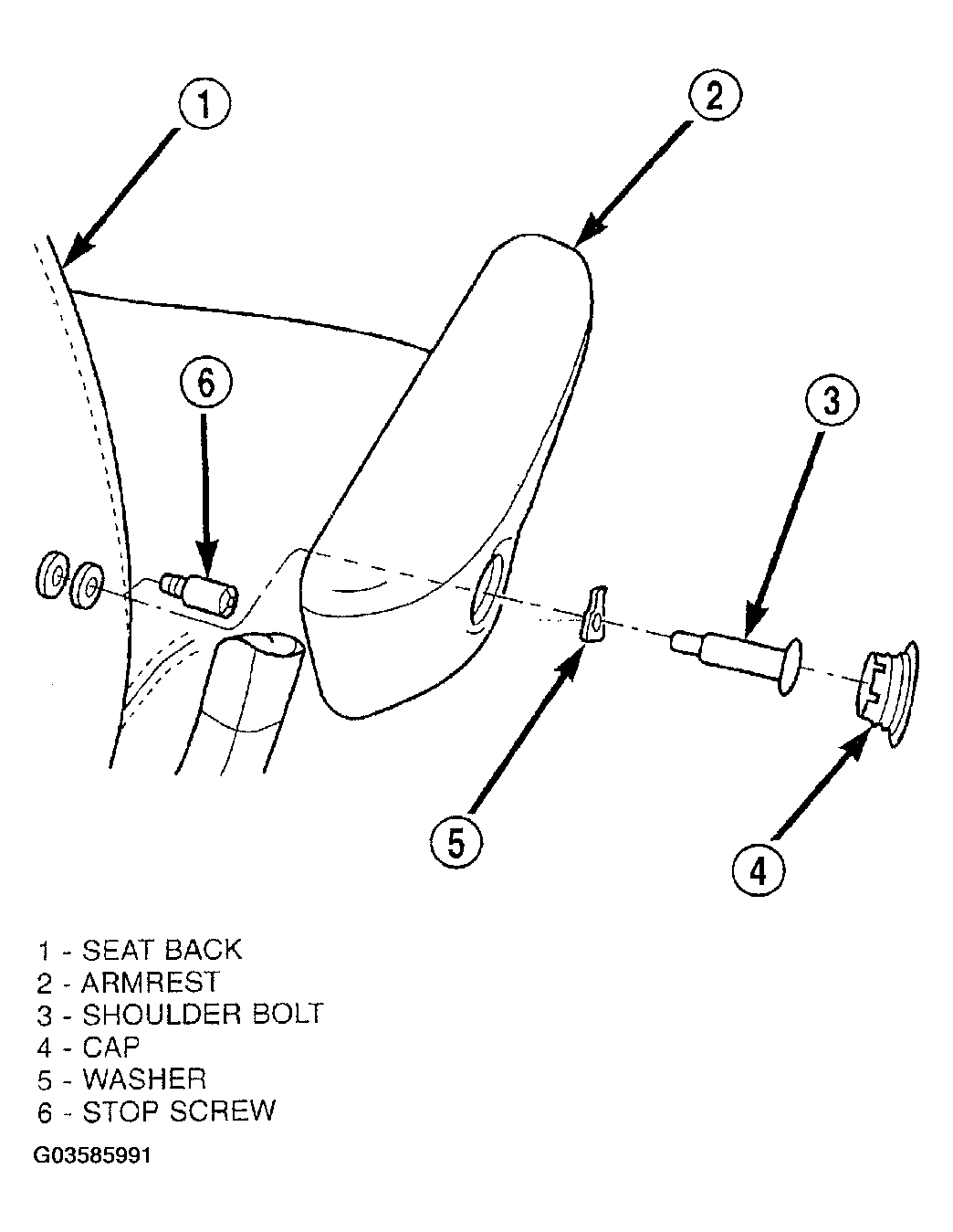

- Using a small flat blade, pry cap from side of armrest (Fig 1 ).
- Remove bolt attaching armrest to seat back.
- Remove armrest from seat back.
