Bench Seatback Panel: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

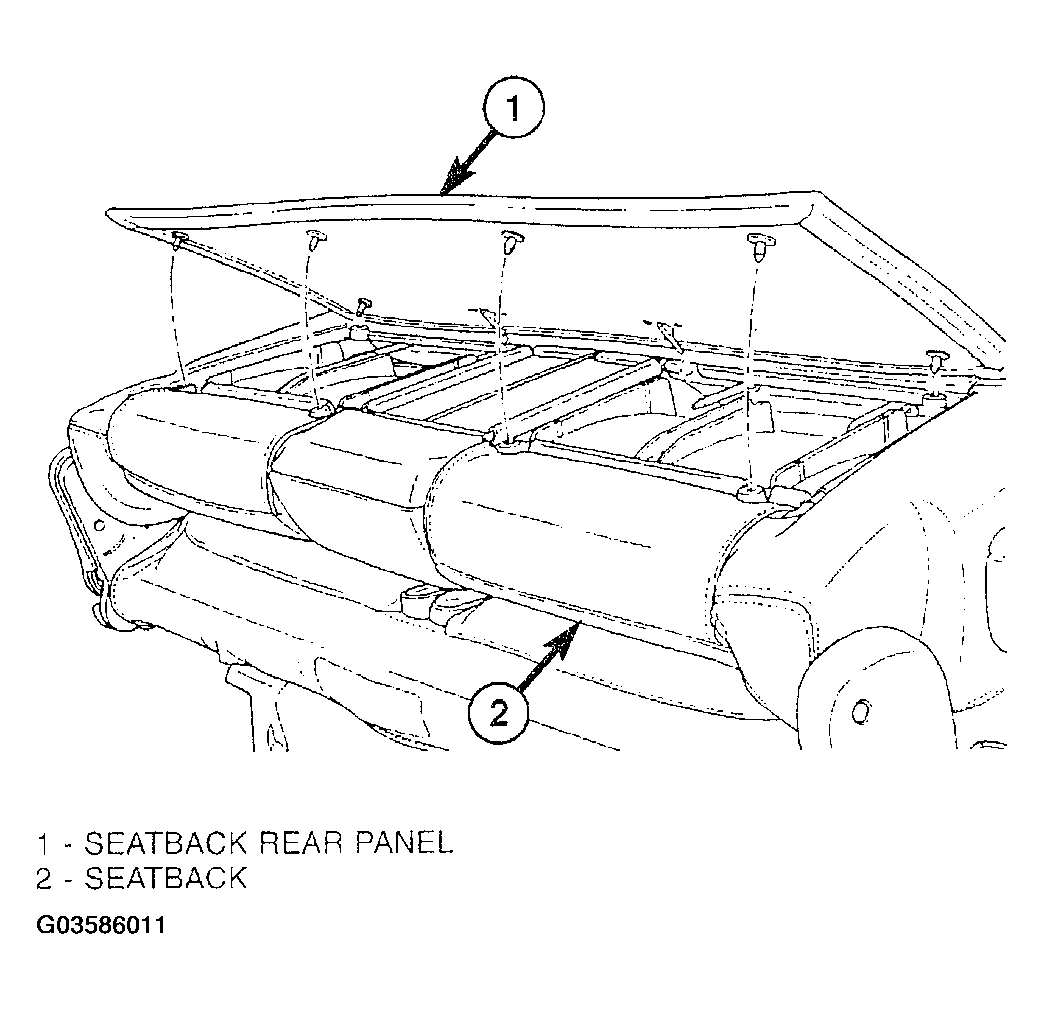

On three pass seats place seat back panel in position on seat and install the push-in fasteners (Figure ).

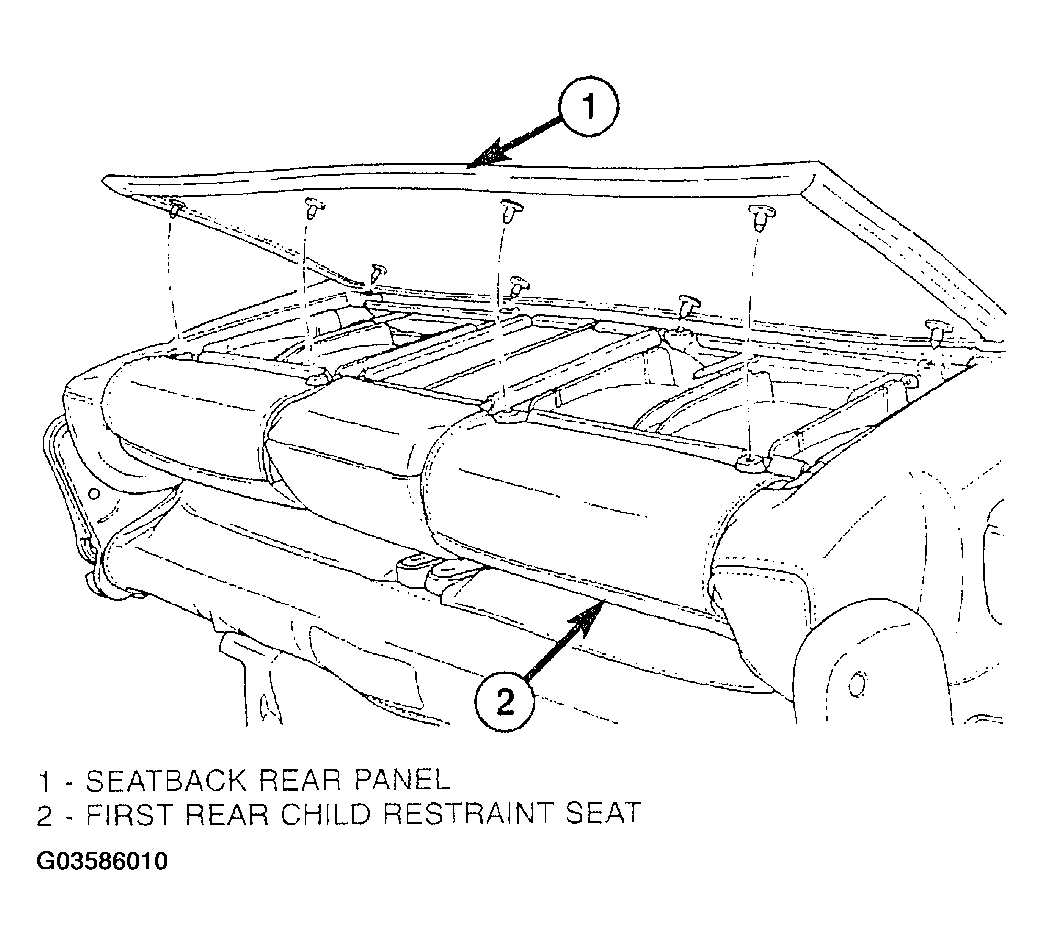

On two pass seats engage the two upper hooks of the panel, place the panel into position and install the push-in fasteners (Figure ).
On third row bench seats install grocery bag holder. (Refer to PLASTIC GROCERY BAG RETAINER )
