Synchronizing Cable Adjustment
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Bench seats equipped with child restraint seats have an interlock feature that will not allow the seat back to fold forward with the child seat open.
If the seat back hinges do not release at the same time the synchronizing cable must be adjusted.
If the seat back hinges do not release at the same time the synchronizing cable must be adjusted.
- Remove seat from vehicle. Refer to Owner's Manual for proper procedure.

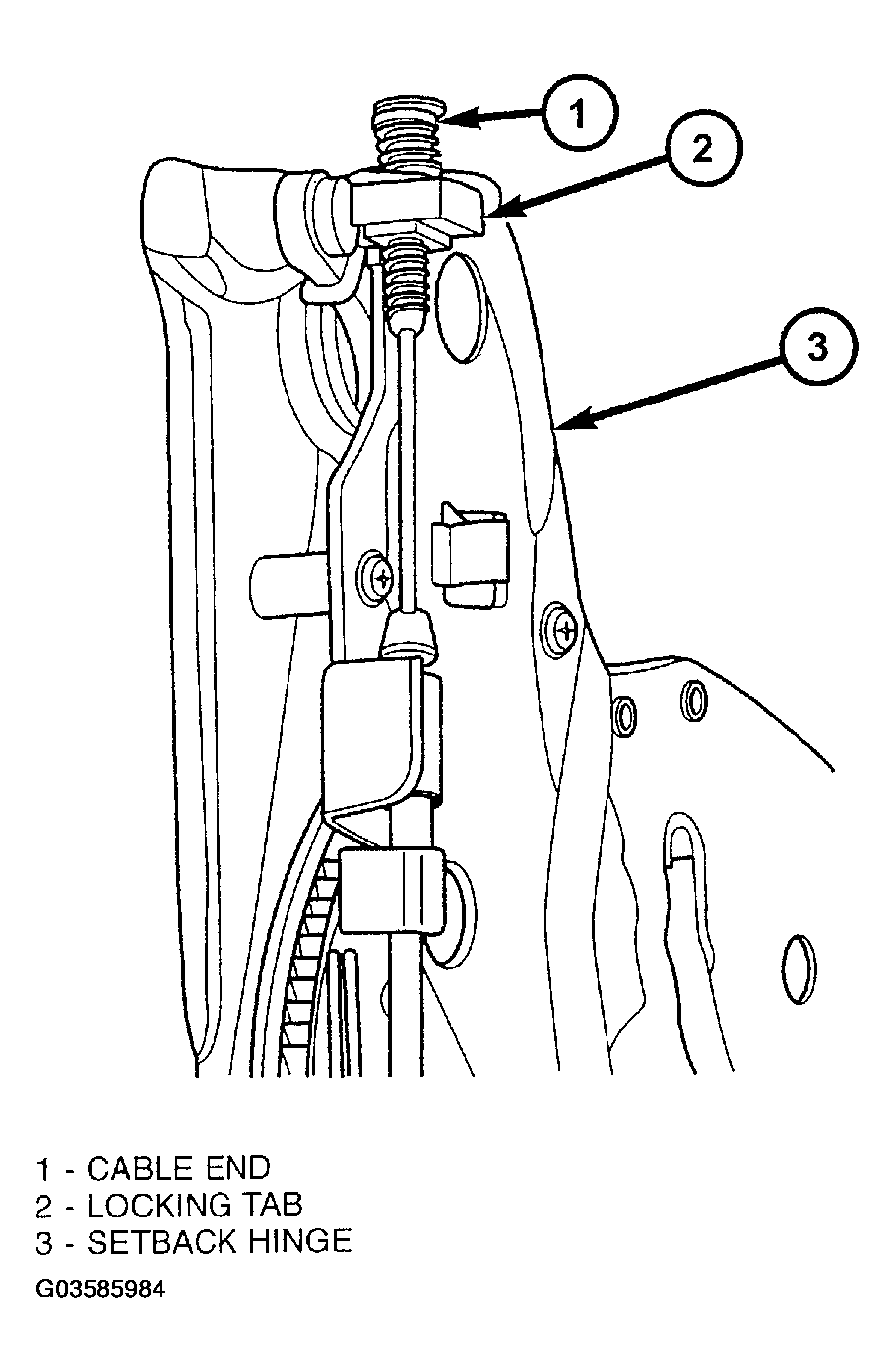

- Disengage cable from the recline mechanism by pulling the cable end toward the front of the seat (Fig 1 ).
- Pull U-shaped locking tab on self-adjusting mehcanism to disengage auto-adjust feature.
- Reattach self-adjusting mechanism, pulling against spring load to tighten cable.
- Press locking tab onto the adjusting mechanism to lock into place.
