Child Seat Module, Bench Seat: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Close child restraint seat.
Remove seat back cover.
Remove screws attaching child restraint seat module hinges to seat back frame lower rail (Fig 1 ).
Return seat back to upright position.
Disengage push in fasteners attaching upper bolster to child restraint seat module (Fig 2 ).
Remove screws attaching top of module to seat back frame upper rail (Fig 3 ).
Remove child restraint seat module from seat back (Fig 4 ).

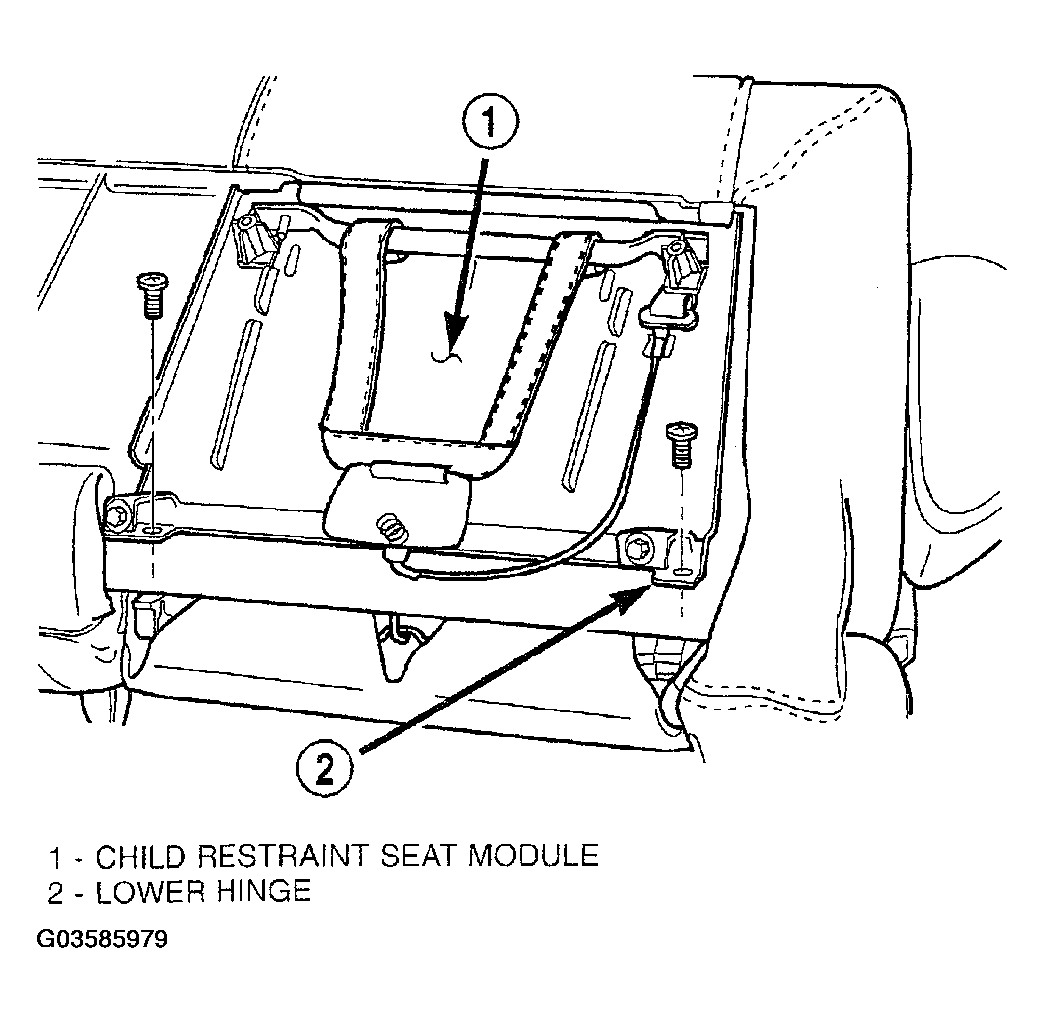

Fig 1: Identifying Child Restraint Seat Lower Hinge
Courtesy of DAIMLERCHRYSLER CORP.

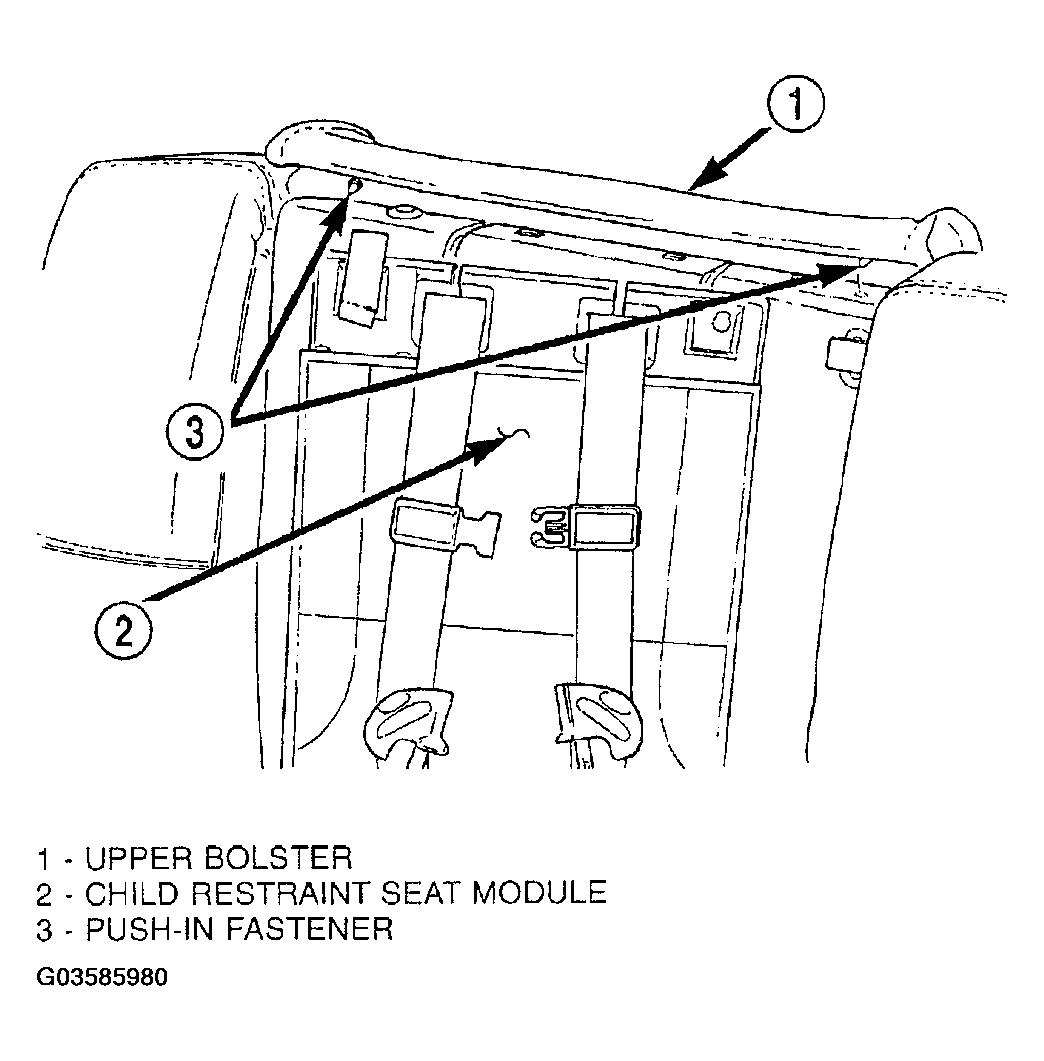

Fig 2: Identifying Child Restraint Seat Upper Bolster
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Child Restraint Seat Upper Screws
Courtesy of DAIMLERCHRYSLER CORP.

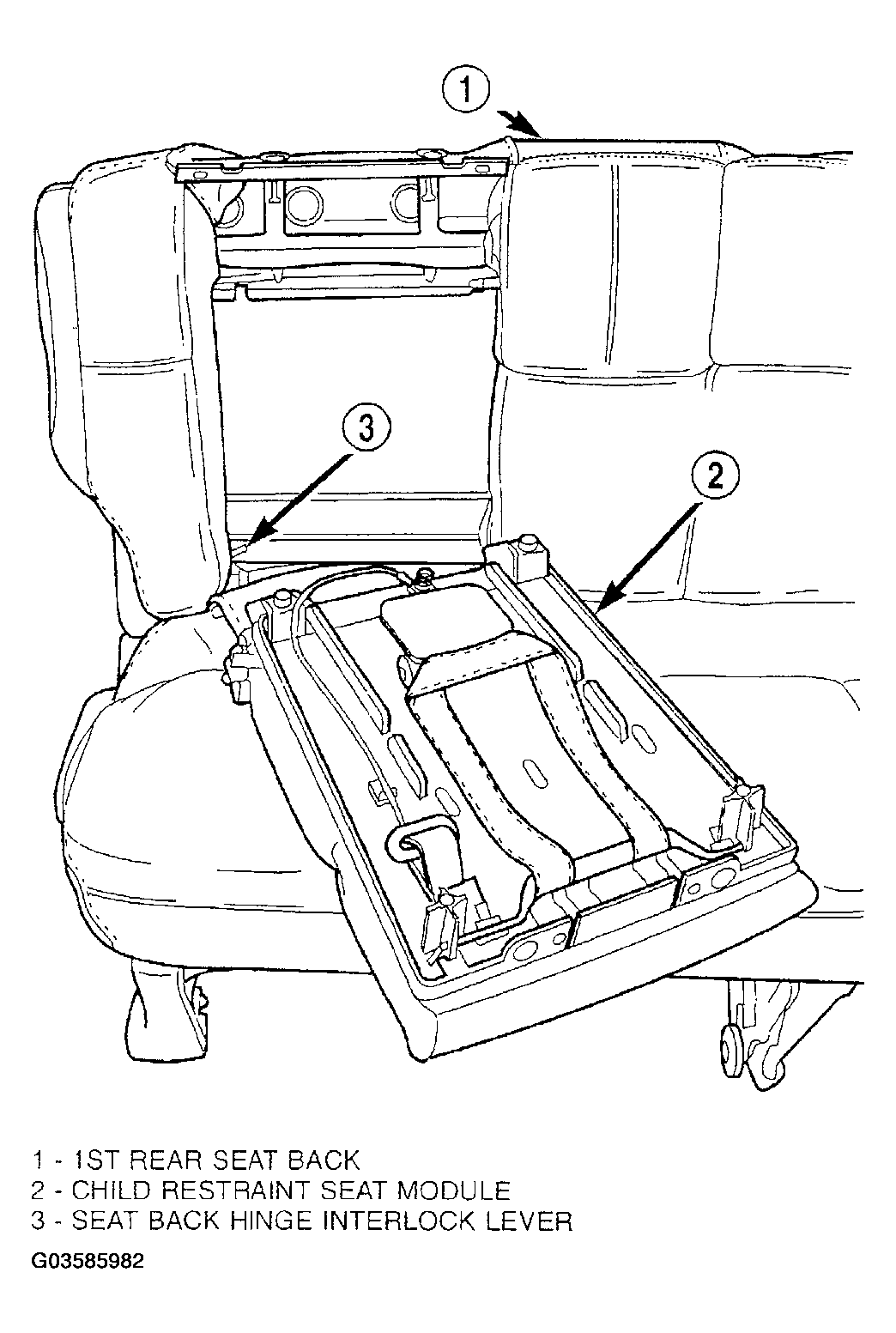

Fig 4: Identifying Child Restraint Seat Module
Courtesy of DAIMLERCHRYSLER CORP.
