Specifications - Structural Adhesive Locations: Index

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

INDEX

DESCRIPTION	FIGURE
UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL	Fig 1
ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY	Fig 2
FLOOR PAN - LONG WHEEL BASE ONLY	Fig 3
SUSPENSION HANGER REINFORCEMENTS - LONG WHEEL BASE ONLY	Fig 4
FRONT HINGE PILLAR REINFORCEMENTS - LONG WHEEL BASE ONLY	Fig 5
ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY	Fig 6
FLOOR PAN - SHORT WHEEL BASE ONLY	Fig 7
FRONT SIDE RAILS/OUTER CROSS MEMBER BRACKETS	Fig 8
OUTER ROOF PANEL/UPPER WINDSHIELD FRAME	Fig 9
COWL SIDE PANEL/BODY SIDE APERTURE, B-PILLAR/SLIDING DOOR TRACK SUPPORT	Fig 10
FRONT HINGE PILLAR REINFORCEMENT/COWL SIDE TAPPING PLATE	Fig 11
UPPER COWL PLENUM/UPPER AND LOWER DASH PANEL - RIGHT HAND DRIVE ONLY	Fig 12

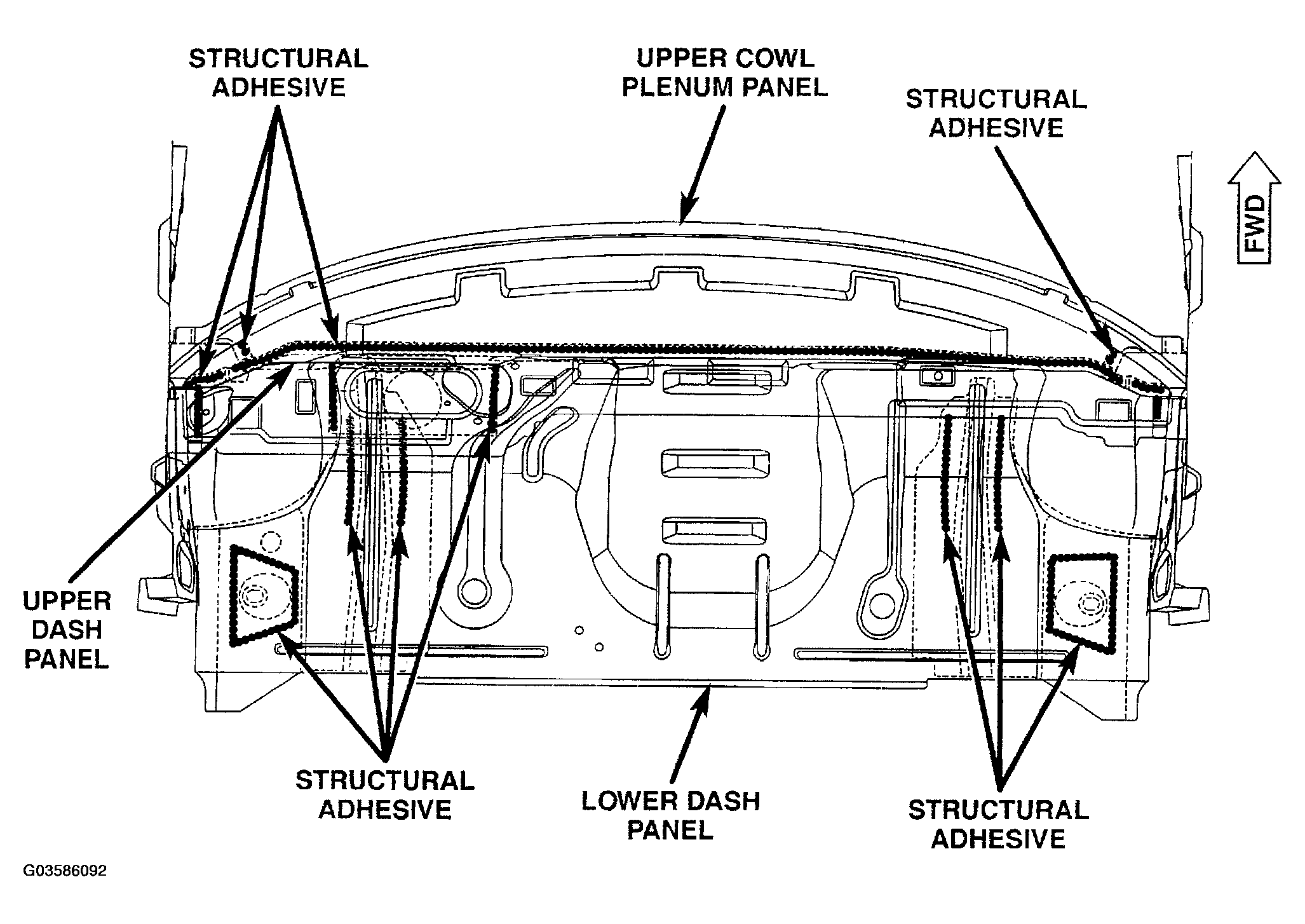

Fig 1: Identifying Upper Cowl Plenum, Upper And Lower Dash Panel

G03586092

Courtesy of DAIMLERCHRYSLER CORP.

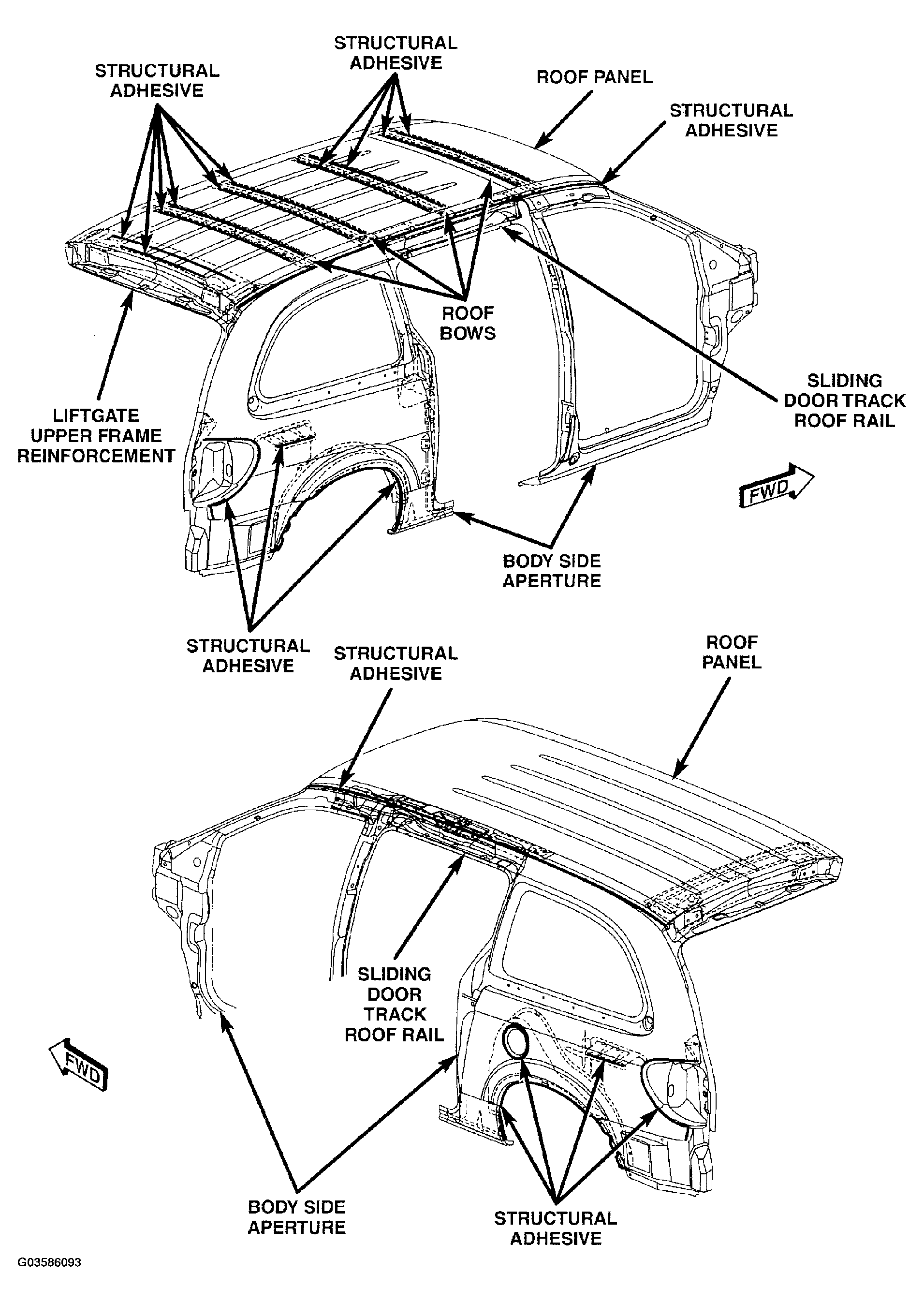

Fig 2: Identifying Roof And Rear Quarter Panels - Long Wheel Base Only

G03586093

Courtesy of DAIMLERCHRYSLER CORP.

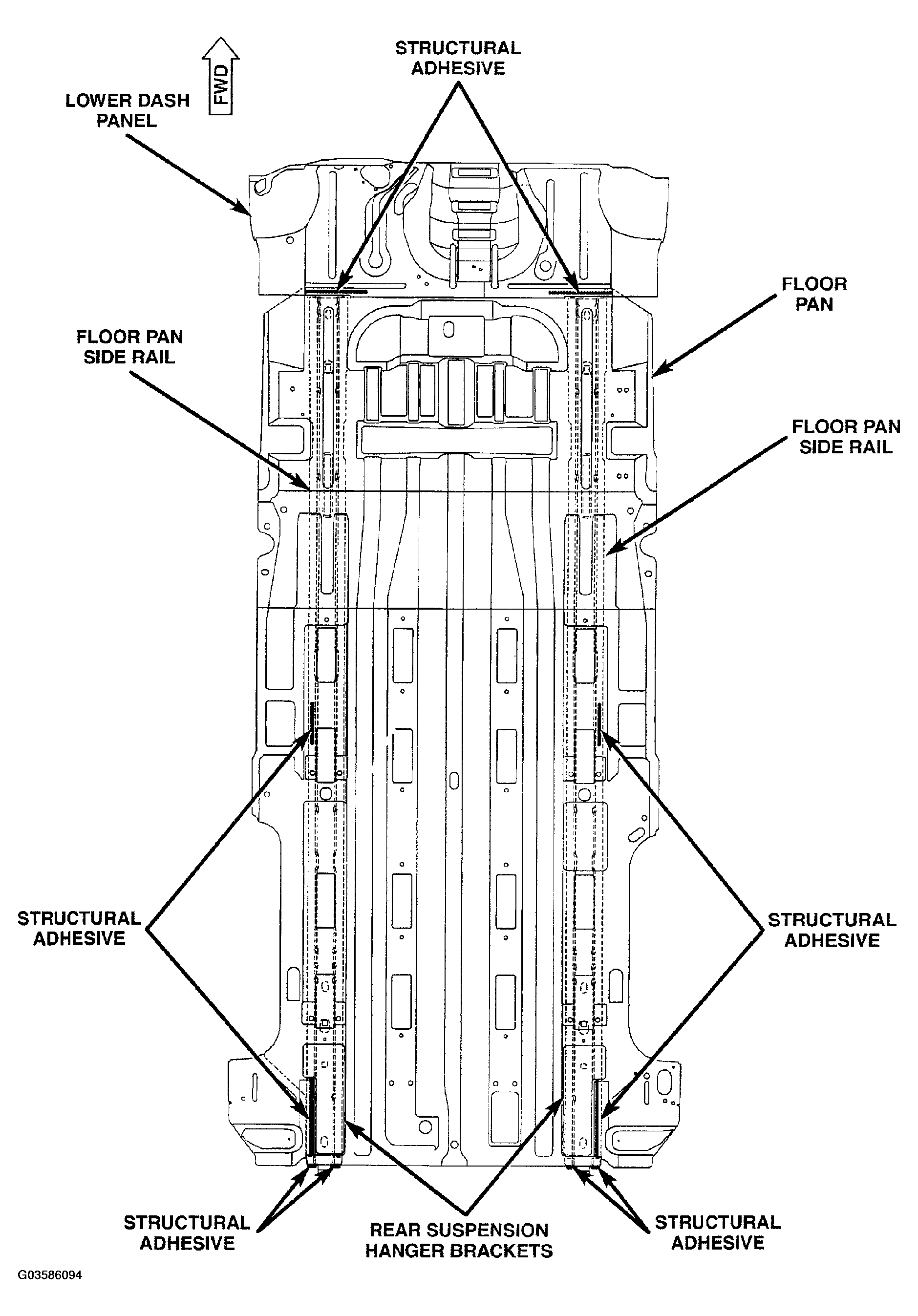

Fig 3: Identifying Floor Pan - Long Wheel Base Only

G03586094

Courtesy of DAIMLERCHRYSLER CORP.

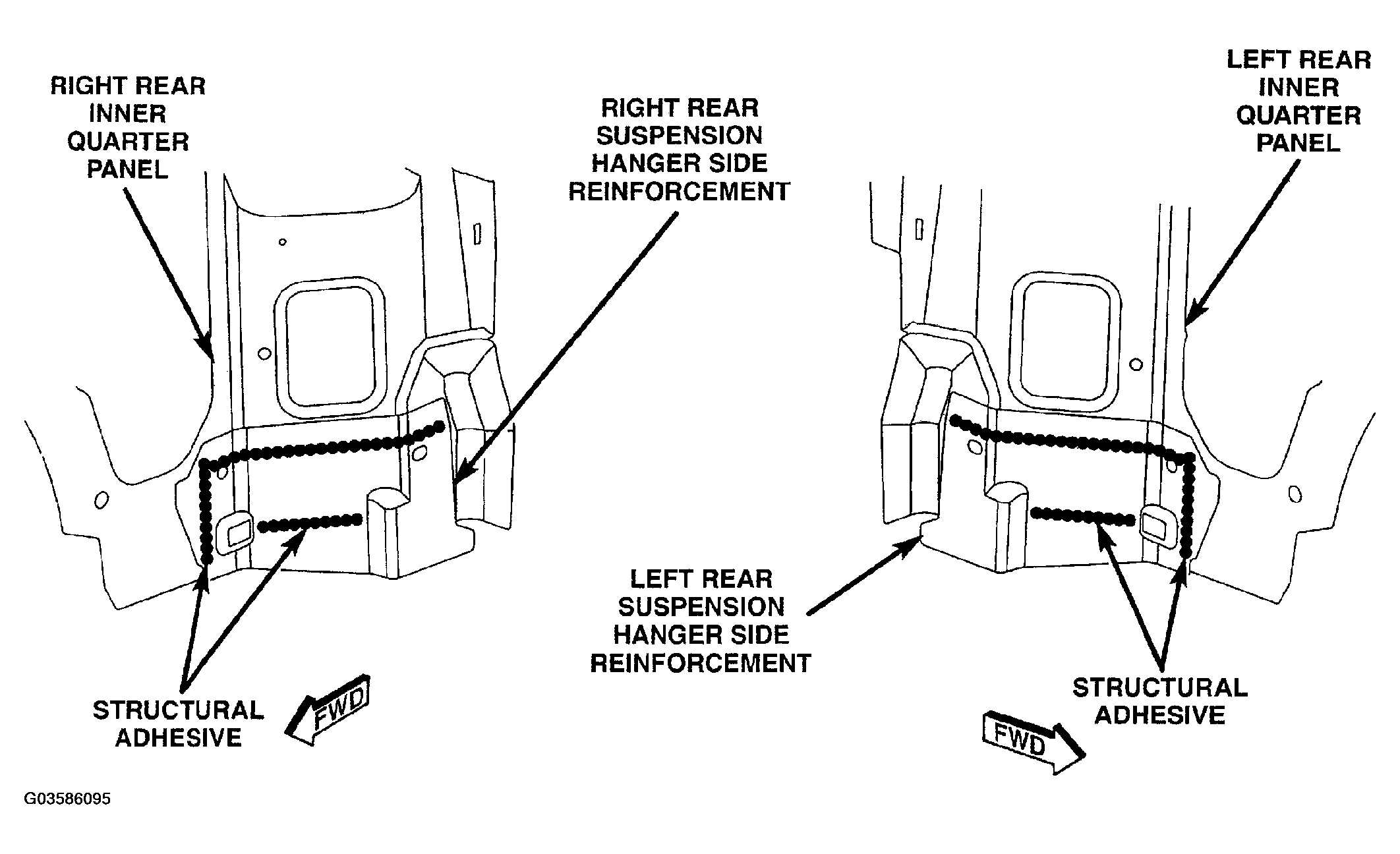

Fig 4: Identifying Suspension Hanger Reinforcements - Long Wheel Base Only

G03586095

Courtesy of DAIMLERCHRYSLER CORP.

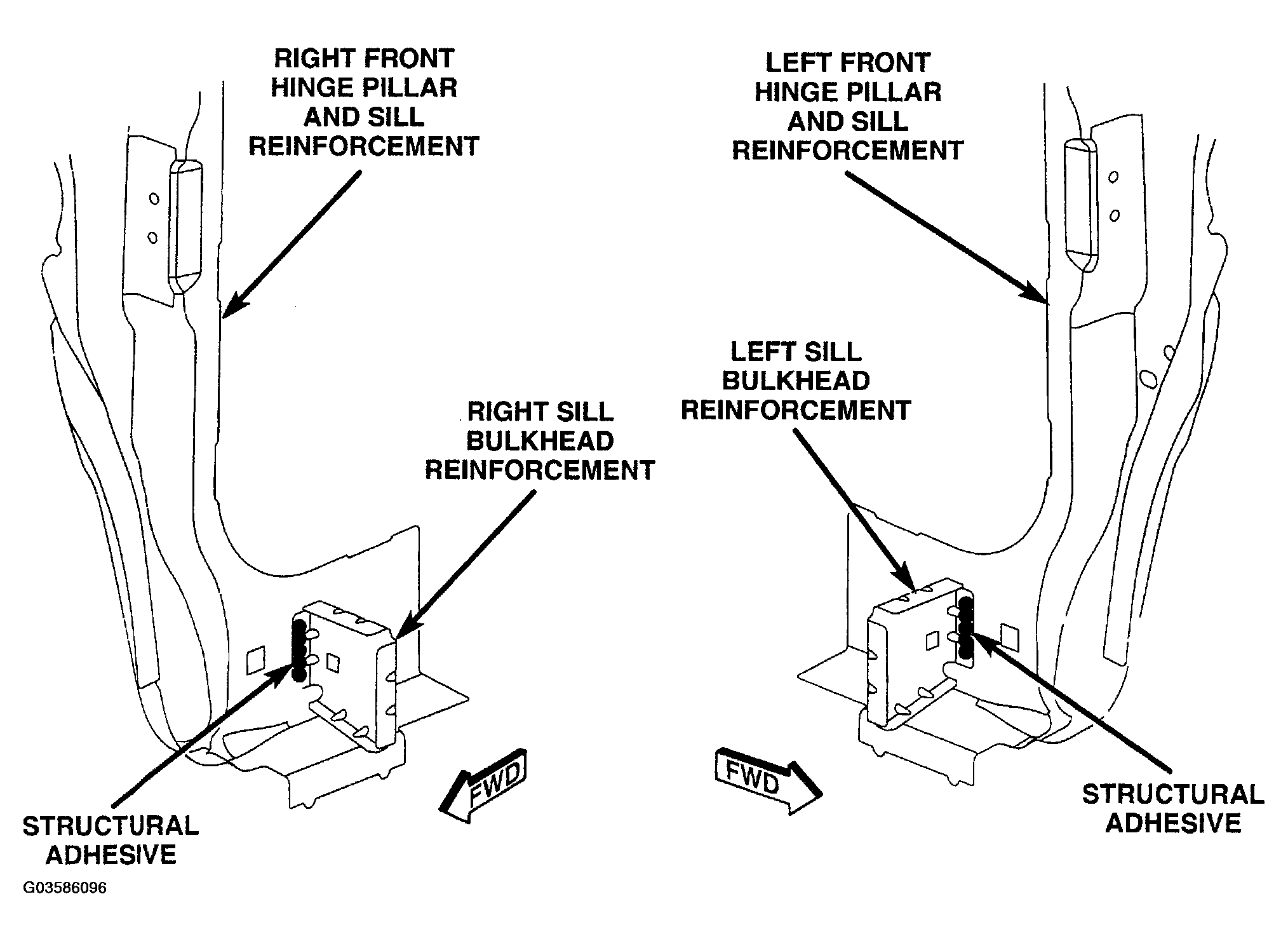

Fig 5: Identifying Front Hinge Pillar Reinforcements - Long Wheel Base Only

G03586096

Courtesy of DAIMLERCHRYSLER CORP.

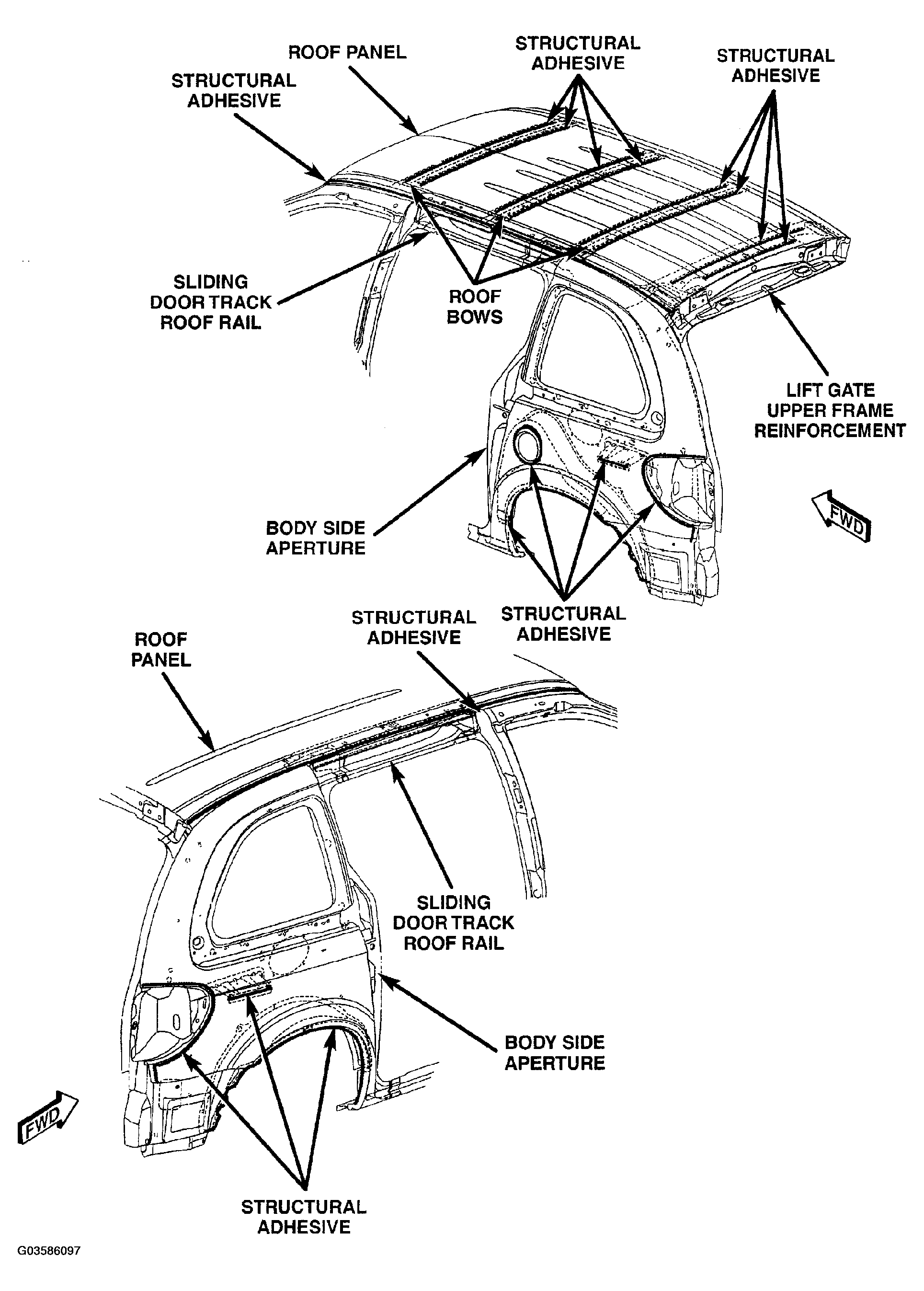

Fig 6: Identifying Roof And Rear Quarter Panels - Short Wheel Base Only

G03586097

Courtesy of DAIMLERCHRYSLER CORP.

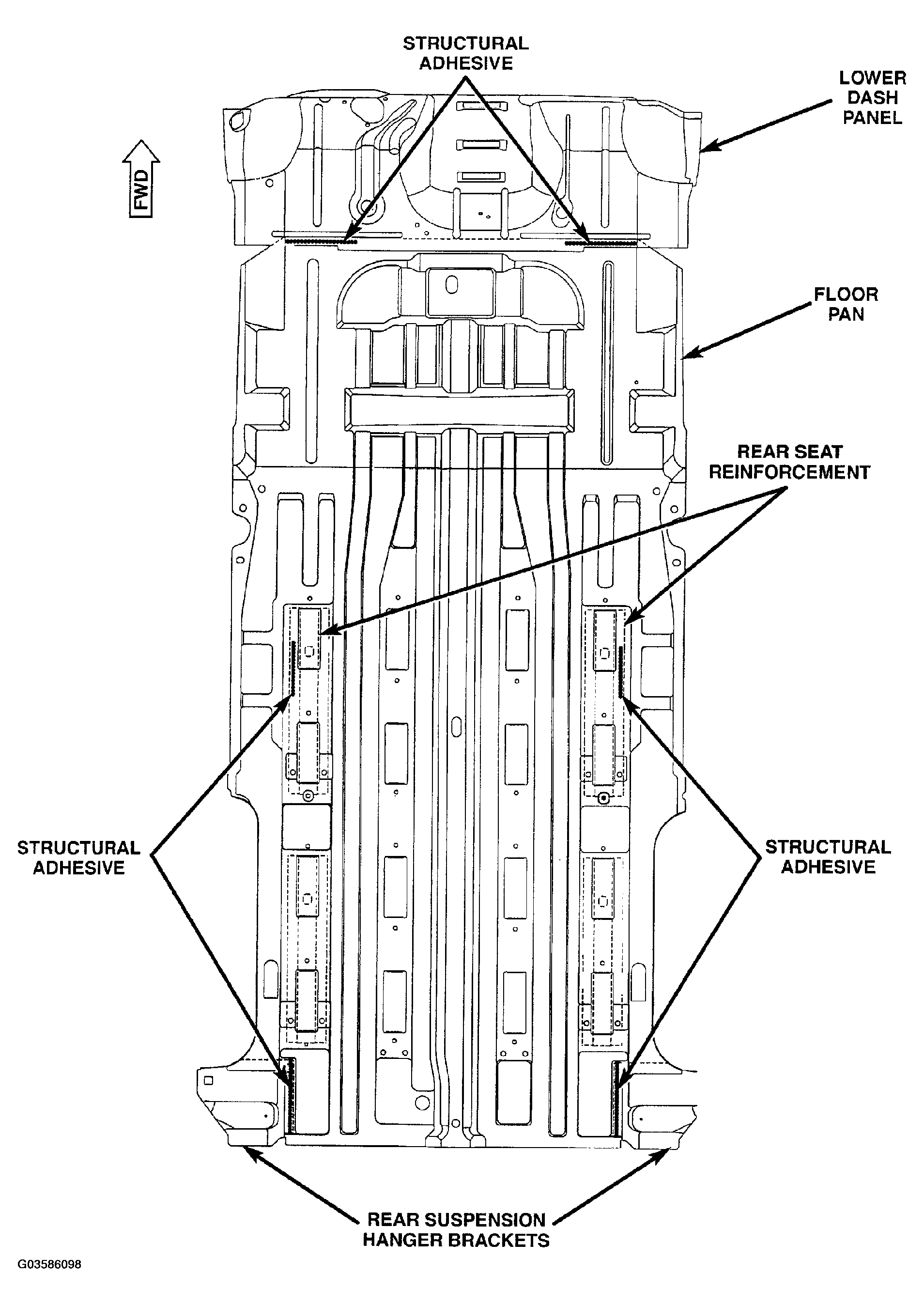

Fig 7: Identifying Floor Pan - Short Wheel Base Only

G03586098

Courtesy of DAIMLERCHRYSLER CORP.

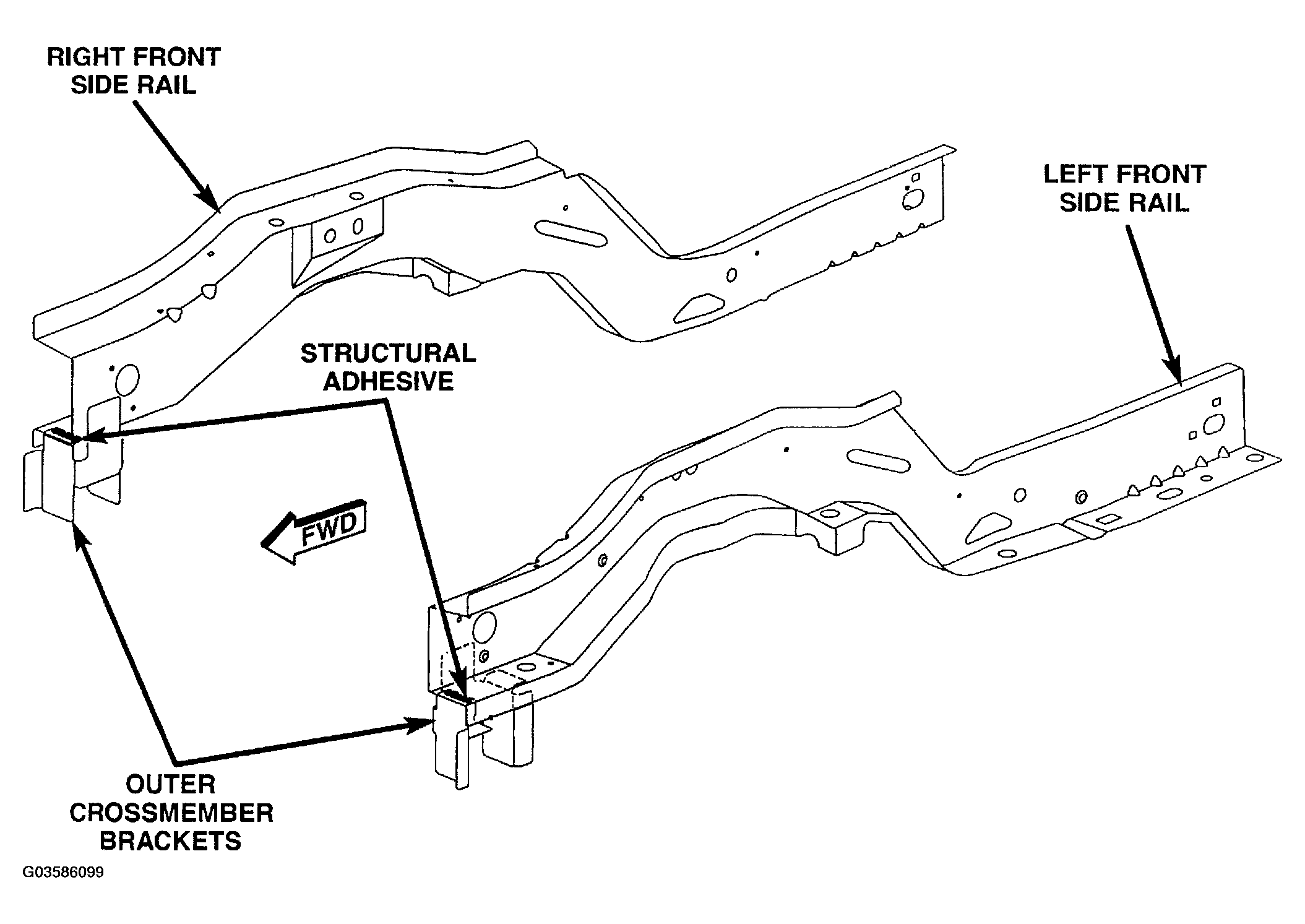

Fig 8: Identifying Front Side Rails/Outer Cross Member Brackets

G03586099

Courtesy of DAIMLERCHRYSLER CORP.

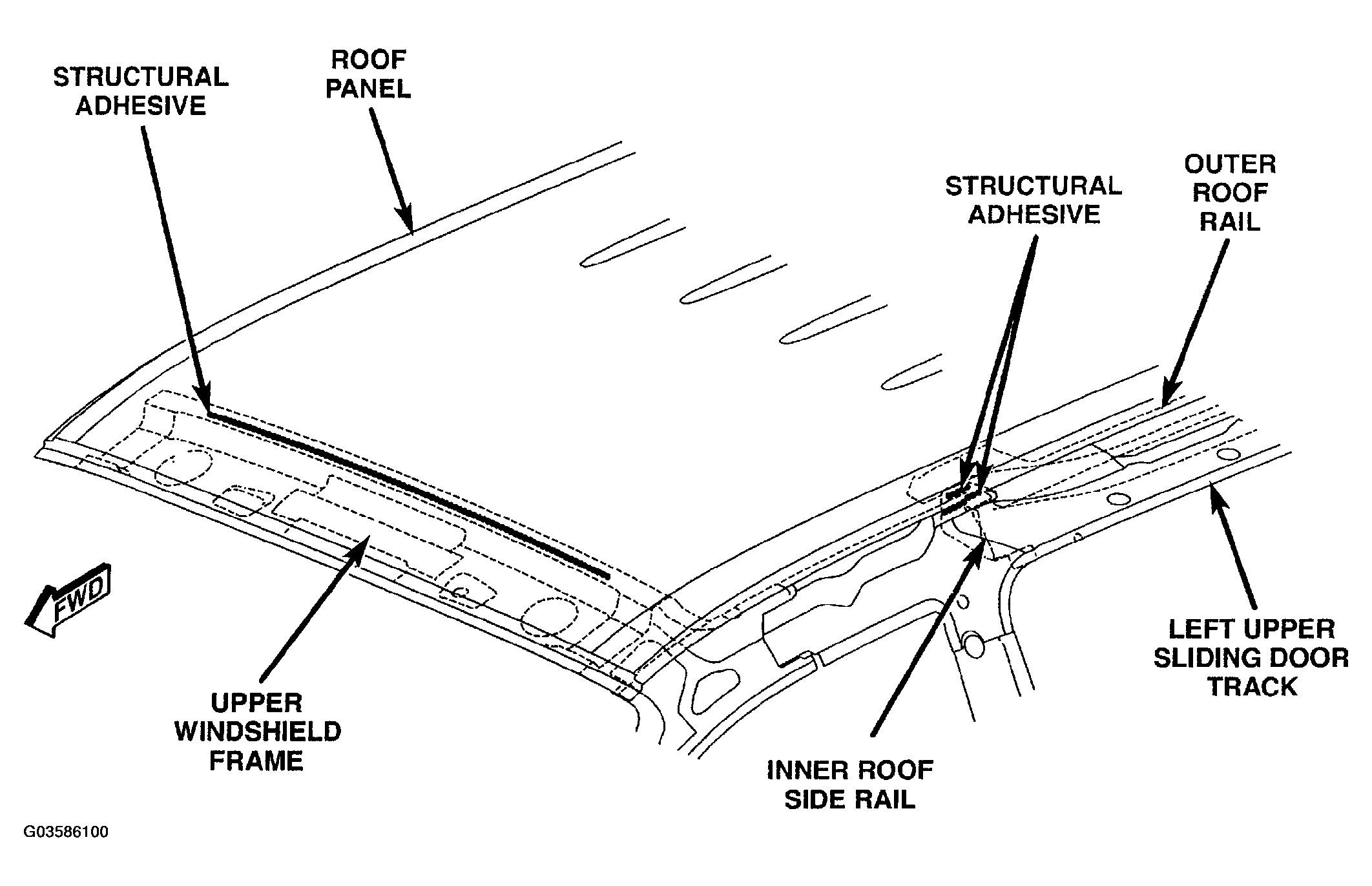

Fig 9: Identifying Outer Roof Panel/Upper Windshield Frame

G03586100

Courtesy of DAIMLERCHRYSLER CORP.

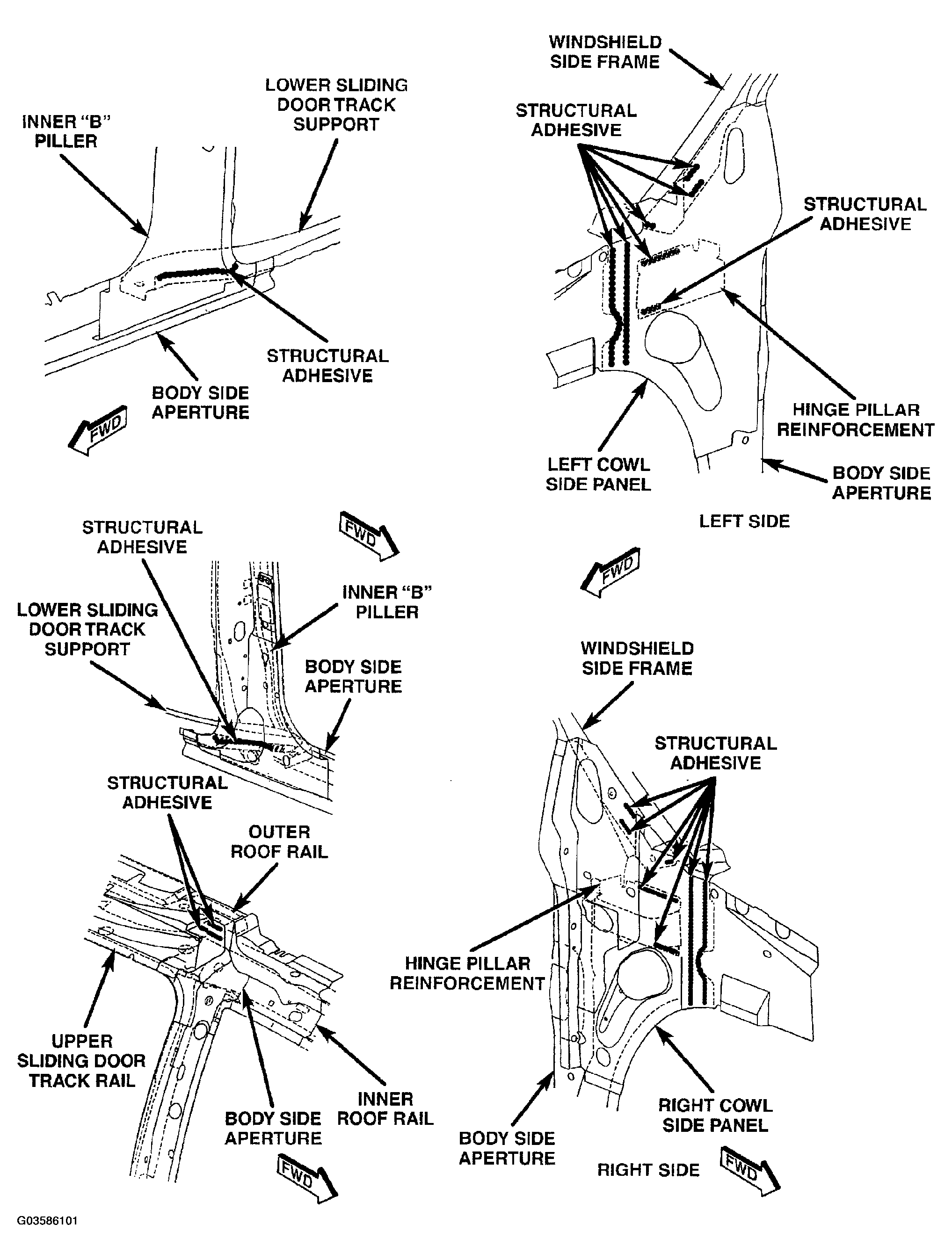

Fig 10: Identifying Cowl Side Panel/Body Side Aperture, B-Pillar/Sliding Door Track Support

G03586101

Courtesy of DAIMLERCHRYSLER CORP.

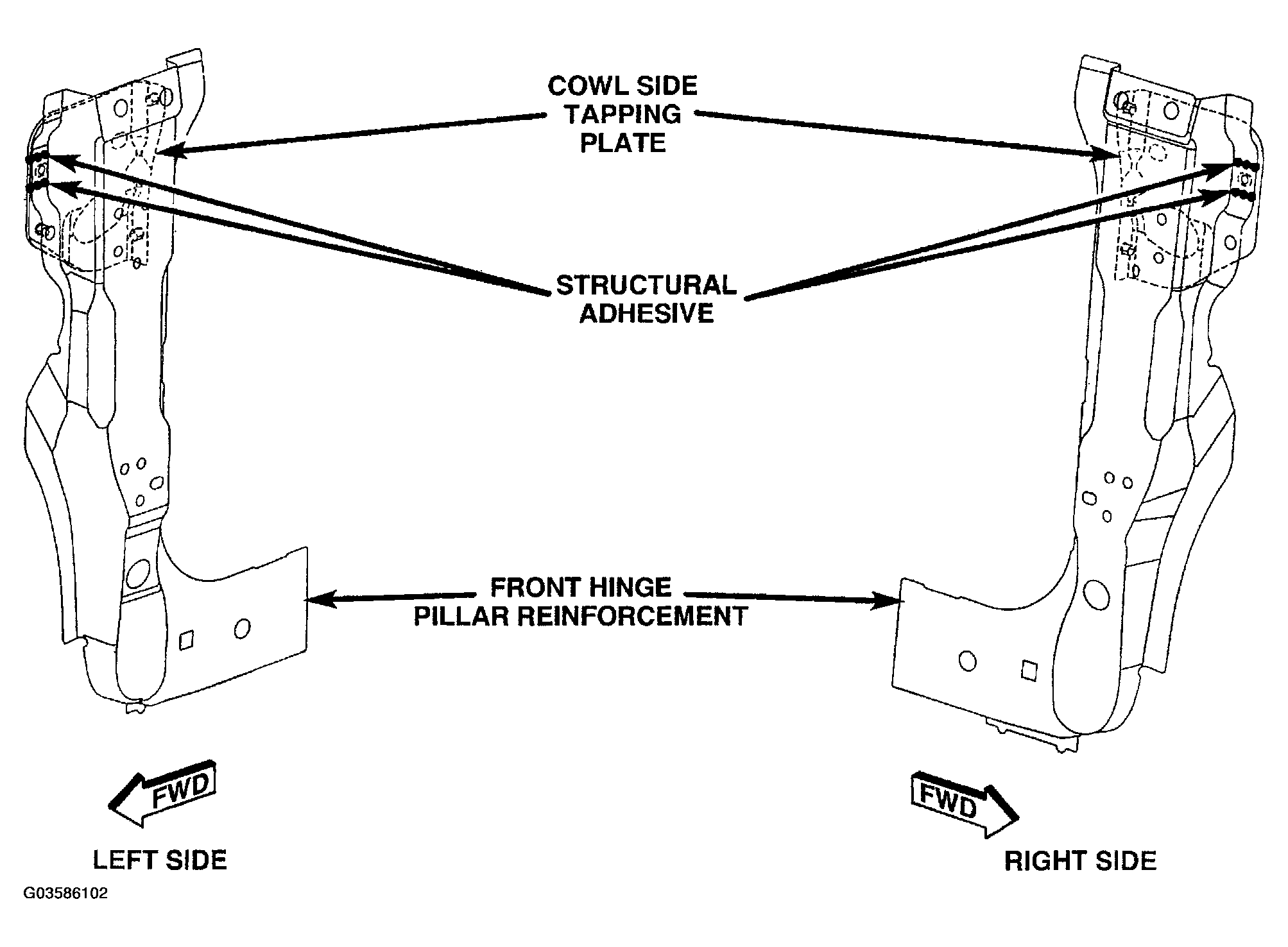

Fig 11: Identifying Front Hinge Pillar Reinforcement/Cowl Side Tapping Plate

G03586102

Courtesy of DAIMLERCHRYSLER CORP.

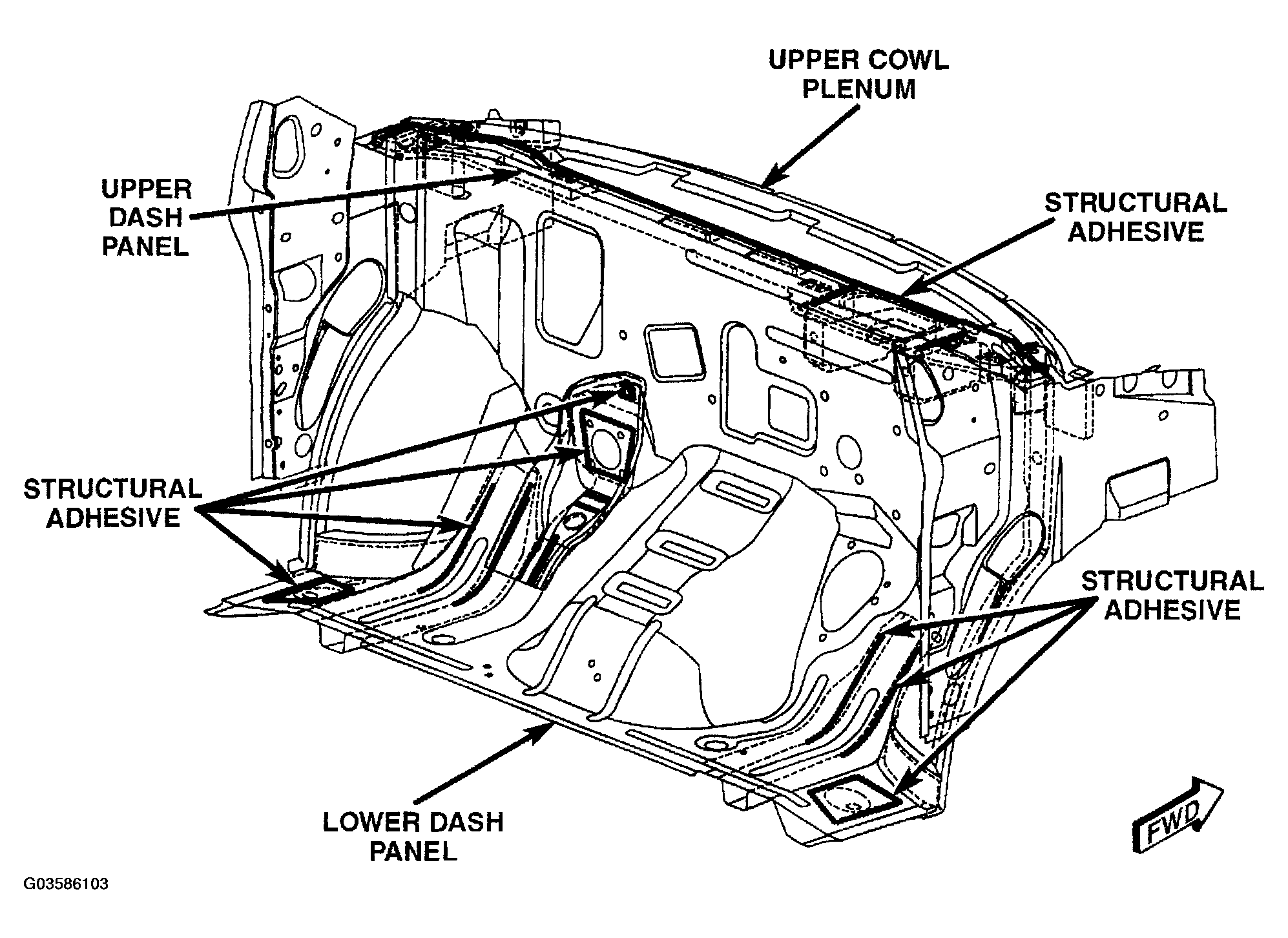

Fig 12: Identifying Upper Cowl Plenum/Upper And Lower Dash Panel - Right Hand Drive Only

G03586103

Courtesy of DAIMLERCHRYSLER CORP.
