Coolant Recovery Container: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

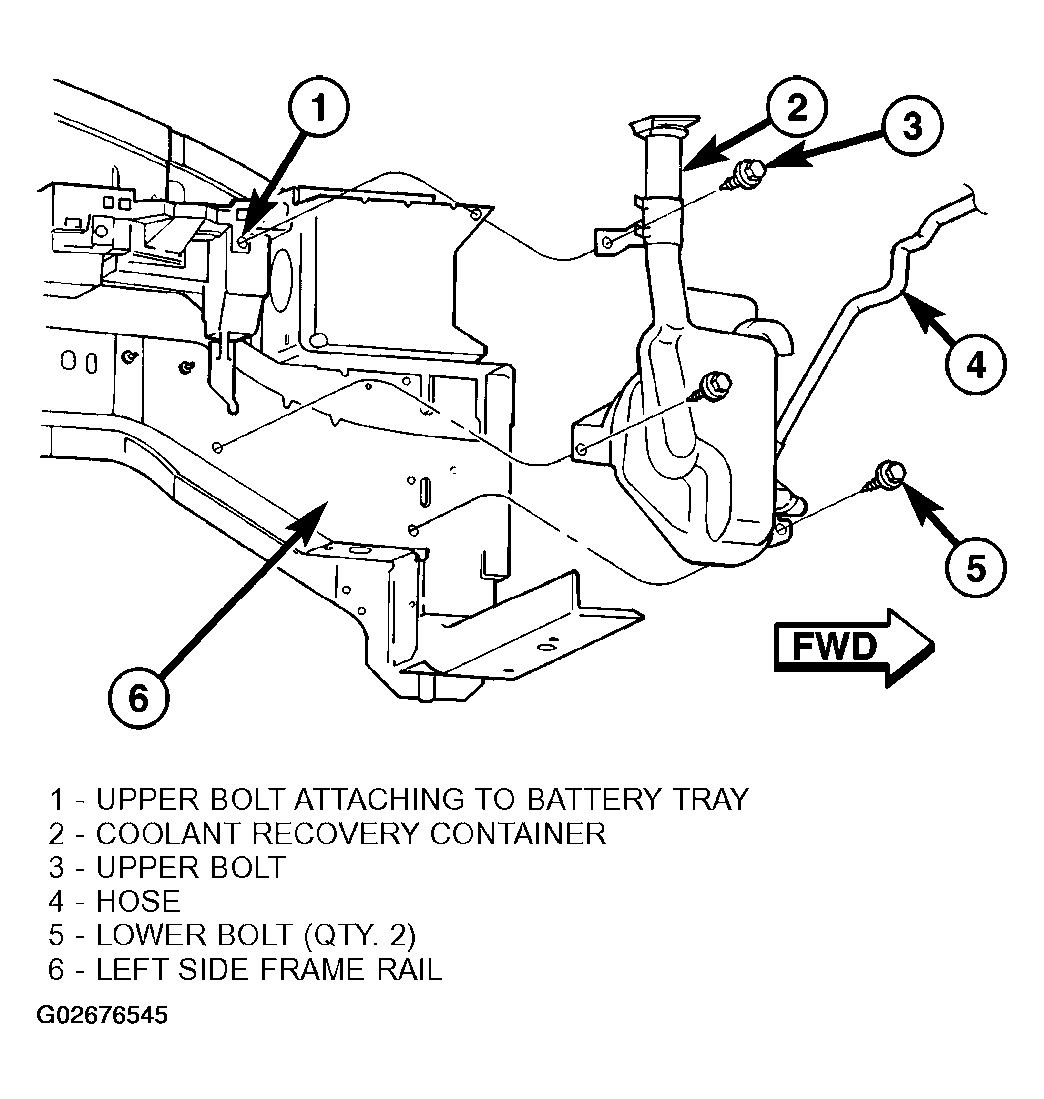

- Connect the recovery hose to container (Figure).
- Position the recovery container on the frame rail (Figure).
- Install the upper attaching screw and tighten to 7 N-m (60 in. lbs.) (Figure).
- Raise the vehicle on hoist.
- Install the lower attaching screws and tighten to 8.5 N-m (75 in. lbs.) (Figure).
- Lower the vehicle.
- Add coolant to container as necessary. (Refer to STANDARD PROCEDURE ).
