Module-Anti-Lock Brakes: Description
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

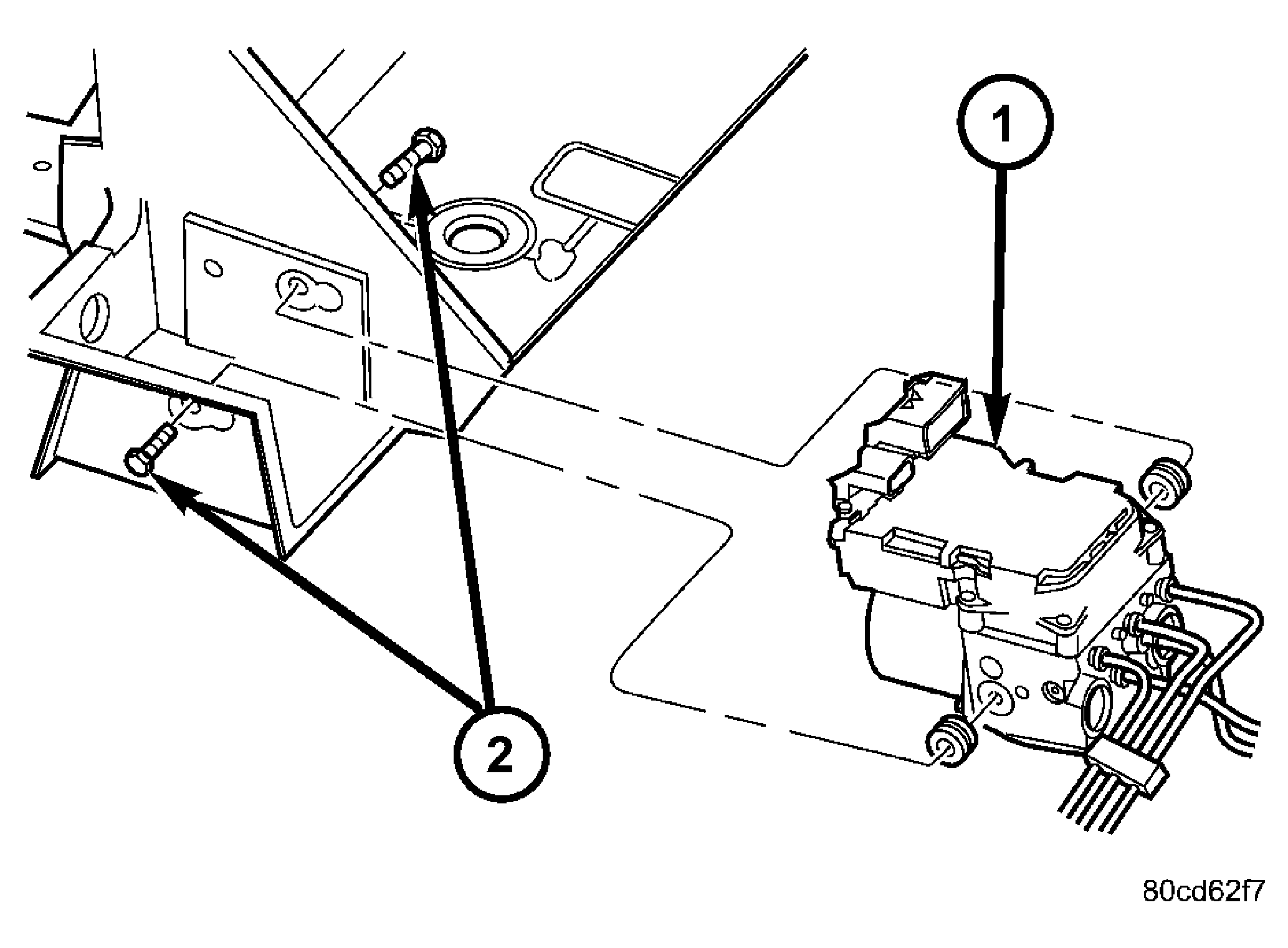

| 1 - HYDRAULIC CONTROL UNIT |
| 2 - MOUNTING BOLTS |
The Antilock Brake Module (ABM) is mounted to the Hydraulic Control Unit (HCU) and operates the ABS system. See Fig 1.
