Fuel Injection - Diesel: Sensor-Temperature/Pressure-Intake: Description
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

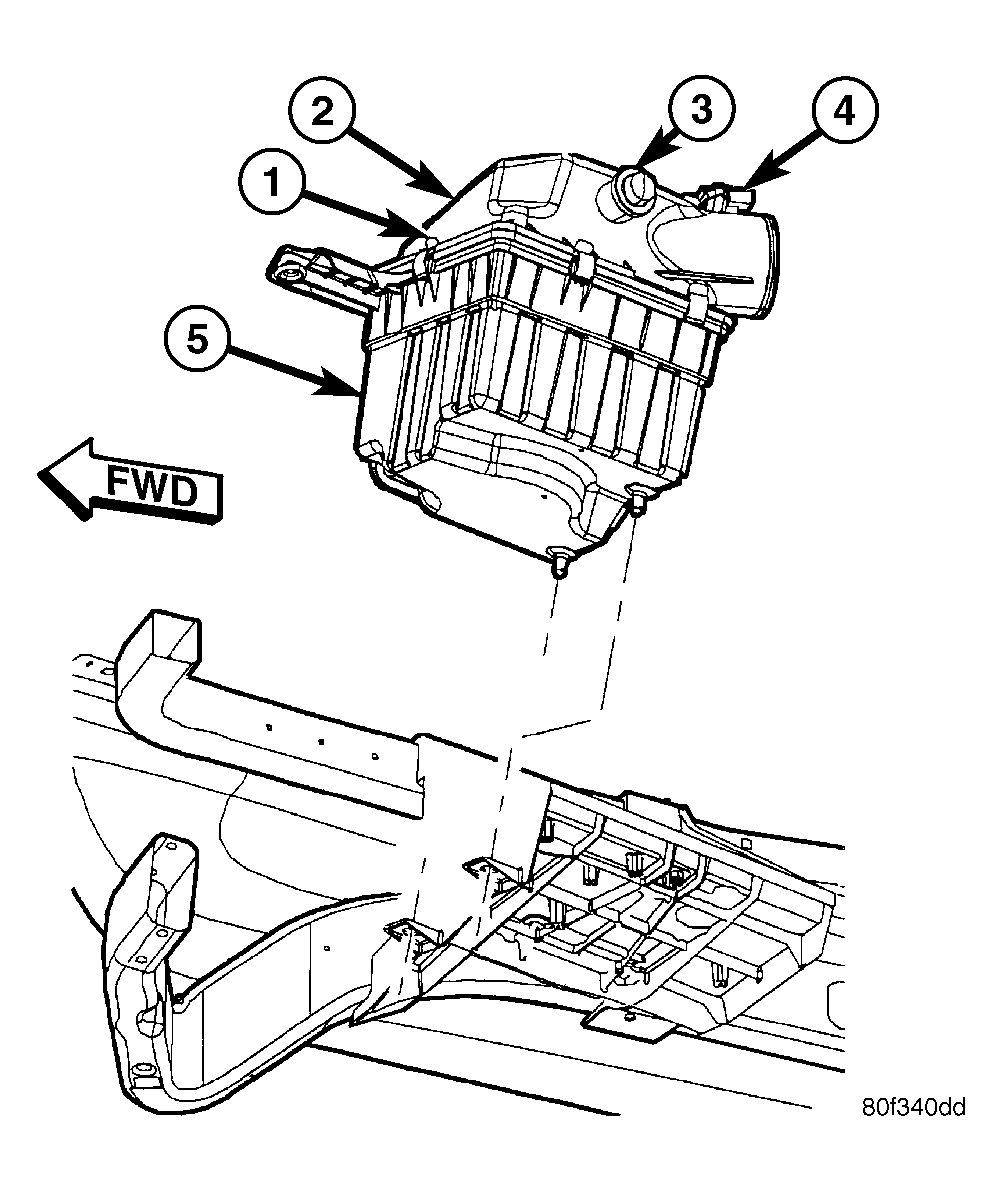

| 1 - CLIPS |
| 2 - FILTER COVER |
| 3 - FILTER MINDER(tm) |
| 4 - INLET AIR TEMPERATURE/PRESSURE SENSOR |
| 5 - FILTER HOUSING |
The combination, dual function Inlet Air Temperature/Pressure Sensor (4) is located on the air cleaner (filter) cover.
