Key Cylinder: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

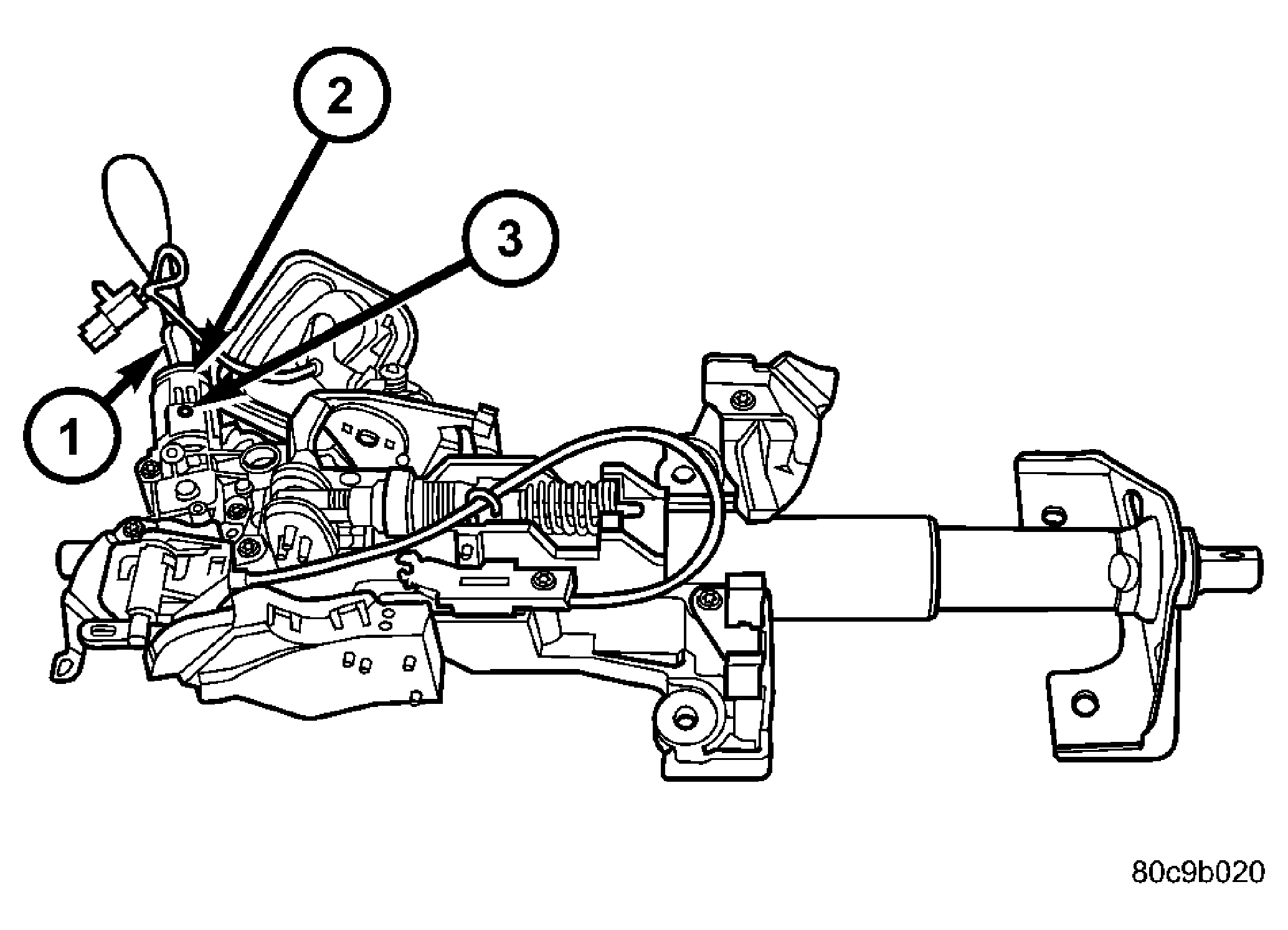

Fig 1: KEY CYLINDER

Courtesy of DAIMLERCHRYSLER CORP.

1 - KEY

2 - KEY CYLINDER

3 - RETAINING PIN HOLE

The ignition key (1) must be in the key cylinder (2) for cylinder installation.

Install the key cylinder into the housing using care to align the end of the key cylinder (2) with the ignition switch.
Push the key cylinder (2) in until it clicks.
Replace the upper and lower shrouds.
Reconnect the battery.
