Diesel Engine

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

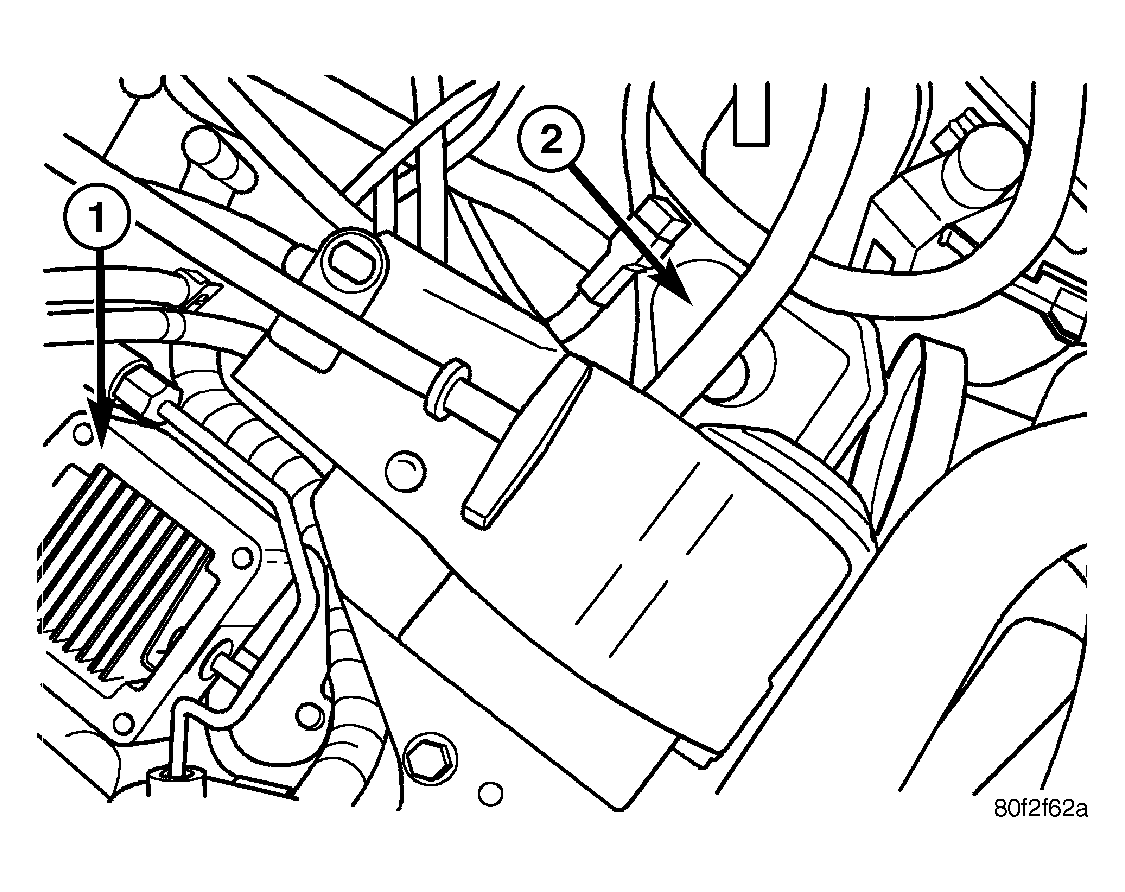

Fig 1: POWER STEERING PUMP ACCESS
GC0006856Courtesy of DAIMLERCHRYSLER CORP.
1 - INTAKE PLENUM MOUNTING
2 - POWER STEERING PUMP
  1. Set the power steering pump (2) in place in the engine compartment from the top. See Figure.
  2. Install the inner cooler tube.
  3. Tighten the inner cooler tube clamp at the radiator support side.
  4. Install the 6 intake plenum bolts (2). See Figure.
  5. Tighten the inner cooler tube clamp at the intake plenum.
  6. Install 3 pump mounting bolts through the pulley access holes. Tighten the bolts to 28 N.m (21 ft. lbs.).
  7. Tighten the pump bracket to the block.
  8. Reconnect the pressure line and return hose to the pump and reservoir. Tighten the pressure line to 37 N.m (27 ft. lbs.).
  9. Install the serpentine drive belt, (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
  10. Fill the power steering pump, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
