Gas Engine
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

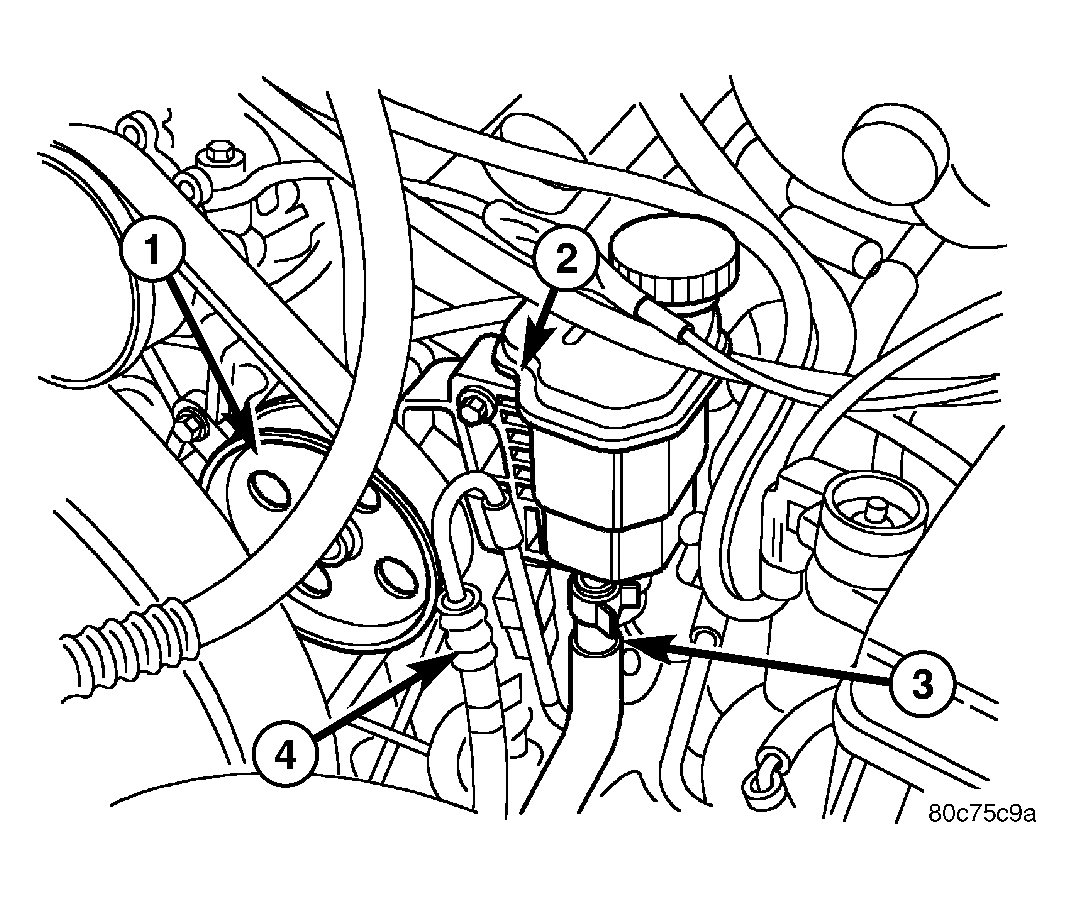

| 1 - POWER STEERING PULLEY |
| 2 - POWER STEERING RESERVOIR |
| 3 - RETURN HOSE |
| 4 - HIGH PRESSURE HOSE |
- Align the pump with the mounting holes in the left cylinder head.
- Install 3 pump mounting bolts through the pulley access holes (1). Tighten the bolts to 28 N.m (21 ft. lbs.).
- Reconnect the pressure line (4) and return hose (3) to the pump and reservoir (2). Tighten the pressure line to 37 N.m (27 ft. lbs.).
- Install the serpentine drive belt, (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
- Fill the power steering pump, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
