Opening Dimensions

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
BODY OPENING DIMENSIONS INDEX

DESCRIPTION FIGURE
WINDSHIELD OPENING Fig 1.
DOOR OPENING - STANDARD CAB Fig 2.
DOOR OPENINGS - QUAD CAB Fig 3.
REAR WINDOW OPENING Fig 4.
ENGINE COMPARTMENT/FRONT STRUCTURE Fig 5.

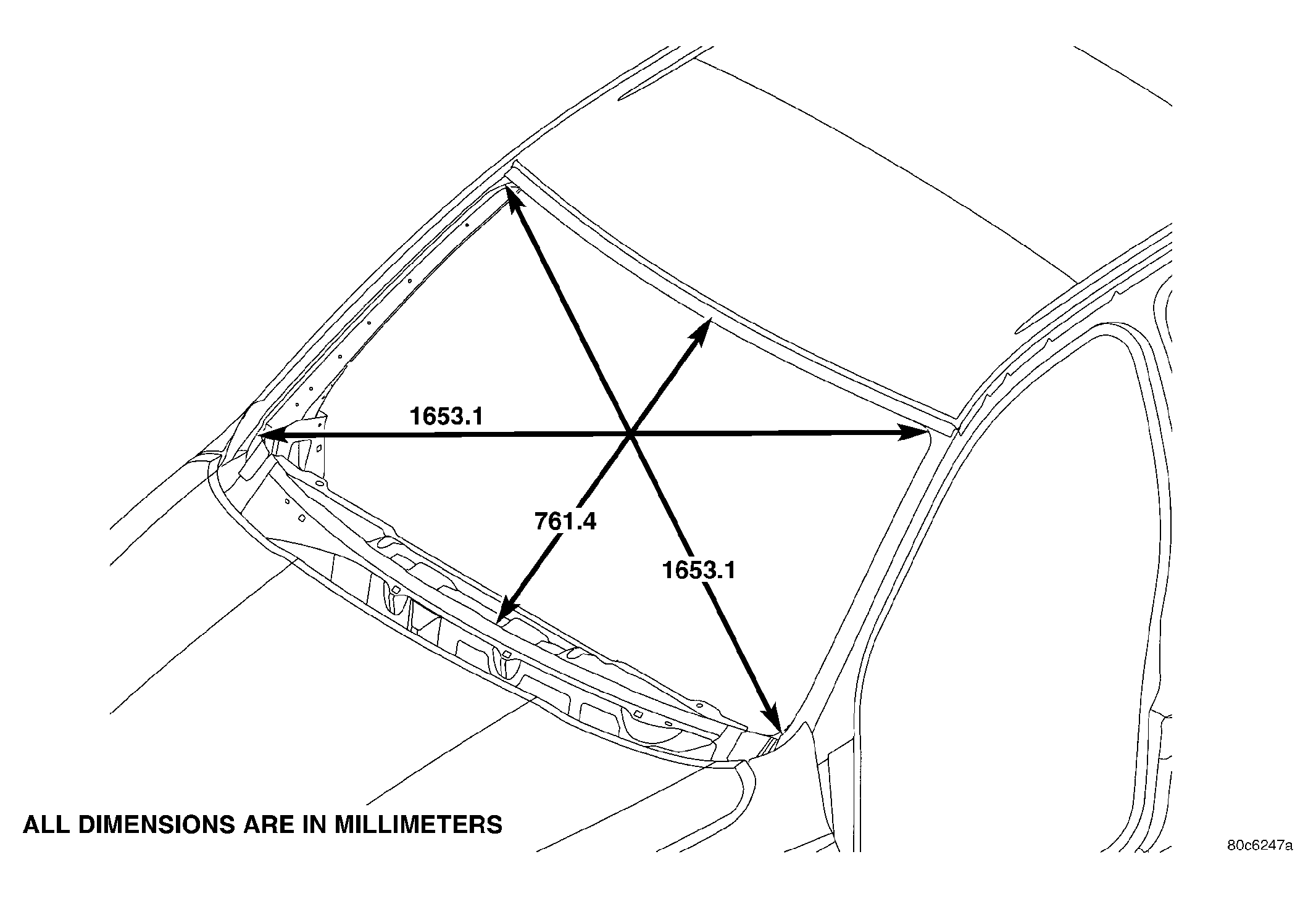

Fig 1: Identifying Windshield Opening Dimensions
GC0007138Courtesy of DAIMLERCHRYSLER CORP.

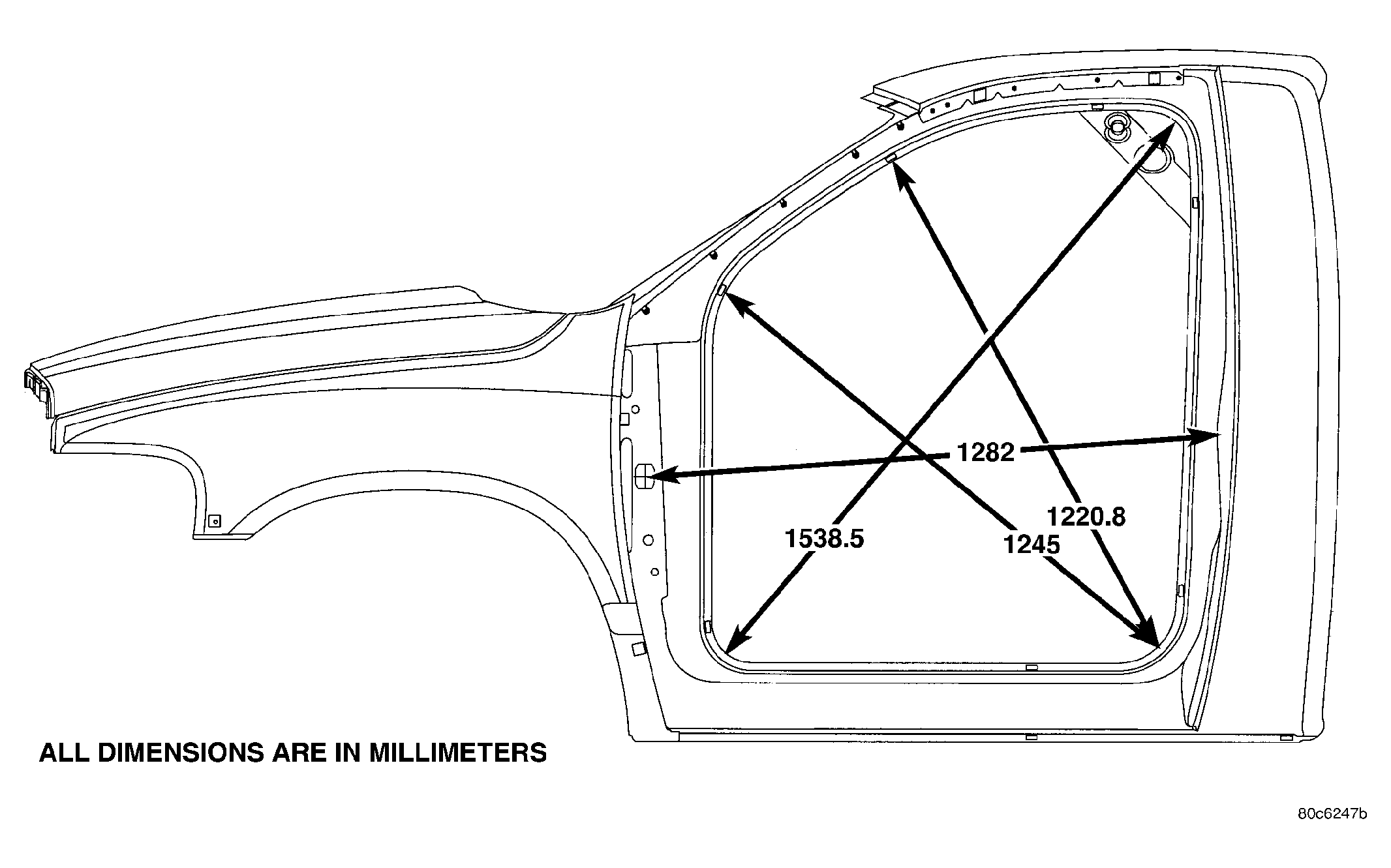

Fig 2: Identifying Door Opening Dimensions - Standard Cab
GC0007139Courtesy of DAIMLERCHRYSLER CORP.

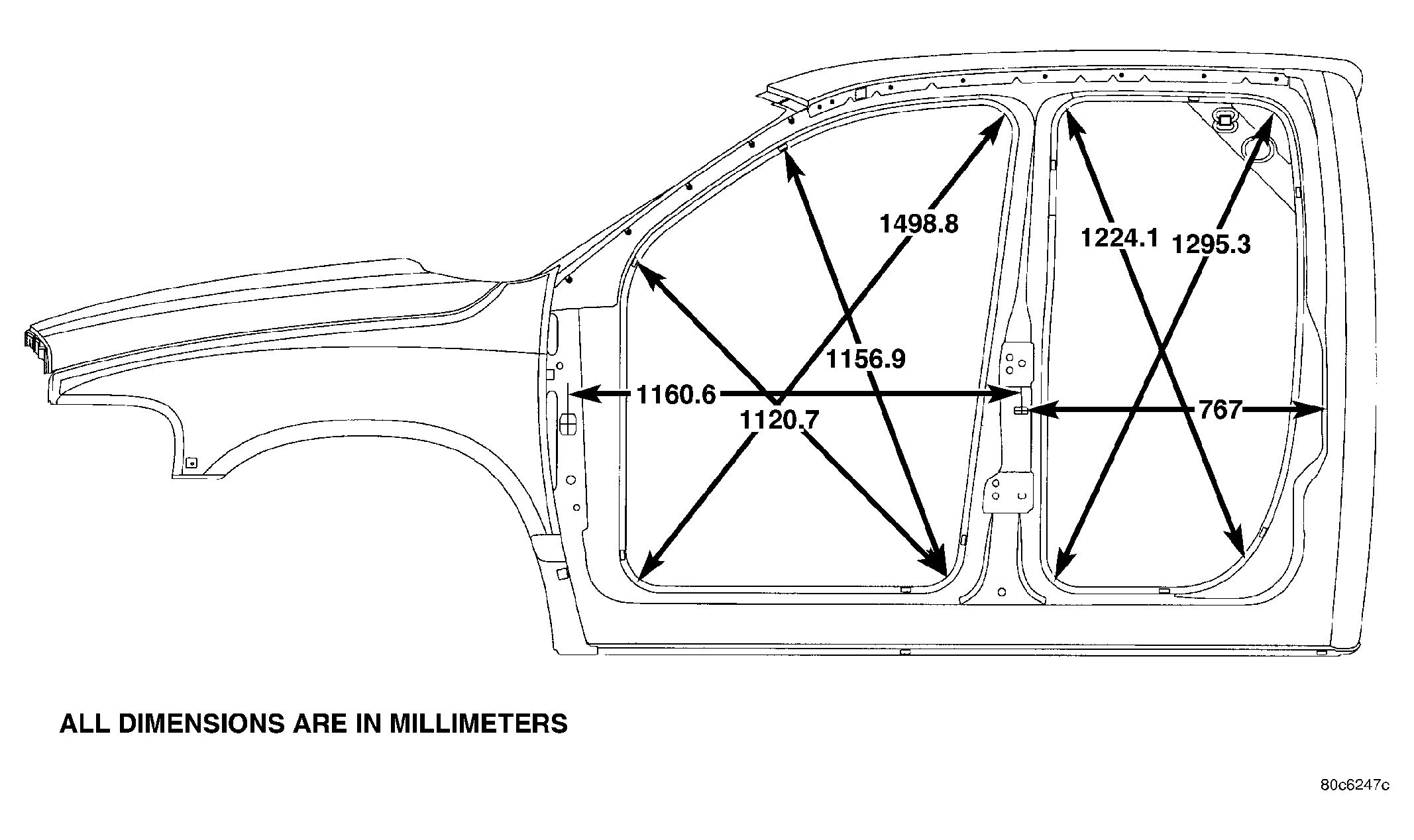

Fig 3: Identifying Door Openings Dimensions - Quad Cab
GC0007140Courtesy of DAIMLERCHRYSLER CORP.

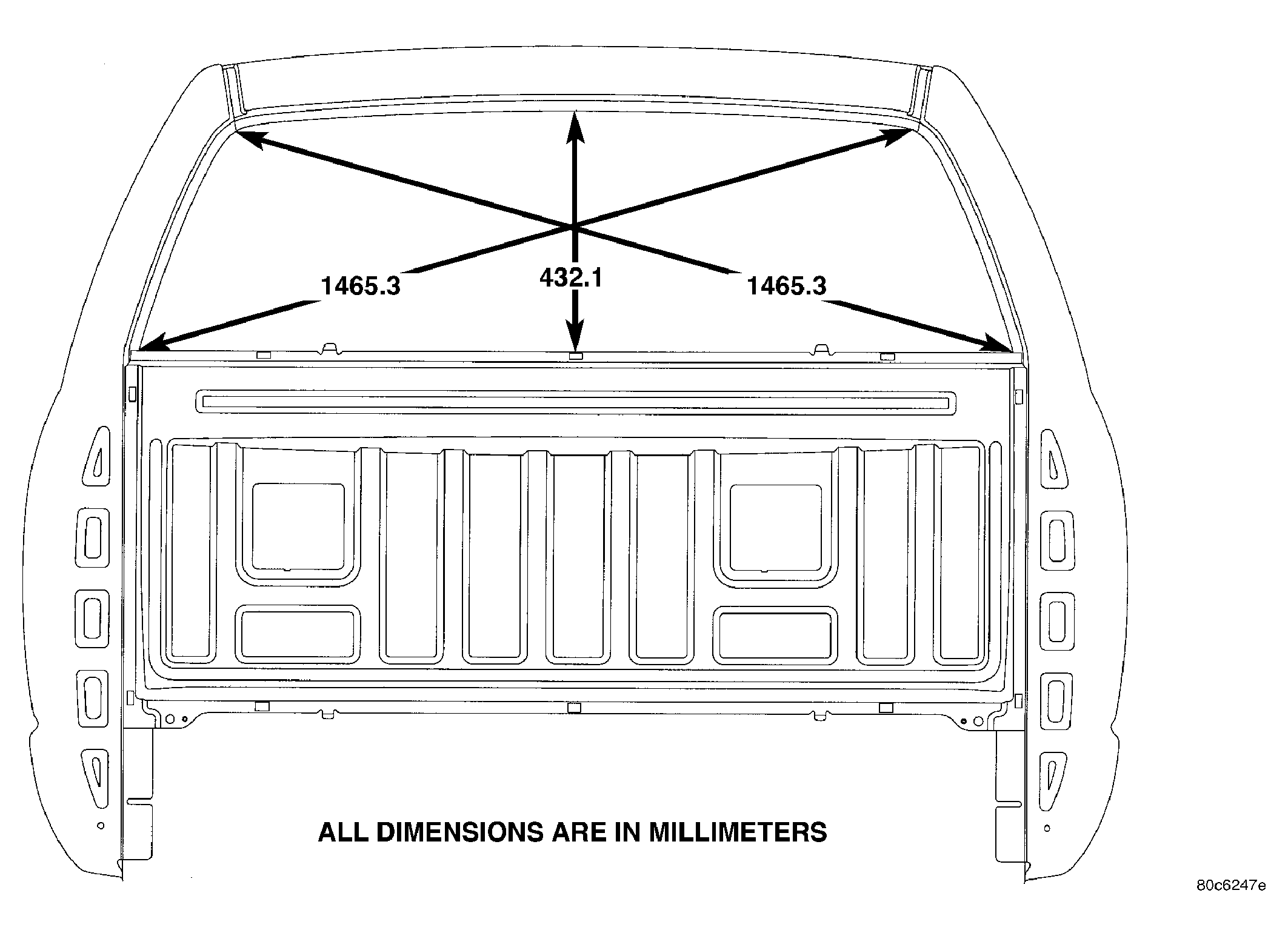

Fig 4: Identifying Rear Window Opening Dimensions
GC0007141Courtesy of DAIMLERCHRYSLER CORP.

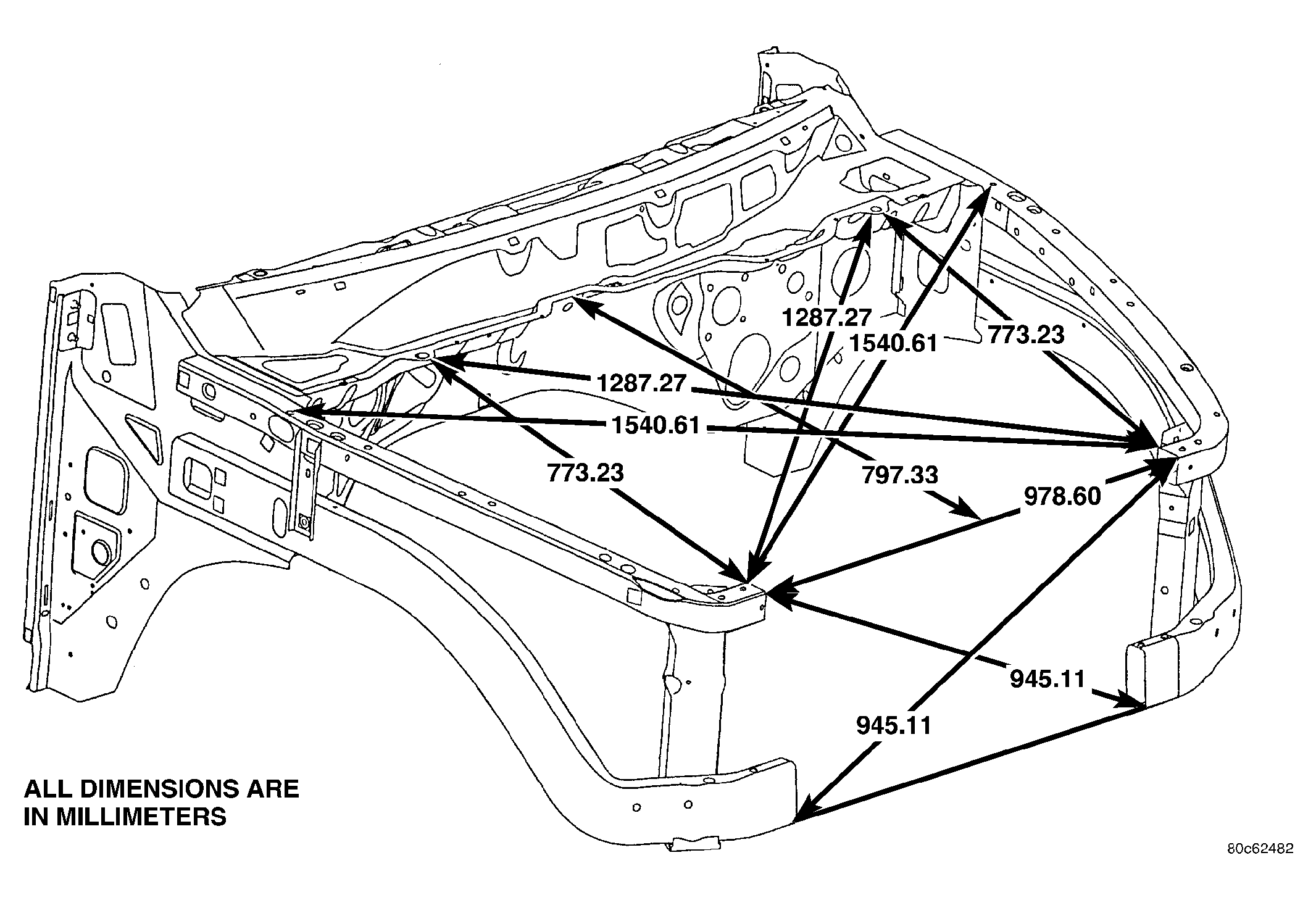

Fig 5: Identifying Engine Compartment/Front Structure Dimensions
GC0007142Courtesy of DAIMLERCHRYSLER CORP.
