Section 320 (Interior/Exterior): Tailgate: Cable-Check: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

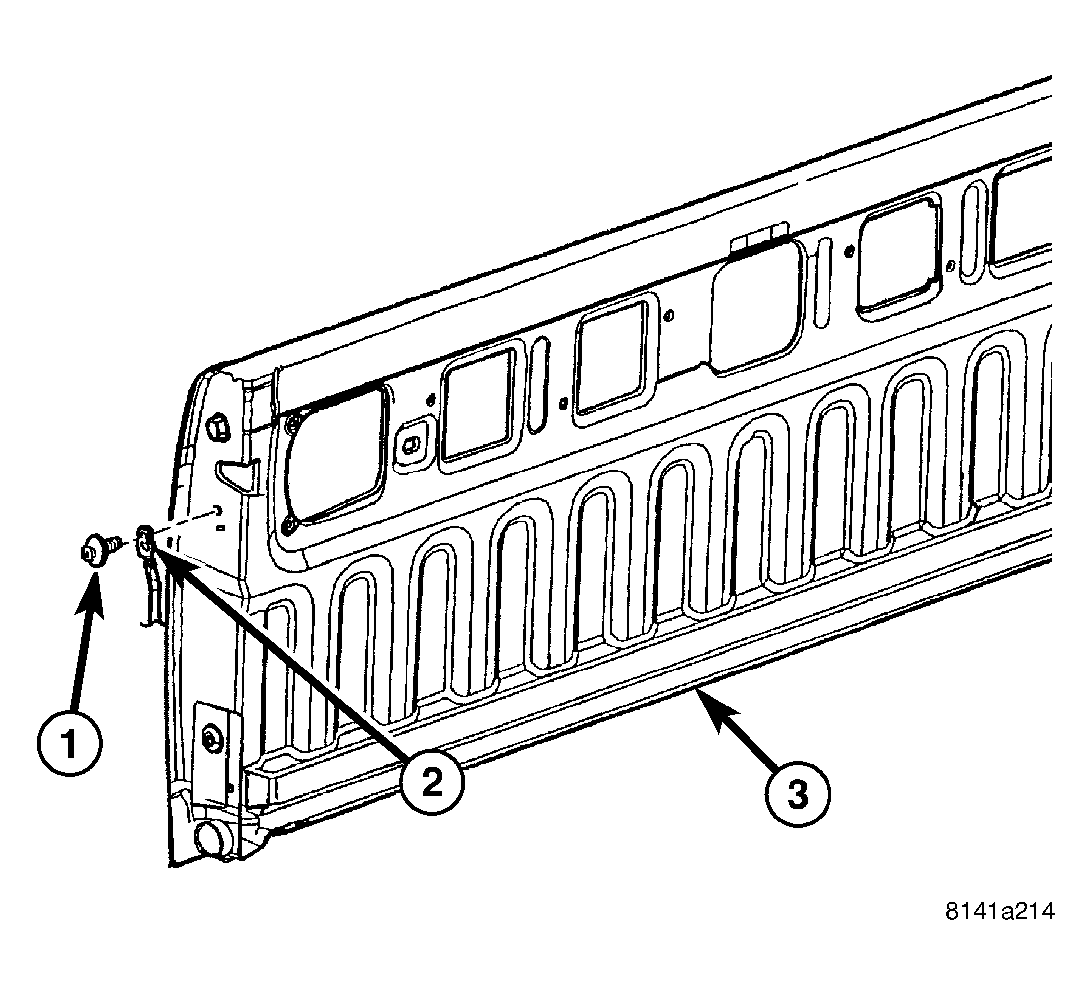

Fig 1: Identifying Tailgate Check Cable - Tailgate

Courtesy of DAIMLERCHRYSLER CORP.

Position the tailgate check cable (2) onto the left and right side of the tailgate (3) as necessary.
Install the bolt (1) that secures the small end of the tailgate check cable(s) to the tailgate. Tighten the bolt(s) to 23 N.m (17 ft. lbs.).

Fig 2: Identifying Tailgate Check Cable - Cargo Box
Courtesy of DAIMLERCHRYSLER CORP.
Position the tailgate check cable (3) to the left and right side of the cargo box below the tailgate striker (3) as necessary.
Install the large end of the tailgate check cable(s) onto the cargo box. Make sure that the cable lock tab(s) (4) fully engage.
