Module-Compass Temperature: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

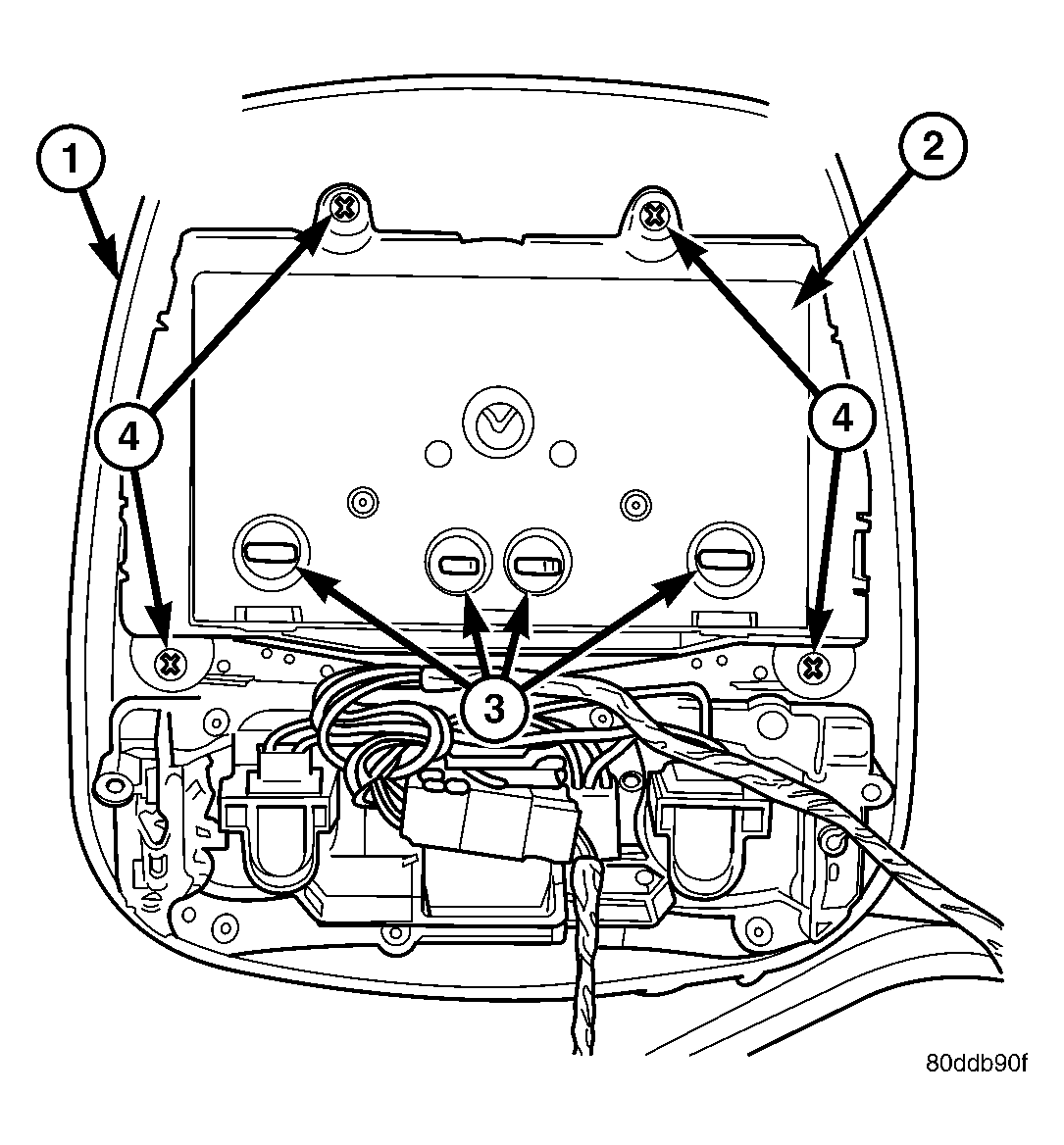

Fig 1: Removing/Installing Electronic Overhead Module
GC0008946Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console (1) from the headliner (Refer to ELECTRICAL/OVERHEAD CONSOLE - REMOVAL) .
  3. Remove the screws (4) that secure the Electronic Overhead Module (EOM) (2) to the overhead console housing (1).
  4. Disconnect the overhead console wire harness connector from the EOM connector receptacle.
  5. Remove the EOM (2) from the overhead console housing (1).
