Overhead Console - Service Information: Description: Notes

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

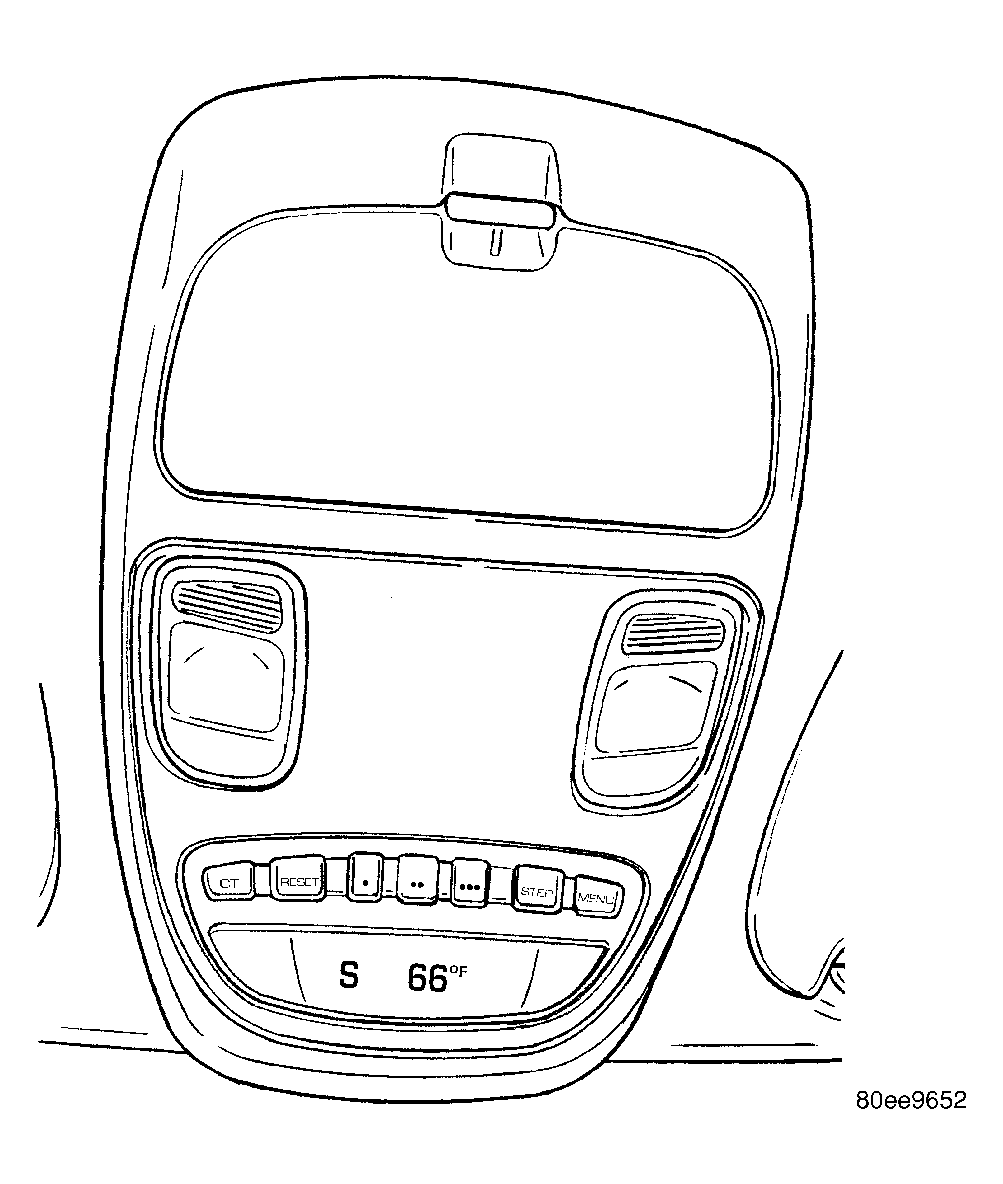

Fig 1: Identifying Overhead Console Components

Courtesy of DAIMLERCHRYSLER CORP.

An overhead console is available on this vehicle and includes the following components:

Front map/reading lamps
A blue-green vacuum-fluorescent display screen - if equipped with trip computer
Universal transmitter - if equipped
Electronic Overhead Module (EOM)

The overhead console assembly is mounted by two snap clips and screws securing it to a molded plastic retainer bracket located above the headliner. The EOM is accessed by removing the overhead console from the bracket and pulling it away from the headliner.
