Module-Compass Temperature: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a new compass mini-trip computer has been installed, the compass will have to be calibrated and the variance set. Refer to COMPASS VARIATION ADJUSTMENT  and COMPASS CALIBRATION  for the procedures.

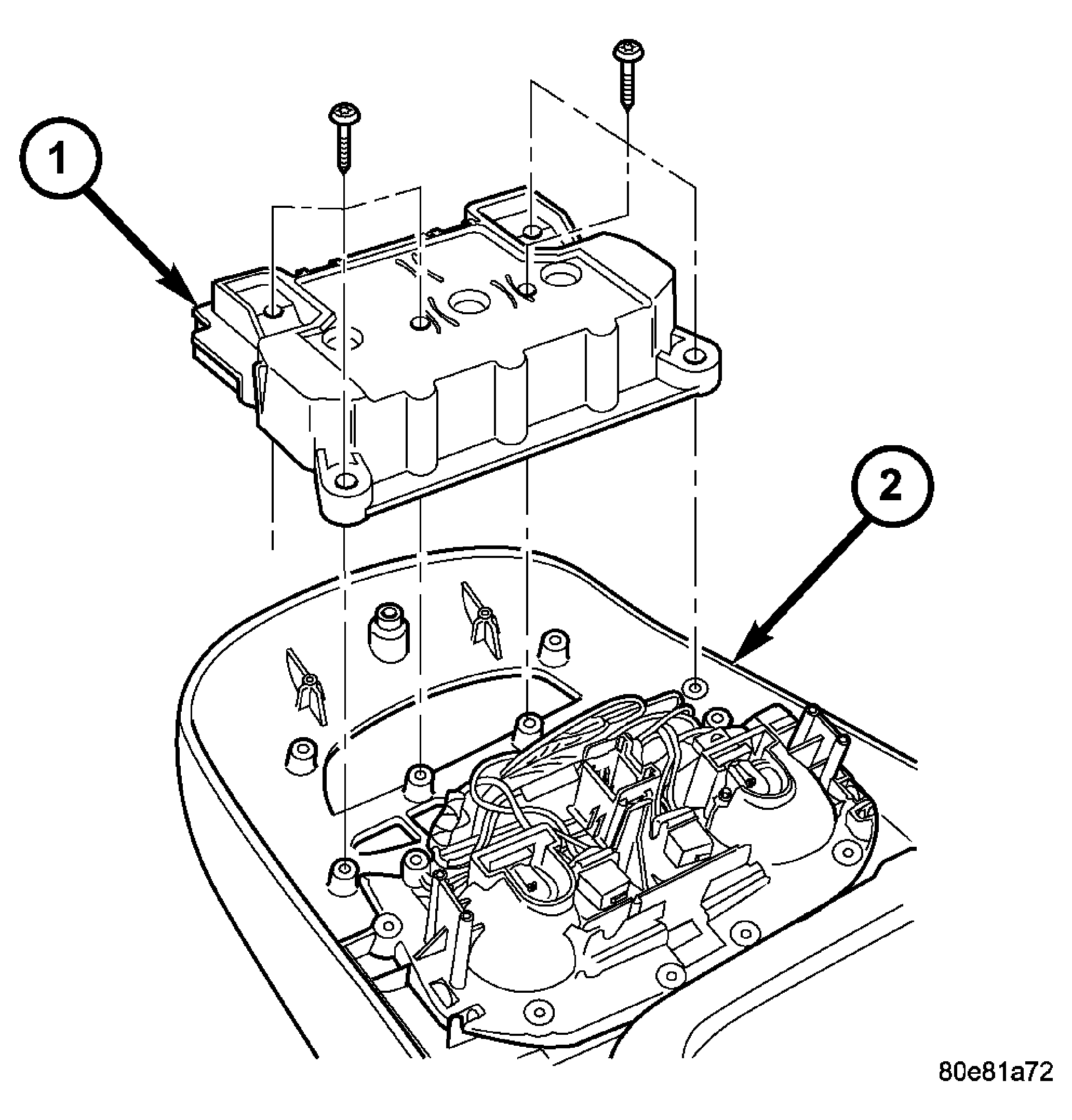

Fig 1: REMOVING/INSTALLING COMPUTER MODULE SCREWS
GC0010257Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the compass mini-trip computer module (1) onto the overhead console housing (2).
  2. Reconnect the overhead console wire harness connector to the compass mini-trip computer module connector receptacle.
  3. Install and tighten the screws that secure the compass mini-trip computer module to the overhead console housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
    Fig 2: OVERHEAD CONSOLE CONNECTORS
    GC0010253Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the overhead console (4) onto the headliner (Refer to ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION) .
  5. Reconnect the negative battery cable.
