Wiper Module: Removal

WARNING: This page is about a different car, the 2002 Dodge Grand Caravan, 2002 Dodge Caravan, 2002 Chrysler Voyager, and 2002 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the hood latch and open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Remove the wiper arms. See FRONT WIPER ARMS  .
  4. Remove the cowl cover. See COWL GRILLE  .
  5. Disconnect the positive lock on the wiper module wire connector. See Fig 1 .
  6. Disconnect the wiper module wire connector from the engine compartment wire harness.
  7. Disconnect the windshield washer hose from coupling outside the module.
  8. Disconnect the drain tubes from nipples on bottom of the wiper module.
  9. Remove the nuts holding wiper module to lower windshield fence.
  10. Remove bolts holding the wiper module to the dash panel. See Fig 2 .
  11. Lift wiper module from weld-studs on lower windshield fence.
  12. Remove wiper module.
Fig 1: Locating Wiper Module Connector
G95B35882Courtesy of CHRYSLER CORP.

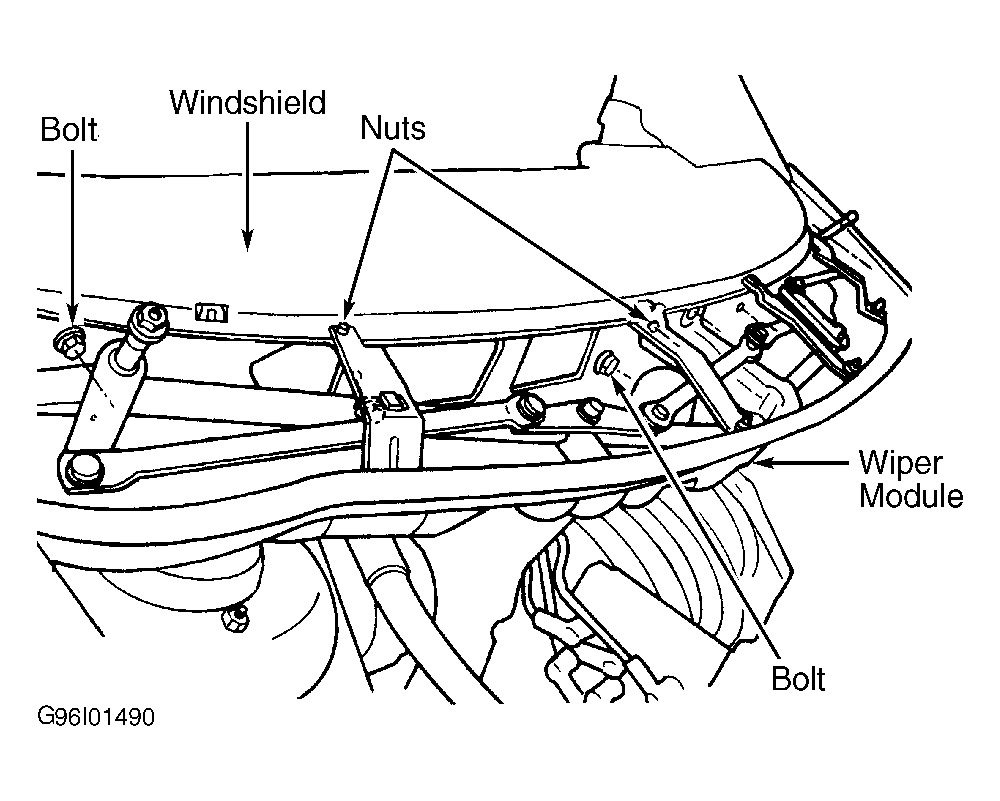

Fig 2: Locating Wiper Module
G96I01490Courtesy of CHRYSLER CORP.
