Section 85 (Wheel Alignment Specifications & Adjustment Procedures): Description: Toe
WARNING: This page is about a different car, the 2004 Dodge Pickup, 2004 Dodge Cab & Chassis, 2003 Dodge Pickup, and 2003 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

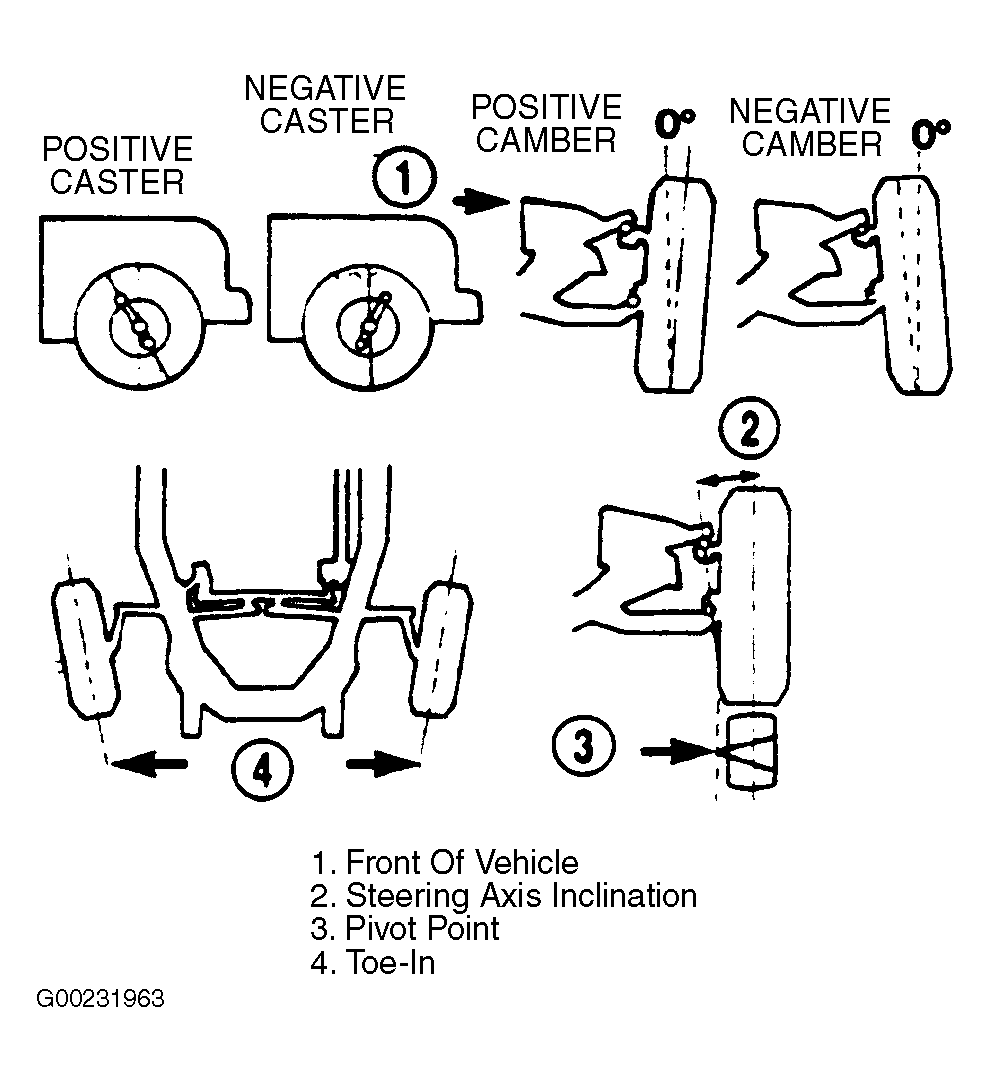

Toe is inward or outward angle of wheels as viewed from above vehicle. See Figure .
- Toe-in is produced when front edges of wheels on same axle are closer together than rear edges.
- Toe-out is produced when front edges of wheels on same axle are farther apart than rear edges.
- Toe-in and toe-out can occur at front wheels and rear wheels. Toe is measured in degrees or inches. The measurement identifies amount that front of wheels point inward (toe-in) or outward (toe-out). Toe is measured at spindle height. Zero toe means front and rear edges of wheels on same axle are equally distant.
