Section 89 (Automatic Transmission Servicing): Identification: Transmission

WARNING: This page is about a different car, the 2004 Dodge Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Transmission identification numbers are stamped on left side of transmission case, just above the oil pan gasket surface. See Fig 1 or Fig 2 . Identification numbers may be required when ordering replacement components. Note that transmission components may not be interchangeable and identification number is required to ensure proper component application.

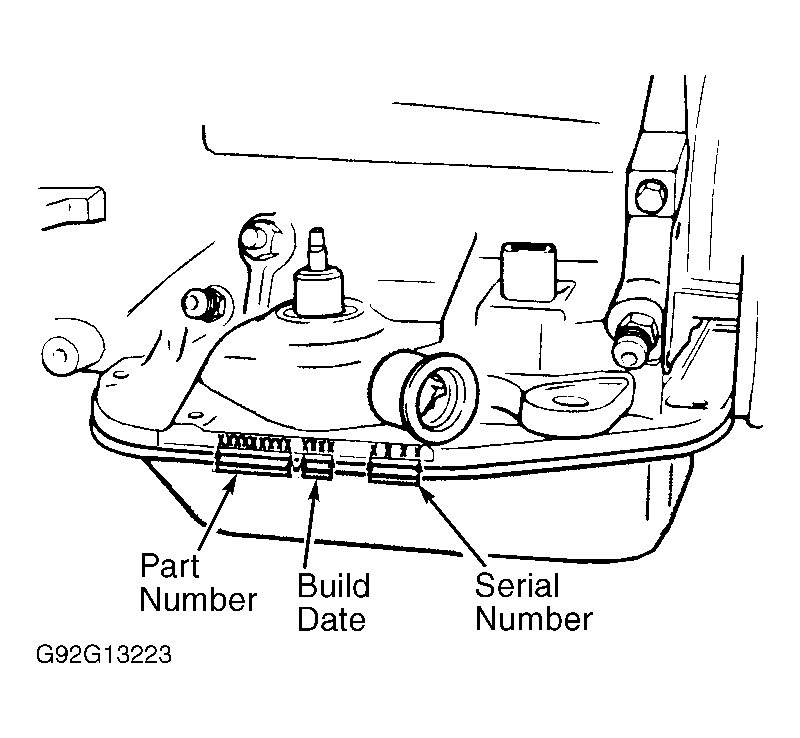

Fig 1: Locating Transmission Identification Numbers (48RE)
G92G13223Courtesy of CHRYSLER CORP.

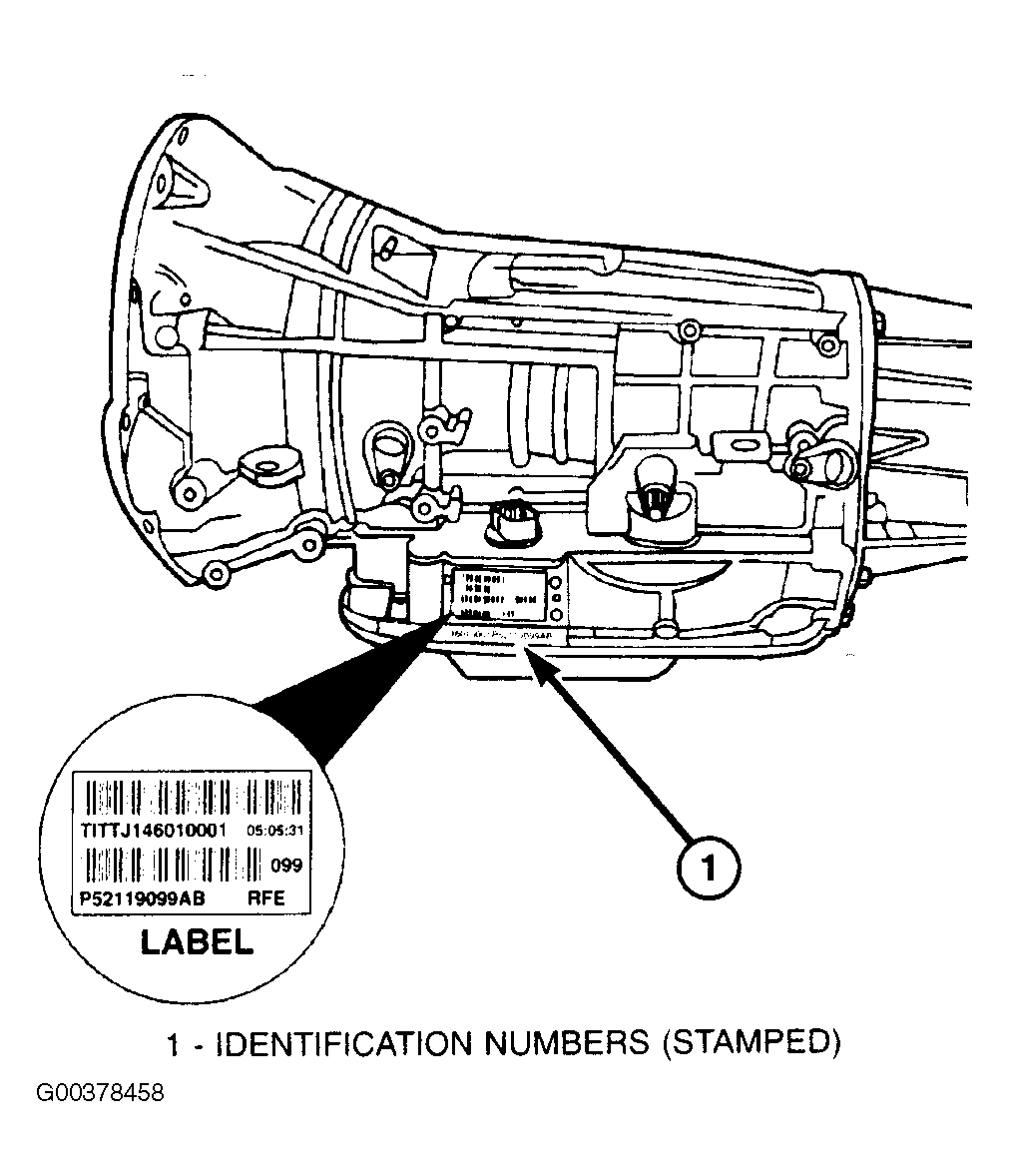

Fig 2: Locating Transmission Identification Numbers (45RFE & 545RFE)
G00378458Courtesy of CHRYSLER CORP.
