Section 4 (3.5L Engine (Service Information)): Engine: Description

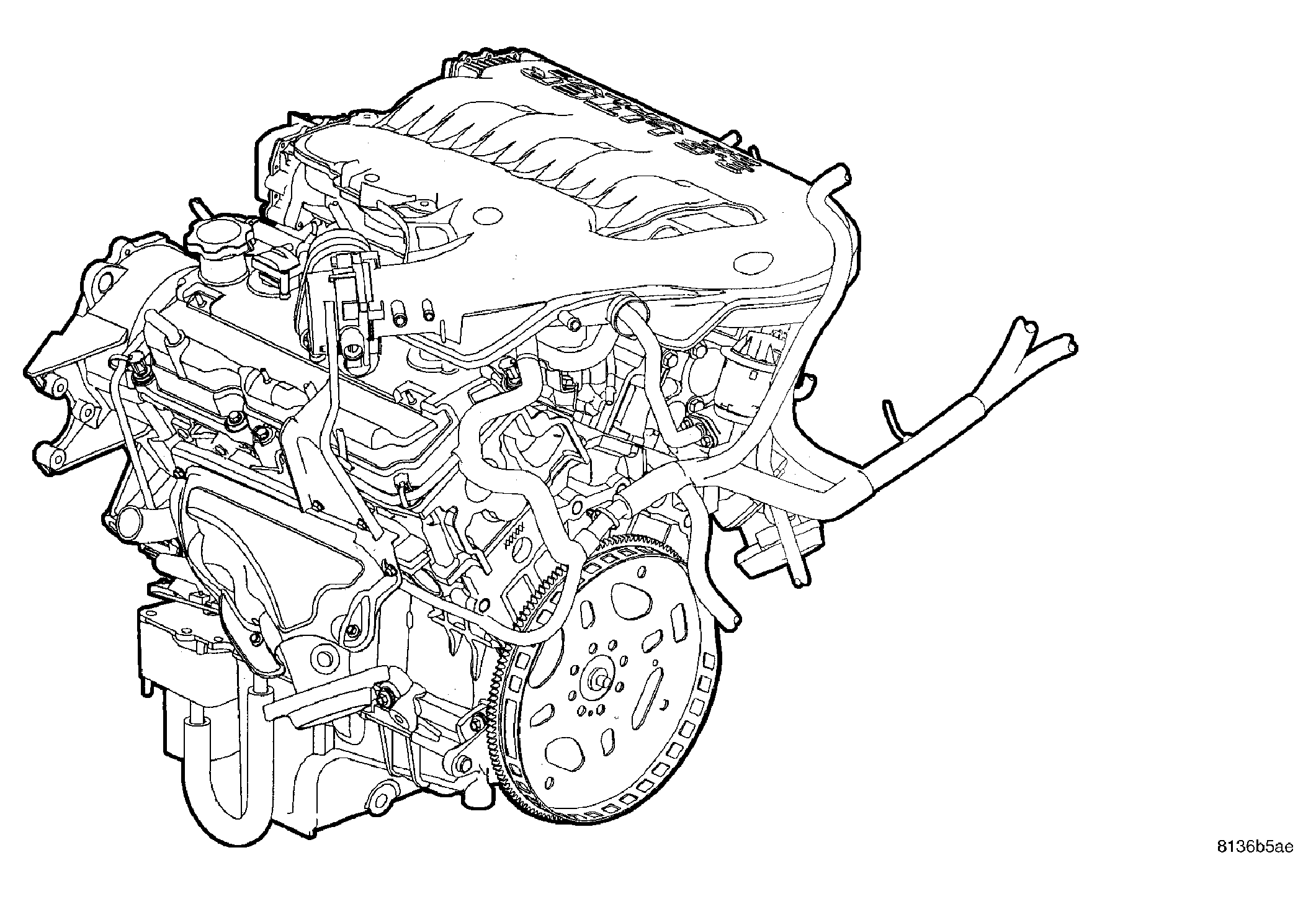

Fig 1: 3.5L ENGINE

Courtesy of DAIMLERCHRYSLER CORP.

The 3.5 Liter (214 Cubic Inches) 60 degree V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. See Fig 1. The engine does not have provisions for a free wheeling valve train.

Fig 2: Cylinder Numbering and Firing Order

Courtesy of DAIMLERCHRYSLER CORP.

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. See Fig 2. The firing order is 1-2-3-4-5-6.

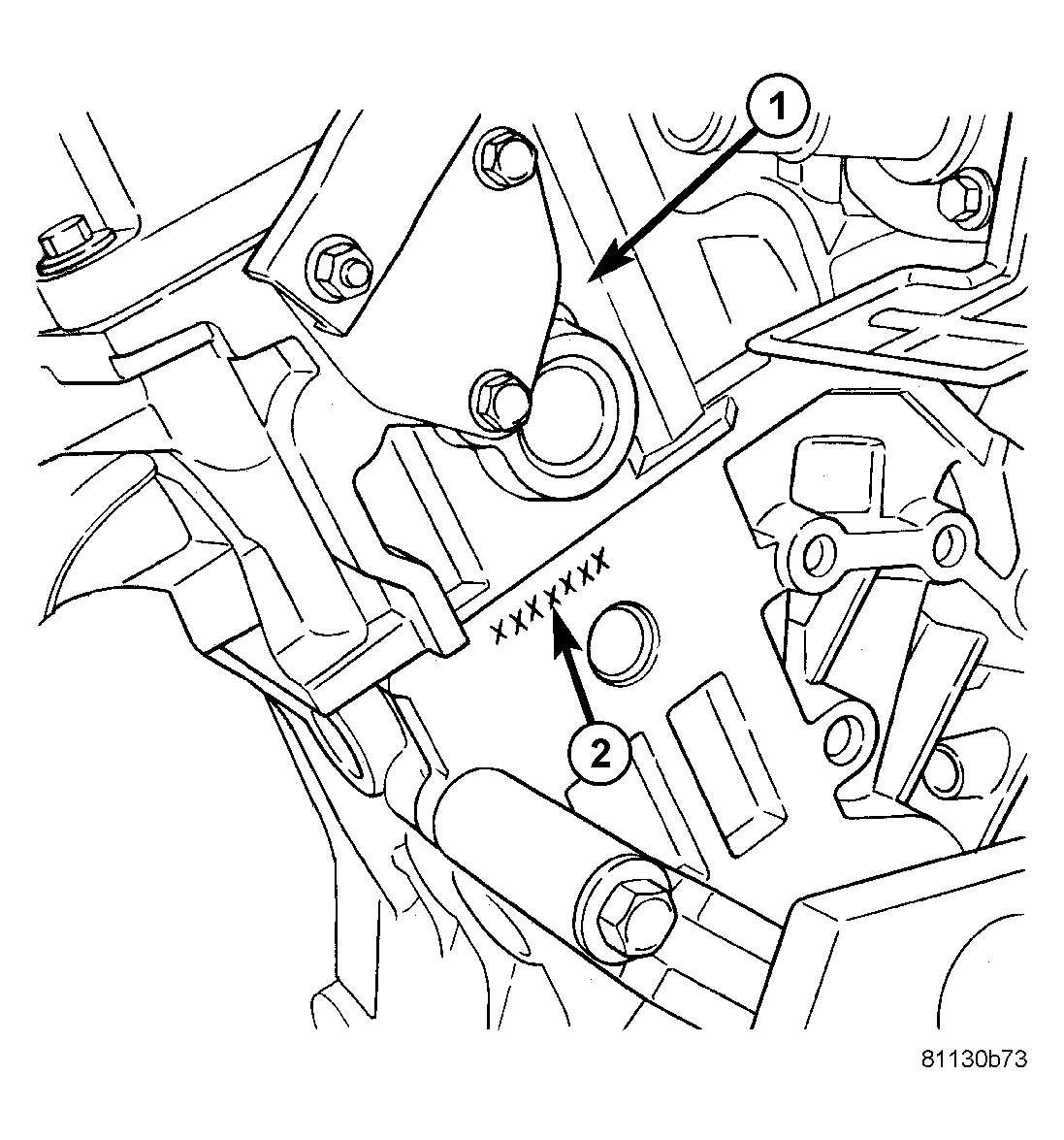

Fig 3: ENGINE IDENTIFICATION

Courtesy of DAIMLERCHRYSLER CORP.

The engine identification number is located on the rear of engine block just below the left cylinder head. See Fig 3.
