Spring - Valve: Inspection

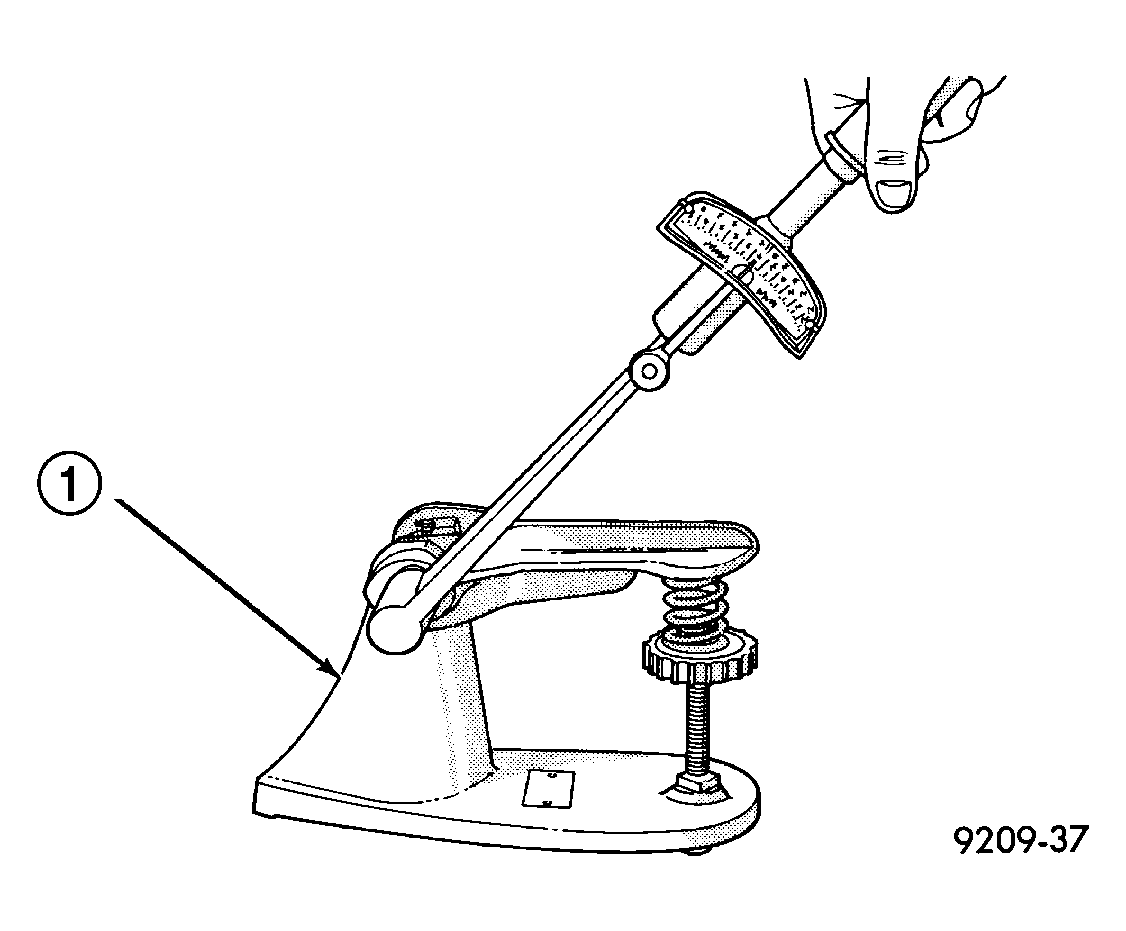

Fig 1: Testing Valve Spring

Courtesy of DAIMLERCHRYSLER CORP.

When valves have been removed for inspection, reconditioning or replacement, valve springs should be tested. See Fig 1. As an example;  the compression length of the spring to be tested is 38.00 mm (1.496 in.). Turn table of Tool C-647 until surface is in line with the 38.00 mm (1.496 inches.) mark on the threaded stud and the zero mark on the front. Place spring over stud on the table and lift compressing lever to set tone device. Pull on torque wrench until ping is heard. Take reading on torque wrench at this instant. Multiply this reading by two. This will give the spring load at test length. Fractional measurements are indicated on the table for finer adjustments. Refer to Engine Specifications to obtain specified height and allowable tensions (Refer to SPECIFICATIONS ). Replace springs that do not meet specifications.
