Mounting-Engine Rear: Installation

WARNING: This page is about a different variant/trim than selected.

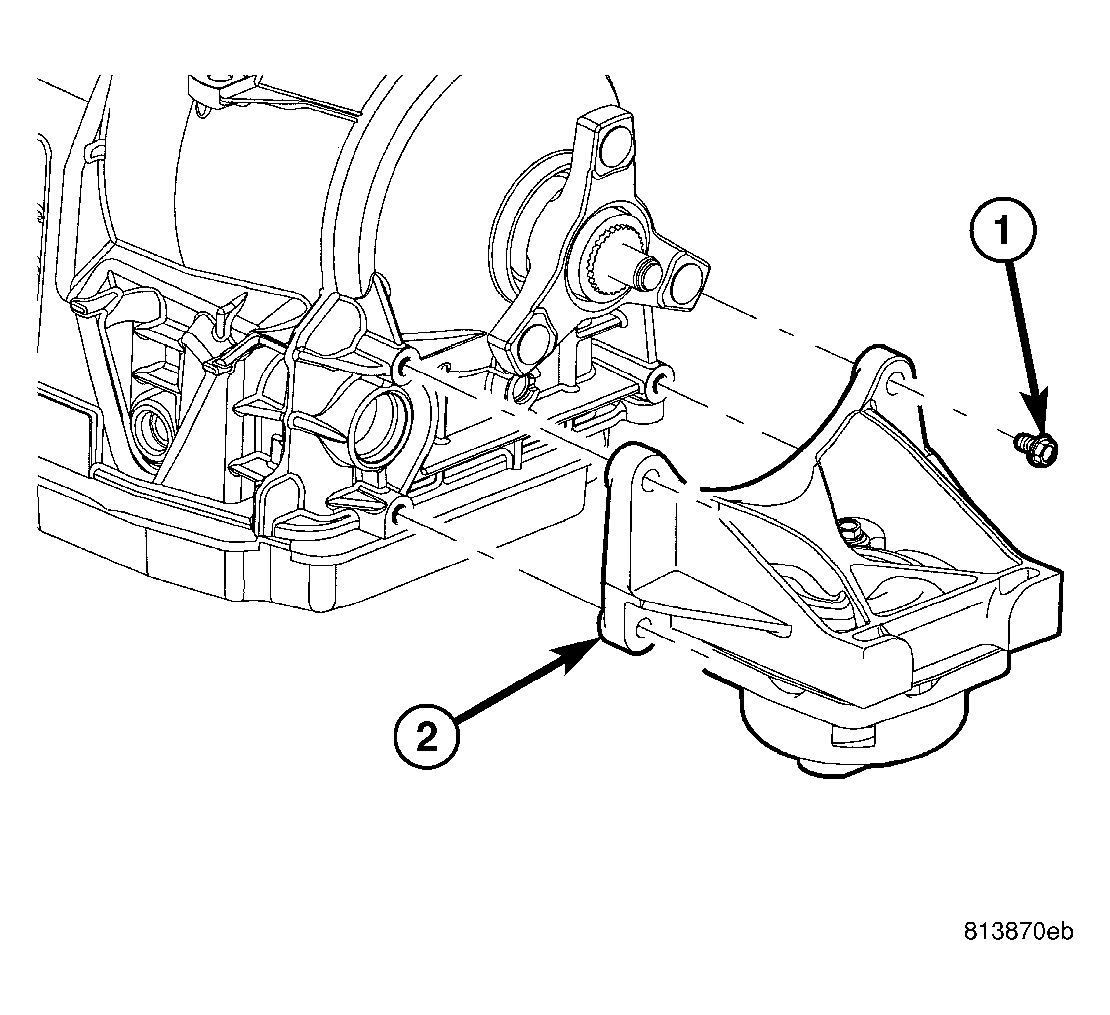

Fig 1: Transmission Mount Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - Bolts

2 - Trans Mount Bracket

Install the transmission mount bracket (2), if removed.

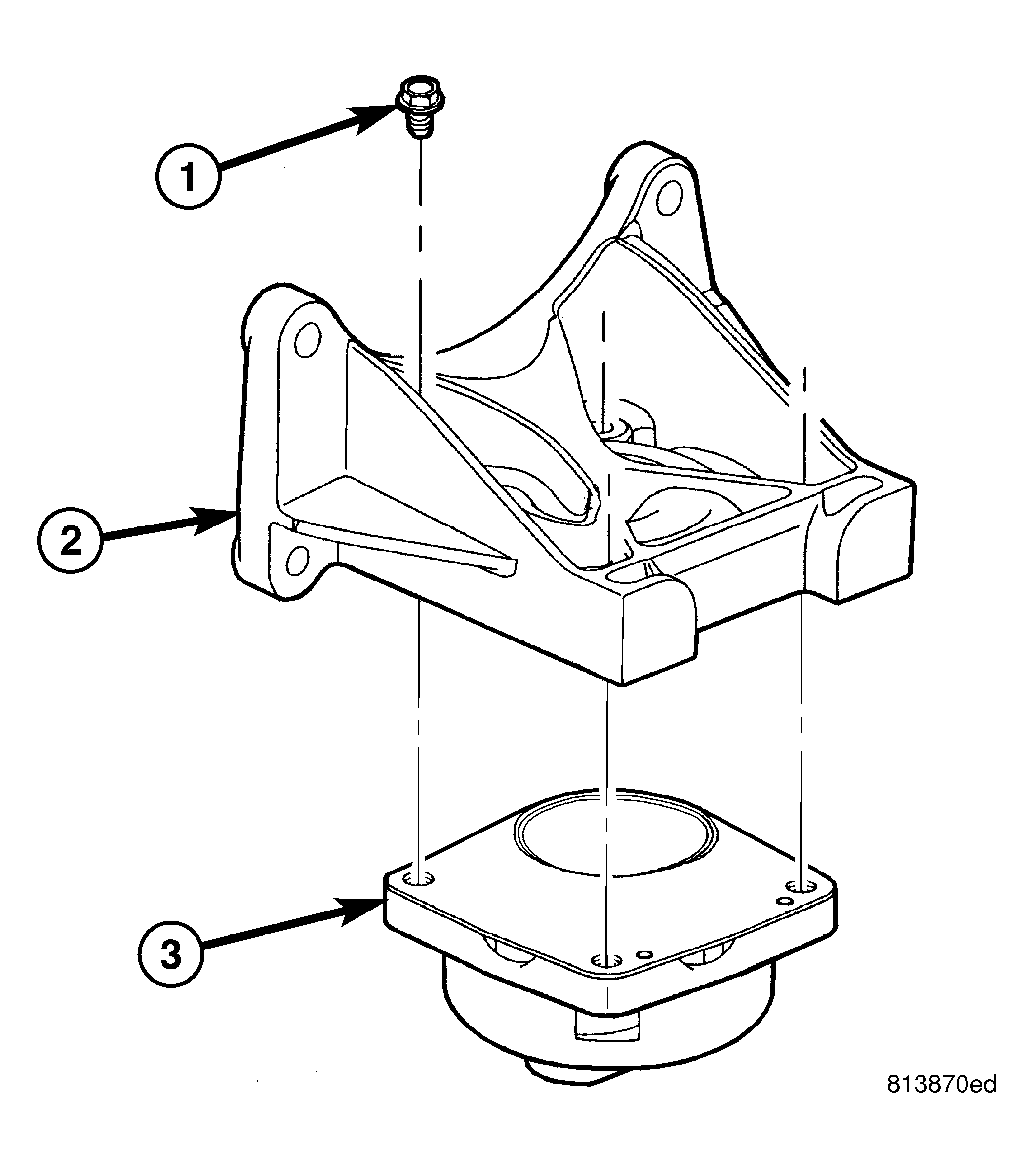

Fig 2: TRANSMISSION MOUNT

Courtesy of DAIMLERCHRYSLER CORP.

1 - Bolts

2 - Trans Mount Bracket

3 - Trans Mount

Position the transmission mount (3) on the transmission mount bracket (2). Install the bolts (1) that attach the transmission mount (3) to the bracket (2).

Torque the bolts to N.m ( ft.lbs.) torque. Refer to TORQUE CHART 5.7L ENGINE .

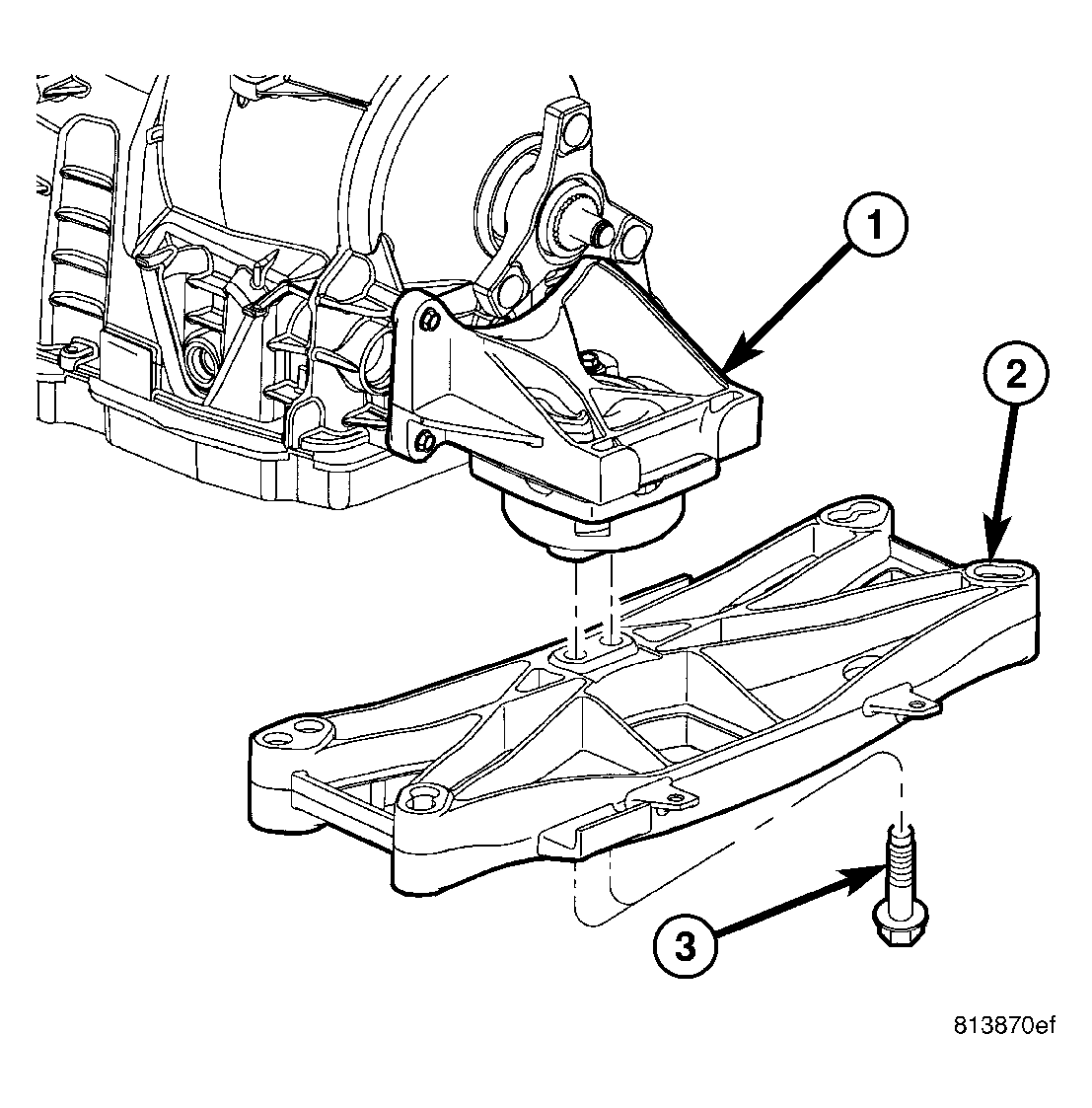

Fig 3: CROSSMEMBER

Courtesy of DAIMLERCHRYSLER CORP.

1 - Trans Mount Bracket

2 - Crossmember

3 - Bolts
