Air Intake System: Installation

WARNING: This page is about a different variant/trim than selected.

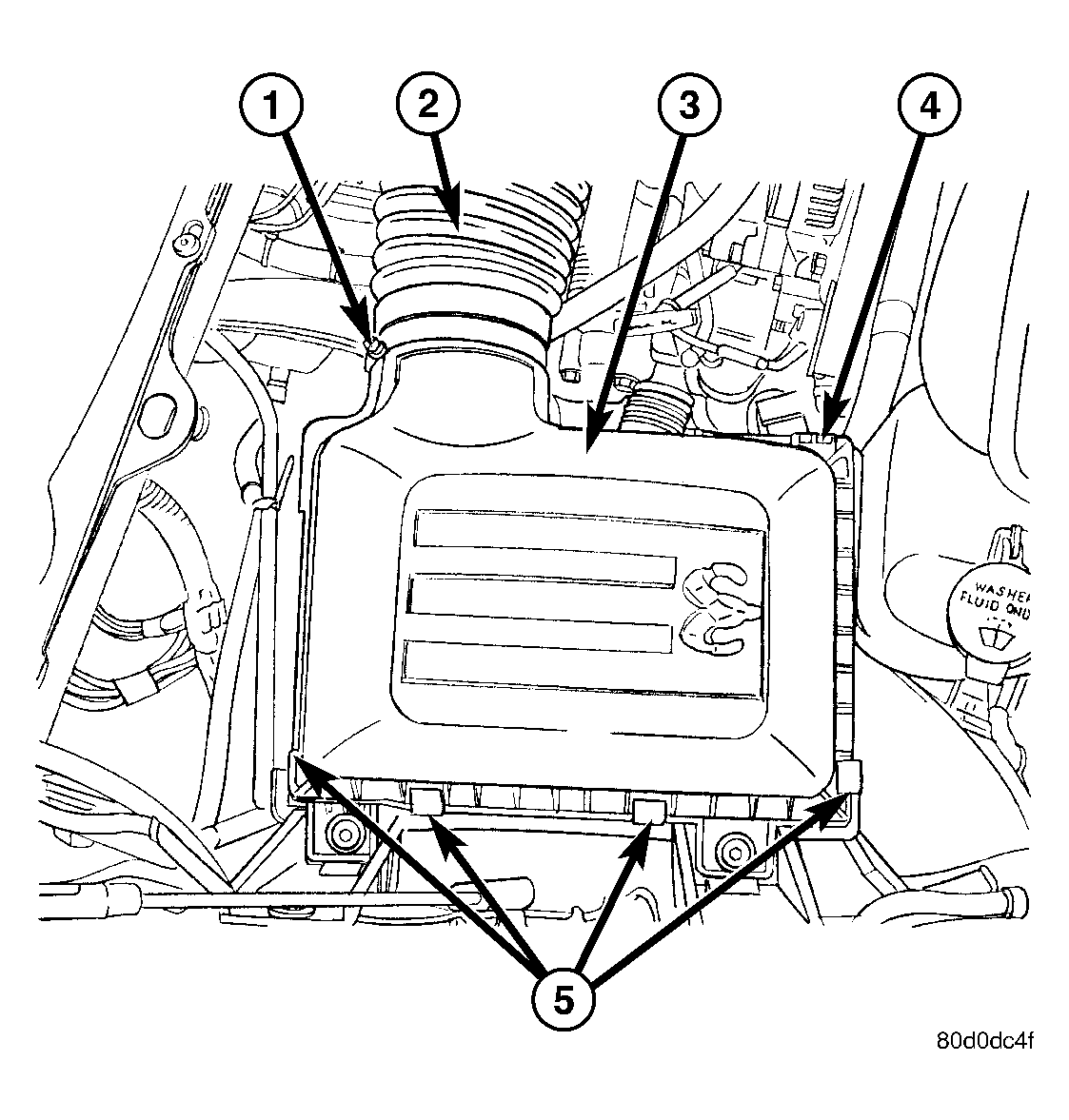

Fig 1: AIR CLEANER COVER

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLAMP

2 - AIR DUCT

3 - AIR CLEANER COVER

4 - LOCATING TABS

5 - CLIPS (4)

Install filter element into housing.
Position housing cover into housing locating tabs (4).
Pry up 4 spring clips (5) and lock cover to housing.

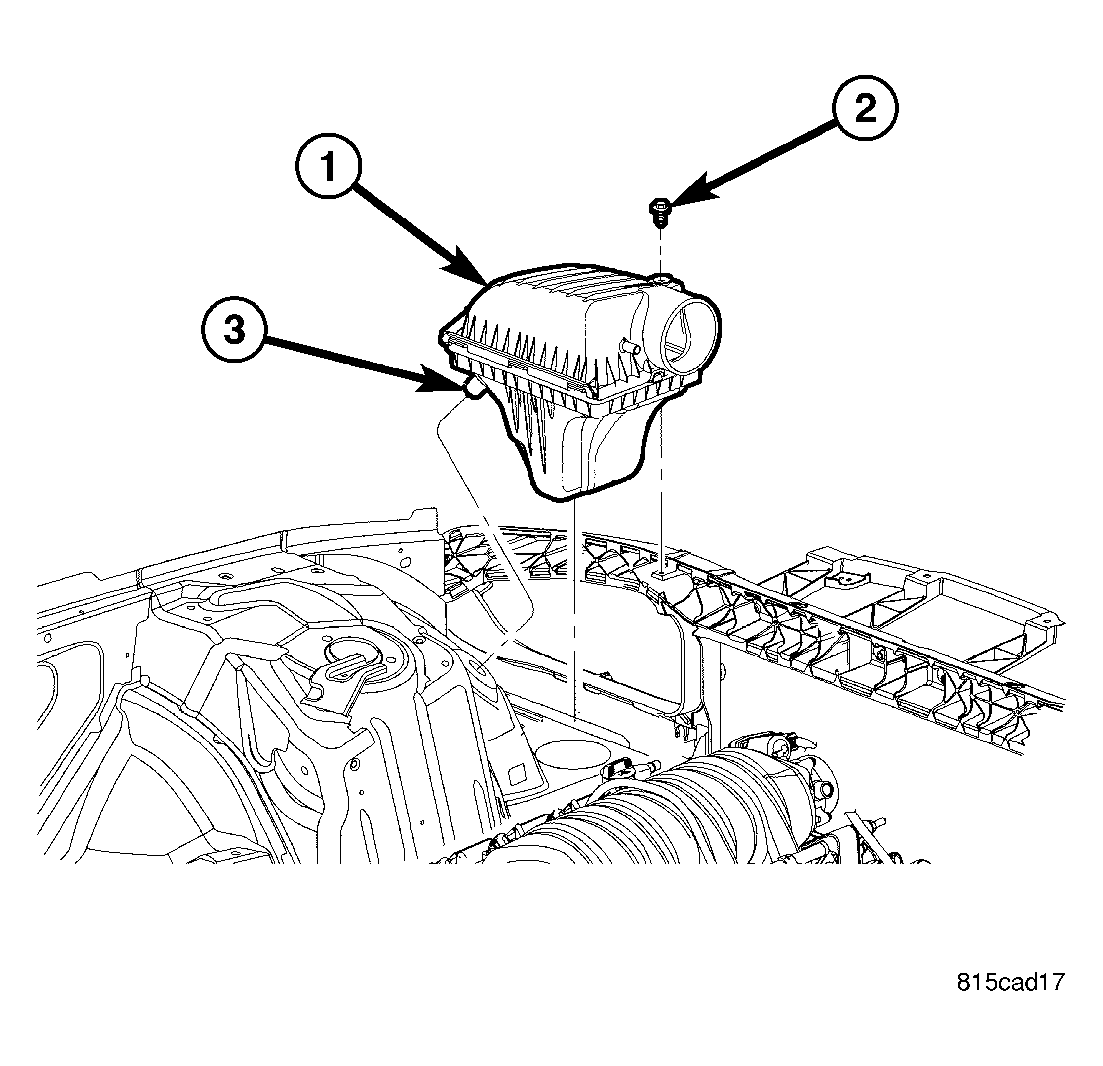

Fig 2: 6.1L AIR CLEANER HOUSING
Courtesy of DAIMLERCHRYSLER CORP.
Install the air filter housing (1) into locating pin (3).
Install the hold down bolt (2) into the air filter housing (1).

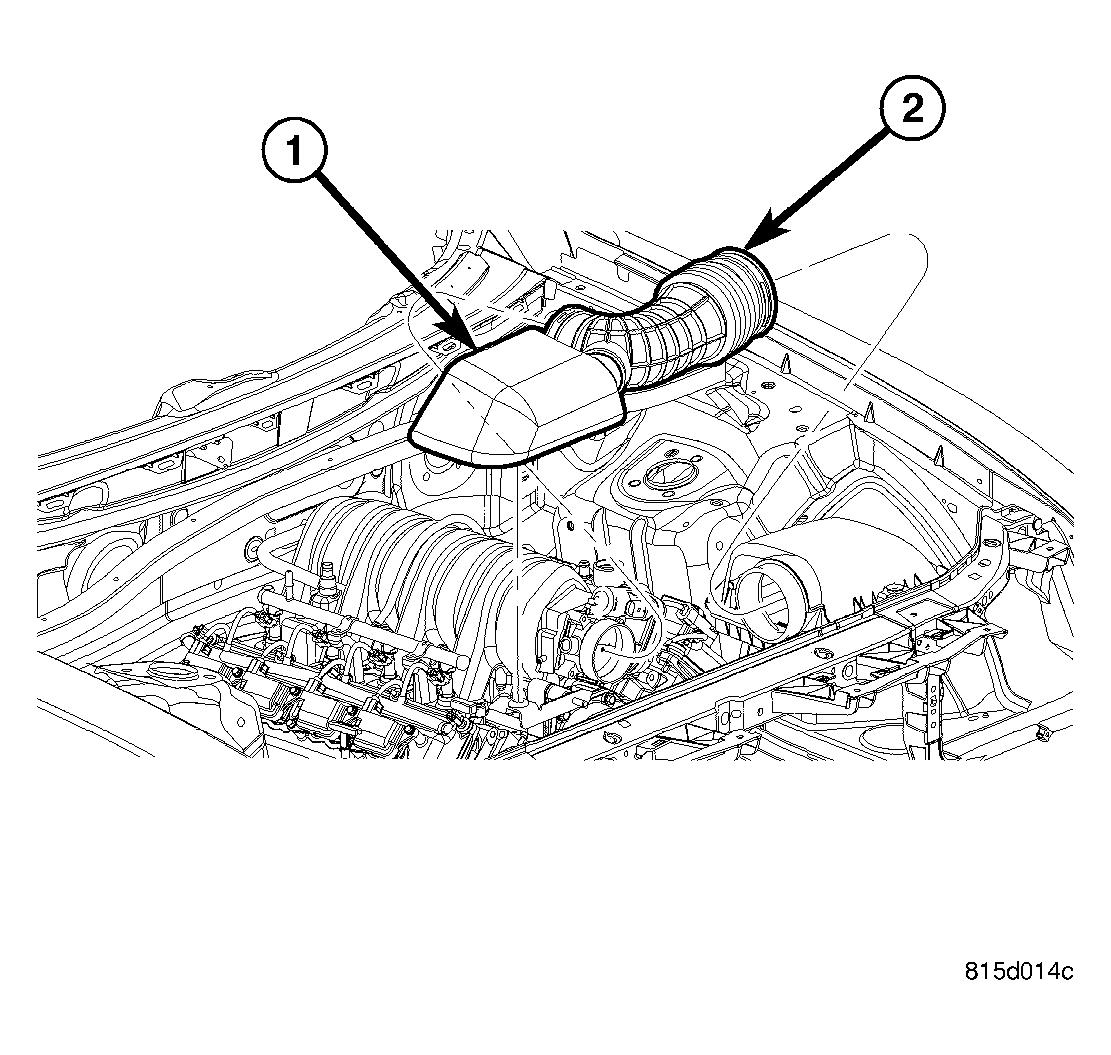

Fig 3: Removing/Installing Air Cleaner Duct
Courtesy of DAIMLERCHRYSLER CORP.
Install air duct (2) to air cleaner cover and tighten hose clamp to 3 N.m (30 in. lbs.) torque.
If any other hose clamps were removed from air intake system, tighten them to 3.4 N.m (30 in. lbs.) torque.
