Circuit Schematic

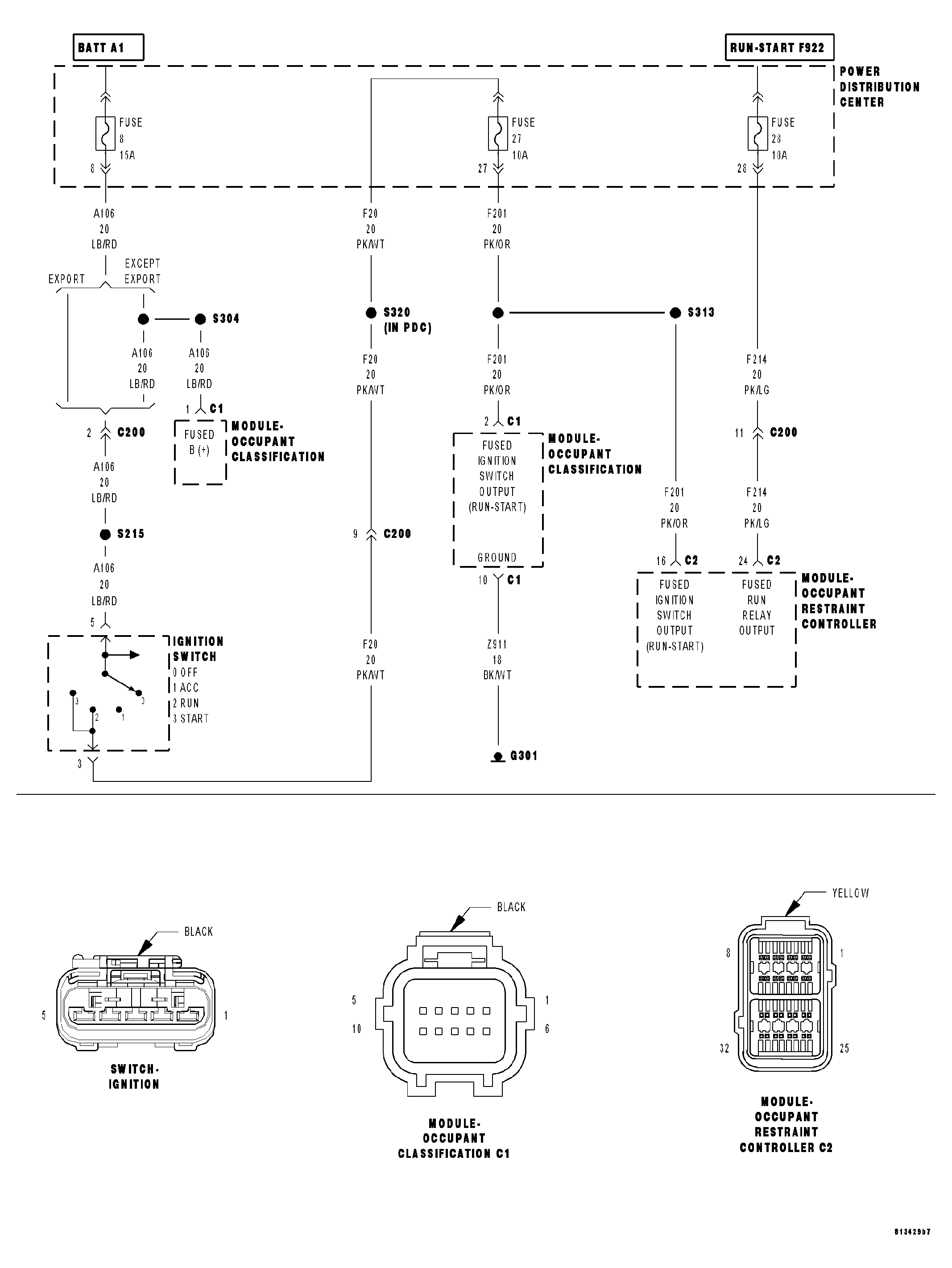

Fig 1: Occupant Classification Module & Occupant Restraint Controller Battery Input Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

For the Airbag System circuit diagram (Refer to ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS) .
