Coolant Recovery Container: Installation

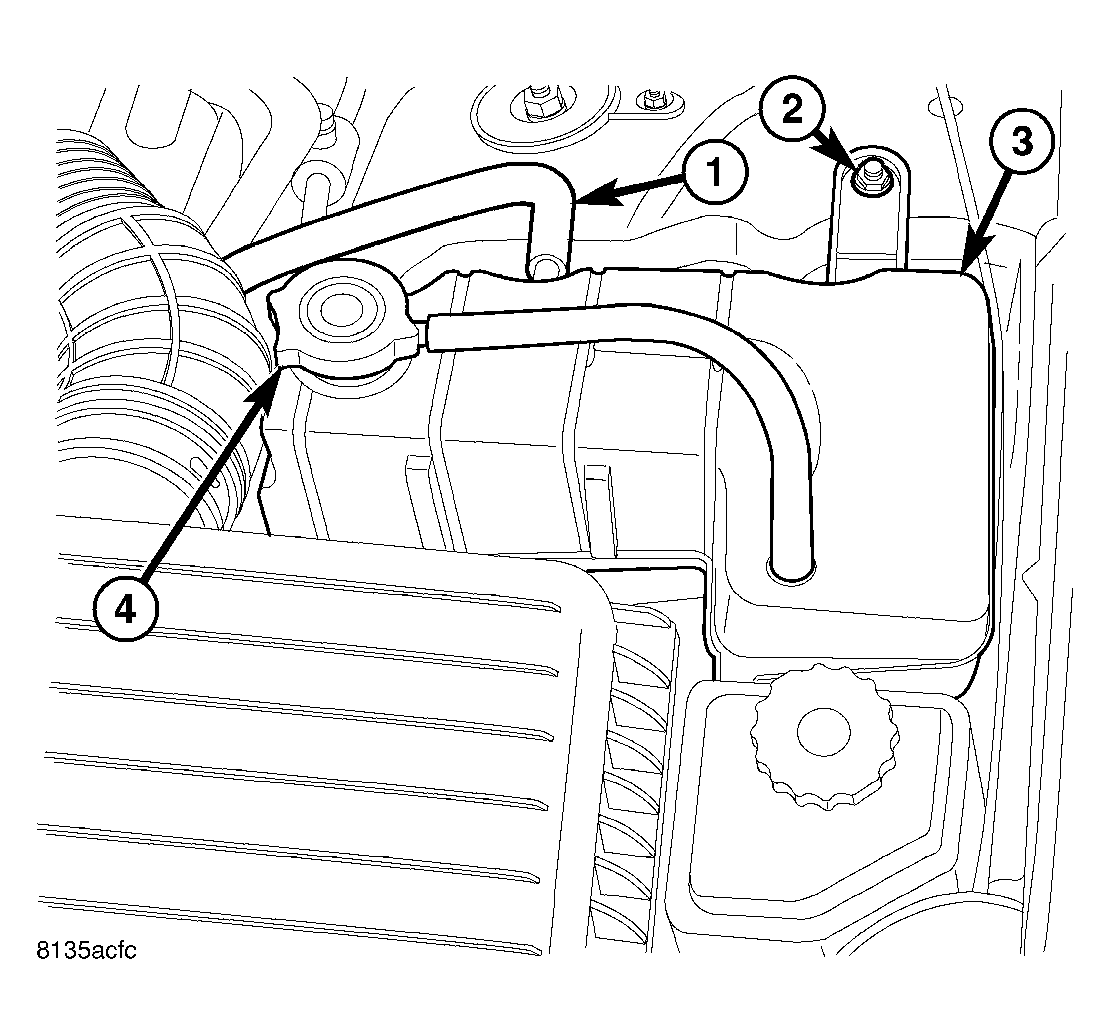

Fig 1: COOLANT RECOVERY CONTAINER

Courtesy of DAIMLERCHRYSLER CORP.

1 - COOLANT RECOVER TUBE

2 - NUT

3 - COOLANT RECOVERY CONTAINER

3 - COOLANT RECOVERY PRESSURE CAP

1. Position coolant recovery container (3).
2. Install mounting nuts (2). Tighten to 10 N.m (89 in. lbs.).
3. Install coolant recovery tube (1).
4. Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
5. Install coolant recovery container pressure cap (4).
