Engine Block Heater: Removal

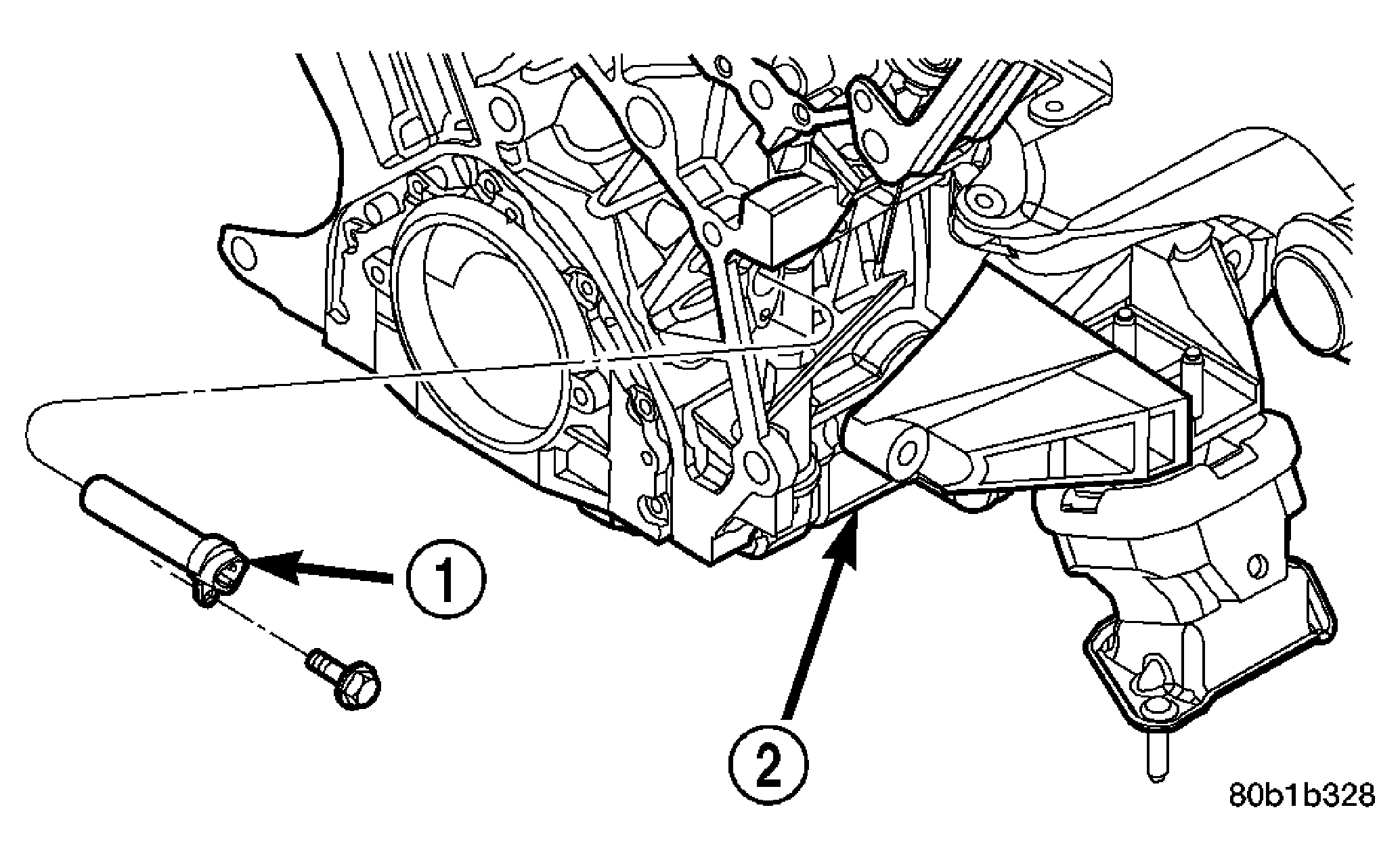

Fig 1: Engine Block Heater

GC0014696

Courtesy of DAIMLERCHRYSLER CORP.

1 - BLOCK HEATER

2 - ENGINE - RIGHT SIDE

Raise vehicle on hoist.
Detach power cord plug from block heater (1).
Remove block heater attaching screw located below heater terminals.
Remove block heater from cylinder block (2).
