3.5L Engine

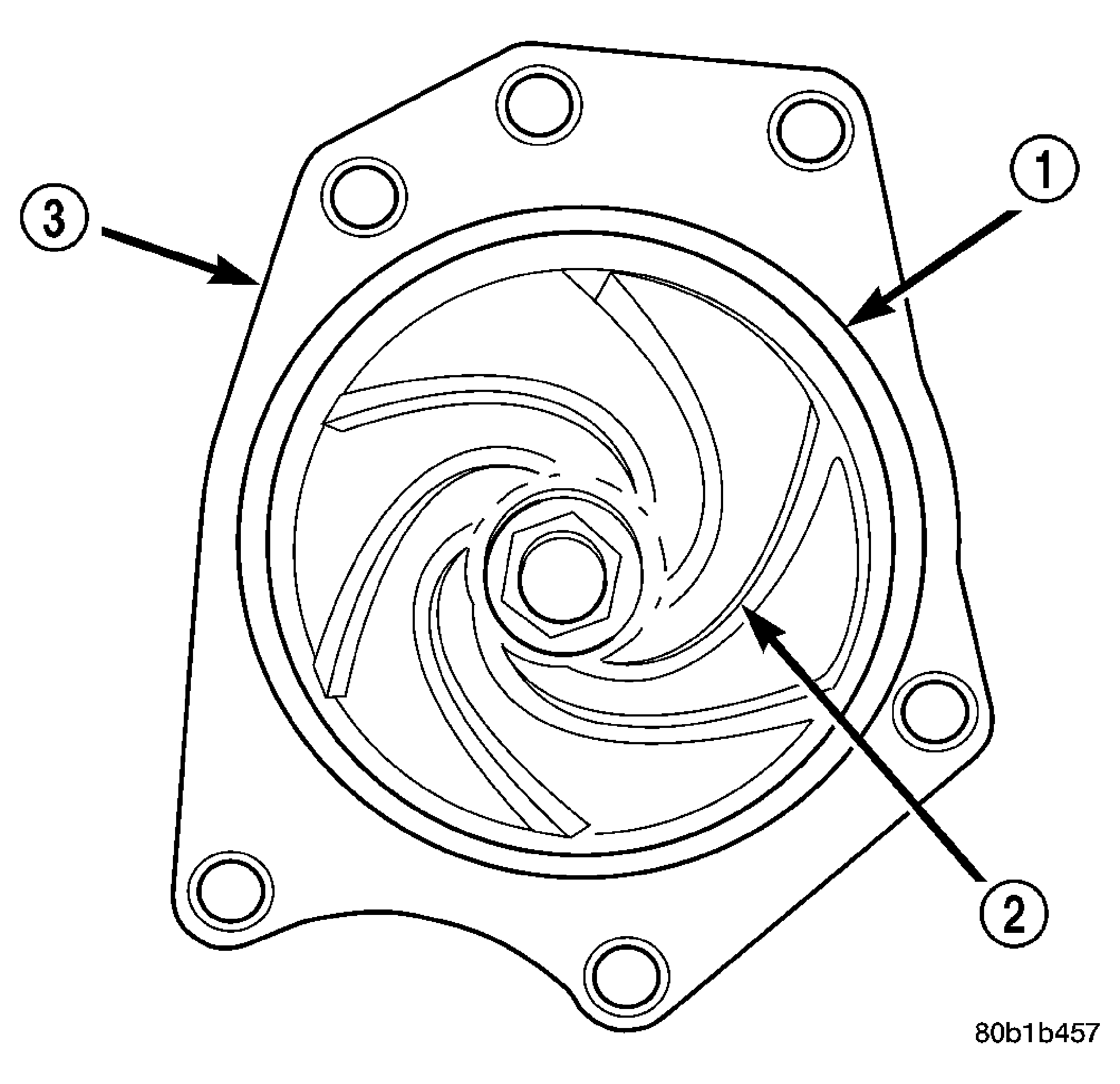

Fig 1: Water Pump - 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1 - O-RING

2 - IMPELLER

3 - WATER PUMP BODY

Clean all O-ring surfaces on front cover.
Position water pump (3) and O-ring to engine.
Install mounting bolts. Tighten to 12 N.m (105 in. lbs.).
Install timing belt. (Refer to appropriate ENGINE article).
Install accessory drive belts (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION) .
Fill cooling system (Refer to COOLING - STANDARD PROCEDURE) .
