Removal - Remote Keyless Entry Relay

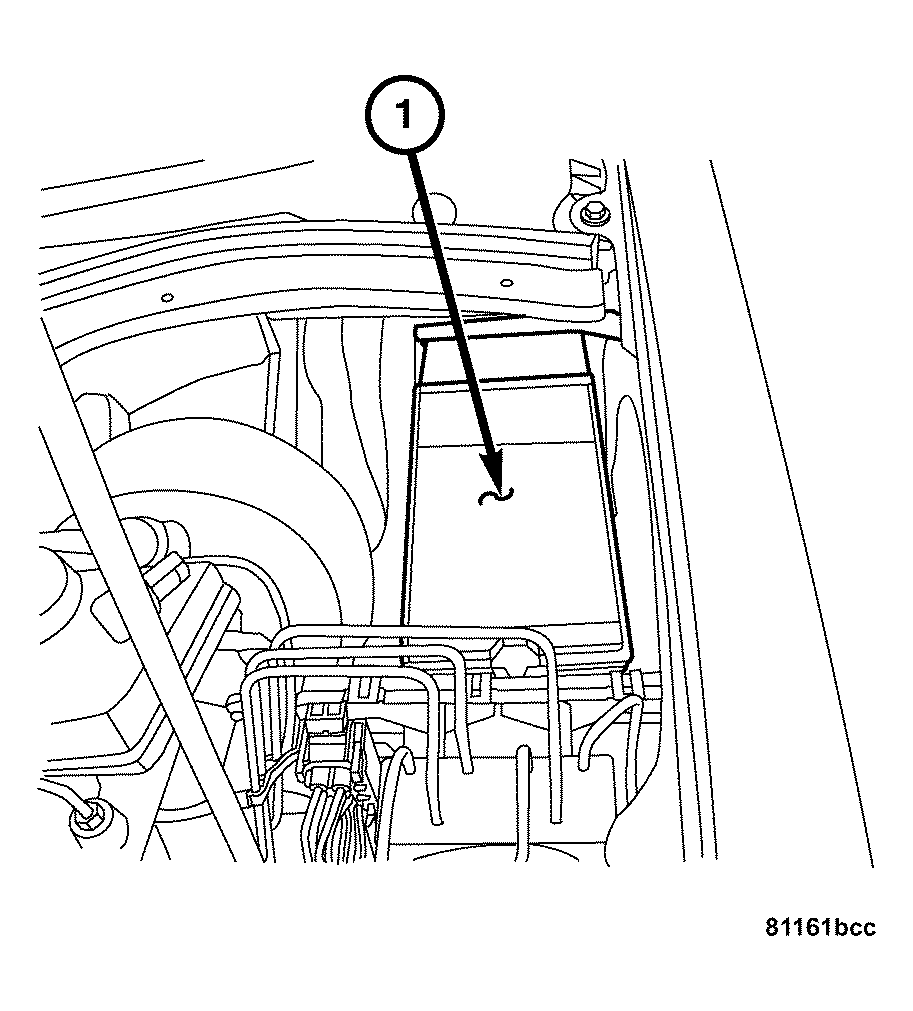

Fig 1: Identifying Underhood Accessory Fuse Block Lid

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove the underhood accessory fuse block lid (1).

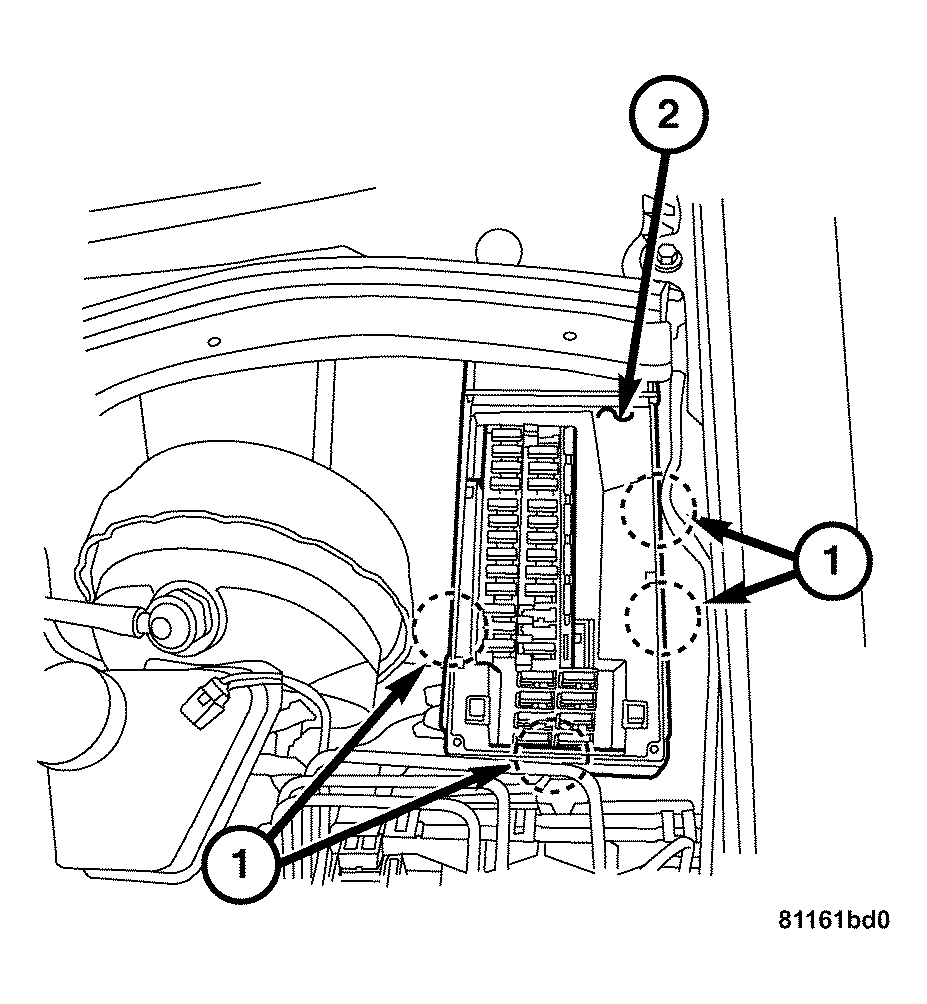

   Fig 2: Removing/Installing Underhood Accessory Fuse Block Cover Panel

   Courtesy of DAIMLERCHRYSLER CORP.
2. Carefully release the four tabs (1) to remove the underhood accessory fuse block cover panel (2).

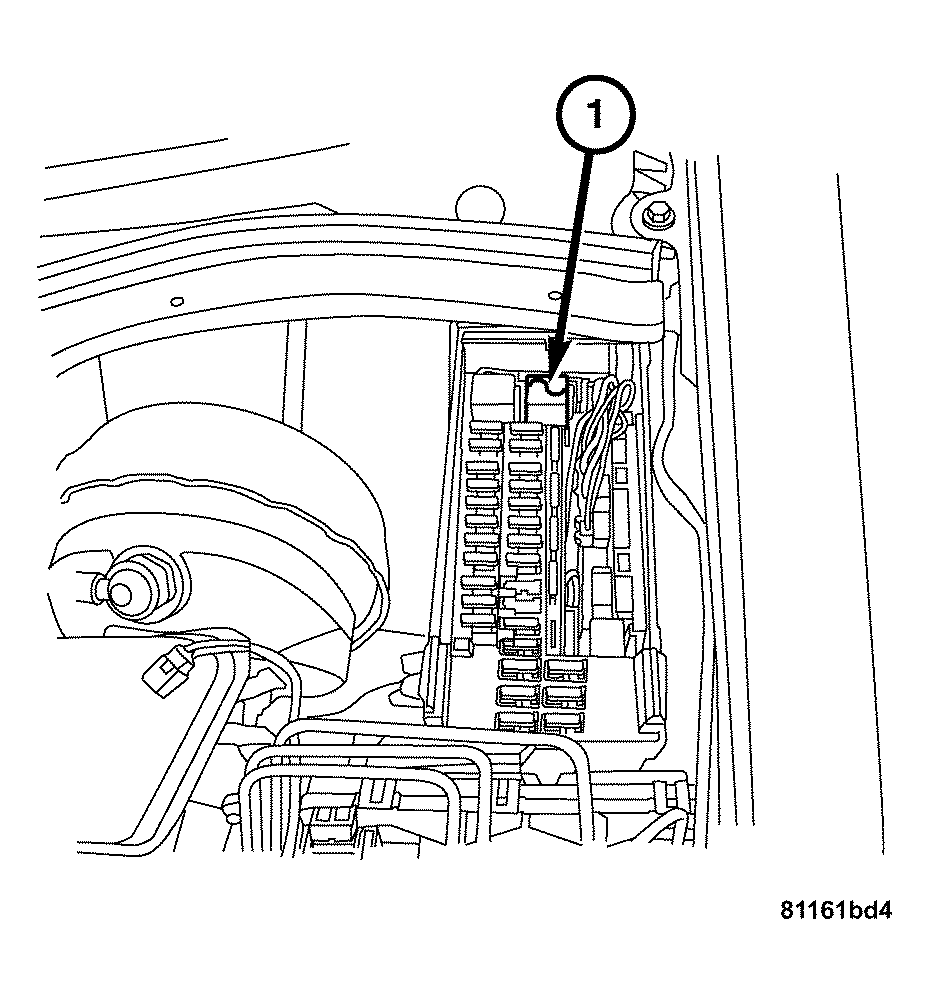

   Fig 3: Locating Remote Keyless Entry Relay

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the remote keyless entry relay (1).
