Audio System (Service Information): Amplifier: Installation: Notes

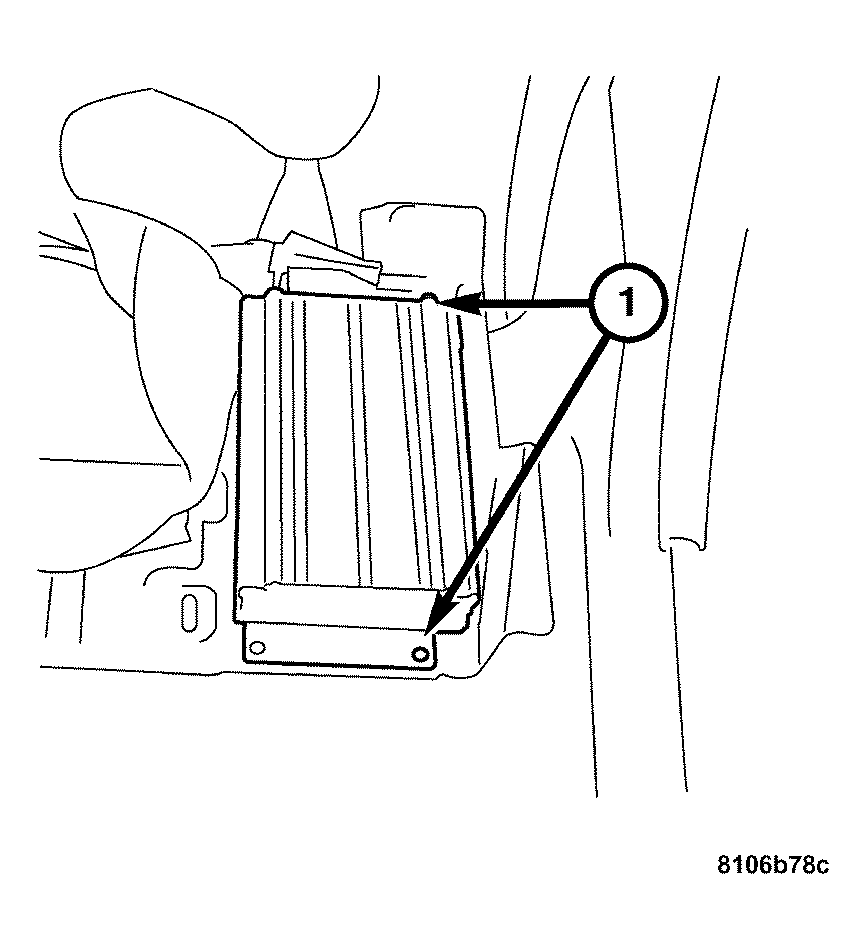

Fig 1: Identifying Amplifier Retaining Screws

Courtesy of DAIMLERCHRYSLER CORP.

1. Connect the amplifier harness connector and attach the amplifier to the base plate with the four retaining screws (1).
   Fig 2: Identifying Retaining Nuts

   Courtesy of DAIMLERCHRYSLER CORP.
2. Rotate the base plate and install it over the mounting studs on the floor panel.
   NOTE: Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the floor mounting studs.
3. Install the plastic retaining nuts (1) and secure the base plate to the vehicle floor.
   Fig 3: Removing/Installing Foam Insulating Panel

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the foam insulating panel.
5. Install the carpeting in the passenger footwell.
6. Install the floor mat to the carpet.
