Power Lock Switch: Installation

Fig 1: Installing Power Lock Switch

Courtesy of DAIMLERCHRYSLER CORP.

1. Align the power lock switch with the center console interior trim panel and press together until the locking tabs engage fully.

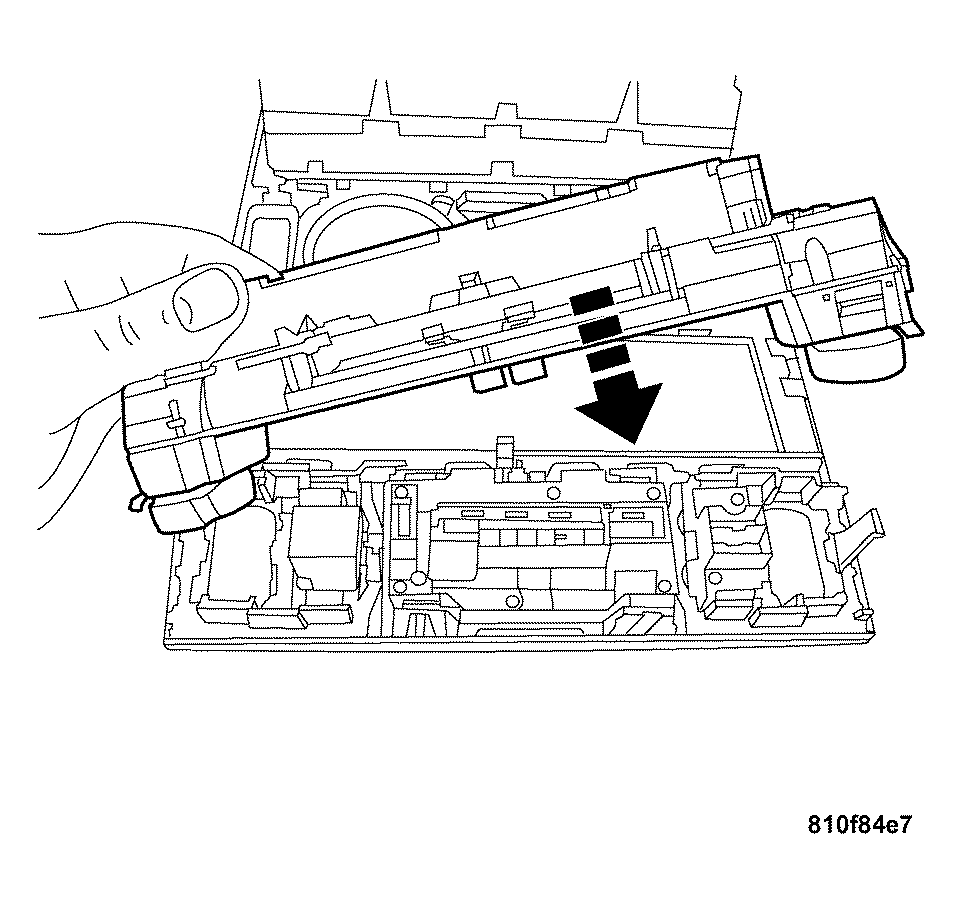

   Fig 2: Installing Heated Seat Switch

   Courtesy of DAIMLERCHRYSLER CORP.
2. Align the outer gang of switches over the power lock switch and press together until the locking tabs engage fully.
3. Connect the power lock switch harness connectors.
4. Install the trim panel on the center console. (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
5. Connect the negative battery cable.
