Power Lock Switch: Removal

WARNING: REFER TO RESTRAINTS - SERVICE INFORMATION BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY. (Refer to ELECTRICAL/RESTRAINTS - WARNING) .

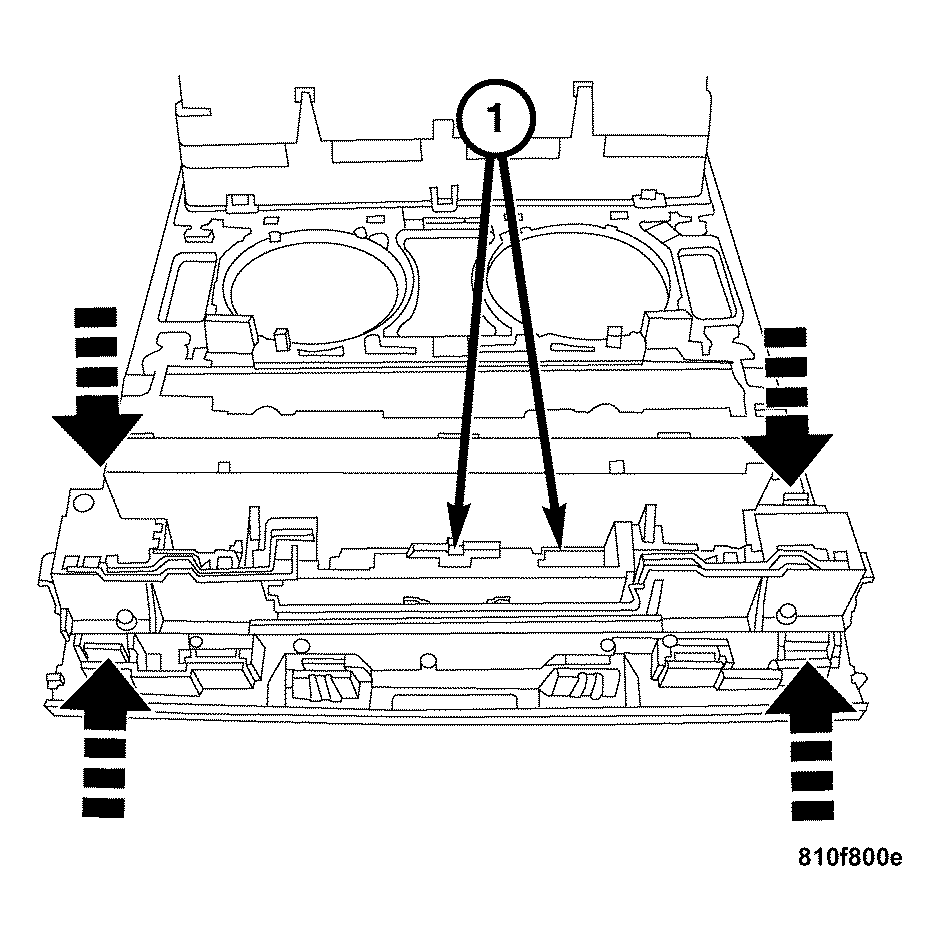

Fig 1: Disconnecting Harness Connectors
GC0035063Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the center console interior trim panel. (Refer to BODY/INTERIOR/CENTER CONSOLE - REMOVAL) .
  3. Disconnect the power lock switch and ESP harness connectors (1).
  4. Press the locking tabs inward and remove the outer gang of switches.
  5. Press the locking tabs inward and remove the power lock, hazard, and ESP switch from the trim panel.
