Power Seat Switch: Installation

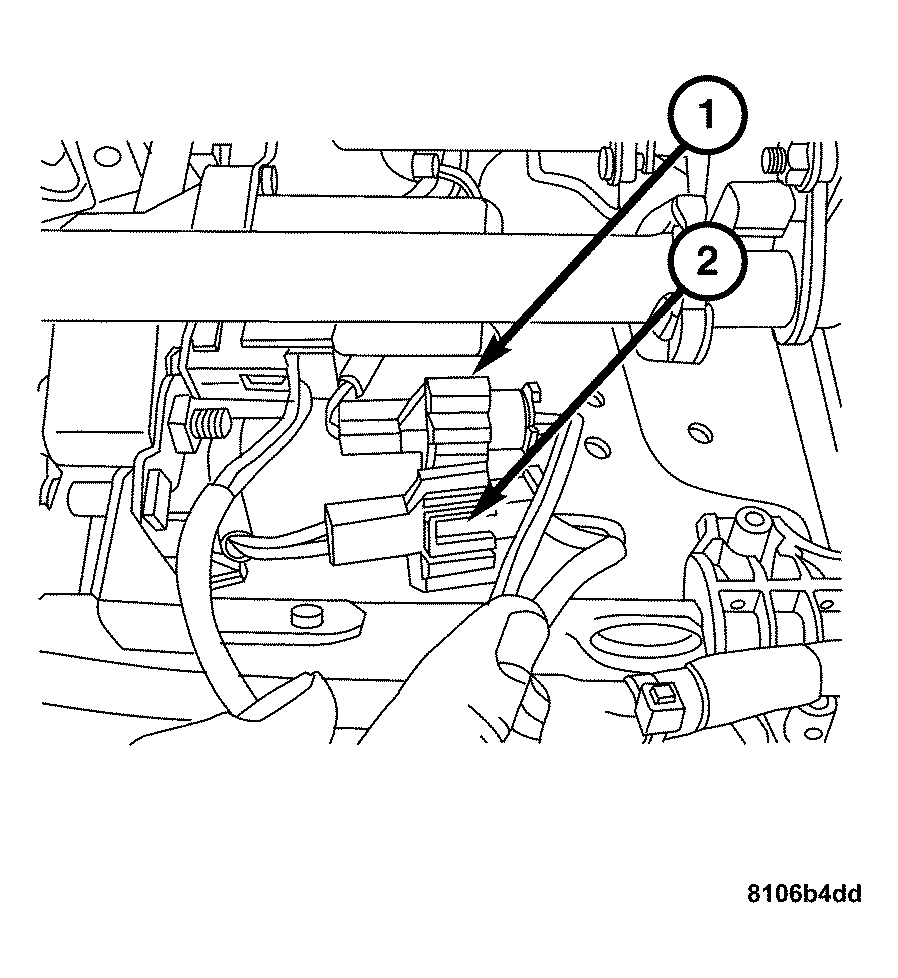

Fig 1: Identifying Power Seat Switch Harness Connectors

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Insure the harness is routed and secured in its original position to avoid potential interference with moving parts.

1. Install the power seat switch wiring harness in its original location.
2. Connect the power seat switch harness connectors (1) and (2).

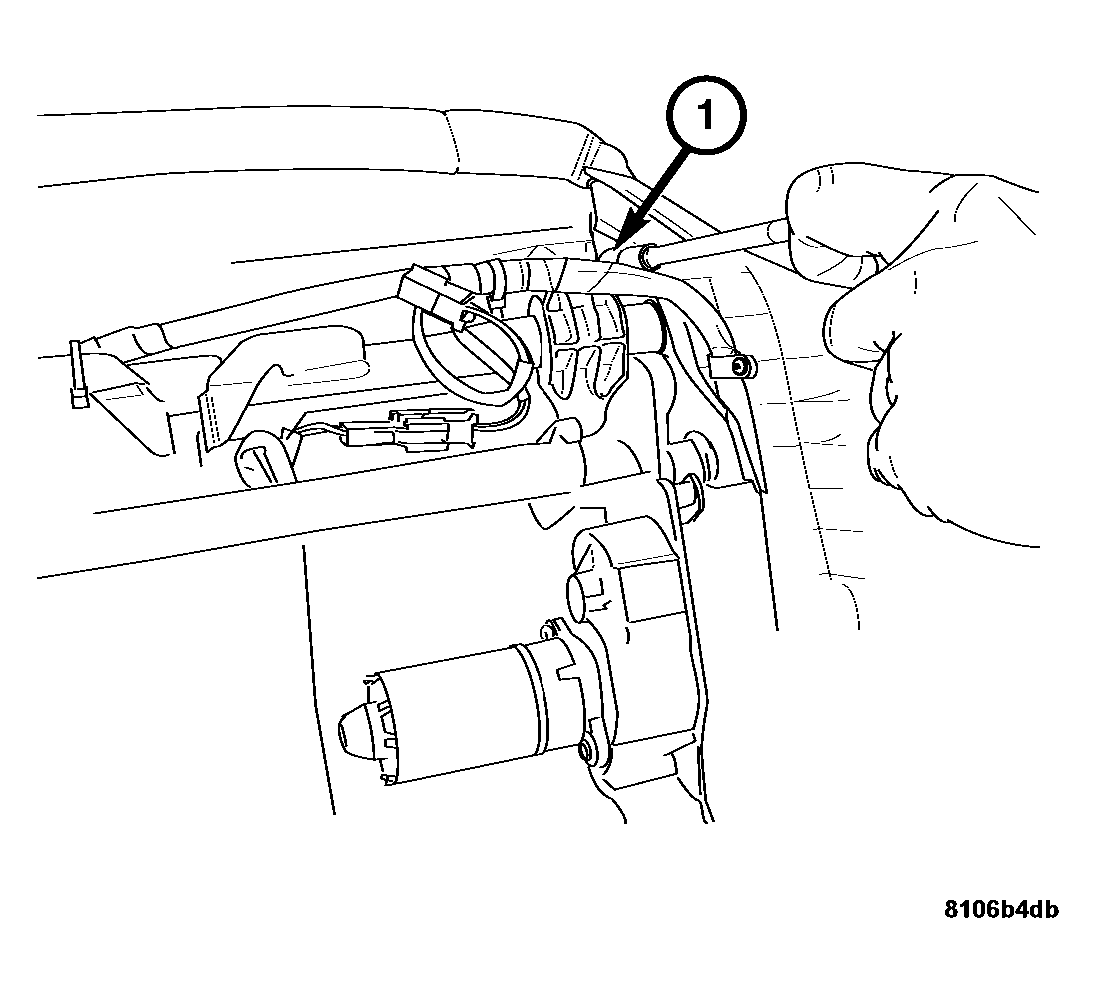

   Fig 2: Removing/Installing Bolt

   Courtesy of DAIMLERCHRYSLER CORP.
3. Position the side panel with the switches as one part on the seat base, then install the side panel attaching screw (1).
4. Install the front seat. (Refer to BODY/SEATS/SEAT - INSTALLATION) .
5. Connect the negative battery cable.
