Power Window Switch: Installation

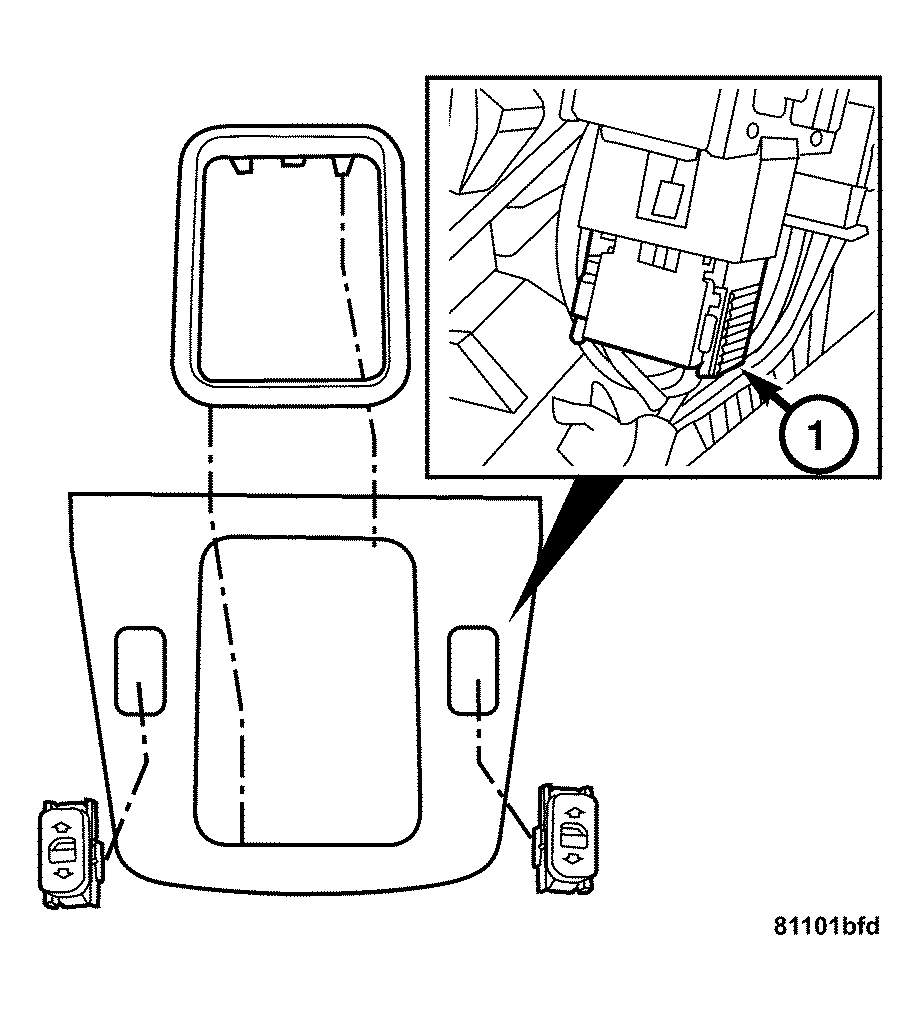

Fig 1: Identifying Power Window Switch Harness Connector
GC0035571Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the power window switch to the shifter cover trim panel.
  2. Connect the power window switch harness connector (1).
  3. Install the shifter cover trim panel. (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
  4. Connect the negative battery cable.
