Installation - RHD

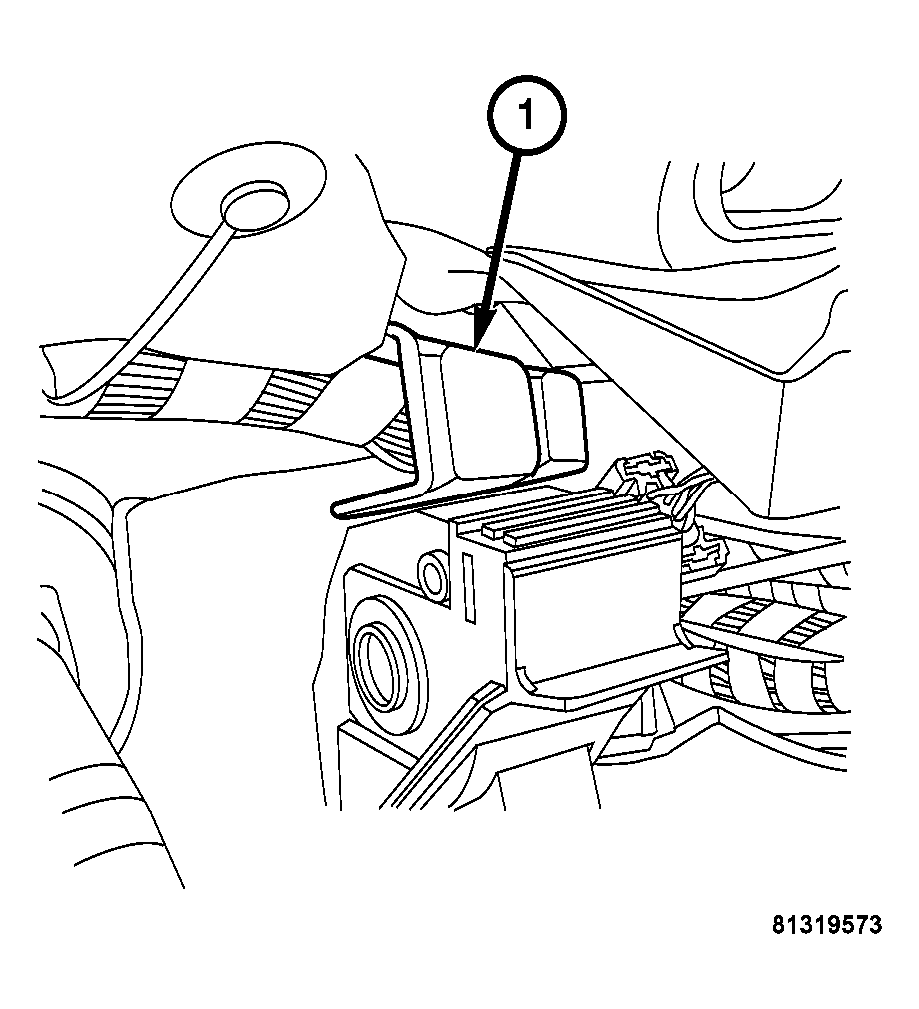

Fig 1: Identifying Accelerator Pedal Bracket

Courtesy of DAIMLERCHRYSLER CORP.

Connect the accelerator pedal harness connector.
Slide the accelerator pedal into the bracket (1) and onto the welded stud.

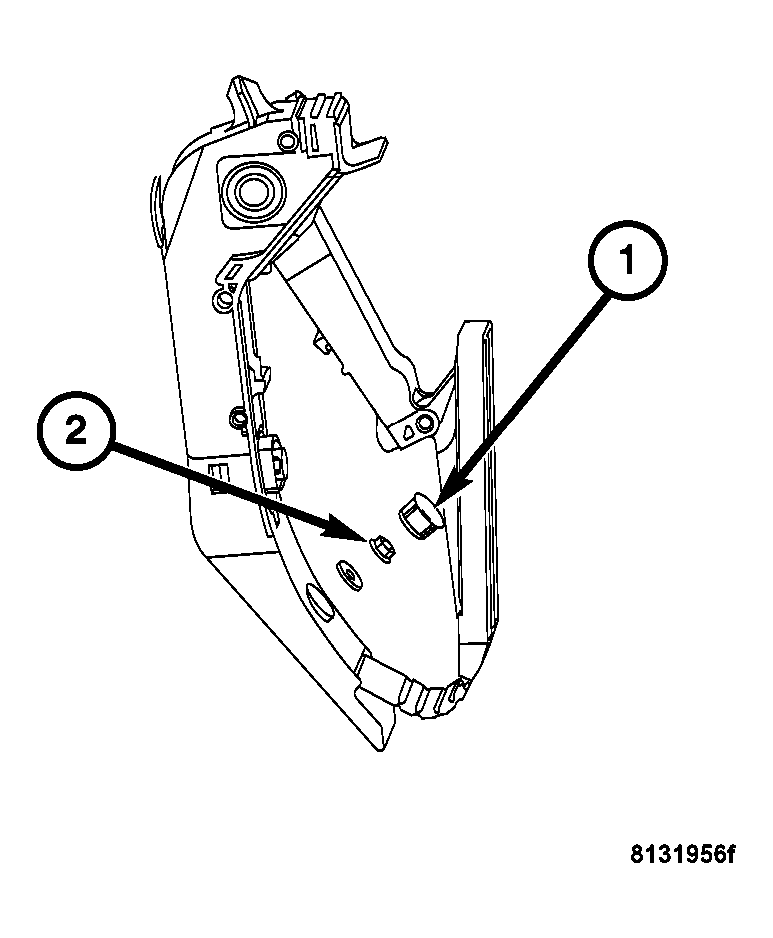

Fig 2: Removing/Installing Lower Accelerator Nut Cover & Nut
Courtesy of DAIMLERCHRYSLER CORP.
Install the accelerator pedal lower nut (2). Tighten to 15 N.m (11 ft. lbs.).
Install the plastic nut cover (1).
Connect the negative battery cable.
