Oil Level/Temperature Sensor: Removal

Remove the lower oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - REMOVAL) .

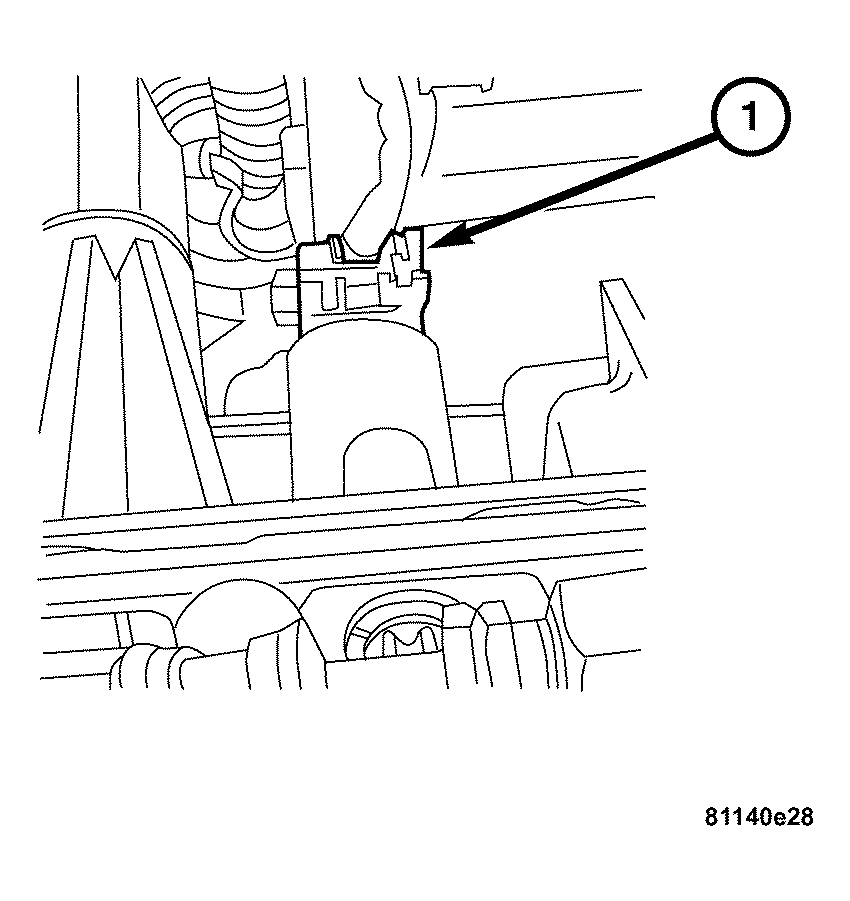

Fig 1: Disconnecting/Connecting Oil Level/Temperature Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the oil level/temperature sensor harness connector (1).

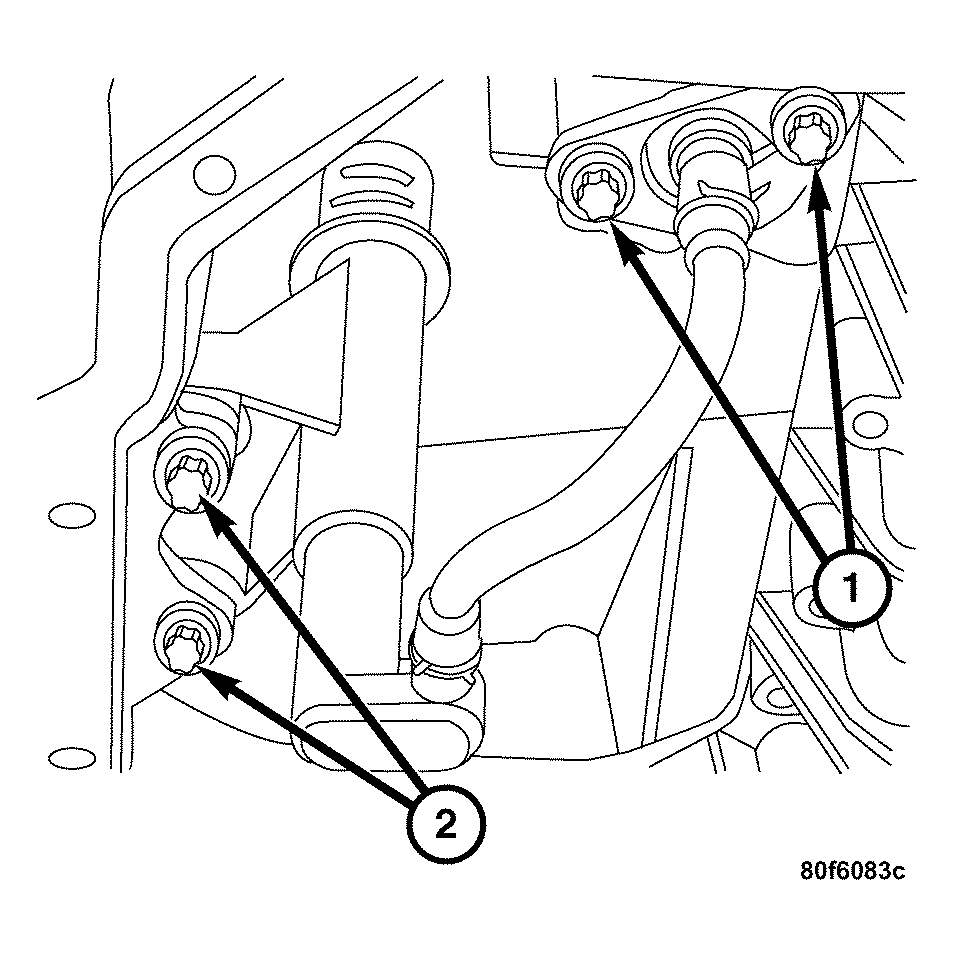

Fig 2: Identifying Oil Level/Temperature Sensor Screws & Harness Retainer Screws
Courtesy of DAIMLERCHRYSLER CORP.
Remove the two oil level/temperature sensor screws (1).
Remove the two harness retainer screws (2) and the oil level/temperature sensor.
