Removal - SRT

Fig 1: Removing/Installing Engine Cover

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect the negative battery cable.
Remove the engine cover (1). Grasp both corners of the engine cover, and pull up firmly.

Fig 2: Removing/Installing Upper Air Cleaner Housing
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper air cleaner housing. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL) .

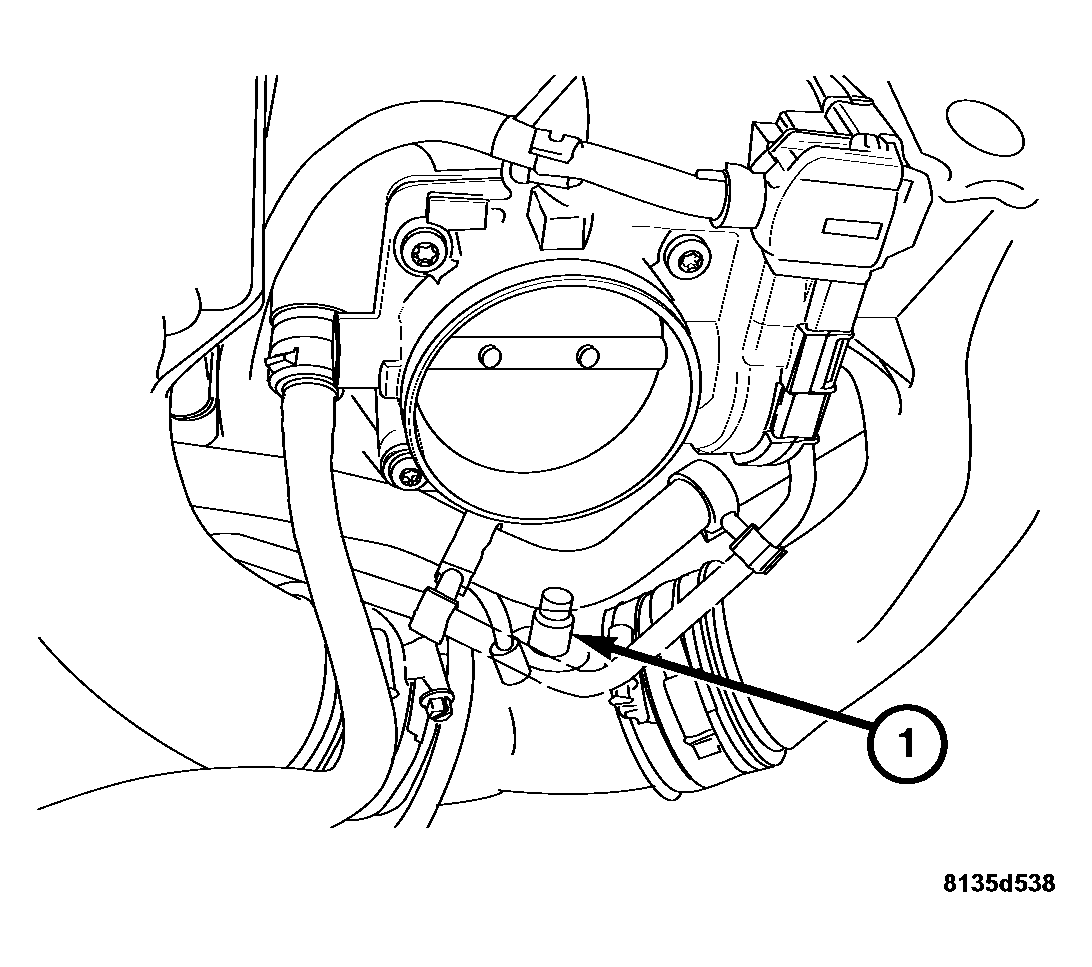

Fig 3: Locating Intake Air Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the intake air temperature sensor (1) harness connector.
Remove the intake air temperature sensor (1).
