Manifold Tune Valve: Description

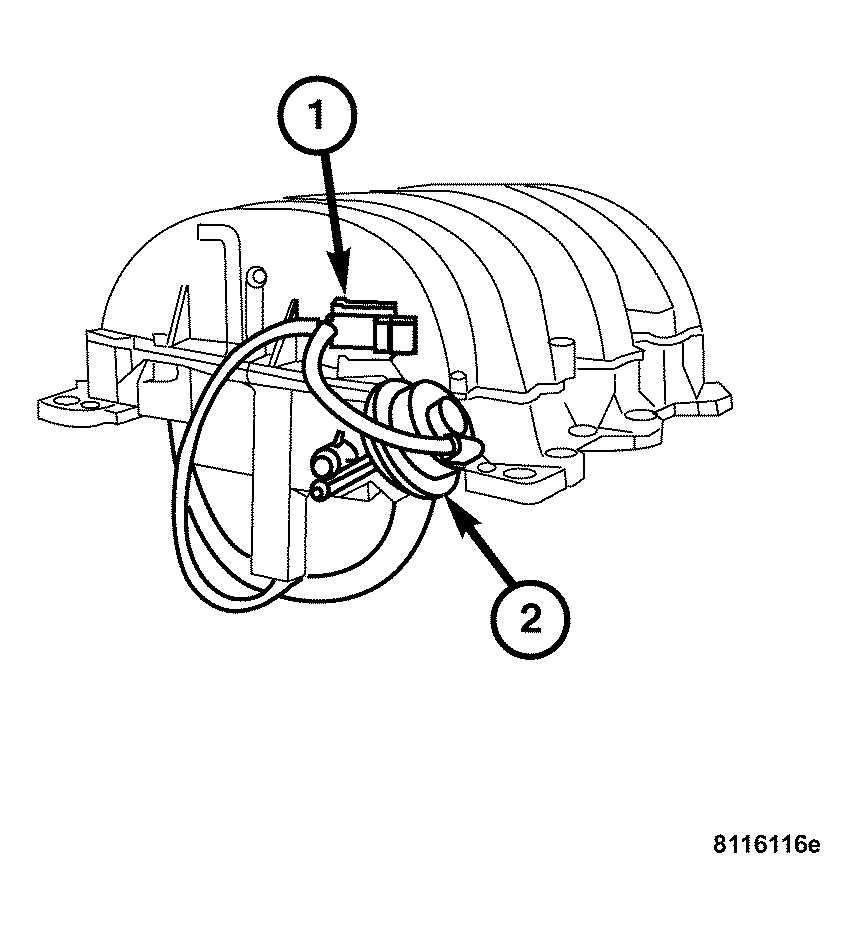

Fig 1: Identifying Vacuum Solenoid & Manifold Tune Valve

Courtesy of DAIMLERCHRYSLER CORP.

The Manifold Tune Valve (2) opens a crossover passage internal to the intake manifold plenum. It is operated by a vacuum solenoid (1), and is controlled by the Powertrain Control Module.
