Map Sensor: Description: Notes

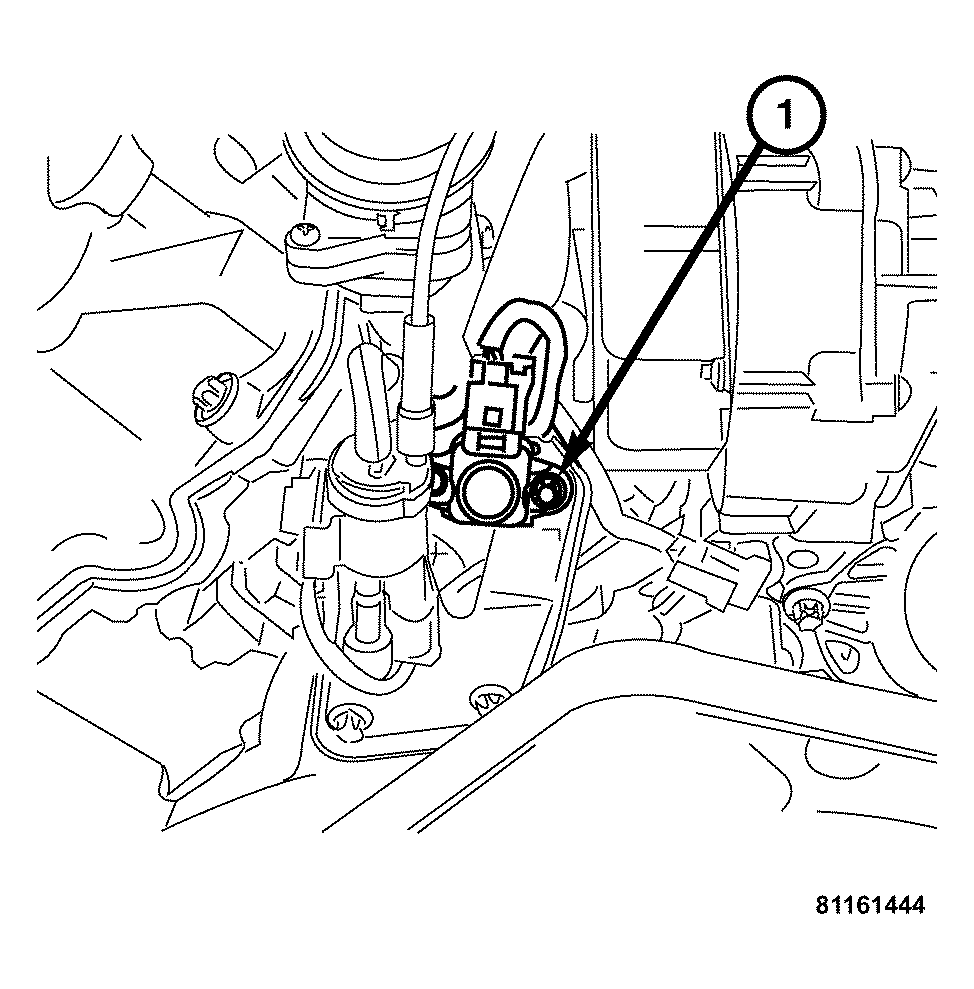

Fig 1: Locating MAP Sensor
GC0032353Courtesy of DAIMLERCHRYSLER CORP.

The Manifold Absolute Pressure (MAP) Sensor, is mounted to the front of the engine on the right side next to the air pump.
