(P2008) Short Runner Solenoid Circuit: Notes

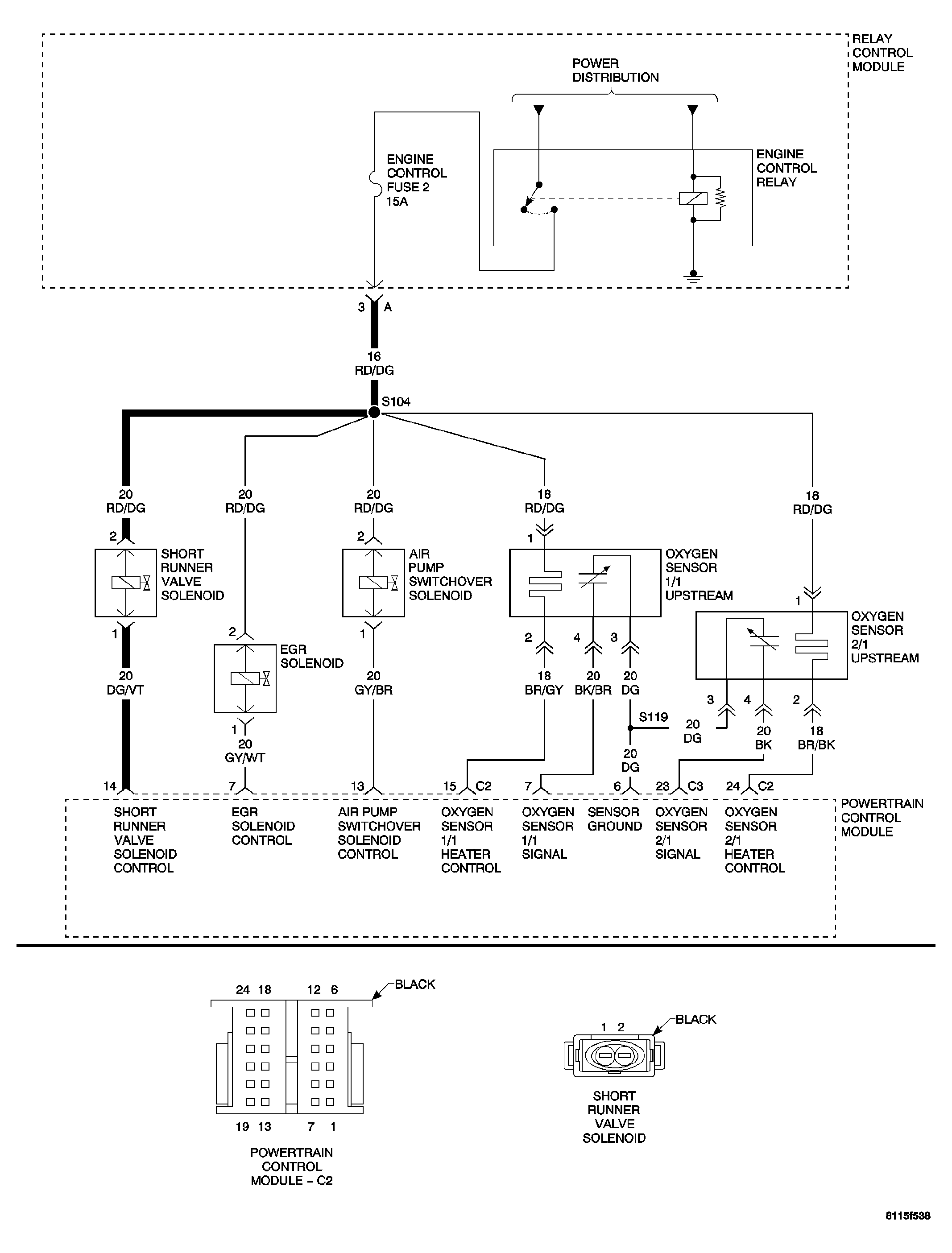

Fig 1: Short Runner Solenoid Circuit Schematic
GC0034362Courtesy of DAIMLERCHRYSLER CORP.
