Removal - SRT

Fig 1: Removing Engine Cover
GC0032344Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the engine cover. Grasp both of the corners of the front engine cover and pull up firmly.

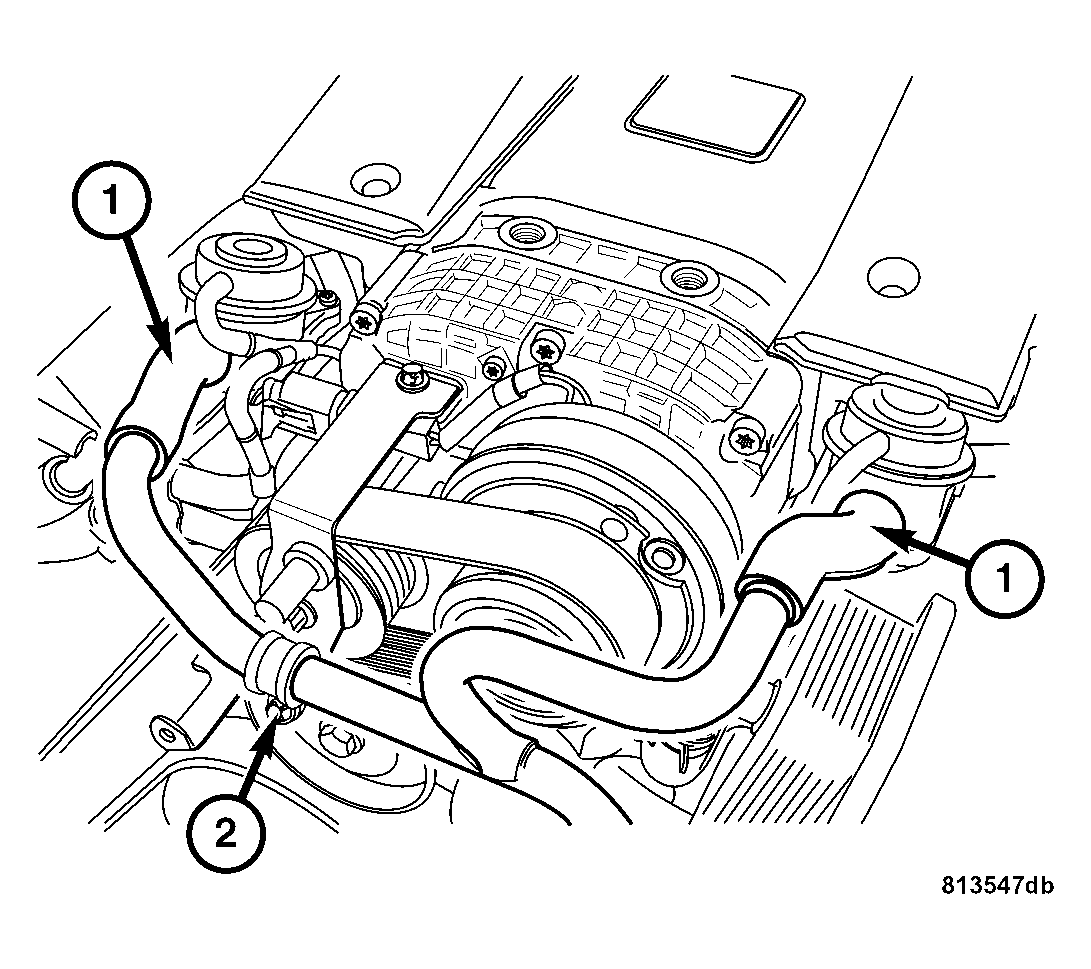

    Fig 2: Locating Air Pump Tubes
    GC0033628Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the air pump tube assembly retaining bolts (2).
  3. Disconnect the air pump tubes (1) from the air pump and solenoids.
  4. Remove the air pump tube assembly from the engine.
