Airbag Warning Indicator Circuit: Notes

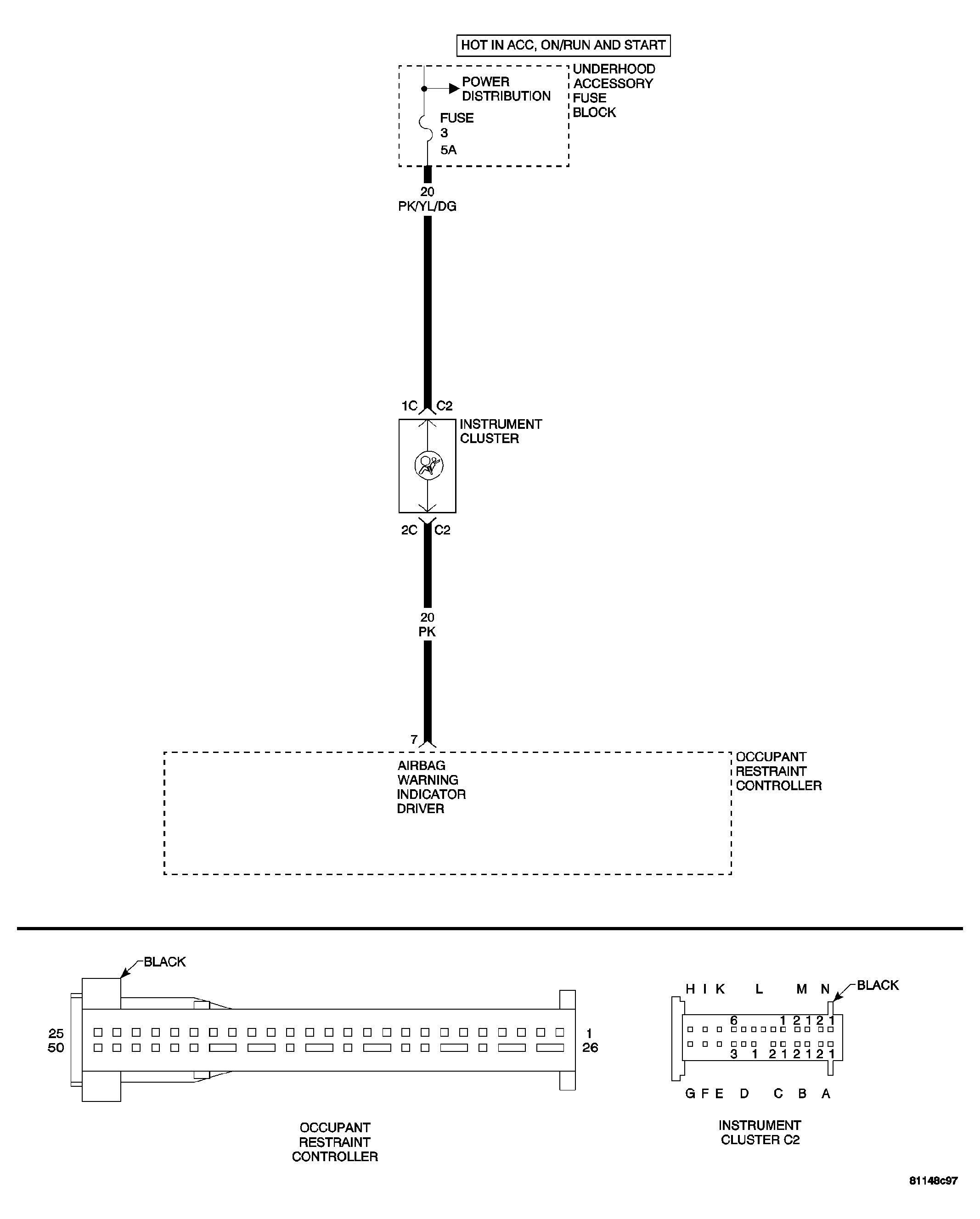

Fig 1: Airbag Warning Indicator Circuit Diagram
GC0035626Courtesy of DAIMLERCHRYSLER CORP.
